会话:调用TargetNotConnected操作时发生错误( StartSession操作：<instance_id>未连接)

Question

问题：

当我尝试使用AWS系统会话管理器CLI命令在本地连接到正在运行的EC2实例时：aws ssm start-session --target i-123456

我知道错误：

An error occurred (TargetNotConnected) when calling the StartSession operation: i-123456 is not connected.

背景：

• 托管在自定义VPC中的私有子网上的Linux 2实例
• VPC 端点用于将系统管理器连接到托管实例，而不需要NAT、GW或IGW。
• 端点服务名称：

com.amazonaws.us-west-2.s3
com.amazonaws.us-west-2.ec2
com.amazonaws.us-west-2.ec2messages
com.amazonaws.us-west-2.ssm
com.amazonaws.us-west-2.ssmmessages

• AWS CLI == 2.0.40
• Python == 3.7.4
• 自定义Terraform模块用于在一个专用子网中启动气流实例(请参阅下面的模块"airflow_aws_resources“)
• 与此问题相关的唯一.tf文件是模块"airflow_aws_resources“中的airflow.tf。此文件包含通过SSM连接的EC2实例的安全组和实例配置文件配置。

用Terraform复制：

module "airflow_aws_resources" {
  source                      = "github.com/marshall7m/tf_modules/airflow-aws-resources"
  resource_prefix             = "test"
  vpc_id                      = module.vpc.vpc_id
  env                         = "testing"
  private_bucket              = "test-bucket"
  private_subnets_ids         = module.vpc.private_subnets
  private_subnets_cidr_blocks = module.vpc.private_subnets_cidr_blocks

  create_airflow_instance     = true
  create_airflow_instance_sg  = true
  create_airflow_db           = false
  create_airflow_db_sg        = false
  airflow_instance_ssm_access = true
  airflow_instance_ssm_region = "us-west-2"

  airflow_instance_ami  = "ami-0841edc20334f9287"
  airflow_instance_type = "t2.micro"

}

resource "aws_security_group" "vpc_endpoints" {
  name        = "test-vpc-endpoint-sg"
  description = "Default security group for vpc endpoints"
  vpc_id = module.vpc.vpc_id

  ingress {
    from_port   = 80
    to_port     = 80
    protocol    = "tcp"
    cidr_blocks = ["10.0.0.32/28", "10.0.0.64/28"]
  }

  ingress {
    from_port   = 443
    to_port     = 443
    protocol    = "tcp"
    #private subnet cidr blocks
    cidr_blocks = ["10.0.0.32/28", "10.0.0.64/28"]
  }

  egress {
    from_port   = 443
    to_port     = 443
    protocol    = "tcp"
    cidr_blocks = ["10.0.0.32/28", "10.0.0.64/28"]
  }
  egress {
    from_port   = 80
    to_port     = 80
    protocol    = "tcp"
    cidr_blocks = ["10.0.0.32/28", "10.0.0.64/28"]
  }
}

module "vpc" {
  source = "terraform-aws-modules/vpc/aws"
  version = "2.44.0"
  name = "test-vpc"
  cidr = "10.0.0.0/24"

  azs = ["us-west-2a", "us-west-2b"]

  private_subnets = ["10.0.0.32/28", "10.0.0.64/28"]
  private_dedicated_network_acl = true
  private_subnet_suffix = "private"

  public_subnets = ["10.0.0.96/28", "10.0.0.128/28"]
  public_dedicated_network_acl = true
  public_subnet_suffix = "public"

  enable_s3_endpoint = true

  enable_ec2messages_endpoint = true
  ec2messages_endpoint_security_group_ids = [aws_security_group.vpc_endpoints.id]
  enable_ec2_endpoint = true
  ec2_endpoint_security_group_ids = [aws_security_group.vpc_endpoints.id]

  enable_ssm_endpoint = true
  ssm_endpoint_security_group_ids = [aws_security_group.vpc_endpoints.id]
  enable_ssmmessages_endpoint = true
  ssmmessages_endpoint_security_group_ids = [aws_security_group.vpc_endpoints.id]

  enable_nat_gateway = false
  single_nat_gateway = false
  enable_vpn_gateway = false

  create_database_subnet_route_table = false
  create_database_internet_gateway_route = false
  create_database_subnet_group = false

  manage_default_network_acl = false
  enable_dns_hostnames = true
  enable_dns_support = true

  private_inbound_acl_rules = [
    {
      "description": "Allows inbound https traffic for aws s3 package requests"
      "cidr_block": "0.0.0.0/0",
      "from_port": 443,
      "to_port": 443,
      "protocol": "tcp",
      "rule_action": "allow",
      "rule_number": 101
    },
    {
      "description": "Allows inbound http traffic for aws s3 package requests"
      "cidr_block": "0.0.0.0/0",
      "from_port": 80,
      "to_port": 80,
      "protocol": "tcp",
      "rule_action": "allow",
      "rule_number": 102
    }
  ]
  private_outbound_acl_rules = [
    {
      "description": "Allows outbound https traffic for aws s3 package requests"
      "cidr_block": "0.0.0.0/0",
      "from_port": 443,
      "to_port": 443,
      "protocol": "tcp",
      "rule_action": "allow",
      "rule_number": 101
    },
    {
      "description": "Allows outbound http traffic for aws s3 package requests"
      "cidr_block": "0.0.0.0/0",
      "from_port": 80,
      "to_port": 80,
      "protocol": "tcp",
      "rule_action": "allow",
      "rule_number": 102
    }
  ]

  vpc_endpoint_tags = {
    type = "vpc-endpoint"
  }
}

尝试：

#1

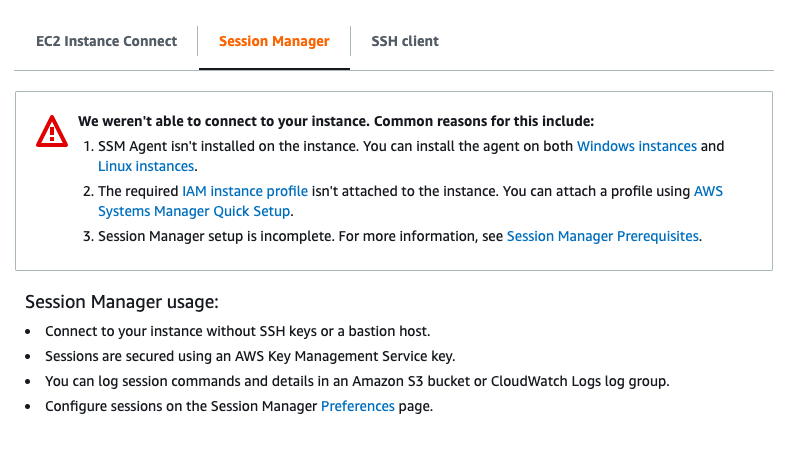

我在EC2控制台SSM (AWS Ec2 Console >> instance-id >> Connect >> Session Manager)中尝试了解决问题的技巧：

​

​

1. SSM代理已经预装在AWS Linux实例类型上。虽然我通过SSH访问实例并运行sudo status amazon-ssm-agent (返回：amazon-ssm-agent start/running, process 1234 )使检查加倍
2. 上面显示的EC2实例配置文件包括所需的AmazonSSMManagedInstanceCore策略。
3. 我完成了会话管理器的先决条件。

#2

使用以下命令将AmazonSSMFullAccess附加到用户：aws ssm start-session --target i-123456

通过SSM连接实例时相同的错误：

An error occurred (TargetNotConnected) when calling the StartSession operation: i-123456 is not connected.

#3

将HTTPS入站/出站流量从VPC端点的经过合并的私有子网添加到EC2实例安全组(请参阅airflow.tf)

同样的错误：

An error occurred (TargetNotConnected) when calling the StartSession operation: i-123456 is not connected.

#4

在“系统管理器”控制台中，我使用了“快速设置”选项，并使用airflow.tf中指定的实例配置文件和默认角色配置了“系统管理器”角色。ec2实例成功地在快速设置页面中注册了“托管实例”。

同样的错误：

An error occurred (TargetNotConnected) when calling the StartSession operation: i-123456 is not connected.

#5

考虑到这是一个测试VPC和EC2实例，我尝试允许来自所有IPv4源的所有类型的通信量(0.0.0.0/0)用于以下资源：

• 私有子网NACL
• EC2实例安全组
• 与以下接口/网关端点相关联的安全组：

com.amazonaws.us-west-2.s3
com.amazonaws.us-west-2.ec2
com.amazonaws.us-west-2.ec2messages
com.amazonaws.us-west-2.ssm
com.amazonaws.us-west-2.ssmmessages

通过SSM连接实例时相同的错误：

An error occurred (TargetNotConnected) when calling the StartSession operation: i-123456 is not connected.

Answer 1

我会请参阅这里，以确保您的一切设置正确。我首先要添加配置文件参数。如果这仍然不起作用，当我的概要文件默认区域不是我希望开始活动会话的区域时，我遇到了类似的问题。因此，我也需要使用区域参数。示例. .ssh/config如下：

host ssh i-abc123
ProxyCommand sh -c "aws --region desired_region --profile my_profile ssm start-session --target %h --document-name AWS-StartSSHSession --parameters 'portNumber=%p'"

我还鼓励使用AWS v2。配置. .ssh/config后，只需在CLI中执行以下操作：

ssh i-abc123

Answer 2

所以你可能需要使用个人资料。我使用OSX上的AWS CLI通过终端连接到VPC中的linux主机。这是一个只能通过SSO访问的帐户。我能够创建一个概要文件，并且在通过CLI对SSO进行身份验证之后，我可以建立这样的连接。

做一次

aws sso login --profile my_customer

然后，使用一个简单的命令(在我的osx终端上)验证sso登录是否成功。

 aws s3 ls --profile my_customer  custbucket-s3-sftp/rds/

现在建立会话管理器连接

 aws ssm start-session --profile my_customer  --target i-0012345abcdef890

我知道您正在使用python，但这可能会有所帮助。

Answer 3

在某些情况下，您必须验证以下内容：

• AWS帐户/概况
• AWS区

在一个案例中，我发现它试图连接到aws配置文件。

后来，在其他情况下，我连接到一个不同的区域。
