Sparkline返回空白表

Question

我试图在一个简单的可达示例中添加火花线，但当我尝试这样做时，该表返回为空。

我一直在跟踪文档中的这个示例。

这是我正在使用的示例数据：

    PartName <- c("550-1", "550-2", "550-3", "550-4")
    Orders <- c(50, 35, 2, 18)
    condensed <- data.frame(PartName, Orders)

    PartName <- c("550-1", "550-1", "550-1", "550-1", "550-1", "550-2", "550-2", "550-2", "550-2", "550-3", "550-4", "550-4", "550-4")
    Size <- c(10, 10, 10, 10, 10, 15, 5, 10, 5, 2, 6, 6, 6)
    Date <- as.Date(c("2020/10/01", "2020/12/01", "2021/01/01", "2021/03/01", "2021/04/01", "2020/12/01", "2021/03/01", "2021/04/01", "2021/06/01", "2020/11/01", "2020/10/01", "2020/11/01", "2020/12/01"))
    orders <- data.frame(PartName, Size, Date)

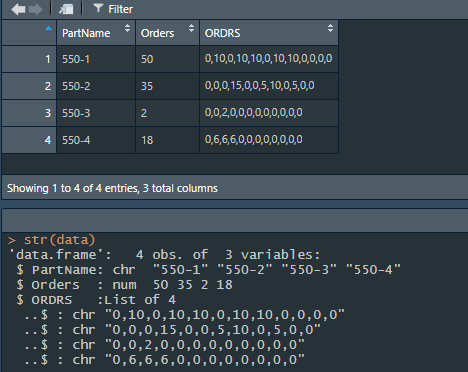

这就是我要传递给可达的数据的样子：

​

​

这是一个闪亮的应用程序：

    library(shiny)
    library(shinydashboard)
    library(sparkline)
    library(dplyr)
    library(tidyr)

    PartName <- c("550-1", "550-2", "550-3", "550-4")
    Orders <- c(50, 35, 2, 18)
    condensed <- data.frame(PartName, Orders)

    PartName <- c("550-1", "550-1", "550-1", "550-1", "550-1", "550-2", "550-2", "550-2", "550-2", "550-3", "550-4", "550-4", "550-4")
    Size <- c(10, 10, 10, 10, 10, 15, 5, 10, 5, 2, 6, 6, 6)
    Date <- as.Date(c("2020/10/01", "2020/12/01", "2021/01/01", "2021/03/01", "2021/04/01", "2020/12/01", "2021/03/01", "2021/04/01", "2021/06/01", "2020/11/01", "2020/10/01", "2020/11/01", "2020/12/01"))
    orders <- data.frame(PartName, Size, Date)

    df <- orders %>%
        dplyr::mutate(Date = format(Date, "%Y-%m-%d")) %>%
        dplyr::group_by(PartName) %>%
        tidyr::complete(Date = c('2020-09-01', '2020-10-01', '2020-11-01', '2020-12-01', '2021-01-01', '2021-02-01', '2021-03-01', '2021-04-01','2021-05-01', '2021-06-01', '2021-07-01', '2021-08-01'), fill = list(Size = 0)) %>%
        as.data.frame() %>%
        dplyr::group_by(PartName) %>%
        dplyr::summarize(ORDRS = paste0(Size, collapse = ",")) %>%
        dplyr::group_by(PartName) %>%
        dplyr::summarise(ORDRS = list(ORDRS))

    data <- condensed %>%
        left_join(df, by = c("PartName" = "PartName"))


    ui <- dashboardPage(

        dashboardHeader(title = "Title"),

        dashboardSidebar(
            sidebarMenu(),
            collapsed = TRUE
        ),

        dashboardBody(
            fluidRow(
                box(
                    title = "Table with sparklines", status = "primary", solidHeader = TRUE, collapsible = TRUE, width = 12,
                    reactableOutput("table")
                )
            )
        )
    )

    server <- function(input, output) {

        output$table <- renderReactable({
            reactable(data, columns = list(
                PartName = colDef(name = PN),
                Orders = colDef(name = Orders),
                ORDRS = colDef(cell = function(values) {
                    sparkline(values, type = "bar", chartRangeMin = 0, chartRangeMax = 12)
                     })
                # ORDRS = colDef(cell = function(value, index) {
                #     sparkline(data$ORDRS[[index]], type = "bar", chartRangeMin = 0, chartRangeMax = 12)
                #     })
            ))
        })
    }

    shinyApp(ui = ui, server = server)

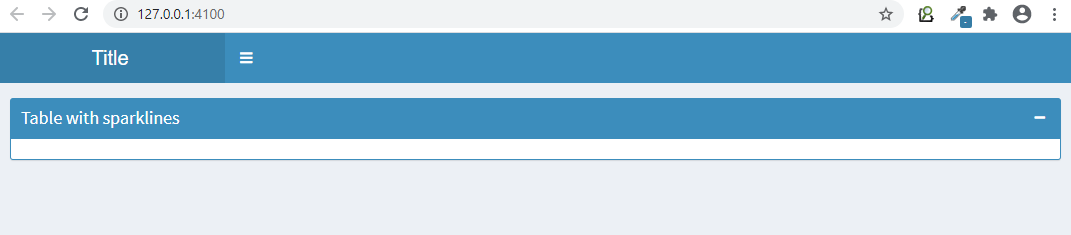

结果：

​

如果您删除此部分：

    ORDRS = colDef(cell = function(values) {
        sparkline(values, type = "bar", chartRangeMin = 0, chartRangeMax = 12)
         })

然后这张桌子就会呈现得很好。

在reactable参考手册中，这是colDef函数的cell参数的定义：

cell：自定义单元格渲染器。以单元格值、行索引和列名作为参数的R函数，或以单元格信息对象作为参数的JS()函数。

我不知道是怎么回事。你能帮我找出我的错误吗？

诚挚的问候。

Answer 1

愚蠢的错误，sparkline需要一个数字列表而不是字符列表。

更改：

df <- orders %>%
    dplyr::mutate(Date = format(Date, "%Y-%m-%d")) %>%
    dplyr::group_by(PartName) %>%
    tidyr::complete(Date = c('2020-09-01', '2020-10-01', '2020-11-01', '2020-12-01', '2021-01-01', '2021-02-01', '2021-03-01', '2021-04-01','2021-05-01', '2021-06-01', '2021-07-01', '2021-08-01'), fill = list(Size = 0)) %>%
    as.data.frame() %>%
    dplyr::group_by(PartName) %>%
    dplyr::summarize(ORDRS = paste0(Size, collapse = ",")) %>%
    dplyr::group_by(PartName) %>%
    dplyr::summarise(ORDRS = list(ORDRS))

适用于：

df <- orders %>%
    dplyr::mutate(Date = format(Date, "%Y-%m-%d")) %>%
    dplyr::group_by(PartName) %>%
    tidyr::complete(Date = c('2020-09-01', '2020-10-01', '2020-11-01', '2020-12-01', '2021-01-01', '2021-02-01', '2021-03-01', '2021-04-01','2021-05-01', '2021-06-01', '2021-07-01', '2021-08-01'), fill = list(Size = 0)) %>%
    as.data.frame() %>%
    dplyr::group_by(PartName) %>%
    dplyr::summarise(ORDRS = list(Size))

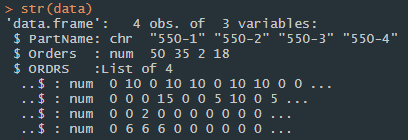

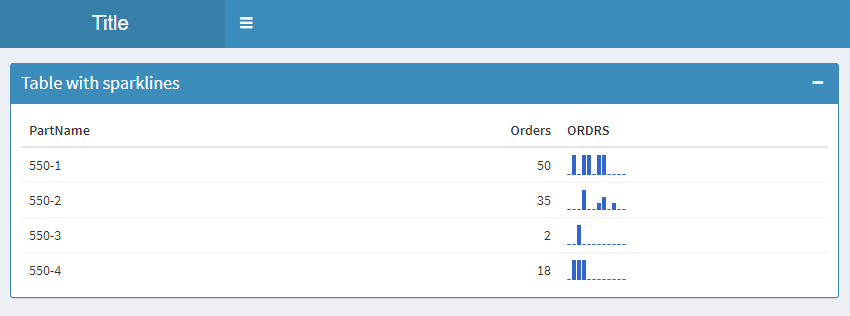

现在它显示了好的：

​

​

​
