使用Python的Choropleth地图

Question

我用python创建了一张合唱图，它显示了每个州基于纬度和经度的确诊病例。但是，我无法从数据集中输入我想要的数据。

下面是我尝试过的代码：

import plotly.graph_objects as go
import pandas as pd

df = pd.read_csv("COVID19-DATA-01-ONLYSTATES.csv")

fig = go.Figure(data=go.Choropleth(
    locations = df["AdminRegion1"],
    z = df["Confirmed"],
    locationmode = 'USA-states', # set of locations match entries in `locations`
    colorscale = 'Reds',

))

fig.update_layout(
    geo_scope='usa',
)

fig.show()

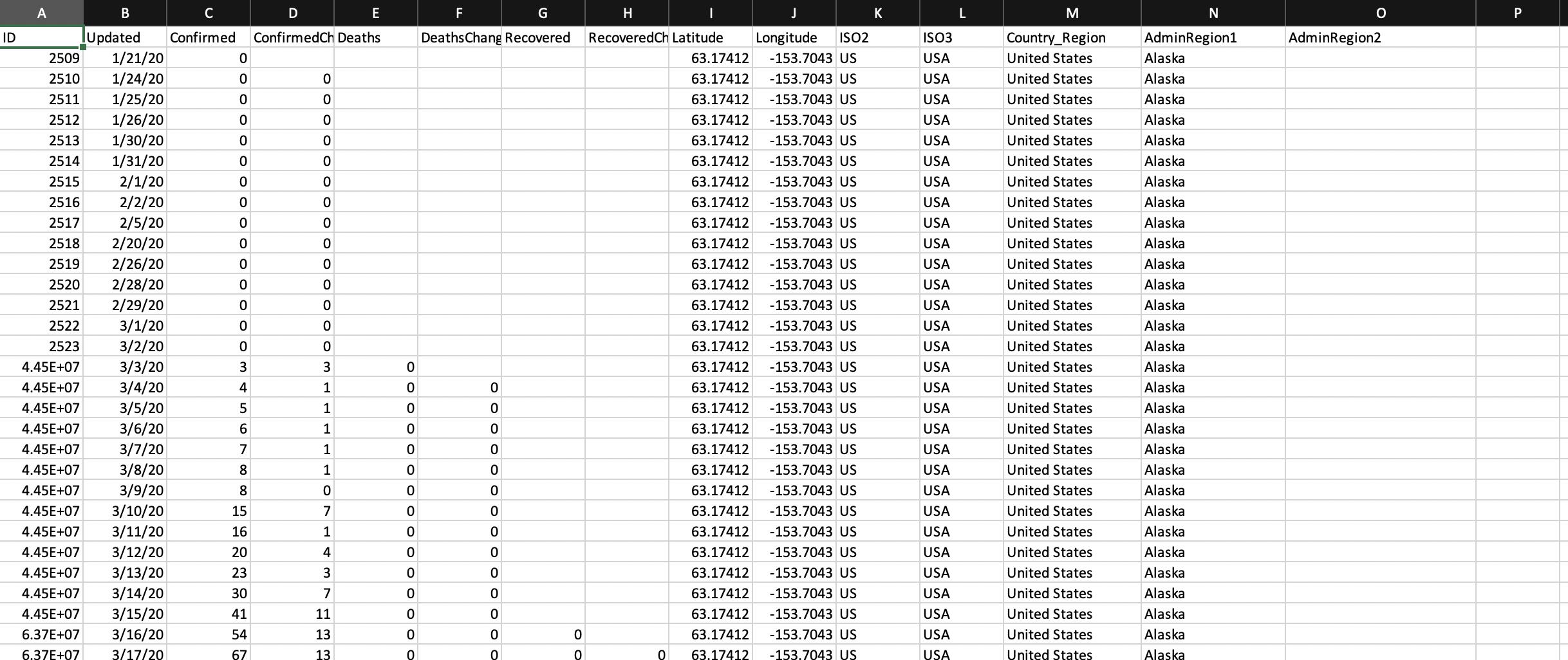

这是我的数据集的图片。

​

Answer 1

这个代码是为所有国家提供的数据所显示的，而且你也没有提到它。如果您希望访问特定国家，请在dataframe中添加STATE_CODE。(现在，STATE_CODE缺失) 检查。

在将原始数据绘制成地图之前，需要进行一些数据预处理。

数据预处理：

import pandas as pd
import plotly.graph_objs as go

df = pd.read_csv("Bing-COVID19-Data.csv")

selected_columns = ["ID", "Country_Region", "ISO3", "Updated", "Confirmed", "Deaths", "Recovered"] # select columns for plot
sdf = df[selected_columns]
sdf = sdf[sdf.ISO3.notnull()] # remove null from ISO3, like worldwide wont have any ISO code etc
sdf["Updated"] = pd.to_datetime(sdf.Updated) # Convert Updated column type from str to datetime

sdf = (sdf
       .loc[sdf.groupby('ISO3').Updated.idxmax()] # select only latest date for each contry as you have cumalative sum
       .reset_index(drop=True)
       .sort_values(["Country_Region"])
      )

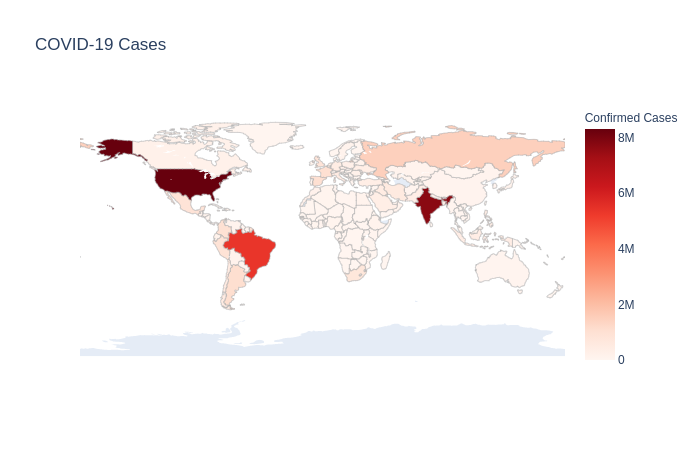

情节：

sdf = sdf.astype(str) # convert columns type to styr to make hover data in plot

sdf["hover_data"] = sdf['Country_Region'] + '<br>' + \
    'Updated: ' + sdf['Updated'] + '<br>' + \
    'Confirmed: ' + sdf['Confirmed'] + '<br>' + \
    'Deaths: ' + sdf['Deaths'] + '<br>' + 'Recovered: ' + sdf['Recovered']

fig = go.Figure(data=go.Choropleth(
    locations = sdf['ISO3'],
    z = sdf['Confirmed'],
    text = sdf['hover_data'],
    colorscale = 'Reds',
    autocolorscale=False,
    marker_line_color='darkgray',
    marker_line_width=0.5,
    colorbar_title = 'Confirmed Cases',
))

fig.update_layout(
    title_text='COVID-19 Cases',
    geo=dict(
        showframe=False,
        showcoastlines=False    )
)

fig.show()

​

​
