问在cmake中使用CodeSynthesis XSD链接错误cmake
EN

Stack Overflow用户
提问于 2020-11-05 17:20:12
回答 2查看 317关注 0票数 1

我一直试图将Synthesis包含到我的项目中，但不幸的是，在我将XML文件生成到cxx文件之后，我一直在处理一个链接问题。

这些是我的CMakelist.txt文件中应该包含并链接到我的可执行文件的代码行。备注：

  • 为了简单起见，我为SyntheXSD4.0的安装目录添加了一个硬编码的路径
  • 我在我的项目中包含了Box2D和SDL，它们以前一直在工作。您可以在此代码中忽略它们。
代码语言：javascript
复制
cmake_minimum_required(VERSION 3.17)
set(CMAKE_CXX_STANDARD 17)

set(CMAKE_CURRENT_BINARY_DIR ./build)
set(CMAKE_CURRENT_SOURCE_DIR .)
set(CMAKE_RUNTIME_OUTPUT_DIRECTORY ${CMAKE_BINARY_DIR}/bin)
set(CMAKE_LIBRARY_OUTPUT_DIRECTORY ${CMAKE_BINARY_DIR}/lib)

add_executable(NightByte ./Main.cpp
        # Game
        ./Game/Game.cpp
        ./Game/Components/Component.hpp
        ./Game/Components/RenderComponent.cpp
        ./Game/Components/RenderComponent.hpp
        ./Game/Components/WorldPositionComponent.cpp
        ./Game/Components/WorldPositionComponent.hpp
        ./Game/Scenes/Menu/MainMenu.hpp
        # Engine
        ./Engine/Engine.cpp
        ./Engine/Audio/AudioFile.cpp
        ./Engine/Audio/AudioFile.h
        ./Engine/Input/Adapter/SDLInputEngineAdapter.cpp
        ./Engine/Audio/Adapter/SDLAudioEngineAdapter.cpp
        ./Engine/Audio/Adapter/SDLAudioEngineAdapter.hpp
        ./Engine/Rendering/Spritesheet.cpp
        ./Engine/Rendering/TextureManager.cpp
        ./Engine/Rendering/Adapter/SDLRenderingAdaper.cpp
        # API
        ./API/Input/EngineInputAPI.cpp
        ./API/Audio/AudioAPI.cpp
        ./API/Rendering/EngineRenderingAPI.hpp
        ./API/Rendering/EngineRenderingAPI.cpp
        ./API/Engine/EngineWindowAPI.cpp
        ./API/Engine/WindowAPI.hpp
        # XML
        ./Engine/Resources/XML/Generated/wall.hxx
        ./Engine/Resources/XML/Generated/wall.cxx
        ./Engine/Resources/XML/Generated/common.hxx
        ./Engine/Resources/XML/Generated/common.cxx
        )

find_package(box2d REQUIRED)

target_include_directories(NightByte PUBLIC
        ${SDL2_SOURCE_DIR}/include
        ${BOX2D_SOURCE_DIR}/include/box2d
        ${SDL2IMAGE_SOURCE_DIR}
        "C:/Program Files (x86)/CodeSynthesis XSD 4.0/include/")

add_library(xerces "C:/Program Files (x86)/CodeSynthesis XSD 4.0/bin64/xerces-c_3_1D_vc120.dll"
        "C:/Program Files (x86)/CodeSynthesis XSD 4.0/bin64/xerces-c_3_1_vc120.dll"
        "C:/Program Files (x86)/CodeSynthesis XSD 4.0/lib64/vc-12.0/xerces-c_3.lib")

set_target_properties(xerces PROPERTIES LINKER_LANGUAGE CXX)

target_link_libraries(NightByte SDL2 box2d SDL2::image xerces)

这是编译生成的XML文件时遇到的错误：

代码语言：javascript
复制
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: CMakeFiles\NightByte.dir/objects.a(wall.cxx.obj): in function `xsd::cxx::xml::initialize()':
C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/elements.hxx:84: undefined reference to `__imp__ZN11xercesc_3_16XMLUni22fgXercescDefaultLocaleE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/elements.hxx:84: undefined reference to `__imp__ZN11xercesc_3_116XMLPlatformUtils10InitializeEPKcS2_PNS_12PanicHandlerEPNS_13MemoryManagerE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: CMakeFiles\NightByte.dir/objects.a(wall.cxx.obj): in function `xsd::cxx::xml::terminate()':
C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/elements.hxx:90: undefined reference to `__imp__ZN11xercesc_3_116XMLPlatformUtils9TerminateEv'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: CMakeFiles\NightByte.dir/objects.a(wall.cxx.obj): in function `xercesc_3_1::DOMErrorHandler::DOMErrorHandler()':
C:/PROGRA~2/CODESY~1.0/include/xercesc/dom/DOMErrorHandler.hpp:54: undefined reference to `__imp__ZTVN11xercesc_3_115DOMErrorHandlerE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: CMakeFiles\NightByte.dir/objects.a(wall.cxx.obj): in function `xercesc_3_1::DOMErrorHandler::~DOMErrorHandler()':
C:/PROGRA~2/CODESY~1.0/include/xercesc/dom/DOMErrorHandler.hpp:77: undefined reference to `__imp__ZTVN11xercesc_3_115DOMErrorHandlerE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: CMakeFiles\NightByte.dir/objects.a(wall.cxx.obj): in function `xsd::cxx::xml::sax::std_input_stream::std_input_stream(std::istream&)':
C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/sax/std-input-source.hxx:27: undefined reference to `__imp__ZN11xercesc_3_114BinInputStreamC2Ev'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: CMakeFiles\NightByte.dir/objects.a(wall.cxx.obj): in function `xsd::cxx::xml::sax::std_input_source::std_input_source(std::istream&)':
C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/sax/std-input-source.hxx:87: undefined reference to `__imp__ZN11xercesc_3_116XMLPlatformUtils15fgMemoryManagerE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/sax/std-input-source.hxx:87: undefined reference to `__imp__ZN11xercesc_3_111InputSourceC2EPNS_13MemoryManagerE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: CMakeFiles\NightByte.dir/objects.a(wall.cxx.obj): in function `xsd::cxx::xml::sax::std_input_source::makeStream() const':
C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/sax/std-input-source.hxx:141: undefined reference to `__imp__ZN11xercesc_3_17XMemorynwEy'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/sax/std-input-source.hxx:141: undefined reference to `__imp__ZN11xercesc_3_17XMemorydlEPv'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: CMakeFiles\NightByte.dir/objects.a(wall.cxx.obj): in function `std::unique_ptr<xercesc_3_1::DOMDocument, xsd::cxx::xml::dom::deleter<xercesc_3_1::DOMDocument> > xsd::cxx::xml::dom::create_document<char>()':
C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/wildcard-source.txx:29: undefined reference to `__imp__ZN11xercesc_3_125DOMImplementationRegistry20getDOMImplementationEPKt'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/wildcard-source.txx:32: undefined reference to `__imp__ZN11xercesc_3_116XMLPlatformUtils15fgMemoryManagerE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: CMakeFiles\NightByte.dir/objects.a(wall.cxx.obj): in function `std::unique_ptr<xercesc_3_1::DOMDocument, xsd::cxx::xml::dom::deleter<xercesc_3_1::DOMDocument> > xsd::cxx::xml::dom::parse<char>(std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > const&, xercesc_3_1::DOMErrorHandler&, xsd::cxx::xml::properties<char> const&, unsigned long)':
C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:264: undefined reference to `__imp__ZN11xercesc_3_125DOMImplementationRegistry20getDOMImplementationEPKt'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:266: undefined reference to `__imp__ZN11xercesc_3_116XMLPlatformUtils15fgMemoryManagerE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:273: undefined reference to `__imp__ZN11xercesc_3_16XMLUni13fgDOMCommentsE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:277: undefined reference to `__imp__ZN11xercesc_3_16XMLUni26fgDOMDatatypeNormalizationE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:284: undefined reference to `__imp__ZN11xercesc_3_16XMLUni13fgDOMEntitiesE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:288: undefined reference to `__imp__ZN11xercesc_3_16XMLUni15fgDOMNamespacesE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:292: undefined reference to `__imp__ZN11xercesc_3_16XMLUni29fgDOMElementContentWhitespaceE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:296: undefined reference to `__imp__ZN11xercesc_3_16XMLUni13fgDOMValidateE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:297: undefined reference to `__imp__ZN11xercesc_3_16XMLUni14fgXercesSchemaE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:298: undefined reference to `__imp__ZN11xercesc_3_16XMLUni26fgXercesSchemaFullCheckingE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:302: undefined reference to `__imp__ZN11xercesc_3_16XMLUni13fgDOMValidateE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:303: undefined reference to `__imp__ZN11xercesc_3_16XMLUni14fgXercesSchemaE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:310: undefined reference to `__imp__ZN11xercesc_3_16XMLUni29fgXercesHandleMultipleImportsE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:317: undefined reference to `__imp__ZN11xercesc_3_16XMLUni26fgXercesSchemaFullCheckingE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:322: undefined reference to `__imp__ZN11xercesc_3_16XMLUni29fgXercesUserAdoptsDOMDocumentE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:333: undefined reference to `__imp__ZN11xercesc_3_16XMLUni36fgXercesSchemaExternalSchemaLocationE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:343: undefined reference to `__imp__ZN11xercesc_3_16XMLUni47fgXercesSchemaExternalNoNameSpaceSchemaLocationE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:355: undefined reference to `__imp__ZN11xercesc_3_16XMLUni18fgXercesLoadSchemaE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:361: undefined reference to `__imp__ZN11xercesc_3_16XMLUni17fgDOMErrorHandlerE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: CMakeFiles\NightByte.dir/objects.a(wall.cxx.obj): in function `xsd::cxx::xml::sax::std_input_source::std_input_source<char>(std::istream&, std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > const&)':
C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/sax/std-input-source.hxx:102: undefined reference to `__imp__ZN11xercesc_3_116XMLPlatformUtils15fgMemoryManagerE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/sax/std-input-source.hxx:102: undefined reference to `__imp__ZN11xercesc_3_111InputSourceC2EPKtPNS_13MemoryManagerE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: CMakeFiles\NightByte.dir/objects.a(wall.cxx.obj): in function `std::unique_ptr<xercesc_3_1::DOMDocument, xsd::cxx::xml::dom::deleter<xercesc_3_1::DOMDocument> > xsd::cxx::xml::dom::parse<char>(xercesc_3_1::InputSource&, xercesc_3_1::DOMErrorHandler&, xsd::cxx::xml::properties<char> const&, unsigned long)':
C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:120: undefined reference to `__imp__ZN11xercesc_3_125DOMImplementationRegistry20getDOMImplementationEPKt'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:122: undefined reference to `__imp__ZN11xercesc_3_116XMLPlatformUtils15fgMemoryManagerE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:129: undefined reference to `__imp__ZN11xercesc_3_16XMLUni13fgDOMCommentsE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:133: undefined reference to `__imp__ZN11xercesc_3_16XMLUni26fgDOMDatatypeNormalizationE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:140: undefined reference to `__imp__ZN11xercesc_3_16XMLUni13fgDOMEntitiesE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:144: undefined reference to `__imp__ZN11xercesc_3_16XMLUni15fgDOMNamespacesE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:148: undefined reference to `__imp__ZN11xercesc_3_16XMLUni29fgDOMElementContentWhitespaceE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:152: undefined reference to `__imp__ZN11xercesc_3_16XMLUni13fgDOMValidateE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:153: undefined reference to `__imp__ZN11xercesc_3_16XMLUni14fgXercesSchemaE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:154: undefined reference to `__imp__ZN11xercesc_3_16XMLUni26fgXercesSchemaFullCheckingE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:158: undefined reference to `__imp__ZN11xercesc_3_16XMLUni13fgDOMValidateE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:159: undefined reference to `__imp__ZN11xercesc_3_16XMLUni14fgXercesSchemaE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:166: undefined reference to `__imp__ZN11xercesc_3_16XMLUni29fgXercesHandleMultipleImportsE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:172: undefined reference to `__imp__ZN11xercesc_3_16XMLUni26fgXercesSchemaFullCheckingE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:177: undefined reference to `__imp__ZN11xercesc_3_16XMLUni29fgXercesUserAdoptsDOMDocumentE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:188: undefined reference to `__imp__ZN11xercesc_3_16XMLUni36fgXercesSchemaExternalSchemaLocationE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:198: undefined reference to `__imp__ZN11xercesc_3_16XMLUni47fgXercesSchemaExternalNoNameSpaceSchemaLocationE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:210: undefined reference to `__imp__ZN11xercesc_3_16XMLUni18fgXercesLoadSchemaE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:216: undefined reference to `__imp__ZN11xercesc_3_16XMLUni17fgDOMErrorHandlerE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:218: undefined reference to `__imp__ZN11xercesc_3_116XMLPlatformUtils15fgMemoryManagerE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:218: undefined reference to `__imp__ZN11xercesc_3_119Wrapper4InputSourceC1EPNS_11InputSourceEbPNS_13MemoryManagerE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:218: undefined reference to `__imp__ZN11xercesc_3_119Wrapper4InputSourceD1Ev'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/dom/parsing-source.txx:218: undefined reference to `__imp__ZN11xercesc_3_119Wrapper4InputSourceD1Ev'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: CMakeFiles\NightByte.dir/objects.a(wall.cxx.obj):wall.cxx:(.rdata$_ZTVN3xsd3cxx3xml3sax16std_input_sourceE[_ZTVN3xsd3cxx3xml3sax16std_input_sourceE]+0x48): undefined reference to `xercesc_3_1::InputSource::setEncoding(unsigned short const*)'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: CMakeFiles\NightByte.dir/objects.a(wall.cxx.obj):wall.cxx:(.rdata$_ZTVN3xsd3cxx3xml3sax16std_input_sourceE[_ZTVN3xsd3cxx3xml3sax16std_input_sourceE]+0x50): undefined reference to `xercesc_3_1::InputSource::setPublicId(unsigned short const*)'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: CMakeFiles\NightByte.dir/objects.a(wall.cxx.obj):wall.cxx:(.rdata$_ZTVN3xsd3cxx3xml3sax16std_input_sourceE[_ZTVN3xsd3cxx3xml3sax16std_input_sourceE]+0x58): undefined reference to `xercesc_3_1::InputSource::setSystemId(unsigned short const*)'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: CMakeFiles\NightByte.dir/objects.a(wall.cxx.obj): in function `xsd::cxx::xml::sax::std_input_source::~std_input_source()':
C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/sax/std-input-source.hxx:83: undefined reference to `__imp__ZN11xercesc_3_111InputSourceD2Ev'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: CMakeFiles\NightByte.dir/objects.a(wall.cxx.obj): in function `xsd::cxx::xml::sax::std_input_source::~std_input_source()':
C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/sax/std-input-source.hxx:83: undefined reference to `__imp__ZN11xercesc_3_17XMemorydlEPv'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: CMakeFiles\NightByte.dir/objects.a(wall.cxx.obj): in function `xsd::cxx::xml::sax::std_input_stream::~std_input_stream()':
C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/sax/std-input-source.hxx:23: undefined reference to `__imp__ZN11xercesc_3_114BinInputStreamD2Ev'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: CMakeFiles\NightByte.dir/objects.a(wall.cxx.obj): in function `xsd::cxx::xml::sax::std_input_stream::~std_input_stream()':
C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/sax/std-input-source.hxx:23: undefined reference to `__imp__ZN11xercesc_3_17XMemorydlEPv'
collect2.exe: error: ld returned 1 exit status

更新1:

为了使情况更容易理解，我在DLL的旁边为这个库添加了.lib文件

​

更新2:

我已将add_library更改为：

代码语言：javascript
复制
add_library(xerces SHARED IMPORTED GLOBAL)
set_target_properties(xerces PROPERTIES IMPORTED_IMPLIB "C:/Program Files (x86)/CodeSynthesis XSD 4.0/lib64/vc-12.0/xerces-c_3.lib")
set_target_properties(xerces PROPERTIES IMPORTED_LOCATION "C:/Program Files (x86)/CodeSynthesis XSD 4.0/bin64/xerces-c_3_1_vc120.dll")

target_link_libraries(NightByte SDL2 box2d SDL2::image xerces)

但我仍然得到相同的链接CXX可执行错误：

代码语言：javascript
复制
[100%] Linking CXX executable bin\NightByte.exe
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: CMakeFiles\NightByte.dir/objects.a(wall.cxx.obj): in function `xsd::cxx::xml::initialize()':
C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/elements.hxx:84: undefined reference to `__imp__ZN11xercesc_3_16XMLUni22fgXercescDefaultLocaleE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/elements.hxx:84: undefined reference to `__imp__ZN11xercesc_3_116XMLPlatformUtils10InitializeEPKcS2_PNS_12PanicHandlerEPNS_13MemoryManagerE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: CMakeFiles\NightByte.dir/objects.a(wall.cxx.obj): in function `xsd::cxx::xml::terminate()':
C:/PROGRA~2/CODESY~1.0/include/xsd/cxx/xml/elements.hxx:90: undefined reference to `__imp__ZN11xercesc_3_116XMLPlatformUtils9TerminateEv'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: CMakeFiles\NightByte.dir/objects.a(wall.cxx.obj): in function `xercesc_3_1::DOMErrorHandler::DOMErrorHandler()':
C:/PROGRA~2/CODESY~1.0/include/xercesc/dom/DOMErrorHandler.hpp:54: undefined reference to `__imp__ZTVN11xercesc_3_115DOMErrorHandlerE'
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: CMakeFiles\NightByte.dir/objects.a(wall.cxx.obj): in function `xercesc_3_1::DOMErrorHandler::~DOMErrorHandler()':
C:/PROGRA~2/CODESY~1.0/include/xercesc/dom/DOMErrorHandler.hpp:77: undefined reference to `__imp__ZTVN11xercesc_3_115DOMErrorHandlerE'
[AND MORE]

更新3

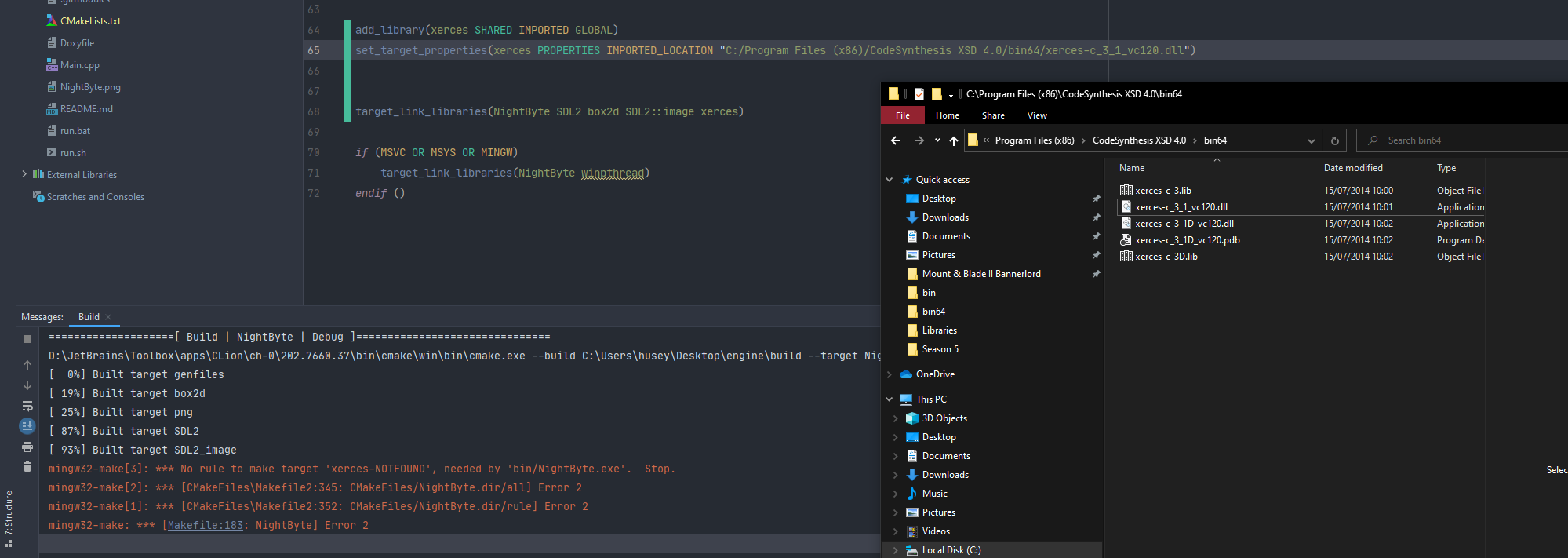

我以前使用过find_package，现在也在尝试(以及其他方法)。但是在这个场景中，当链接到make时，我会收到以下错误：

代码语言：javascript
复制
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: cannot find C:/Program Files (x86)/CodeSynthesis XSD 4.0: Permission denied

在Make中使用Verbose=1的

代码语言：javascript
复制
[other executions by make]

[ 44%] Built target box2d
C:/Users/husey/scoop/apps/make/current/bin/make.exe  -f CMakeFiles\NightByte.dir\build.make CMakeFiles/NightByte.dir/depend
make[2]: Entering directory 'C:/Users/husey/Desktop/engine/build'
D:\JetBrains\Toolbox\apps\CLion\ch-0\202.7660.37\bin\cmake\win\bin\cmake.exe -E cmake_depends "MinGW Makefiles" C:\Users\husey\Desktop\engine C:\Users\husey\Desktop\engine C:\Users\husey\Desktop\engine\build C:\Users\husey\Desktop\engine\build C:\Users\husey\Desktop\engine\build\CMakeFiles\NightByte.dir\DependInfo.cmake --color=
make[2]: Leaving directory 'C:/Users/husey/Desktop/engine/build'
C:/Users/husey/scoop/apps/make/current/bin/make.exe  -f CMakeFiles\NightByte.dir\build.make CMakeFiles/NightByte.dir/build
make[2]: Entering directory 'C:/Users/husey/Desktop/engine/build'
[ 44%] Linking CXX executable bin\NightByte.exe
D:\JetBrains\Toolbox\apps\CLion\ch-0\202.7660.37\bin\cmake\win\bin\cmake.exe -E cmake_link_script CMakeFiles\NightByte.dir\link.txt --verbose=1
D:\JetBrains\Toolbox\apps\CLion\ch-0\202.7660.37\bin\cmake\win\bin\cmake.exe -E rm -f CMakeFiles\NightByte.dir/objects.a
C:\msys64\mingw64\bin\ar.exe cr CMakeFiles\NightByte.dir/objects.a @CMakeFiles\NightByte.dir\objects1.rsp
C:\msys64\mingw64\bin\g++.exe -g   -Wl,--whole-archive CMakeFiles\NightByte.dir/objects.a -Wl,--no-whole-archive  -o bin\NightByte.exe -Wl,--out-implib,libNightByte.dll.a -Wl,--major-image-version,0,--minor-image-version,0 @CMakeFiles\NightByte.dir\linklibs.rsp
C:/msys64/mingw64/bin/../lib/gcc/x86_64-w64-mingw32/10.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: cannot find C:/Program Files (x86)/CodeSynthesis XSD 4.0: Permission denied
collect2.exe: error: ld returned 1 exit status
make[2]: *** [CMakeFiles\NightByte.dir\build.make:366: bin/NightByte.exe] Error 1
make[2]: Leaving directory 'C:/Users/husey/Desktop/engine/build'
make[1]: *** [CMakeFiles\Makefile2:345: CMakeFiles/NightByte.dir/all] Error 2
make[1]: Leaving directory 'C:/Users/husey/Desktop/engine/build'
make: *** [Makefile:149: all] Error 2
synthesis
c++
cmake
EN

回答 2

Stack Overflow用户

回答已采纳

发布于 2020-11-06 19:18:12

谢谢你们帮助我，如果没有你们，我可能就不会有更大的进展了。

我的问题是，我一直在使用MinGW编译器，但是我得到的CodeSynthesis库是用Visual的编译器构建的。

我还不能用MinGW进行编译，但是通过使用解决了这个问题。

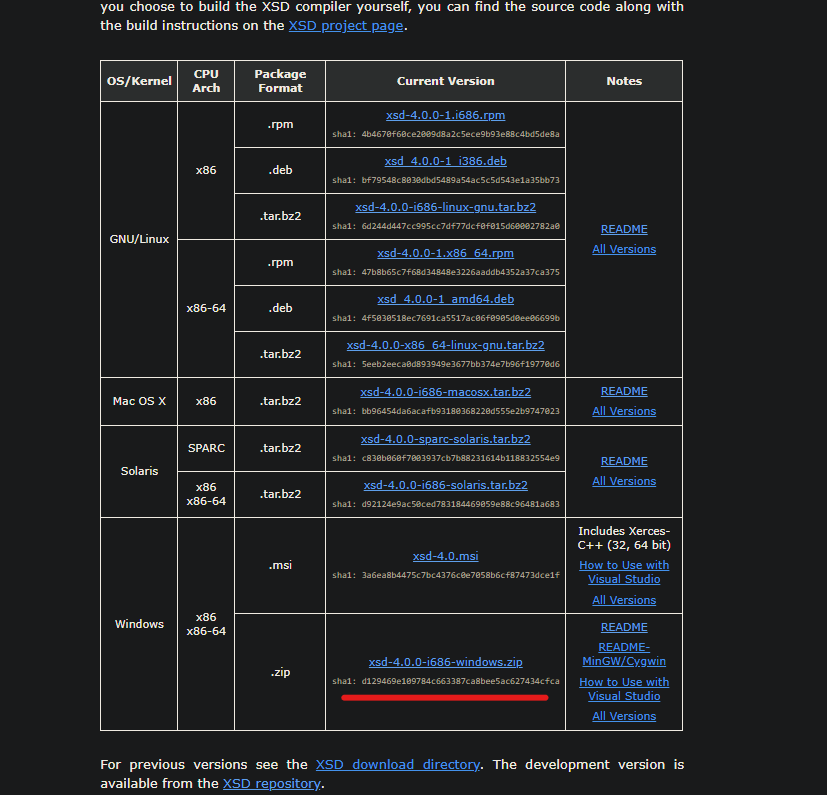

对于那些使用编译器的人，请下载以下内容：

​

票数 0
EN

Stack Overflow用户

发布于 2020-11-05 19:19:57

对于XercesC这样的标准库，CMake提供了一种将它们“包括”到您的项目中的标准方法，即find_package。

在您的示例中，您应该编写如下所示的内容，而不是手动adding_library：

代码语言：javascript
复制
# omitted the first part of CMakeLists ....

find_package(box2d REQUIRED)
find_package(XercesC REQUIRED)

target_include_directories(NightByte PUBLIC
        ${SDL2_SOURCE_DIR}/include
        ${BOX2D_SOURCE_DIR}/include/box2d
        ${SDL2IMAGE_SOURCE_DIR}
        )

target_link_libraries(NightByte SDL2 box2d SDL2::image XercesC::XercesC)

请注意以下事项：

  • XercesC的搜索方式与box2d相同
  • NightByte目标与XercesC::XercesC相链接。这是导入库，如果找到xercesc，则由FindXercesC.cmake创建。
  • 显式添加XercexC包含目录是不必要的，因为所有编译属性都是从XercesC::XercesC继承的。

顺便说一句，您的CMakeLists.txt还有其他几个问题。在第3和第4行中，您显式地设置了CMAKE_CURRENT_SOURCE_DIR和CMAKE_CURRENT_BINARY_DIR。简单地说，不要这样做，CMake会自动处理这些变量的值。

最后，这里是关于套餐、XercesC模块和CMake中现成的公园列表的文档(向下滚动到列表的“查找模块”)。

票数 1
EN
页面原文内容由Stack Overflow提供。腾讯云小微IT领域专用引擎提供翻译支持
原文链接：

https://stackoverflow.com/questions/64702169

复制
相关文章

相似问题

领券

腾讯云开发者

扫码关注腾讯云开发者

扫码关注腾讯云开发者

领取腾讯云代金券

热门产品

热门推荐

更多推荐

Copyright © 2013 - 2026 Tencent Cloud. All Rights Reserved. 腾讯云 版权所有

深圳市腾讯计算机系统有限公司 ICP备案/许可证号：粤B2-20090059 粤公网安备44030502008569号

腾讯云计算（北京）有限责任公司 京ICP证150476号 |  京ICP备11018762号

问题归档专栏文章快讯文章归档关键词归档开发者手册归档开发者手册 Section 归档
