当WiFi工作时，你能使用所有use 32的GPIO引脚吗？

Question

我有一个奇怪的现象，当我添加WiFi库和所有设置时，每3个传感器中就有2个停止工作。当我删除WiFi代码时，它的工作方式与以前一样。

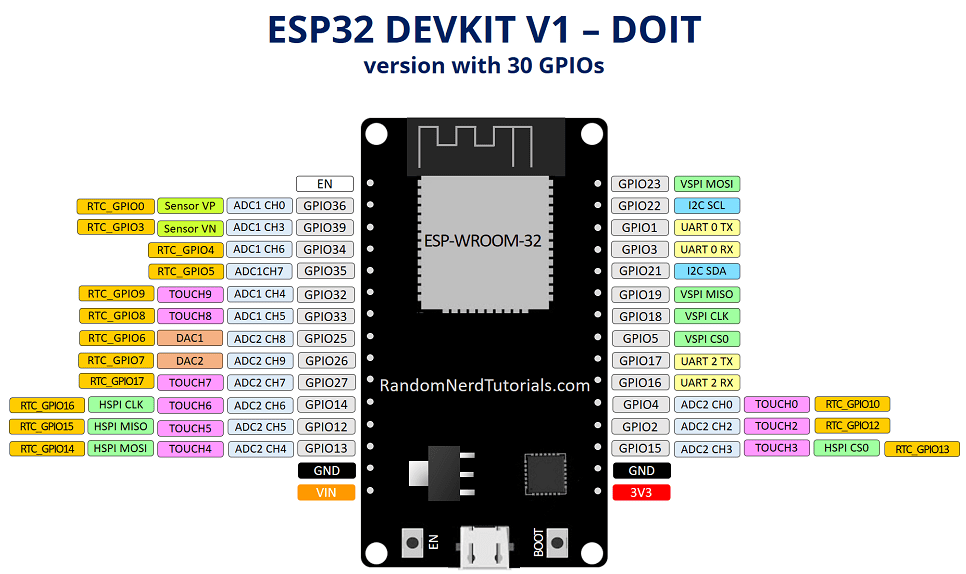

我有一个ESP32 devkit v1板和连接的3个传感器，它们是光敏电阻(ky-018)、dht-11和电容性土壤水分传感器。

• dht-11连接到D14 (works)；
• 连接到D13的光敏电阻(Ky-018)(不工作)；
• 电容土壤水分传感器连接到D15 (不工作)。

我试着换针脚，但没帮上忙。

​

​

以下是代码：

#include "DHT.h"
#include <WiFi.h>

#define DHTPIN 14       // Digital pin connected to the DHT sensor
#define DHTTYPE DHT11   // DHT 11

const char* ssid = "Cgates_E031F1"; // ESP32 and ESP8266 uses 2.4GHZ wifi only
const char* password = "60E541C32F";

DHT dht(DHTPIN, DHTTYPE);
const byte lightPin = 13;
int lightReading;
int lightReadingpercent=0;
const int RELAY_PIN = 15;    // the Arduino pin, which connects to the IN pin of relay
const int AirValue = 4095;   //you need to replace this value with Value_1
const int WaterValue = 2200; //you need to replace this value with Value_2
const int SensorPin = 15;    // Soil moisture

int soilMoistureValue = 0;
int soilmoisturepercent=0;
const int Lightvalue = 0;
const int Darkvalue = 4095;


void setup() {
  // put your setup code here, to run once:
  Serial.begin(9600);

  // begin Wifi connect
  Serial.print("Connecting to ");
  Serial.println(ssid);
  WiFi.mode(WIFI_STA);
  WiFi.disconnect();
  delay(2000);
  WiFi.begin(ssid, password);

  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }

  Serial.println("");
  Serial.println("WiFi connected");
  Serial.println("IP address: ");
  Serial.println(WiFi.localIP());
  //end Wifi connect

  pinMode(RELAY_PIN, OUTPUT);//relay

  Serial.println(F("DHTxx test!")); //dht
  ;
  dht.begin();
}

void loop() {
  // put your main code here, to run repeatedly:

  lightReading = analogRead(lightPin); //0-4095 12bit -- esp8266 10bit 0-1023 -- arduino 8bit 0-254

  Serial.print("Light reading = ");

  lightReadingpercent = map(lightReading, Darkvalue, Lightvalue,  0, 100 );
  Serial.print(lightReadingpercent);
  Serial.println(" %");
  Serial.println();

  delay(500);

  soilMoistureValue = analogRead(SensorPin);  //put Sensor insert into soil

  soilmoisturepercent = map(soilMoistureValue, AirValue, WaterValue, 0, 100);

  if (soilmoisturepercent > 100) {
    Serial.println("Soil moisture ");
    Serial.println("100 %");
    delay(500);
  } else if (soilmoisturepercent <0) {
    Serial.println("Soil moisture ");
    Serial.println("0 %");
    delay(500);
  } else if (soilmoisturepercent >=0 && soilmoisturepercent <= 100) {
    Serial.println("Soil moisture "); //go to next line
    Serial.print(soilmoisturepercent);
    Serial.println("%");
    delay(500); // soil end
  }

  // Wait a few seconds between measurements.
  delay(2000);

  // Reading temperature or humidity takes about 250 milliseconds!
  // Sensor readings may also be up to 2 seconds 'old' (its a very slow sensor)
  float h = dht.readHumidity();
  // Read temperature as Celsius (the default)
  float t = dht.readTemperature();
  // Read temperature as Fahrenheit (isFahrenheit = true)
  float f = dht.readTemperature(true);

  // Check if any reads failed and exit early (to try again).
  if (isnan(h) || isnan(t) || isnan(f)) {
    Serial.println(F("Failed to read from DHT sensor!"));
    return;
  }

  // Compute heat index in Fahrenheit (the default)
  float hif = dht.computeHeatIndex(f, h);
  // Compute heat index in Celsius (isFahreheit = false)
  float hic = dht.computeHeatIndex(t, h, false);

  Serial.print(F(" Humidity: "));
  Serial.print(h);
  Serial.print(F("%  Temperature: "));
  Serial.print(t);
  Serial.print(F("C "));
  Serial.print(f);
  Serial.print(F("F  Heat index: "));
  Serial.print(hic);
  Serial.print(F("C "));
  Serial.print(hif);
  Serial.println(F("F"));

  delay(500); //wait 0.5seconds
}

Answer 1

问题可能是，根据这个评论 on 问题 on GitHub：

ADC2引脚在使用WiFi时不能使用。另一方面，即使启用了ADC1，也可以使用WiFi引脚。

这可能是因为运行在具有ADC2外围设备的核心上的WiFi固件使用了ADC2。

这并不能解释为什么GPIO14适用于您，但是您仍然可以尝试只使用使用ADC1的GPIO引脚，看看它是否适合您。

另外，WiFi可以拉出相当多的电流，确保电源达到它的要求，这样你就不会有电压下降。
