Question

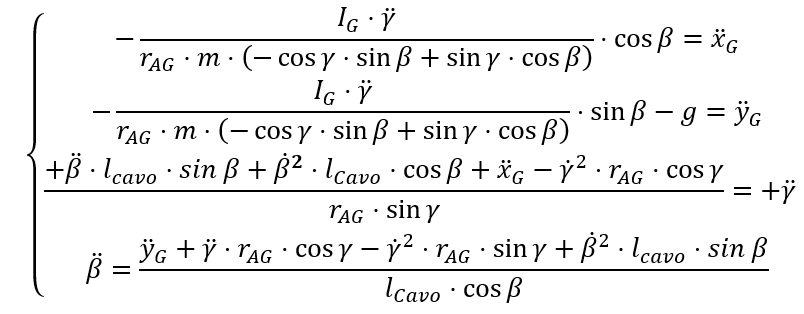

我在图中得到了四个微分方程的耦合系统。我有4个函数(xG；yG；γ；β)及其导数。它们都是同一个自变量t的函数。

我正试着用奥迪特来解决这个问题。问题是，为了做到这一点，我认为我需要用一种不依赖于其他二阶导数的方式来表达这个系统。这涉及到一定数量的数学，肯定会把我带到一个错误的地方(我试过了！)

你知道我是怎么做到的吗

1. 把这个微分方程组解成原样？
2. 或者让蟒蛇帮我分离第二种衍生物？

我正在附加测试代码。

谢谢

​

​

import numpy
import math
from numpy import loadtxt
from pylab import figure,  savefig
import matplotlib.pyplot as plt
# Use ODEINT to solve the differential equations defined by the vector field
from scipy.integrate import odeint



def vectorfield(w, t, p):
    """
    Defines the differential equations for the coupled system.

    Arguments:
        w :  vector of the state variables:
                  w = [Xg, Xg1 Yg, Yg1, Gamma, Gamma1, Beta, Beta1]
        t :  time
        p :  vector of the parameters:
                  p = [m, rAG, Ig,lcavo]
    """
#Xg is position ; Xg1 is the first derivative ; Xg2 is the second derivative (the same for the other functions)
        Xg, Xg1,  Yg, Yg1, Gamma, Gamma1, Beta, Beta1 = w
        Xg2=-(Ig*Gamma2*math.cos(Beta))/(rAG*m*(-math.cos(Gamma)*math.sin(Beta)+math.sin(Gamma)*math.cos(Beta)))
        Yg2=-(Ig*Gamma2*math.sin(Beta))/(rAG*m*(-math.cos(Gamma)*math.sin(Beta)+math.sin(Gamma)*math.cos(Beta)))-9.81
        Gamma2=((Beta2*lcavo*math.sin(Beta))+(Beta1**2*lcavo*math.cos(Beta))+(Xg2)-(Gamma1**2*rAG*math.cos(Gamma)))/(rAG*math.sin(Gamma))
        Beta2=((Yg2)+(Gamma2*rAG*math.cos(Gamma))-(Gamma1**2*rAG*math.sin(Gamma))+(Beta1**2*lcavo*math.sin(Beta)))/(lcavo*math.cos(Beta))
        m, rAG, Ig,lcavo, Xg2,  Yg2, Gamma2, Beta2 = p


    # Create f = (Xg', Xg1' Yg', Yg1', Gamma', Gamma1', Beta', Beta1'):
    f = [Xg1,
         Xg2,
         Yg1,
         Yg2,
         Gamma1,
         Gamma2,
         Beta1,
         Beta2]

    return f




# Parameter values
m=2.722*10**4
rAG=2.622
Ig=3.582*10**5
lcavo=4
# Initial conditions
Xg = 0.0
Xg1 = 0
Yg = 0.0
Yg1 = 0.0
Gamma=-2.52
Gamma1=0
Beta=4.7
Beta1=0

# ODE solver parameters
abserr = 1.0e-8
relerr = 1.0e-6
stoptime = 5.0
numpoints = 250

#create the time values
t = [stoptime * float(i) / (numpoints - 1) for i in range(numpoints)]
Deltat=t[1]
# Pack up the parameters and initial conditions:
p = [m, rAG, Ig,lcavo, Xg2,  Yg2, Gamma2, Beta2]
w0 = [Xg, Xg1,  Yg, Yg1, Gamma, Gamma1, Beta, Beta1]

# Call the ODE solver.
wsol = odeint(vectorfield, w0, t, args=(p,),
              atol=abserr, rtol=relerr)

Answer 1

您需要将所有二阶导数重写为一阶导数，并一起求解8 ODE：

​

​

那么你需要所有衍生工具的初始条件，但你似乎已经有了。您的代码没有运行(line 71: NameError: name 'Xg2' is not defined)，请检查它。

另外，有关更多信息，请参见二阶ODE的数值求解。

编辑#1:在第一步，您需要解耦方程组。虽然您可以手动解决这个问题，但我不建议您这样做，所以让我们使用sympy模块：

import sympy as sm
from sympy import symbols

# define symbols. I assume all the variables are real-valued, this helps the solver. If not, I believe the result will be the same, but just calculated slower
Ig, gamma, gamma1, gamma2, r, m, beta, beta1, beta2, xg2, yg2, g, l = symbols('I_g, gamma, gamma1, gamma2, r, m, beta, beta1, beta2, xg2, yg2, g, l', real = True)

# define left hand sides as expressions
# 2nd deriv of gamma
g2 = (beta2 * l * sm.sin(beta) + beta1**2 *l *sm.cos(beta) + xg2 - gamma1**2 *r * sm.cos(gamma))/(r*sm.sin(gamma))
# 2nd deriv of beta
b2 = (yg2 + gamma2 * r * sm.cos(gamma) - gamma1**2 *r * sm.sin(gamma) + beta1**2 *l *sm.sin(beta))/(l*sm.cos(beta))
# 2nd deriv of xg
x2 = -Ig*gamma2*sm.cos(beta)/(r*m*(-sm.sin(beta)*sm.cos(gamma) + sm.sin(gamma)*sm.cos(beta)))
# 2nd deriv of yg
y2 = -Ig*gamma2*sm.sin(beta)/(r*m*(-sm.sin(beta)*sm.cos(gamma) + sm.sin(gamma)*sm.cos(beta))) - g

# now let's solve the system of four equations to decouple second order derivs
# gamma2 - g2 means "gamma2 - g2 = 0" to the solver. The g2 contains gamma2 by definition
# one could define these equations the other way, but I prefer this form
result = sm.solve([gamma2-g2,beta2-b2,xg2-x2,yg2-y2],
                  # this line tells the solver what variables we want to solve to
                  [gamma2,beta2,xg2,yg2] )
# print the result
# note that it is long and ugly, but you can copy-paste it as python code
for res in result:
    print(res, result[res])

现在，我们有所有的二阶导数解耦。例如，beta2的表达式是

​

所以它(以及所有其他二阶导数)都有这样的形式

​

​

请注意，不依赖于xg或yg。

让我们介绍两个新变量，b和k：

​

然后，

变成了

​

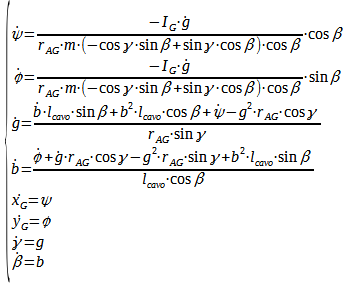

需要解决的整个系统是

​

​

现在所有的乐谱都依赖于四个变量，这些变量不是任何事物的导数。另外，由于xg和yg是退化的，所以也只有6个方程，而不是8个。然而，我们可以像gamma和beta那样重写这两个方程，从而得到完整的8个方程组，并将其集成在一起。
