Grafana -将IIS与URL重写一起用作反向代理

Question

我希望Grafana成为IIS中网站下的子路径或子文件夹，添加ssl证书，使用https。

我已经查看了本教程：https://grafana.com/tutorials/iis/

defaults.ini

# The http port to use
http_port = 3000

# The public facing domain name used to access grafana from a browser
domain = localhost

# Redirect to correct domain if host header does not match domain
# Prevents DNS rebinding attacks
enforce_domain = false

# The full public facing url
root_url = %(protocol)s://%(domain)s:%(http_port)s/

custom.ini

# The http port  to use
;http_port = 8080

# The public facing domain name used to access grafana from a browser
domain = localhost:8080

# Redirect to correct domain if host header does not match domain
# Prevents DNS rebinding attacks
;enforce_domain = false

# The full public facing url you use in browser, used for redirects and emails
# If you use reverse proxy and sub path specify full url (with sub path)
;root_url = %(protocol)s://%(domain)s:%(http_port)s/ds/
root_url = %(protocol)s://%(domain)s/ds/

在http://localhost:8080/ds上，我被拒绝了连接。因此，任何正在运行的应用程序都不会使用此端口。

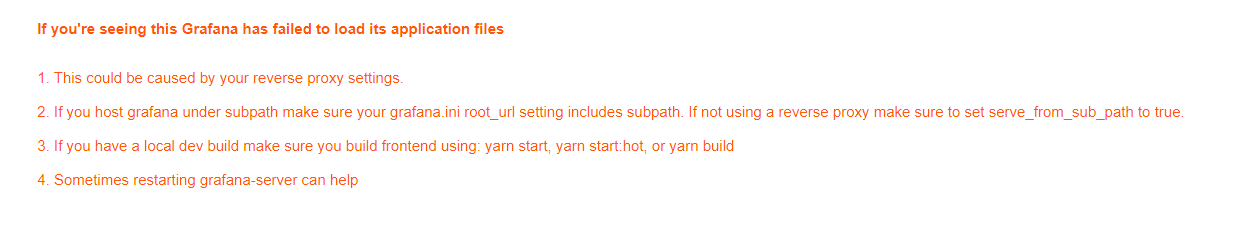

在http://localhost:3000/上我得到了这样的信息：

If you're seeing this Grafana has failed to load its application files

1. This could be caused by your reverse proxy settings.

2. If you host grafana under subpath make sure your grafana.ini root_url setting includes subpath. If not using a reverse proxy make sure to set serve_from_sub_path to true.

3. If you have a local dev build make sure you build frontend using: yarn start, yarn start:hot, or yarn build

4. Sometimes restarting grafana-server can help

​

​

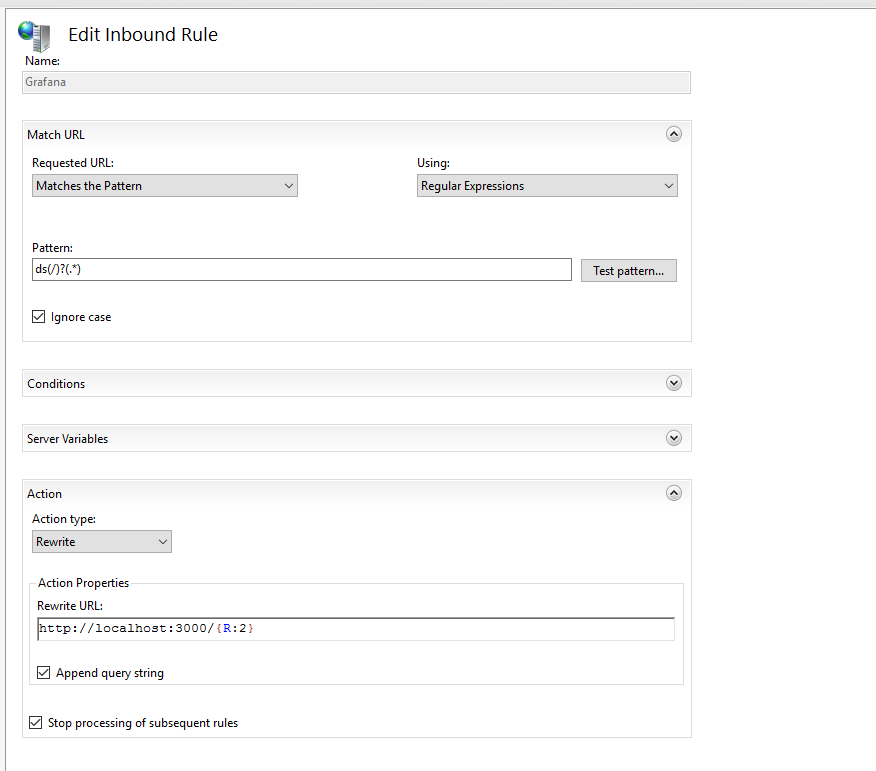

IIS重写设置：

​

Answer 1

根据https://grafana.com/tutorials/run-grafana-behind-a-proxy/#1

[server]
domain = example.com
root_url = %(protocol)s://%(domain)s:%(http_port)s/grafana/
serve_from_sub_path = true
