"Unnest“重叠时间间隔

Question

我正试图为一组以领先/滞后方式工作的过滤器创建一些情节。

关于领先/滞后的简短描述：

当一个新的过滤器上线时，它被放置在滞后位置，这意味着水通过主过滤器(也称铅过滤器)后通过它。当铅过滤器堵塞时，电流滞后滤波器被移动到引线位置。总之，过滤器从滞后位置开始，然后被撞到引线位置。

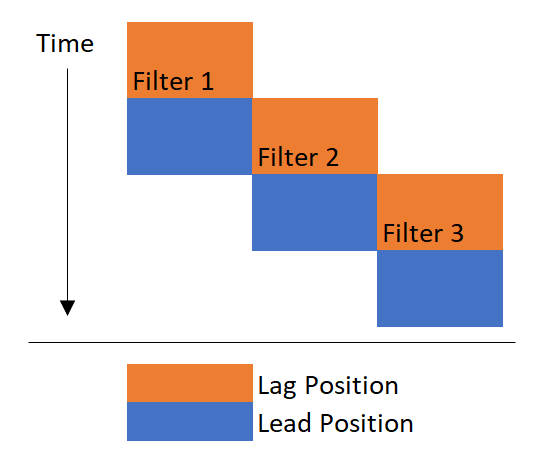

从视觉上看，你可以这样想象：

​

​

我需要做的是“不嵌套”(因为没有一个更好的词)有重叠的时间。换句话说，我希望每个过滤器都有一个连续运行的时间戳，而不管它所处的领先/滞后位置。

这些数据的结构如下：

data <- structure(list(record_timestamp = structure(c(1608192000, 1608192060, 1608192120, 1608192180, 1608192240, 1608192300, 1608192360, 1608192420, 1608192480, 1608192540, 1608192600, 1608192660, 1608192720, 1608192780, 1608192840, 1608192900, 1608192960, 1608193020, 1608193080, 1608193140, 1608193200, 1608193260, 1608193320, 1608193380, 1608193440, 1608193500, 1608193560, 1608193620, 1608193680, 1608193740, 1608193800), class = c("POSIXct", "POSIXt"), tzone = "UTC"), flow = c(20, 20, 20, 20, 20, 20, 20, 20, 20, 20, 20, 15, 15, 15, 15, 15, 15, 15, 15, 15, 15, 10, 10, 10, 10, 10, 10, 10, 10, 10, 10), lag_start = structure(c(1608192000, 1608192000, 1608192000, 1608192000, 1608192000, 1608192000, 1608192000, 1608192000, 1608192000, 1608192000, 1608192000, 1608192660, 1608192660, 1608192660, 1608192660, 1608192660, 1608192660, 1608192660, 1608192660, 1608192660, 1608192660, 1608193260, 1608193260, 1608193260, 1608193260, 1608193260, 1608193260, 1608193260, 1608193260, 1608193260, 1608193260), class = c("POSIXct", "POSIXt"), tzone = "UTC"), lead_start = structure(c(NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, 1608192660, 1608192660, 1608192660, 1608192660, 1608192660, 1608192660, 1608192660, 1608192660, 1608192660, 1608192660, 1608193260, 1608193260, 1608193260, 1608193260, 1608193260, 1608193260, 1608193260, 1608193260, 1608193260, 1608193260), class = c("POSIXct", "POSIXt"), tzone = "UTC"), changeout_interval = new("Interval",     .Data = c(0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 660, 0, 0, 0, 0,     0, 0, 0, 0, 0, 600, 0, 0, 0, 0, 0, 0, 0, 0, 0, NA), start = structure(c(1608192000,     1608192000, 1608192000, 1608192000, 1608192000, 1608192000,     1608192000, 1608192000, 1608192000, 1608192000, 1608192000,     1608192660, 1608192660, 1608192660, 1608192660, 1608192660,     1608192660, 1608192660, 1608192660, 1608192660, 1608192660,     1608193260, 1608193260, 1608193260, 1608193260, 1608193260,     1608193260, 1608193260, 1608193260, 1608193260, 1608193260    ), tzone = "UTC", class = c("POSIXct", "POSIXt")), tzone = "UTC")), class = c("spec_tbl_df", "tbl_df", "tbl", "data.frame"), row.names = c(NA, -31L), spec = structure(list(    cols = list(record_timestamp = structure(list(), class = c("collector_character",     "collector")), flow = structure(list(), class = c("collector_double",     "collector")), polish_start = structure(list(), class = c("collector_character",     "collector")), lead_start = structure(list(), class = c("collector_character",     "collector"))), default = structure(list(), class = c("collector_guess",     "collector")), skip = 1), class = "col_spec"))

我对最终结果的设想数据看起来是这样的：

end_data <- structure(list(record_timestamp = structure(c(1608192000, 1608192060,1608192120, 1608192180, 1608192240, 1608192300, 1608192360, 1608192420,1608192480, 1608192540, 1608192600, 1608192660, 1608192720, 1608192780,1608192840, 1608192900, 1608192960, 1608193020, 1608193080, 1608193140,1608193200, 1608192660, 1608192720, 1608192780, 1608192840, 1608192900,1608192960, 1608193020, 1608193080, 1608193140, 1608193200, 1608193260,1608193320, 1608193380, 1608193440, 1608193500, 1608193560,1608193620,1608193680, 1608193740, 1608193800), class = c("POSIXct", "POSIXt"), tzone = "UTC"), flow = c(20, 20, 20, 20, 20, 20, 20, 20, 20, 20, 20, 15, 15, 15, 15, 15, 15, 15, 15, 15, 15, 10, 10, 10, 10, 10, 10, 10, 10, 10, 10, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA), lag_start = structure(c(1608192000, 1608192000, 1608192000,1608192000, 1608192000, 1608192000, 1608192000, 1608192000,1608192000,1608192000, 1608192000, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, 1608192660, 1608192660, 1608192660, 1608192660, 1608192660, 1608192660,1608192660, 1608192660, 1608192660, 1608192660, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA), class = c("POSIXct", "POSIXt"), tzone = "UTC"), lead_start = structure(c(NA, NA, NA, NA, NA, NA, NA, NA,NA, NA, NA, 1608192660, 1608192660, 1608192660, 1608192660,1608192660, 1608192660, 1608192660, 1608192660, 1608192660,1608192660, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, 1608193260,1608193260, 1608193260, 1608193260, 1608193260, 1608193260,1608193260, 1608193260, 1608193260, 1608193260), class = c("POSIXct","POSIXt"), tzone = "UTC"), filter_id = c(1, 1, 1, 1, 1, 1,1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2)), class = c("spec_tbl_df",                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                       "tbl_df", "tbl", "data.frame"), row.names = c(NA, -41L), spec = structure(list(cols = list(record_timestamp = structure(list(), class = c("collector_character","collector")), flow = structure(list(), class = c("collector_double","collector")), polish_start = structure(list(), class = c("collector_character","collector")), lead_start = structure(list(), class = c("collector_character", "collector")), filter_id = structure(list(), class = c("collector_double","collector"))), default = structure(list(), class = c("collector_guess","collector")), skip = 1), class = "col_spec"))

这将使时间戳加倍，但它将允许更容易地绘制，因为我可以在group_by列上使用filter_id。

到目前为止，我有一组时间间隔，为每个过滤器，从开始到结束，领导通过滞后。这是密码：

intervals <-  data %>%
  distinct(lag_start, .keep_all = TRUE) %>%
  mutate(changeout_interval = interval(lag_start, lead(lag_start, 2))) %>%
  select(record_timestamp, changeout_interval)

从那里，我如何过滤所有的时间戳，属于每一个时间间隔？就像有条件的pivot_longer。

最终目标是能够用几行ggplot2来绘制过滤器的完整生命周期，包括领导和滞后。下面是我对情节的设想：

grouped_data <- data %>%
  group_by(lag_start) %>%
  mutate(elapsed_time = difftime(record_timestamp,
                                  record_timestamp[1],
                                  units = "mins"),
         total_flow = cumsum(flow))

ggplot(grouped_data, aes(x = elapsed_time, y = total_flow)) +
  geom_line(aes(color = as.factor(lag_start)))

但是，这个图不包括每个过滤器的流，当它变成引线位置时。

Answer 1

使用dense_rank按lag_start对筛选器进行分组，然后每个过滤器创建一个记录。这使得信息以宽格式保存，因为interval和end_data具有不同的数据结构。

library(dplyr)
library(lubridate)

data %>%
  select(-changeout_interval) %>% # example only as interval appeared to calculate this
  mutate(filter_id = dense_rank(lag_start)) %>%
  group_by(filter_id) %>%
  slice(1) %>%
  ungroup() %>%
  mutate(lead_start = lead(lead_start), lead_end = lead(lead_start), changeout_interval = interval(lag_start, lead_end))

# A tibble: 3 x 7
  record_timestamp     flow lag_start           lead_start          filter_id lead_end
  <dttm>              <dbl> <dttm>              <dttm>                  <int> <dttm>
1 2020-12-17 08:00:00    20 2020-12-17 08:00:00 2020-12-17 08:11:00         1 2020-12-17 08:21:00
2 2020-12-17 08:11:00    15 2020-12-17 08:11:00 2020-12-17 08:21:00         2 NA
3 2020-12-17 08:21:00    10 2020-12-17 08:21:00 NA                          3 NA

更新，以回应对问题的澄清补充。使用相同的dense_rank方法，然后通过pivot_longer切换到长格式，从而使cumsum需求更易于绘制。

library(dplyr)
library(tidyr)
library(ggplot2)

plot_data <- data %>%
  select(-changeout_interval) %>% # example only as interval appeared to calculate this
  mutate(filter_lag = dense_rank(lag_start),
         filter_lead = filter_lag - 1) %>%
  select(-lag_start, -lead_start) %>%
  pivot_longer(cols = starts_with("filter_"),
               names_to = "position",
               names_prefix = "filter_",
               values_to = "filter") %>%
  filter(filter > 0) %>% # drops the starting filter as data shows no lead filter?
  group_by(filter) %>%
  mutate(elapsed_time = difftime(record_timestamp, record_timestamp[1], units = "mins"),
         rolling_flow = cumsum(flow))

绘制elapsed_time和rolling_flow

ggplot(plot_data, aes(x = as.numeric(elapsed_time),
                      y = rolling_flow,
                      color = factor(filter))) +
  geom_line()

​

​
