UICollectionViewCompositionalLayout瀑布

Question

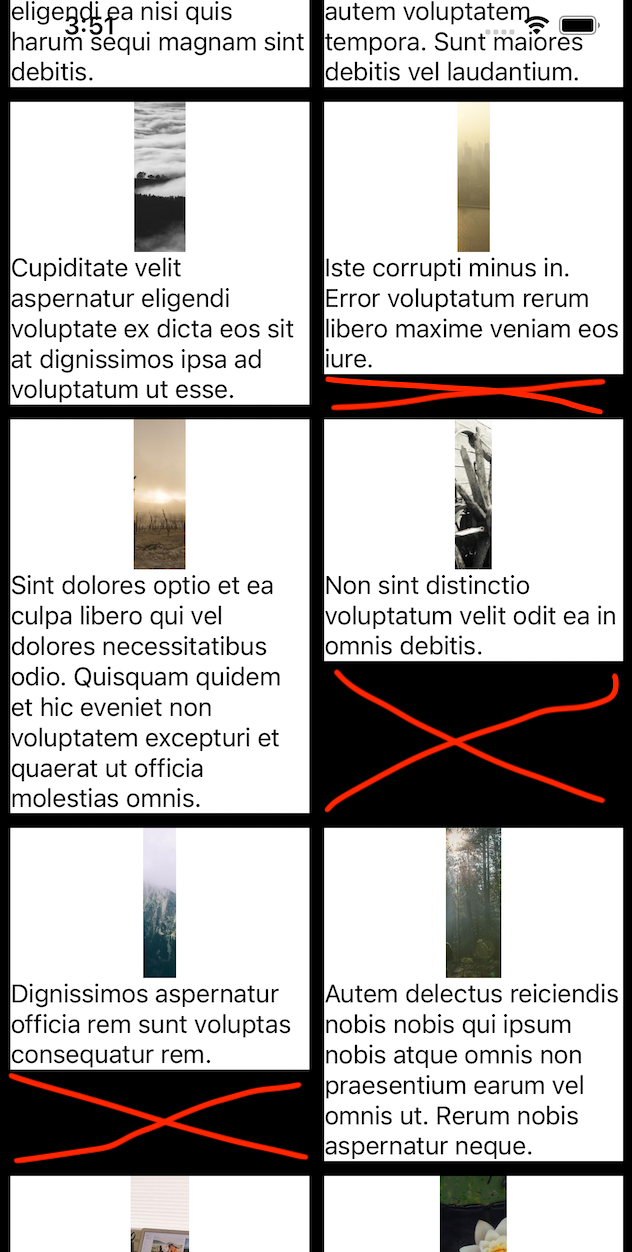

请有人指导我如何创建一个“瀑布”布局。到目前为止，我所创造的是下面。但正如你所看到的，我想要去掉间隔。

func createTwoColumnsLayout() -> UICollectionViewLayout {
    let itemSize = NSCollectionLayoutSize(widthDimension: .fractionalWidth(1.0),
                                          heightDimension: .estimated(250))

    let item = NSCollectionLayoutItem(layoutSize: itemSize)

    let groupSize = NSCollectionLayoutSize(widthDimension: .fractionalWidth(1.0),
                                          heightDimension: .estimated(250))

    let group = NSCollectionLayoutGroup.horizontal(layoutSize: groupSize, subitem: item, count: 2)
    let spacing = CGFloat(10)
    group.interItemSpacing = .fixed(spacing)

    let section = NSCollectionLayoutSection(group: group)
    section.interGroupSpacing = spacing
    section.contentInsets = NSDirectionalEdgeInsets(top: 0, leading: 10, bottom: 0, trailing: 10)

    let layout = UICollectionViewCompositionalLayout(section: section)
    return layout
}

​

​

Answer 1

经过大量的研究，我发现了一个实用的布局。https://github.com/eeshishko/WaterfallTrueCompositionalLayout

要创建瀑布/兴趣布局，可以创建单个自定义组，并按其框架和索引插入每个项，而不是提供布局大小。

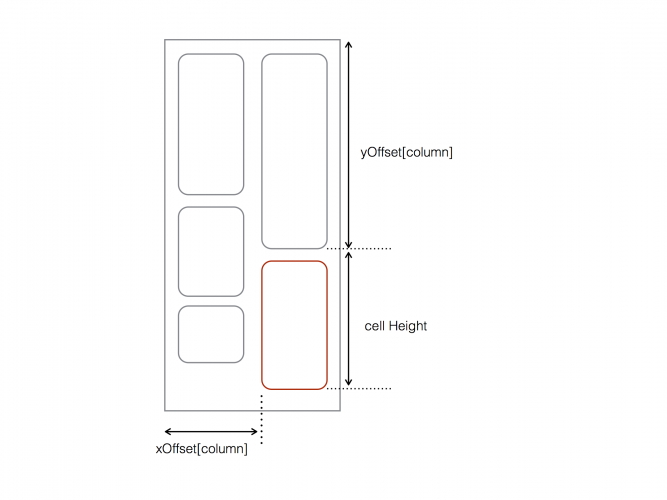

可以将外部边框视为组，将每一列视为项：

​

若要创建必须使用NSCollectionLayoutGroup.custom的组，请执行以下操作。自定义组需要一个layoutSize和一个itemProvider。布局的大小将是整个collectionView。

layoutSize:

let groupLayoutSize = NSCollectionLayoutSize(
            widthDimension: .fractionalWidth(1),
            heightDimension: .absolute(itemProvider.maxColumnHeight()) // the height calculation of the whole collectionView
        )

itemProvider的类型是：NSCollectionLayoutGroupCustomItemProvider，它是一个包含NSCollectionLayoutEnvironment并返回NSCollectionLayoutGroupCustomItem数组的闭包的类型别名。

let group = NSCollectionLayoutGroup.custom(layoutSize: groupLayoutSize) { _ in
    // here we need to return an array of NSCollectionLayoutGroupCustomItem
}

现在，对每个项目的框架的计算将决定组中每个项目的排列。

        var items = [NSCollectionLayoutGroupCustomItem]()


        let itemProvider = LayoutBuilder( // responsible for the calculations of the watefall layout
            configuration: config,
            collectionWidth: enviroment.container.contentSize.width
        )

        for i in 0..<config.itemCountProvider() {
            let item = itemProvider.makeLayoutItem(for: i)
            items.append(item)
        }

makeLayoutItem：

func makeLayoutItem(for row: Int) -> NSCollectionLayoutGroupCustomItem {
            let frame = frame(for: row)
            columnHeights[columnIndex()] = frame.maxY + interItemSpacing
            return NSCollectionLayoutGroupCustomItem(frame: frame)
        }

框架：

func frame(for row: Int) -> CGRect {
        let width = columnWidth
        let height = itemHeightProvider(row, width)
        let size = CGSize(width: width, height: height)
        let origin = itemOrigin(width: size.width)
        return CGRect(origin: origin, size: size)
    }

配置：

struct Configuration {
        public let columnCount: Int
        public let interItemSpacing: CGFloat
        public let sectionHorizontalSpacing: CGFloat
        public let contentInsetsReference: UIContentInsetsReference
        public let itemHeightProvider: ItemHeightProvider
        public let itemCountProvider: ItemCountProvider

        public init(
            columnCount: Int = 2,
            interItemSpacing: CGFloat = 8,
            sectionHorizontalSpacing: CGFloat = 0,
            contentInsetsReference: UIContentInsetsReference = .automatic,
            itemCountProvider: @escaping ItemCountProvider,
            itemHeightProvider: @escaping ItemHeightProvider
        ) {
            self.columnCount = columnCount
            self.interItemSpacing = interItemSpacing
            self.sectionHorizontalSpacing = sectionHorizontalSpacing * 2
            self.contentInsetsReference = contentInsetsReference
            self.itemCountProvider = itemCountProvider
            self.itemHeightProvider = itemHeightProvider
        }
    }

现在唯一缺少的是，我们事先不知道每个项目的大小。LayoutBuilder必须知道每个项目的高度来计算框架。这可以通过像https://www.kodeco.com/4829472-uicollectionview-custom-layout-tutorial-pinterest这样的委托来实现，也可以通过像本例中那样的闭包来实现：

typealias ItemHeightProvider = (_ index: Int, _ itemWidth: CGFloat) -> CGFloat

现在，我可以在创建布局时将图像的高度返回到闭包：

let layout = WaterfallTrueCompositionalLayout.makeLayoutSection(
            config: .init(
                columnCount: 2,
                interItemSpacing: 10,
                sectionHorizontalSpacing: sectionHorizontalSpacing,
                itemCountProvider:  {
                    return items.count
                },
                itemHeightProvider: { index, _ in
                    return items[index].image.size.height
                }),
            enviroment: env, sectionIndex: 1
        )

由于还有很多需要讨论的内容，所以我在github：https://github.com/vebbis321/WaterfallCompostionalLayout上创建了一个完全工作的演示项目。
