bitwarden_rs不支持traefikv2.2(坏网关)

Question

因此，我试图将bitwarden_rs添加到我的码头网络，但似乎失败了。

我还在traefik (nextcloud.mydomain.com)后面运行了一个nextcloud容器，运行良好。但是，在traefik中添加带有自己的子域(bitwarden.mydomain.com)的位管理员并不想开始工作。我总是收到一个糟糕的网关错误。

Traefik码头-合成

version: "3"

services:
  traefik:
    image: traefik:latest
    container_name: traefik
    restart: always
    command:
      - --log.level=DEBUG
      - --api.insecure
      - --api.dashboard
      - --providers.file.directory=/FileProvider/
      - --providers.file.watch=true
      - --providers.docker
      - --providers.docker.exposedbydefault=false
      - --providers.docker.endpoint=unix:///var/run/docker.sock
      - --entrypoints.web.address=:80
      - --entrypoints.websecure.address=:443
      - --certificatesresolvers.letsencryptresolver.acme.email=my@email.com
      - --certificatesresolvers.letsencryptresolver.acme.storage=./letsencrypt/acme.json
      - --certificatesresolvers.letsencryptresolver.acme.httpchallenge.entrypoint=web
      - --certificatesresolvers.letsencryptresolver.acme.httpchallenge=true
    ports:
      - 80:80
      - 443:443
      - 8080:8080
    volumes:
      - ...
    networks:
      - local-lan
    labels:
      - --traefik.http.middlewares.https.redirectscheme.scheme=https
      - --traefik.http.routers.https_redirect.middlewares=https
      - --traefik.http.routers.https_redirect.rule=(Host(`bitwarden.mydomain.com`) || Host(`nextcloud.mydomain.com`))
      - --traefik.http.routers.https_redirect.entrypoints=web
      - --traefik.docker.network=local-lan

networks:
  local-lan:
      external: true

traefik动态配置

middlewares:
  ncHeader:
    headers:
      customResponseHeaders:
        stsPreload: true
        stsSeconds: 15552000
  redirect:
    redirectScheme:
      scheme: https

bitwarden_rs对接组合

version: '3'

services:
  bitwarden:
    image: bitwardenrs/server:latest
    container_name: bitwarden
    restart: always
    volumes:
      - /home/reggi/bitwarden/data:/data
    environment:
      - WEBSOCKET_ENABLED=true
      - WEB_VAULT_ENABLED=true
      - SIGNUPS_ALLOWED=true
      - ADMIN_TOKEN=xxxxxxxxxxx
    ports:
      - 3012:3012
      - 4500:80
    networks:
      - local-lan
    labels:
      - traefik.enable=true
      - traefik.docker.network=local-lan
      - traefik.http.services.bitwarden-ui.loadbalancer.server.port=4500
      - traefik.http.services.bitwarden-ui.loadbalancer.server.scheme=http

      - traefik.http.routers.bitwarden-ui-https.rule=Host(`bitwarden.mydomain.com`)
      - traefik.http.routers.bitwarden-ui-https.entrypoints=websecure
      - traefik.http.routers.bitwarden-ui-https.tls=true
      - traefik.http.routers.bitwarden-ui-https.tls.certresolver=letsencryptresolver
      - traefik.http.routers.bitwarden-ui-https.service=bitwarden-ui@docker

      - traefik.http.routers.bitwarden-ui-http.rule=Host(`bitwarden.mydomain.com`)
      - traefik.http.routers.bitwarden-ui-http.entrypoints=web
      - traefik.http.routers.bitwarden-ui-http.service=bitwarden-ui@docker

      - traefik.http.routers.bitwarden-websocket-https.rule=Host(`bitwarden.mydomain.com`) && Path(`/notifications/hub`)
      - traefik.http.routers.bitwarden-websocket-https.entrypoints=websecure
      - traefik.http.routers.bitwarden-websocket-https.tls=true
      - traefik.http.routers.bitwarden-websocket-https.tls.certresolver=letsencryptresolver
      - traefik.http.routers.bitwarden-websocket-https.service=bitwarden-websocket
      - traefik.http.routers.bitwarden-websocket-http.rule=Host(`bitwarden.mydomain.com`) && Path(`/notifications/hub`)
      - traefik.http.routers.bitwarden-websocket-http.entrypoints=web
      - traefik.http.routers.bitwarden-websocket-http.service=bitwarden-websocket
      - traefik.http.services.bitwarden-websocket.loadbalancer.server.port=3012

networks:
 local-lan:
    external: true

这两个容器在这种配置下运行良好，但出于某种原因，当我导航到http(s)://bitwarden.mydomain.com时，我会得到一个不好的网关。

当我导航到我的服务器时，IP:4500位监狱长打开，这意味着码头容器运行良好。在我的traefik日志中，我可以找到以下错误：time="2021-03-10T21:06:35Z" level=debug msg="'502 Bad Gateway' caused by: dial tcp 17.32.0.8:4500: connect: connection refused"

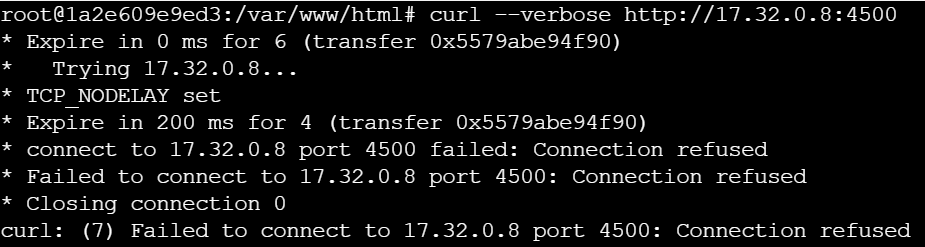

当我从traefik容器对位监狱长容器做一个简单的卷曲时，我得到相同的错误：curl --verbose http://17.32.0.8:4500

​

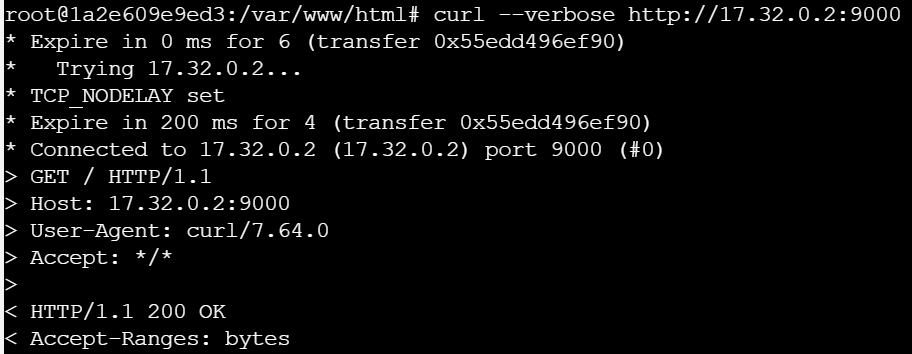

例如，curl到我的nextcloud容器确实可以工作：

​

我已经试过很多东西了，但似乎想不出来。对于nextcloud，我可以添加一个受信任的代理域，但如果我没有弄错的话，这对bitwarden_rs来说似乎是不可能的。

• 添加网络标签无助于GitHub答案
• 使用这些配置标签也无助于GitHub答案

有人知道我错过了什么或做错了什么吗？

Answer 1

经过进一步的调查，我发现了我的错误。

我不需要将80端口映射到您的码头网络之外，我只需要公开它。所以现在起作用了：

version: '3'

services:
  bitwarden:
    image: bitwardenrs/server:latest
    container_name: bitwarden
    restart: always
    volumes:
      - /home/reggi/bitwarden/data:/data
    environment:
      - WEBSOCKET_ENABLED=true
      - WEB_VAULT_ENABLED=true
      - SIGNUPS_ALLOWED=true
      - ADMIN_TOKEN=xxxxxxxxxxx
    expose:
      - 3012
      - 80
    networks:
      - local-lan
    labels:
      - traefik.enable=true
      - traefik.docker.network=local-lan
      - traefik.http.services.bitwarden-ui.loadbalancer.server.port=4500
      - traefik.http.services.bitwarden-ui.loadbalancer.server.scheme=http

      - traefik.http.routers.bitwarden-ui-https.rule=Host(`bitwarden.mydomain.com`)
      - traefik.http.routers.bitwarden-ui-https.entrypoints=websecure
      - traefik.http.routers.bitwarden-ui-https.tls=true
      - traefik.http.routers.bitwarden-ui-https.tls.certresolver=letsencryptresolver
      - traefik.http.routers.bitwarden-ui-https.service=bitwarden-ui@docker

      - traefik.http.routers.bitwarden-ui-http.rule=Host(`bitwarden.mydomain.com`)
      - traefik.http.routers.bitwarden-ui-http.entrypoints=web
      - traefik.http.routers.bitwarden-ui-http.service=bitwarden-ui@docker

      - traefik.http.routers.bitwarden-websocket-https.rule=Host(`bitwarden.mydomain.com`) && Path(`/notifications/hub`)
      - traefik.http.routers.bitwarden-websocket-https.entrypoints=websecure
      - traefik.http.routers.bitwarden-websocket-https.tls=true
      - traefik.http.routers.bitwarden-websocket-https.tls.certresolver=letsencryptresolver
      - traefik.http.routers.bitwarden-websocket-https.service=bitwarden-websocket
      - traefik.http.routers.bitwarden-websocket-http.rule=Host(`bitwarden.mydomain.com`) && Path(`/notifications/hub`)
      - traefik.http.routers.bitwarden-websocket-http.entrypoints=web
      - traefik.http.routers.bitwarden-websocket-http.service=bitwarden-websocket
      - traefik.http.services.bitwarden-websocket.loadbalancer.server.port=3012

networks:
 local-lan:
    external: true
