无法开始使用清漆和Wordpress教程过时？

Question

问题描述

我不能遵循官方教程带清漆的Wordpress。我正在使用wordpress 5.7 (当前版本)。

我有网络和wordpress的经验，我已经建立了一个功能测试wordpress容器与码头。我还启动了一个清漆容器，但是第一个问题是default.vcl文件--教程中有一个错误，它使用sub vcl_rec而不是sub vcl_recv。我修复了这个，容器就成功启动了。

我的default.vcl文件

按照本教程和其他一些信息来启用https (在Varnish前面是一个Traefik反向代理容器，它终止TLS连接)，这是我的完整default.vcl文件，它至少应该为wordpress站点启用缓存。

backend default {
  .host = "wp";
}

sub vcl_recv{
  if (req.url ~ "wp-admin|wp-login") {
    return (pass);
  }

  if(!req.http.X-Forwarded-Proto) {
    set req.http.X-Forwarded-Proto = "http";
  }

  // Remove has_js and Google Analytics __* cookies.
  set req.http.Cookie = regsuball(req.http.Cookie, "(^|;\s*)(_[_a-z]+|has_js)=[^;]*", "");
  // Remove a ";" prefix, if present.
  set req.http.Cookie = regsub(req.http.Cookie, "^;\s*", "");

  set req.http.cookie = regsuball(req.http.cookie, "wp-settings-\d+=[^;]+(; )?", "");

  set req.http.cookie = regsuball(req.http.cookie, "wp-settings-time-\d+=[^;]+(; )?", "");

  set req.http.cookie = regsuball(req.http.cookie, "wordpress_test_cookie=[^;]+(; )?", "");

  if (req.http.cookie == "") {
    unset req.http.cookie;
  }
}

使用此vcl，站点将成功打开，但从未缓存任何内容。

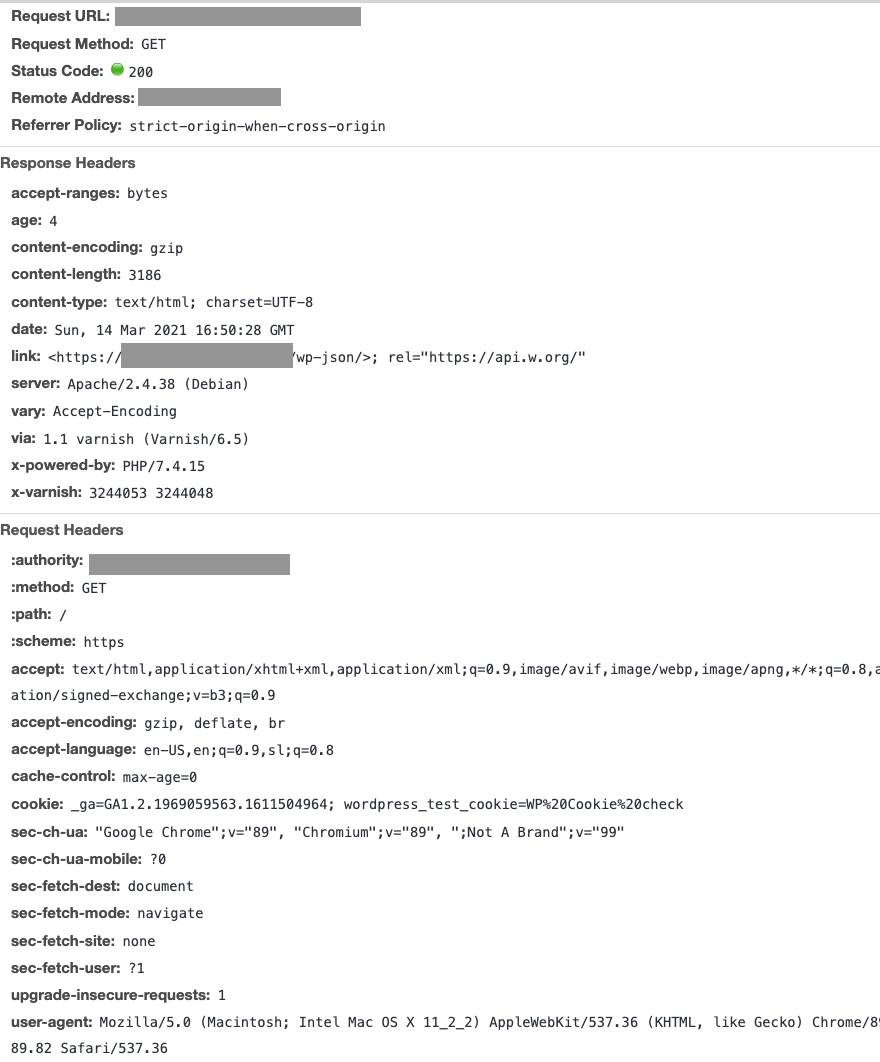

CHROME DEV工具截图

以下是Chrome中网络面板的截图：

​

​

从一个教程，我希望看到一个工作的结果，但我认为有些东西是缺少的。据我有限的知识，我知道cookie阻止缓存--也许wordpress的新版本增加了一些额外的cookie？

检查原木

我使用命令varnishlog查看正在发生的事情，但我对它还不太了解。在我看来，那些可以阻止缓存被一个一个地成功删除的cookie？但为什么这是一个缓存错过呢？

让教程示例工作应该是可能的，而不必检查任何日志。尽管如此，它们仍在这里：

*   << BeReq    >> 3440655
-   Begin          bereq 3440654 fetch
-   VCL_use        boot
-   Timestamp      Start: 1615741331.296846 0.000000 0.000000
-   BereqMethod    GET
-   BereqURL       /
-   BereqProtocol  HTTP/1.1
-   BereqHeader    User-Agent: Mozilla/5.0 (Macintosh; Intel Mac OS X 11_2_2) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/89.0.4389.82 Safari/537.36
-   BereqHeader    Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,image/apng,*/*;q=0.8,application/signed-exchange;v=b3;q=0.9
-   BereqHeader    Accept-Language: en-US,en;q=0.9,sl;q=0.8
-   BereqHeader    Sec-Ch-Ua: "Google Chrome";v="89", "Chromium";v="89", ";Not A Brand";v="99"
-   BereqHeader    Sec-Ch-Ua-Mobile: ?0
-   BereqHeader    Sec-Fetch-Dest: document
-   BereqHeader    Sec-Fetch-Mode: navigate
-   BereqHeader    Sec-Fetch-Site: none
-   BereqHeader    Sec-Fetch-User: ?1
-   BereqHeader    Upgrade-Insecure-Requests: 1
-   BereqHeader    X-Forwarded-Host: removed manually
-   BereqHeader    X-Forwarded-Port: 443
-   BereqHeader    X-Forwarded-Proto: https
-   BereqHeader    X-Forwarded-Server: traefik
-   BereqHeader    X-Real-Ip: myip
-   BereqHeader    X-Forwarded-For: myip, 192.168.4.2
-   BereqHeader    host: removed-manually
-   BereqHeader    Accept-Encoding: gzip
-   BereqHeader    X-Varnish: 3440655
-   VCL_call       BACKEND_FETCH
-   VCL_return     fetch
-   BackendOpen    31 default 192.168.4.4 80 192.168.4.5 43538 connect
-   Timestamp      Bereq: 1615741331.297039 0.000193 0.000193
-   Timestamp      Beresp: 1615741331.325222 0.028376 0.028182
-   BerespProtocol HTTP/1.1
-   BerespStatus   200
-   BerespReason   OK
-   BerespHeader   Date: Sun, 14 Mar 2021 17:02:11 GMT
-   BerespHeader   Server: Apache/2.4.38 (Debian)
-   BerespHeader   X-Powered-By: PHP/7.4.15
-   BerespHeader   Link: <https://removed-manually.com/wp-json/>; rel="https://api.w.org/"
-   BerespHeader   Vary: Accept-Encoding
-   BerespHeader   Content-Encoding: gzip
-   BerespHeader   Content-Length: 3186
-   BerespHeader   Content-Type: text/html; charset=UTF-8
-   TTL            RFC 120 10 0 1615741331 1615741331 1615741331 0 0 cacheable
-   VCL_call       BACKEND_RESPONSE
-   VCL_return     deliver
-   Filters         testgunzip
-   Storage        malloc s0
-   Fetch_Body     3 length stream
-   Gzip           u F - 3186 8579 80 80 25423
-   BackendClose   31 default recycle
-   Timestamp      BerespBody: 1615741331.325436 0.028589 0.000213
-   Length         3186
-   BereqAcct      817 0 817 296 3186 3482
-   End

*   << Request  >> 3440654
-   Begin          req 3440653 rxreq
-   Timestamp      Start: 1615741331.296724 0.000000 0.000000
-   Timestamp      Req: 1615741331.296724 0.000000 0.000000
-   VCL_use        boot
-   ReqStart       192.168.4.2 59606 http
-   ReqMethod      GET
-   ReqURL         /
-   ReqProtocol    HTTP/1.1
-   ReqHeader      Host: removed-manually
-   ReqHeader      User-Agent: Mozilla/5.0 (Macintosh; Intel Mac OS X 11_2_2) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/89.0.4389.82 Safari/537.36
-   ReqHeader      Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,image/apng,*/*;q=0.8,application/signed-exchange;v=b3;q=0.9
-   ReqHeader      Accept-Encoding: gzip, deflate, br
-   ReqHeader      Accept-Language: en-US,en;q=0.9,sl;q=0.8
-   ReqHeader      Cache-Control: max-age=0
-   ReqHeader      Cookie: _ga=GA1.2.1969059563.1611504964; wordpress_test_cookie=WP%20Cookie%20check
-   ReqHeader      Sec-Ch-Ua: "Google Chrome";v="89", "Chromium";v="89", ";Not A Brand";v="99"
-   ReqHeader      Sec-Ch-Ua-Mobile: ?0
-   ReqHeader      Sec-Fetch-Dest: document
-   ReqHeader      Sec-Fetch-Mode: navigate
-   ReqHeader      Sec-Fetch-Site: none
-   ReqHeader      Sec-Fetch-User: ?1
-   ReqHeader      Upgrade-Insecure-Requests: 1
-   ReqHeader      X-Forwarded-For: myip
-   ReqHeader      X-Forwarded-Host: removed-manually
-   ReqHeader      X-Forwarded-Port: 443
-   ReqHeader      X-Forwarded-Proto: https
-   ReqHeader      X-Forwarded-Server: traefik
-   ReqHeader      X-Real-Ip: myip
-   ReqUnset       X-Forwarded-For: myip
-   ReqHeader      X-Forwarded-For: myip, 192.168.4.2
-   VCL_call       RECV
-   ReqUnset       Cookie: _ga=GA1.2.1969059563.1611504964; wordpress_test_cookie=WP%20Cookie%20check
-   ReqHeader      Cookie: ; wordpress_test_cookie=WP%20Cookie%20check
-   ReqUnset       Cookie: ; wordpress_test_cookie=WP%20Cookie%20check
-   ReqHeader      Cookie: wordpress_test_cookie=WP%20Cookie%20check
-   ReqUnset       Cookie: wordpress_test_cookie=WP%20Cookie%20check
-   ReqHeader      Cookie: wordpress_test_cookie=WP%20Cookie%20check
-   ReqUnset       Cookie: wordpress_test_cookie=WP%20Cookie%20check
-   ReqHeader      Cookie: wordpress_test_cookie=WP%20Cookie%20check
-   ReqUnset       Cookie: wordpress_test_cookie=WP%20Cookie%20check
-   ReqHeader      Cookie:
-   ReqUnset       Cookie:
-   ReqUnset       Host: removed-manually
-   ReqHeader      host: removed-manually
-   VCL_return     hash
-   ReqUnset       Accept-Encoding: gzip, deflate, br
-   ReqHeader      Accept-Encoding: gzip
-   VCL_call       HASH
-   VCL_return     lookup
-   VCL_call       MISS
-   VCL_return     fetch
-   Link           bereq 3440655 fetch
-   Timestamp      Fetch: 1615741331.325474 0.028750 0.028750
-   RespProtocol   HTTP/1.1
-   RespStatus     200
-   RespReason     OK
-   RespHeader     Date: Sun, 14 Mar 2021 17:02:11 GMT
-   RespHeader     Server: Apache/2.4.38 (Debian)
-   RespHeader     X-Powered-By: PHP/7.4.15
-   RespHeader     Link: <https://removed-manually.com/wp-json/>; rel="https://api.w.org/"
-   RespHeader     Vary: Accept-Encoding
-   RespHeader     Content-Encoding: gzip
-   RespHeader     Content-Length: 3186
-   RespHeader     Content-Type: text/html; charset=UTF-8
-   RespHeader     X-Varnish: 3440654
-   RespHeader     Age: 0
-   RespHeader     Via: 1.1 varnish (Varnish/6.5)
-   VCL_call       DELIVER
-   VCL_return     deliver
-   Timestamp      Process: 1615741331.325489 0.028765 0.000014
-   Filters
-   RespHeader     Accept-Ranges: bytes
-   RespHeader     Connection: keep-alive
-   Timestamp      Resp: 1615741331.325551 0.028827 0.000061
-   ReqAcct        907 0 907 402 3186 3588
-   End

有这么多信息，有人能帮我诊断出什么问题吗？非常感谢!

Answer 1

基于VCL & VSL，我可以得出结论，您的站点是正确缓存的。

VCL代码只是为了扩展内置的VCL。

内置的VCL仅在以下情况下为缓存中的对象提供服务：

• 对于GET或HEAD请求
• 当不存在Cookie头时
• 当不存在Authorization头时

删除cookie的VCL逻辑就是这样做的。下面的VSL线路说明了这一点：

-   ReqUnset       Cookie: _ga=GA1.2.1969059563.1611504964; wordpress_test_cookie=WP%20Cookie%20check
-   ReqHeader      Cookie: ; wordpress_test_cookie=WP%20Cookie%20check
-   ReqUnset       Cookie: ; wordpress_test_cookie=WP%20Cookie%20check
-   ReqHeader      Cookie: wordpress_test_cookie=WP%20Cookie%20check
-   ReqUnset       Cookie: wordpress_test_cookie=WP%20Cookie%20check
-   ReqHeader      Cookie: wordpress_test_cookie=WP%20Cookie%20check
-   ReqUnset       Cookie: wordpress_test_cookie=WP%20Cookie%20check
-   ReqHeader      Cookie: wordpress_test_cookie=WP%20Cookie%20check
-   ReqUnset       Cookie: wordpress_test_cookie=WP%20Cookie%20check
-   ReqHeader      Cookie:
-   ReqUnset       Cookie:

在这种情况下，请求被认为是可缓存的，并且会出现缓存外观。

下面的行显示缓存查找和后续缓存丢失：

-   VCL_call       HASH
-   VCL_return     lookup
-   VCL_call       MISS
-   VCL_return     fetch

别担心，缓存丢失只是一个尚未发生的命中事件。

日志中的fetch行指示访问WordPress后端。

对于要存储在缓存中的获取对象，内置的VCL也有一些规则：

• TTL必须大于零。
• 不能在no-cache头中提及no-store或private
• 响应中必须没有Set-Cookie头
• 不允许对所有头(通过Vary: *)进行缓存更改

您正在返回的响应不会触发任何不可缓存的行为，因此Varnish决定将对象存储在缓存中。

下面的VSL行说明了这一点：

-   TTL            RFC 120 10 0 1615741331 1615741331 1615741331 0 0 cacheable

它还公开的是，对象将被缓存120秒。这是因为您的Expires或Cache-Control头部没有由WordPress设置。

下面是TTL行的语法：

%s %d %d %d %d [ %d %d %u %u ] %s
|  |  |  |  |    |  |  |  |    |
|  |  |  |  |    |  |  |  |    +- "cacheable" or "uncacheable"
|  |  |  |  |    |  |  |  +------ Max-Age from Cache-Control header
|  |  |  |  |    |  |  +--------- Expires header
|  |  |  |  |    |  +------------ Date header
|  |  |  |  |    +--------------- Age (incl Age: header value)
|  |  |  |  +-------------------- Reference time for TTL
|  |  |  +----------------------- Keep
|  |  +-------------------------- Grace
|  +----------------------------- TTL
+-------------------------------- "RFC", "VCL" or "HFP"

因为您的WordPress没有通过缓存头设置TTL，所以使用了default_ttl参数的值，默认为120秒。

但是，截图显示了带有Age: 4头的HTTP响应。这意味着在这种情况下，页面是从缓存中得到的，并且已经在缓存中存储了4秒。

也许是因为生命时间很短，所以假设页面没有缓存，但事实并非如此。

有两种方法可以解决这个问题：

• 在您的Cache-Control: public, max-age=3600或webserver中设置一个WordPress响应头以增加TTL
• 编写一些VCL以绕过TTL。

下面是一些可以添加到VCL文件中的VCL：

sub vcl_backend_response {
    set beresp.ttl = 1h;
}

对于存储在缓存中的每种类型的对象，此片段将将TTL设置为一个小时。1：https://github.com/varnishcache/varnish-cache/blob/6.0/bin/varnishd/builtin.vcl
