属性面板扩展中的新自定义属性未在bpmn关系图xml中反映

Question

我在属性面板中添加了一些自定义属性，如下所示，我在General选项卡中添加了Id属性。添加两个新的标签输入和输出。

​

​

​

​

<?xml version="1.0" encoding="UTF-8"?>
<bpmn2:definitions xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:bpmn2="http://www.omg.org/spec/BPMN/20100524/MODEL" xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI" xmlns:dc="http://www.omg.org/spec/DD/20100524/DC" xmlns:di="http://www.omg.org/spec/DD/20100524/DI" id="sample-diagram" targetNamespace="http://bpmn.io/schema/bpmn" xsi:schemaLocation="http://www.omg.org/spec/BPMN/20100524/MODEL BPMN20.xsd">
  <bpmn2:process id="Process_1" isExecutable="false">
    <bpmn2:startEvent id="StartEvent_1">
      <bpmn2:outgoing>Flow_0n4p9tk</bpmn2:outgoing>
    </bpmn2:startEvent>
    <bpmn2:task id="Activity_0d872w2">
      <bpmn2:incoming>Flow_0n4p9tk</bpmn2:incoming>
    </bpmn2:task>
    <bpmn2:sequenceFlow id="Flow_0n4p9tk" sourceRef="StartEvent_1" targetRef="Activity_0d872w2" />
  </bpmn2:process>
  <bpmndi:BPMNDiagram id="BPMNDiagram_1">
    <bpmndi:BPMNPlane id="BPMNPlane_1" bpmnElement="Process_1">
      <bpmndi:BPMNEdge id="Flow_0n4p9tk_di" bpmnElement="Flow_0n4p9tk">
        <di:waypoint x="448" y="258" />
        <di:waypoint x="500" y="258" />
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNShape id="_BPMNShape_StartEvent_2" bpmnElement="StartEvent_1">
        <dc:Bounds x="412" y="240" width="36" height="36" />
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="Activity_0d872w2_di" bpmnElement="Activity_0d872w2">
        <dc:Bounds x="500" y="218" width="100" height="80" />
      </bpmndi:BPMNShape>
    </bpmndi:BPMNPlane>
  </bpmndi:BPMNDiagram>
</bpmn2:definitions>

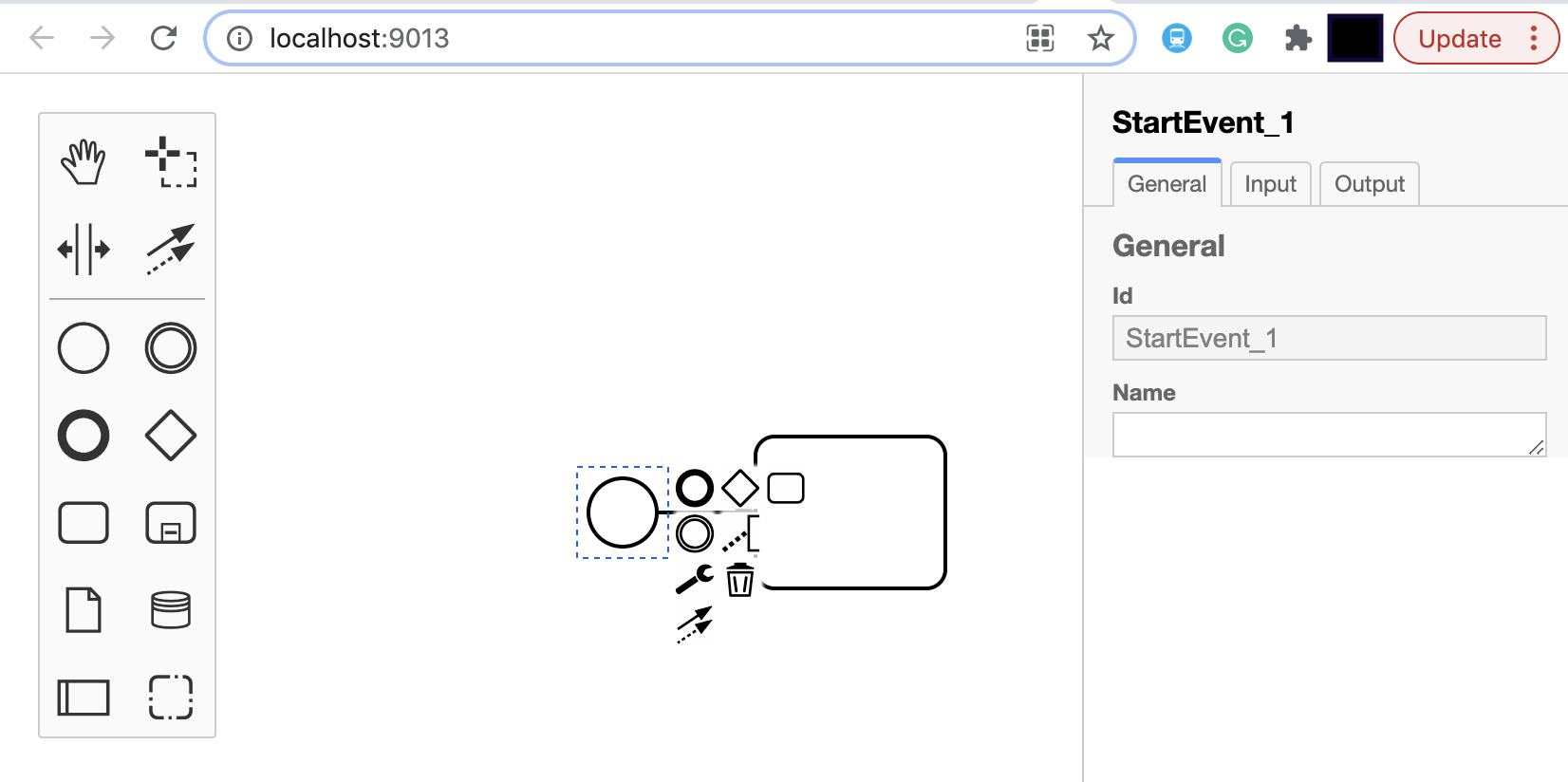

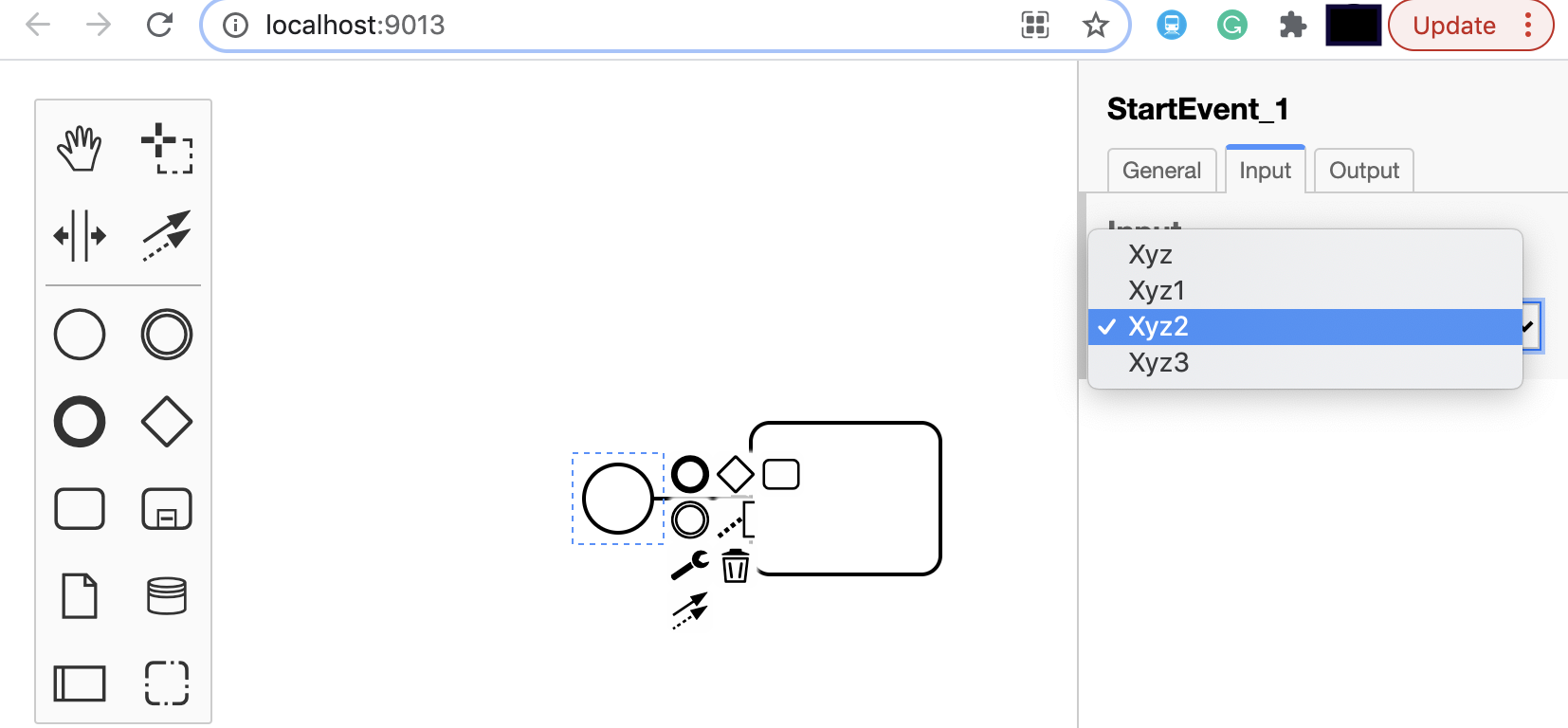

参见2张屏幕截图，我在属性面板中添加了新控件，但如果我下载图表，XML将不会显示给我。我在里面遗漏了什么？注意:我的代码是BPMN自定义属性面板示例的相同副本。

Answer 1

我解决了这个问题。我可以使用以下代码在BPMN图中设置输入输出参数，

set: function setValue(element, values, node) {

          var b_obj = getBusinessObject(element);
          var selectedValues = {};
          selectedValues = values;
          prop[_id] = selectedValues[_id];
          var selectedName = dropdownOptions[parseInt(prop[_id])].name;
          var bo = cmdHelper.updateBusinessObject(element, b_obj, prop);

          var selectedInputParameter = bpmnFactory.create('camunda:InputParameter', {
            name: selectedName,
            value: prop[_id]
          });

          var inputOutput = bpmnFactory.create('camunda:InputOutput', {
            inputParameters: [selectedInputParameter]
          });
          b_obj.extensionElements = b_obj.extensionElements || bpmnFactory.create('bpmn:ExtensionElements');
          b_obj.extensionElements.get('values').push(inputOutput);

          return bo;
        }

我从这里那里得到一个提示
