如何在StaggeredGridView中将瓷砖居中

Question

我正在使用颤振内的StaggeredGridView，如果瓷砖是“行”中唯一的瓷砖，我似乎没有找到一种将瓷砖居中的方法。

例如，如果我将crossAxisCount of the StaggeredGridView设置为6；然后将该瓷砖的crossAxisCellCount发送到4，则该瓷砖占据从左侧开始的4个“单元格”，如果没有一个可以占用2个单元格的瓷砖，则在右边留下2个“单元格”值的空空间。

有可能强迫瓷砖居中吗？从本质上说，它占据了单元格2-5，左边留下一个空单元，右边留下一个空单元？

我尝试过将StaggeredGridView封装在Center小部件中，但这似乎没有什么区别。

目前，我有一个有状态的小部件，它具有以下构建方法。

  @override
  Widget build(BuildContext context) {
    return ChangeNotifierProvider<ProfileEditScreenViewModel>(
      create: (context) => model,
      child: Consumer<ProfileEditScreenViewModel>(
        builder: (context, model, child) => Scaffold(
          appBar: AppBar(
            centerTitle: true,
            title: Text(model.screenTitle),
          ),
          body: Center(
            child: StaggeredGridView.count(
              crossAxisCount: 6,
              shrinkWrap: true,
              mainAxisSpacing: 10.0,
              crossAxisSpacing: 10.0,
              staggeredTiles: model.displayCardTiles,
              children: model.displayCards,
            ),
          ),
        ),
      ),
    );
  }

在该小部件的视图模型中，StaggeredGridView使用两个相关的函数:创建StaggeredGridView的displayCardTiles函数和创建tiles中的小部件的displayCards函数。这两项职能如下：

List<StaggeredTile> _buildDisplayCardTiles(){
    List<StaggeredTile> myList = [];

    for(var bioCategory in userProfile.bioCategories!){
      myList.add(StaggeredTile.fit(bioCategory.crossAxisCellCount));
    }

    return myList;
  }

List<Widget> _buildDisplayCards(){
    List<Widget> myList = [];

    for(var bioCategory in userProfile.bioCategories!){
      myList.add(ProfileItemCard(bioCategory: bioCategory));
    }

    return myList;
  }

"ProfileItemCard“只是一个Card小部件，它显示各种文本小部件和复选框，但是它的内容不会影响卡片在StaggeredGridView中的位置。

我也尝试过将ProfileItemCard包装在一个Center小部件中，但是它不会对卡片的显示方式产生任何影响。

Answer 1

简介：我是自己讨论这个问题的，所以我想感谢你提出这个问题。

基线：计算模型计数的其余部分和交叉轴计数(原始问题中的userProfile.bioCategories和6 )，然后将“剩余”块放置在一行中(间隔均匀)，并将行跨越整个网格宽度。

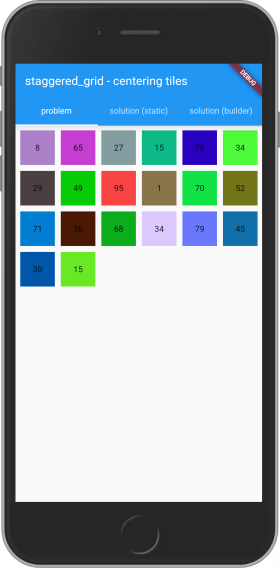

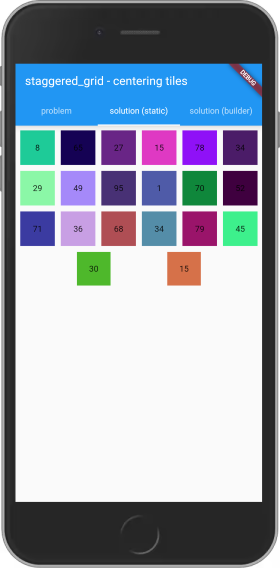

Demo

​

​

Repro：Github.

Code (一个单一文件解决方案，惟一的prerequsite是flutter_staggered_grid_view: 0.4.0)：

import 'package:flutter/material.dart';
import 'dart:math';

import 'package:flutter_staggered_grid_view/flutter_staggered_grid_view.dart';

void main() {
  runApp(const TabBarDemo());
}

generateRandomColor() => Color((Random().nextDouble() * 0xFFFFFF).toInt()).withOpacity(1.0);

class Model {
  final num;

  Model({this.num});
}

class ModelWidget extends StatelessWidget {
  final Model model;

  ModelWidget(this.model) : super();

  @override
  Widget build(BuildContext context) {
    return AspectRatio(
      aspectRatio: 1,
      child: Container(
          color: generateRandomColor(),
          child: Column(
            mainAxisAlignment: MainAxisAlignment.center,
            children: [
              Text(
                model.num.toString(),
                textAlign: TextAlign.center,
              ),
            ],
          )),
    );
  }
}

class TabBarDemo extends StatelessWidget {
  const TabBarDemo({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context) {
    // ------------------------------- given ----------------------------------
    const CROSS_AXIS_COUNT = 6;
    const CROSS_AXIS_SPACING = 10.0;
    const MAIN_AXIS_SPACING = 10.0;
    final models = List.generate(20, (_) => Model(num: Random().nextInt(100)));
    // ------------------------------------------------------------------------
    // ------------------------------ solution --------------------------------
    final modelCount = models.length;
    final int fittingCount = modelCount - modelCount % CROSS_AXIS_COUNT;
    // ------------------------------------------------------------------------

    return MaterialApp(
      home: DefaultTabController(
        length: 3,
        child: Scaffold(
          appBar: AppBar(
            bottom: const TabBar(
              tabs: [
                Tab(
                  child: Text("problem"),
                ),
                Tab(
                  child: Text("solution (static)"),
                ),
                Tab(icon: Text("solution (builder)")),
              ],
            ),
            title: const Text('staggered_grid - centering tiles'),
          ),
          body: Padding(
            padding: const EdgeInsets.all(8.0),
            child: TabBarView(
              children: [
                // ------------------------------ problem ---------------------------------
                Scaffold(
                  body: StaggeredGridView.count(
                    crossAxisCount: CROSS_AXIS_COUNT,
                    shrinkWrap: true,
                    mainAxisSpacing: MAIN_AXIS_SPACING,
                    crossAxisSpacing: CROSS_AXIS_SPACING,
                    staggeredTiles: models.map((m) => StaggeredTile.fit(1)).toList(),
                    children: models.map((m) => ModelWidget(m)).toList(),
                  ),
                ),
                // ------------------------------------------------------------------------
                // ------------------------- solution (static) ----------------------------
                Scaffold(
                  body: LayoutBuilder(builder: (context, constraints) {
                    return StaggeredGridView.count(
                      crossAxisCount: CROSS_AXIS_COUNT,
                      shrinkWrap: true,
                      mainAxisSpacing: MAIN_AXIS_SPACING,
                      crossAxisSpacing: CROSS_AXIS_SPACING,
                      staggeredTiles: [
                        ...models.sublist(0, fittingCount).map((m) => StaggeredTile.fit(1)).toList(),
                        if (modelCount != fittingCount) StaggeredTile.fit(CROSS_AXIS_COUNT)
                      ],
                      children: [
                        ...models.sublist(0, fittingCount).map((m) => ModelWidget(m)).toList(),
                        if (modelCount != fittingCount)
                          Row(
                              mainAxisAlignment: MainAxisAlignment.spaceEvenly,
                              children: models.sublist(fittingCount, modelCount).map((m) {
                                return Container(
                                    width: constraints.maxWidth / CROSS_AXIS_COUNT - CROSS_AXIS_SPACING,
                                    child: ModelWidget(m));
                              }).toList())
                      ],
                    );
                  }),
                ),
                // ------------------------------------------------------------------------
                // ------------------------- solution (builder) ---------------------------
                Scaffold(
                  body: LayoutBuilder(builder: (context, constraints) {
                    return StaggeredGridView.countBuilder(
                        crossAxisCount: CROSS_AXIS_COUNT,
                        shrinkWrap: true,
                        mainAxisSpacing: MAIN_AXIS_SPACING,
                        crossAxisSpacing: CROSS_AXIS_SPACING,
                        itemCount: modelCount == fittingCount ? fittingCount : fittingCount + 1,
                        itemBuilder: (context, index) {
                          if (index < fittingCount) {
                            return ModelWidget(models.elementAt(index));
                          } else {
                            return Row(
                                mainAxisAlignment: MainAxisAlignment.spaceEvenly,
                                children: models.sublist(fittingCount, modelCount).map((m) {
                                  return Container(
                                      width: constraints.maxWidth / CROSS_AXIS_COUNT - CROSS_AXIS_SPACING,
                                      child: ModelWidget(m));
                                }).toList());
                          }
                        },
                        staggeredTileBuilder: (int index) {
                          if (index < fittingCount) {
                            return StaggeredTile.count(1, 1);
                          } else {
                            return StaggeredTile.count(CROSS_AXIS_COUNT, 1);
                          }
                        });
                  }),
                ),
                // ------------------------------------------------------------------------
              ],
            ),
          ),
        ),
      ),
    );
  }
}

Answer 2

尝试将其包装在中间，然后是具有附加属性的容器。

@override
      Widget build(BuildContext context) {
        return ChangeNotifierProvider<ProfileEditScreenViewModel>(
          create: (context) => model,
          child: Consumer<ProfileEditScreenViewModel>(
            builder: (context, model, child) => Scaffold(
              appBar: AppBar(
                centerTitle: true,
                title: Text(model.screenTitle),
              ),
              body: Center(
                child: Container(
                     margin: EdgeInsets.all(50),
                    height: double.infinity,
                    alignment: Alignment.center,
                    child: StaggeredGridView.count(
                    crossAxisCount: 6,
                    shrinkWrap: true,
                    mainAxisSpacing: 10.0,
                    crossAxisSpacing: 10.0,
                    staggeredTiles: model.displayCardTiles,
                    children: model.displayCards,
                    ),
                ),
              ),
            ),
          ),
        );
      }
