是否可以将第一个变量值为空，并在R中生成in？

Question

我有一个数据框架，希望在R中生成一个igraph plot，但是在第一列中，有些行没有值。正如您所看到的，NMSUKU中的第5-7行没有值。

dput(sample)
structure(list(NMSUKU = c("Betawi", "Cirebon", "Sunda", "Jawa",
"", "", "", "Bawean/ Boyan", "Osing/ Using", "Tengger", "Madura",
"Badui/ Baduy", "Banten", "Banten"), TopLang = c("82_Batavi/ Batawi/ Betawi/ Melayu Betawi/ Melayu Jakarta/ Melayu Jakarte",
"84_Cirebon", "86_Priangan/ Sunda", "88_Jawa", "83", "85", "89",
"3000_Bahasa lainnya di Jawa", "90_Banyuwangi/ Osing", "93_Tengger",
"91_Basa Mathura/ Madhura/ Madura/ Madure", "86_Priangan/ Sunda",
"95_Banten", "86_Priangan/ Sunda"), Ethnicity = c("111_Betawi",
"112_Cirebon", "113_Sunda", "114_Jawa", "114_Jawa", "114_Jawa",
"114_Jawa", "116_Bawean/ Boyan", "119_Osing/ Using", "120_Tengger",
"121_Madura", "113_Sunda", "123_Banten", "113_Sunda")), class = "data.frame", row.names = c(NA,
-14L))

我想做的是：

​

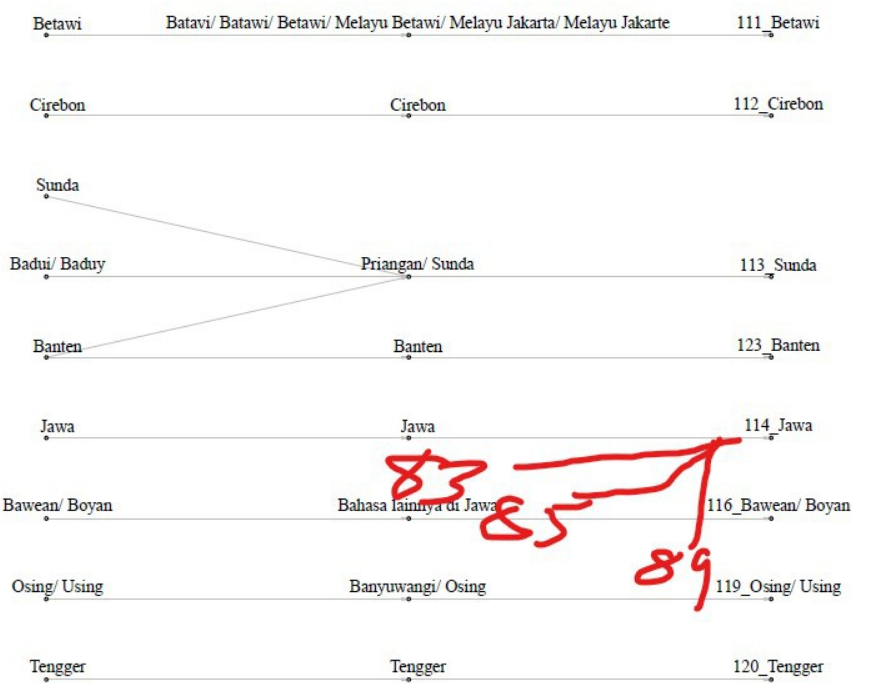

正如您在屏幕截图Jawa上看到的，83,85和89必须连接到114_Jawa，而在最初并不是83、85和89。谢谢!

Answer 1

是的，这是可能的。您可以尝试下面的代码

m <- as.matrix(replace(sample, sample == "", "NA"))
g <- simplify(graph_from_edgelist(rbind(m[, 1:2], m[, 2:3]), directed = TRUE))
l <- layout_with_sugiyama(g)

idx <- which(names(V(g)) == "NA")
l$layout <- l$layout[-idx, ]
g <- delete.vertices(g, "NA")

plot(g,
  layout = -l$layout[, 2:1],
  edge.arrow.size = 0.1,
  vertex.size = 2.5,
  vertex.color = "grey",
  vertex.label.dist = 1,
  edge.arrow.width = 1.5,
  edge.width = seq(0.5, 0.08),
  edge.lty = "solid",
  edge.color = "gray",
  vertex.label.cex = 0.7,
  is.rm = TRUE,
  vertex.label.color = "black"
)

​

​
