不同的字体大小，相同的液晶屏幕。带有arduino uno时钟的诺基亚5110液晶显示器

Question

​

​

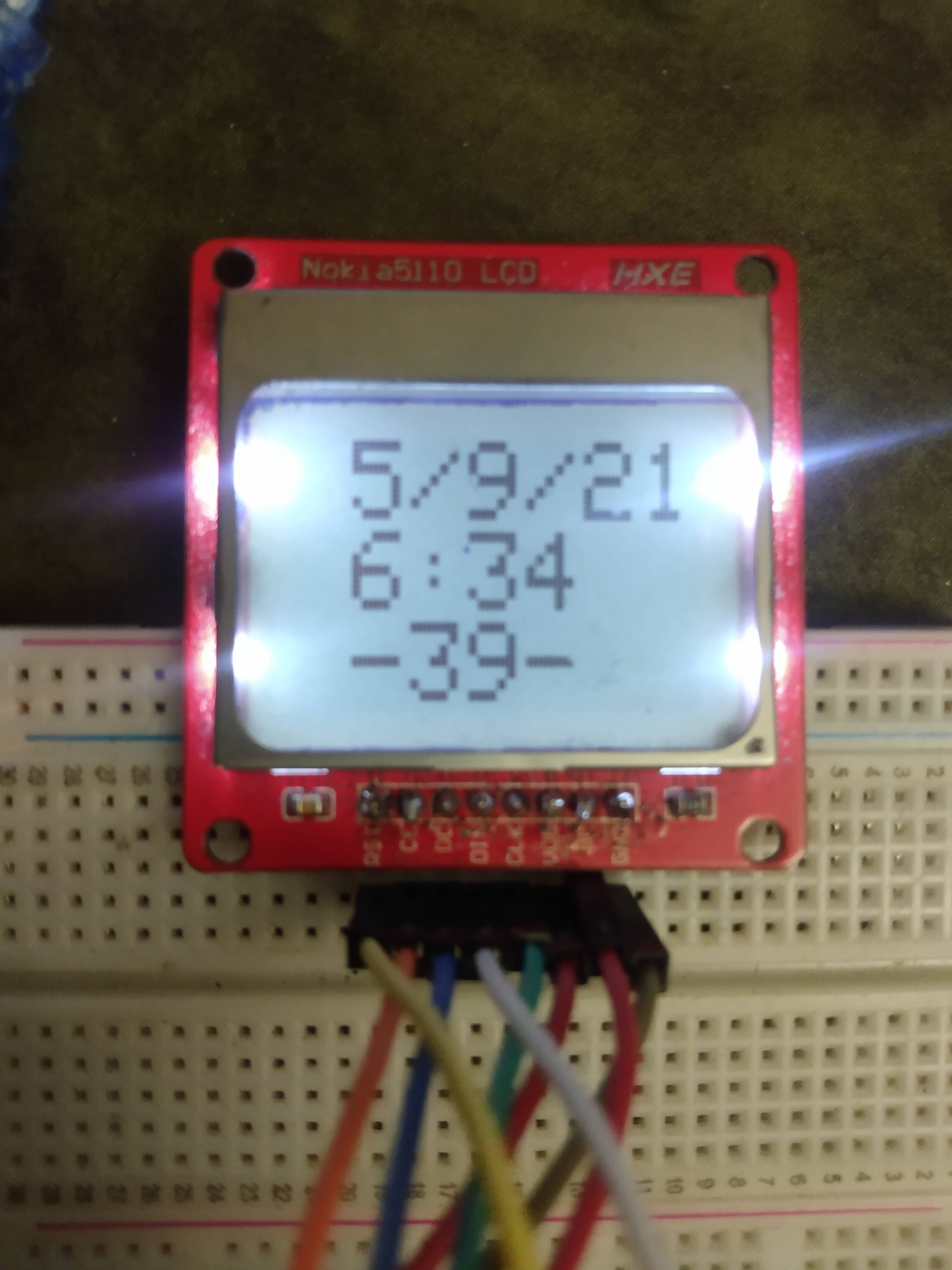

这是我的诺基亚5110 lcd arduino时钟项目。我试图使字体更小，setTextSize(1)，只有秒，这是显示的第三行。我可以改变字体大小的一切，但不是特别的秒。任何事情都会有很大的帮助，因为我对阿迪诺非常陌生。耽误您时间，实在对不起!

//Programa : Teste display Nokia 5110 usando biblioteca Adafruit
//Autor : VINICIUS LOPES

#include <Adafruit_GFX.h>
#include <Adafruit_PCD8544.h>

// pin 3 - Serial clock out (SCLK)
// pin 4 - Serial date out (DIN)
// pin 5 - date/Command select (D/C)
// pin 6 - LCD chip select (CS/CE)
// pin 7 - LCD reset (RST)

Adafruit_PCD8544 display = Adafruit_PCD8544(3,4,5,6,7);

int second,minute, hour, day, mounth,year;
unsigned long UtlTime;

void setup()
{
    pinMode(2,OUTPUT);
    UtlTime=0;

    minute=30;
    hour=6;
    day=9;
    mounth=5;
    year=21;
    Serial.begin(9600);

    display.begin();
    display.setContrast(80); // Adjust the display contrast
    display.clearDisplay();   //Apaga o buffer e o display
    display.setTextSize(2);  //Seta o tamanho do texto
    display.setTextColor(BLACK); //Seta a cor do texto
    display.print("Date \n & \nTime ");
    display.setCursor(0,10);
    display.display();
    delay (5000);


    //Configura o hour
    display.clearDisplay();
    display.setCursor(0,0);
    display.print("hour:");
    display.display();
    Serial.print("\nin between hour:");
    while(hour==0)
    {
        if (Serial.available() > 0)
        {
            hour= Serial.parseInt();
        }
    }
    display.print(hour);
    display.display();
    delay(1000);

    //Configura a minute
    display.clearDisplay();
    display.setCursor(0,0);
    display.print("minute:");
    display.display();
    Serial.print("\nin between minute:");
    while(hour==0)
    {
        if (Serial.available() > 0)
        {
            minute= Serial.parseInt();
        }
    }
    display.print(minute);
    display.display();
    delay(1000);

    //Configura o month
    display.clearDisplay();
    display.setCursor(0,0);
    display.print("month:");
    display.display();
    Serial.print("\nin between month:");
    while(mounth==0)
    {
        if (Serial.available() > 0)
        {
            day= Serial.parseInt();
        }
    }
    display.print(mounth);
    display.display();
    delay(1000);

    //Configura o mês
    display.clearDisplay();
    display.setCursor(0,0);
    display.print("day:");
    display.display();
    Serial.print("\nin between day:");
    while(day==0)
    {
        if (Serial.available() > 0)
        {
            day= Serial.parseInt();
        }
    }
    display.print(day);
    display.display();
    delay(1000);

    //Configura o year
    display.clearDisplay();
    display.setCursor(0,0);
    display.print("year:");
    display.display();
    Serial.print("\nin between year:");
    while(year==0)
    {
        if (Serial.available() > 0)
        {
            year= Serial.parseInt();
        }
    }
    display.print(year);

    display.display();
    delay(1000);
    display.clearDisplay();

}

void loop() {

    if(millis()-UtlTime<0)
    {
        UtlTime=millis();
    }
    else
    {
        second=int((millis()-UtlTime)/1000);
    }
    if(second>59)
    {
        second=0;
        minute++;
        UtlTime=millis();
        if(minute>59)
        {
            hour++;
            minute=0;
            if(hour>23)
            {
                day++;
                hour=0;
                if(mounth==1||mounth==3||mounth==5||mounth==7||mounth==8||mounth==10||mounth==12)
                {
                    if(day>31)
                    {
                        day=1;
                        mounth++;
                        if(mounth>12)
                        {
                            year++;
                            mounth=1;
                        }
                    }
                }
                else if(mounth==2)
                {
                    if(year%400==0)
                    {
                        if(day>29)
                        {
                            day=1;
                            mounth++;
                        }
                    }
                    else if((year%4==0)&&(year%100!=0))
                    {
                        if(day>29)
                        {
                            day=1;
                            mounth++;
                        }
                    }
                    else
                    {
                        if(day>28)
                        {
                                day=1;
                                mounth++;
                        }
                    }
                }
                else
                {
                    if(day>30)
                    {
                        day=1;
                        mounth++;
                    }
                }
            }
        }
    }

    display.clearDisplay();
    delay(1000);
    Serial.print(mounth);
    Serial.print("/");
    Serial.print(day);
    Serial.print("/");
    Serial.print(year);
    Serial.println();

    display.setCursor(0,0);
    display.print(" ");
    display.print(mounth);
    display.print("/");
    display.print(day);
    display.print("/");
    display.print(year);

    display.display();

    Serial.print(hour);
    Serial.print(":");
    Serial.print(minute);
    Serial.print(":");
    Serial.print(second);
    Serial.print("\n");
    Serial.println();

    display.setCursor(0,16);
    display.print(" ");
    display.print(hour);
    display.print(":");
    display.print(minute);
    display.print("\n -");
    display.print(second);
    display.print("-");
    display.display();

    char tecla;
    tecla = Serial.read();
    if(tecla=='1')
    {
        digitalWrite(2,LOW);
    }
    if(tecla=='2')
    {
        digitalWrite(2, HIGH);
    }
}

Answer 1

setTextSize()设置‘放大率’，而不是直接设置文本大小，因此setTextSize(1)使用默认文本大小，setTextSize(2)将使文本大小翻倍。

GFX.cpp

/*!
    @brief   Set text 'magnification' size. Each increase in s makes 1 pixel
   that much bigger.
    @param  s  Desired text size. 1 is default 6x8, 2 is 12x16, 3 is 18x24, etc
*/
void Adafruit_GFX::setTextSize(uint8_t s) { setTextSize(s, s); }

当使用像setTextSize()这样的函数时，setTextSize()会改变字符的像素被打印到显示器上的方式(或者在Adafruit_PCD8544被打印到内部缓冲区的情况下)，允许我们改变每个print调用的文本大小。

Adafruit_PCD8544 screen = Adafruit_PCD8544(3,4,5,6,7);
//... begin(), setContrast(), etc...
screen.setTextSize(1);
screen.println("Regular");
screen.setTextSize(2);
screen.println("Double");
screen.setTextSize(1);
screen.println("Regular again");
screen.display();

这将显示默认文本大小中的字符串“正则”和“规则再次”，而字符串“双”则是默认文本大小的两倍。

在您的代码中，块：

display.setCursor(0,16);
display.print(" ");
display.print(hour);
display.print(":");
display.print(minute);
display.print("\n -");
display.print(second);
display.print("-");
display.display();

应该是这样的：

display.setCursor(0,16);
display.print(" ");
display.print(hour);
display.print(":");
display.print(minute);
display.setTextSize(1); //Change to smaller text size for seconds since you already use size 2 by default
display.print("\n -");
display.print(second);
display.print("-");
display.setTextSize(2) //Change back to larger text size for other values
display.display();
