在textinfo注释中巧妙地更改

Question

问题

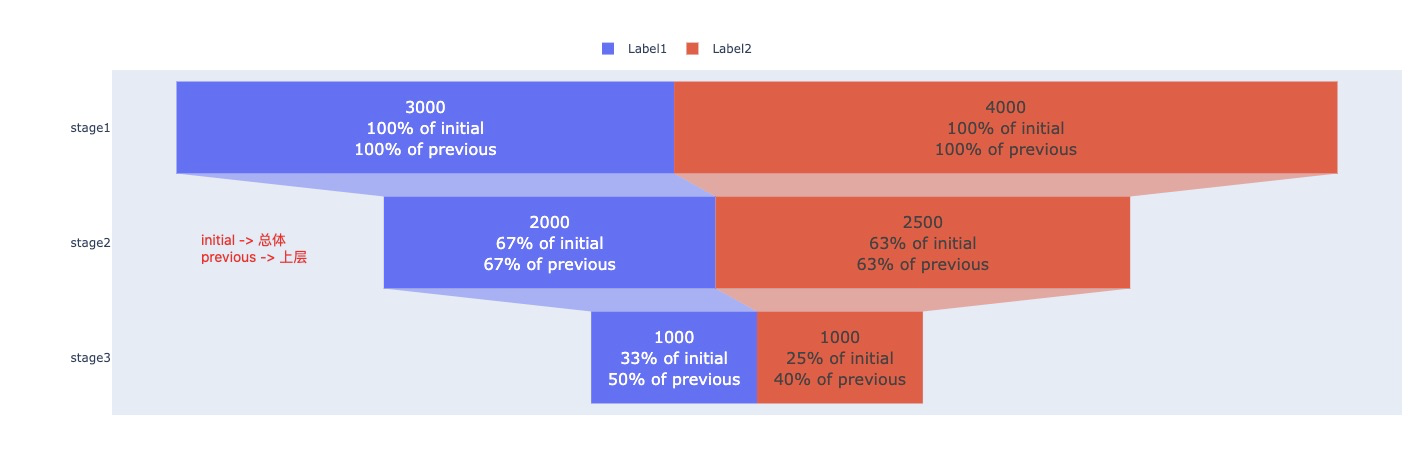

在我的漏斗图中，我想将textinfo注释更改为我的客户语言(中文).To更具体，我想将“初始值”改为"总体"，将“前文”更改为"上层“。另外，我也想改变内部值的格式，例如"3000“到"3千”。有什么办法吗？非常感谢!

​

代码

from plotly import graph_objects as go

fig = go.Figure()

fig.add_trace(go.Funnel(
    name = 'Label1',
    y = ["stage1", "stage2", "stage3"],
    x = [3000, 2000, 1000],
    textposition = "inside",
    textinfo = "value+percent previous+percent initial"))

fig.add_trace(go.Funnel(
    name = 'Label2',
    orientation = "h",
    y = ["stage1", "stage2", "stage3"],
    x = [4000, 2500, 1000],
    textposition = "inside",
    textinfo = "value+percent previous+percent initial"))

fig.update_layout(legend=dict(
    orientation="h",
    yanchor="bottom",
    y=1.02,
    xanchor="right",
    x=0.5
)
                 )

fig.update_traces(textposition='auto', textfont_size=16)

fig.show()s

参考文献

1. 花式漏斗图api
2. 圆滑漏斗绘图手册

Answer 1

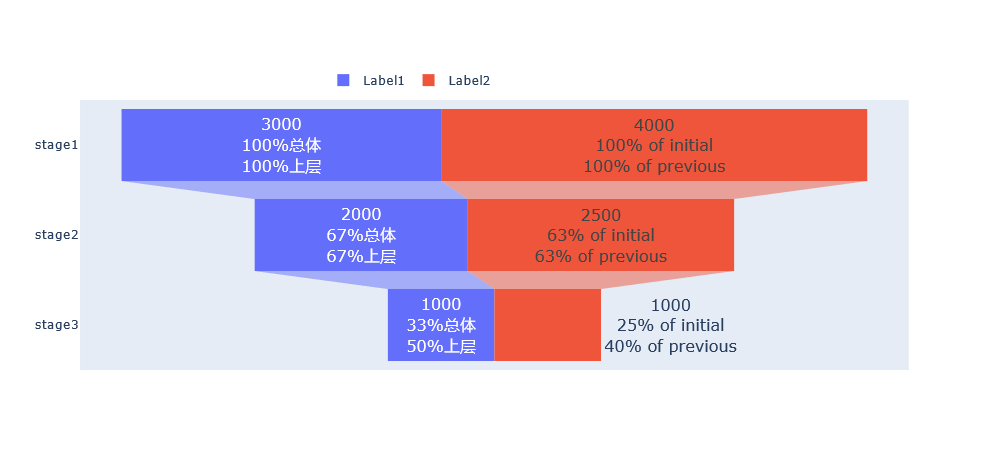

您可以使用文本模板自定义它。我把左边修改成一个样本。

fig.add_trace(go.Funnel(
    name = 'Label1',
    y = \["stage1", "stage2", "stage3"\],
    x = \[3000, 2000, 1000\],
    textposition = "inside",
    textinfo = "value+percent previous+percent initial",
    texttemplate='%{value}<br>%{percentInitial}总体<br>%{percentPrevious}上层'
))

​

​
