将列名作为标签添加到我的Sankey绘图中

Question

我希望将列名作为标签添加到我的Sankey plot中的R中(在Sankey图中每个列的底部)。我怎么能这么做？我的代码和数据如下。感激不尽！

    library(tidyr)
    library(dplyr)
    library(networkD3)
    links <-
      df %>%
      mutate(row = row_number()) %>%  # add a row id
      gather('col', 'source', -row) %>%  # gather all columns
      mutate(col = match(col, names(df))) %>%  # convert col names to col nums
      mutate(source = paste0(source, '_', col)) %>%  # add col num to node names
      group_by(row) %>%
      arrange(col) %>%
      mutate(target = lead(source)) %>%  # get target from following node in row
      ungroup() %>%
      filter(!is.na(target)) %>%  # remove links from last column in original data
      select(source, target) %>%
      group_by(source, target) %>%
      summarise(value = n())  # aggregate and count similar links
    nodes <- data.frame(id = unique(c(links$source, links$target)),
                        stringsAsFactors = FALSE)
    nodes$name <- sub('_[0-9]*$', '', nodes$id)
    nodes <- data.frame(rbind(nodes[which(nodes$name=="Achiever"),],nodes[which(nodes$name=="Regular"),],nodes[which(nodes$name=="Disheartened"),],nodes[which(nodes$name=="Underachiever"),]))
    links$source <- match(links$source, nodes$id) - 1
    links$target <- match(links$target, nodes$id) - 1
    sankeyNetwork(Links = links, Nodes = nodes, Source = 'source',
                  Target = 'target', Value = 'value', NodeID = 'name',iterations=0)

数据：

df <- structure(list(March = c("Disheartened", "Regular", "Regular",
"Achiever", "Achiever", "Achiever", "Achiever", "Achiever", "Regular",
"Achiever", "Regular", "Achiever", "Disheartened", "Achiever",
"Regular", "Regular", "Regular", "Regular", "Achiever", "Achiever",
"Achiever", "Regular", "Achiever", "Disheartened", "Achiever",
"Achiever", "Regular", "Achiever", "Achiever", "Regular", "Achiever",
"Achiever", "Regular", "Achiever", "Regular"), April = c("Disheartened",
"Regular", "Regular", "Regular", "Achiever", "Achiever", "Achiever",
"Achiever", "Regular", "Achiever", "Regular", "Achiever", "Disheartened",
"Achiever", "Regular", "Disheartened", "Regular", "Regular",
"Achiever", "Achiever", "Achiever", "Regular", "Achiever", "Disheartened",
"Achiever", "Achiever", "Regular", "Achiever", "Achiever", "Regular",
"Regular", "Achiever", "Achiever", "Achiever", "Regular"), May = c("Disheartened",
"Regular", "Regular", "Regular", "Achiever", "Achiever", "Achiever",
"Achiever", "Regular", "Achiever", "Regular", "Achiever", "Disheartened",
"Achiever", "Regular", "Disheartened", "Regular", "Regular",
"Achiever", "Achiever", "Achiever", "Achiever", "Achiever", "Disheartened",
"Achiever", "Achiever", "Regular", "Achiever", "Achiever", "Regular",
"Regular", "Achiever", "Regular", "Achiever", "Regular"), June = c("Disheartened",
"Regular", "Regular", "Regular", "Achiever", "Achiever", "Achiever",
"Achiever", "Regular", "Achiever", "Regular", "Achiever", "Disheartened",
"Achiever", "Regular", "Disheartened", "Regular", "Regular",
"Achiever", "Achiever", "Achiever", "Achiever", "Achiever", "Disheartened",
"Achiever", "Achiever", "Regular", "Achiever", "Achiever", "Regular",
"Regular", "Achiever", "Regular", "Achiever", "Regular")), class = "data.frame", row.names = c(NA,
-35L))

Answer 1

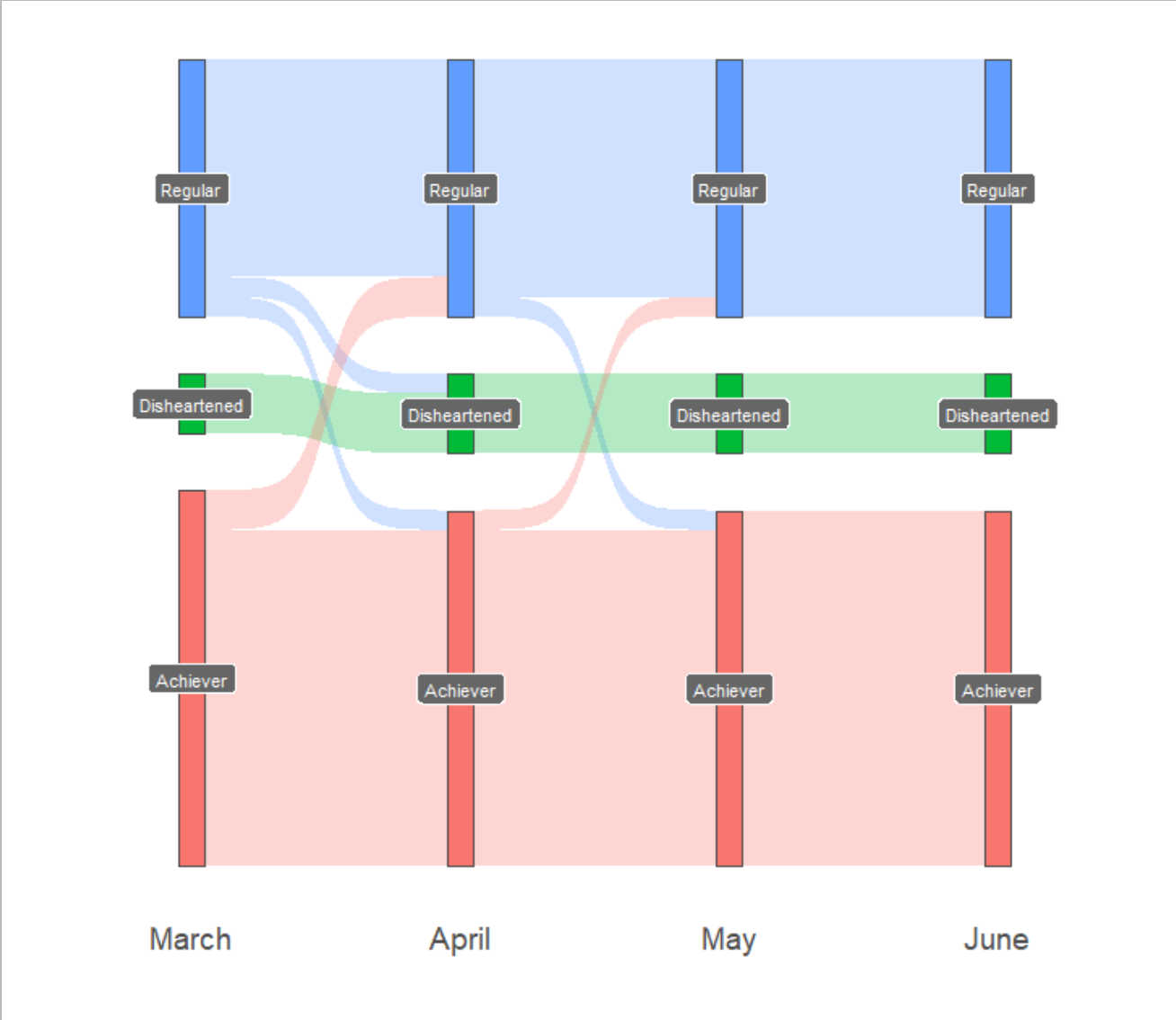

如果可能的话，您可以尝试(我推荐)非常好的ggsankey包。

library(ggsankey)
library(tidyverse)
df %>%
  make_long(March, April, May, June) %>%
  ggplot(aes(x = x,
                 next_x = next_x,
                 node = node,
                 next_node = next_node,
                 fill = factor(node),
                 label = node)) +
  geom_sankey(flow.alpha = .3,
              node.color = "gray30",
              show.legend = F) +
  geom_sankey_label(size = 3, color = "white", fill = "gray40") +
  theme_sankey(base_size = 18) +
  xlab("")

​

​
