Wcf代码适用于控制台和WinForms应用程序(小型测试应用程序)，但不适用于系统WinForms应用程序。

Question

首先，我对WCF相当陌生，所以在回复时请记住这一点。

问题是我创建了一个WCF库(AppCommWcf)，它在客户机和服务器之间共享。当我使用AppCommWcf库编写控制台应用程序并调用它时，它可以正常工作。当我对测试WinForms应用程序执行相同的操作时，它可以正常工作，但是，当我在WinForms系统应用程序中使用它时，客户端无法连接到服务器。客户端和服务器都在我的本地机器上运行。我不会在他们各自的application.exe.config文件中使用任何值。在您开始使用下面的代码来尝试和复制之前，正如我之前说过的，这在较小的应用程序中很好，但我们的代码应用程序超过一百万行，所以我希望经验丰富的WCF专业人员能够告诉我一些事情，找出客户端失败的原因。但是我所做的只是使用下面三个不同应用程序之间相同的代码，它只在我们的系统应用程序中失败。

我做过的测试：

系统应用程序服务器运行，系统应用程序客户端运行，客户端无法连接到作为服务器运行的server.

• Console，系统应用服务器运行，系统应用程序客户端运行，客户端通过连接到控制台服务器，并完成方法调用。
• 控制台作为客户端运行，系统应用服务器运行，客户端无法连接到服务器。

基于上面的测试，服务器似乎出了问题，但我不知道为什么它只在系统应用服务器上失败，而是在控制台和WinForms服务器上使用所有这些应用程序中相同的客户机/服务器代码进行测试。

下面是来自AppCommWcf库的代码：

Project References:
System
System.Runtime.Serialization
System.ServiceModel

CameraCtrlCommClient.cs：

using System.ServiceModel;

namespace AppCommWcf
{
    public partial class CameraCtrlCommClient : ClientBase<ICameraCtrlComm>, ICameraCtrlComm
    {
        public CameraCtrlCommClient(string bindUrl) : base(new WSHttpBinding(), new EndpointAddress(bindUrl)) { }

        public LockRequestResponse RequestLock(LockTypeWcf lckType, string camName, int stationId, string userName, bool takeCtrlIfLocked)
        {
            return base.Channel.RequestLock(lckType, camName, stationId, userName, takeCtrlIfLocked);
        }
    }
}

CameraCtrlCommServer.cs：

using System;
using System.ServiceModel;

namespace AppCommWcf
{
    [ServiceBehavior(InstanceContextMode = InstanceContextMode.Single)]
    public class CameraCtrlCommServer : ICameraCtrlComm
    {
        public delegate LockRequestResponse LockEventHandler(LockTypeWcf lckType, string camName, int stationId, string userName, bool takeCtrlIfLocked);

        public event LockEventHandler LockRequested;
        static ServiceHost m_svcHost;

        CameraCtrlCommServer() { }

        public string BindingUrl { get; private set; }

        public void Close()
        {
            if (m_svcHost != null)
            {
                m_svcHost.Close();
                m_svcHost = null;
            }
        }

        public LockRequestResponse RequestLock(LockTypeWcf lckType, string camName, int stationId, string userName, bool takeCtrlIfLocked)
        {
            return LockRequested.Invoke(lckType, camName, stationId, userName, takeCtrlIfLocked);
        }

        public static CameraCtrlCommServer StartServiceHost(string bindUrl)
        {
            CameraCtrlCommServer result = null;

            if (m_svcHost == null)
            {
                result = new CameraCtrlCommServer { BindingUrl = bindUrl };
                m_svcHost = new ServiceHost(result, new Uri(bindUrl))
                {
                    OpenTimeout = new TimeSpan(0, 0, 30),
                    CloseTimeout = new TimeSpan(0, 0, 10)
                };

                m_svcHost.AddServiceEndpoint(typeof(ICameraCtrlComm), new WSHttpBinding(), bindUrl);
                m_svcHost.Faulted += OnSvcHostFaulted;
                m_svcHost.Opened += OnSvcHostOpened;
                m_svcHost.Closing += OnSvcHostClosing;
                m_svcHost.Closed += OnSvcHostClosed;
                m_svcHost.UnknownMessageReceived += OnSvcHostUnknownMsgRecvd;

                m_svcHost.Open();
            }
            else
            {
                throw new Exception("The service host has already been started.");
            }

            return result;
        }

        static void OnSvcHostUnknownMsgRecvd(object sender, UnknownMessageReceivedEventArgs e)
        {
        }

        static void OnSvcHostClosed(object sender, EventArgs e)
        {
        }

        static void OnSvcHostClosing(object sender, EventArgs e)
        {
        }

        static void OnSvcHostOpened(object sender, EventArgs e)
        {
        }

        static void OnSvcHostFaulted(object sender, EventArgs e)
        {
        }
    }
}

Enums.cs：

using System.Runtime.Serialization;

namespace AppCommWcf
{
    /// <summary>
    /// The type of lock being requested.  These values must match BMS.ElectroOptic.C4IAppOffEnum.BMSSensorLockTypeEnum
    /// </summary>
    [DataContract(Name = "LockTypeWcf", Namespace = "http://schemas.datacontract.org/2004/07/AppCommWcf")]
    public enum LockTypeWcf : int
    {
        /// <summary>
        /// The camera is not locked.
        /// </summary>
        [EnumMember]
        NotLocked = 0,
        /// <summary>
        /// A manual lock was performed by clicking the Lock toolbar button on a video, cannot be overridden except by another
        /// user or an <see cref="Entity"/> lock.
        /// </summary>
        [EnumMember]
        Manual,
        /// <summary>
        /// An action was performed that required an auto-lock and an auto-unlock if not other action is taken within
        /// the time specified in C4IAppSimple.BMSSEOMngrParamsOfRoot.AutoUnlockTimeout.  Can be overridden by another user
        /// or <see cref="Manual"/> or <see cref="Entity"/>.
        /// </summary>
        [EnumMember]
        Auto,
        /// <summary>
        /// A lock was performed by an entity action, i.e. House Call, Line Scan or Investigation.  Can be overridden by
        /// another user or <see cref="Manual"/> or <see cref="Auto"/>.
        /// </summary>
        [EnumMember]
        Entity
    }

    #region LockPromptResponse enum
    /// <summary>
    /// The possible responses from <see cref="BMSEOMngr.RequestCameraLock(BMSSensorLockTypeEnum, BMSEOChannelEnt, int, string)"/>
    /// or <see cref="BMSEOMngr.RequestCameraLock(BMSSensorLockTypeEnum, InfSensorId, int, string)"/>.
    /// </summary>
    [DataContract(Name = "LockRequestResponse", Namespace = "http://schemas.datacontract.org/2004/07/AppCommWcf")]
    public enum LockRequestResponse
    {
        /// <summary>
        /// The video is not locked.
        /// </summary>
        [EnumMember]
        NotLocked = 0,
        /// <summary>
        /// The video is locked by the current user.
        /// </summary>
        [EnumMember]
        LockedByCurrentUser,
        /// <summary>
        /// The video is locked by a different user.
        /// </summary>
        [EnumMember]
        LockedByOtherUser
    }
    #endregion

}

ICameraCtrlComm.cs：

using System.ServiceModel;

namespace AppCommWcf
{
    [ServiceContract]
    public interface ICameraCtrlComm
    {
        [OperationContract(Action = "http://tempuri.org/ICameraLockComm/RequestLock", ReplyAction = "http://tempuri.org/ICameraLockComm/RequestLockResponse")]
        LockRequestResponse RequestLock(LockTypeWcf lckType, string camName, int stationId, string userName, bool takeCtrlIfLocked);
    }
}

服务器调用代码

using AppCommWcf;

CameraCtrlCommServer m_camCtrlServer;
Main()
{
    m_camCtrlServer = CameraCtrlCommServer.StartServiceHost(bindUrl);
    m_camCtrlServer.LockRequested += OnServerLockRequested;
}

LockRequestResponse OnServerLockRequested(LockTypeWcf lckType, string camName, int stationId, string userName, bool takeCtrlIfLocked)
{
    return LockRequestResponse.LockedByCurrentUser;
}

客户端调用代码：

using AppCommWcf;
using System.ServiceModel.Channels;

CameraCtrlCommClient m_camCtrlClient;

void Main()
{
    TimeSpan timeout = new TimeSpan(0, 0, 15); //So I don't have to wait a minute to find out it failed to connect.

    m_camCtrlClient = new CameraCtrlCommClient(bindUrl);
    Binding binding = m_camCtrlClient.Endpoint.Binding;

    binding.OpenTimeout = timeout;
    binding.ReceiveTimeout = timeout;
    binding.SendTimeout = timeout;

}

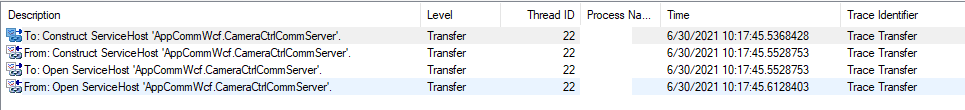

这里是WCF日志的屏幕截图，希望它会有所帮助，如果您想知道给定行的细节，请告诉我，我会在评论中发布它，因为我在这里没有足够的空间来发布整个日志。服务器日志：

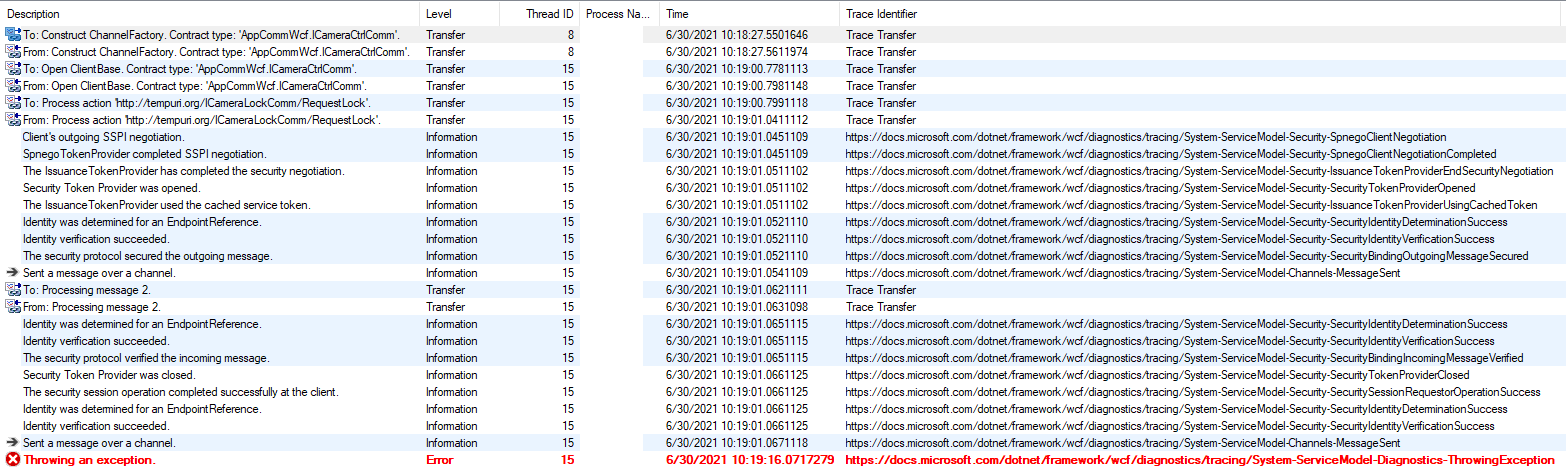

客户日志：

异常文本是:对'http://localhost:10821/CameraCtrlComm‘的HTTP请求超过了分配的超时00:00:14.9990000。分配给此操作的时间可能是较长超时的一部分。

Answer 1

问题是，我在一个非windows消息循环线程上实例化ServiceHost。一旦我创建了自己的线程，并使用Application.Run让它在该线程中等待，直到应用程序退出，它就工作了。我希望这能帮到别人。
