使用ggnewscale::new_scale()和R中的ggplot2将图例拆分成两个或多个列

Question

在following Stefan's very helpful answer to this post (他使用ggnewscale::new_scale()的地方)之后，我现在被困在以下问题上：

如何将自定义ggnewscale 中的自定义图例排列为多个垂直列？与其类似，通常使用诸如ggplot2中的guides(scale_shape_manual=guide_legend(ncol=2))这样的命令来完成。

最小可重现性示例：

# fictional data in the scheme of https://stackoverflow.com/q/66804487/16642045

mutated <- list()
for(i in 1:10) {
  mutated[[i]] <- data.frame(Biological.Replicate = rep(1,4),
                           Reagent.Conc = c(10000, 2500, 625, 156.3),
                           Reagent = rep(1,8),
                           Cell.type = rep(LETTERS[i],4),
                           Mean.Viable.Cells.1 = rep(runif(n = 10, min = 0, max = 1),4))
}
mutated <- do.call(rbind.data.frame, mutated)

用户"stefan“回答后的修改代码如下所示：

# from https://stackoverflow.com/a/66808609/16642045

library(ggplot2)
library(ggnewscale)
library(dplyr)
library(magrittr)

mutated <- mutated %>%
  mutate(Cell.type = as.factor(Cell.type),
         Reagent = factor(Reagent,
                          levels = c("0", "1", "2")))

mean_mutated <- mutated %>%
  group_by(Reagent, Reagent.Conc, Cell.type) %>%
  split(.$Cell.type)

layer_geom_scale <- function(Cell.type) {
  list(geom_point(mean_mutated[[Cell.type]], mapping = aes(shape = Reagent)),
       geom_line(mean_mutated[[Cell.type]], mapping = aes(group = Reagent, linetype = Reagent)),
       scale_linetype_manual(name = Cell.type, values = c("solid", "dashed", "dotted"), drop=FALSE),
       scale_shape_manual(name = Cell.type, values = c(15, 16, 4), labels = c("0", "1", "2"), drop=FALSE)
  )
}

my_plot <-
  ggplot(mapping = aes(
    x = as.factor(Reagent.Conc),
    y = Mean.Viable.Cells.1)) +
  layer_geom_scale(unique(mutated$Cell.type)[1])

for(current_Cell.type_index in 2:length(unique(mutated$Cell.type))) {
  my_plot <-
    my_plot +
    ggnewscale::new_scale("shape")  +
    ggnewscale::new_scale("linetype") +
    layer_geom_scale(unique(mutated$Cell.type)[current_Cell.type_index])
}

my_plot

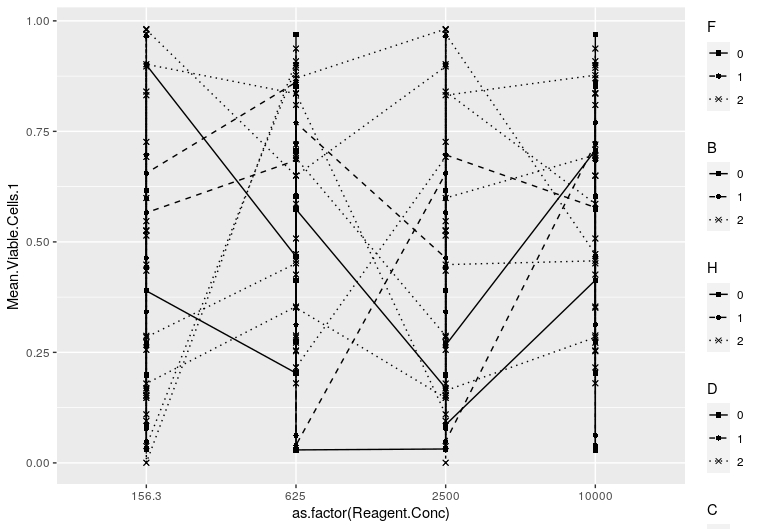

这导致：

​

现在，--我希望在两列中并行显示传奇，和我尝试过这样做(但没有成功)：

my_plot +
  guides(scale_shape_manual=guide_legend(ncol=2))

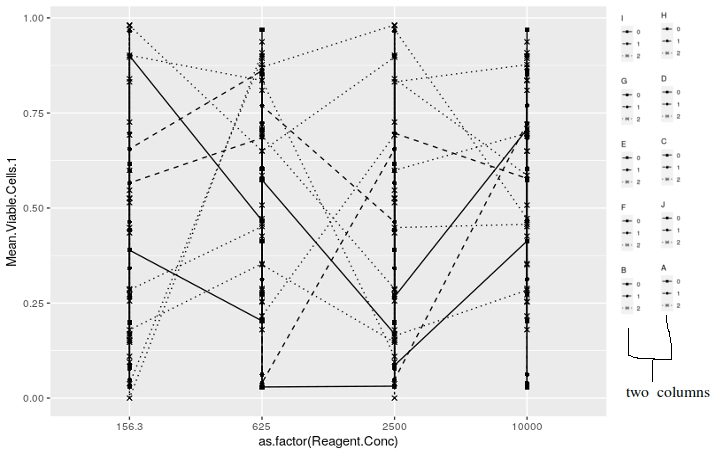

编辑:一张我希望传奇故事被安排的图片，

​

有人能帮我吗？

谢谢!

Answer 1

注意:这个答案解决了问题澄清之前的问题，编辑#4及更高版本。

水平传说

添加theme(legend.box = "horizontal")将使图例元素并排出现。

多列与ggnewscale

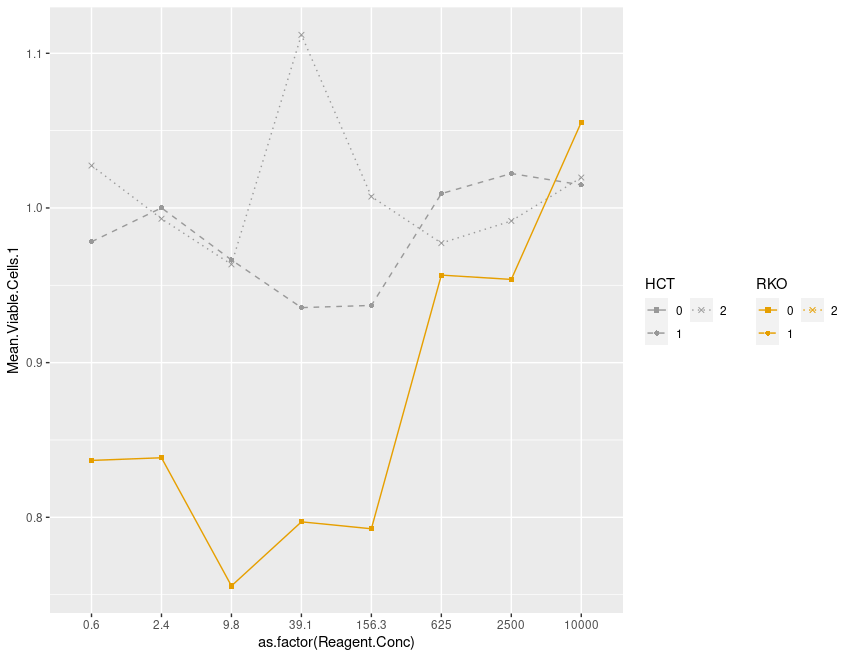

在全球范围内使用guides将导致在 ggnewscale更新之后对scales 进行修改。在这方面，只更新变量RKO：

layer_geom_scale <- function(cell_type, color) {
  list(geom_point(mean_mutated[[cell_type]], mapping = aes(shape = Reagent), color = color),
       geom_line(mean_mutated[[cell_type]], mapping = aes(group = Reagent, linetype = Reagent), color = color),
       scale_linetype_manual(name = cell_type, values = c("solid", "dashed", "dotted"), drop=FALSE),
       scale_shape_manual(name = cell_type, values = c(15, 16, 4), labels = c("0", "1", "2"), drop=FALSE)
  )
}

my_plot <-
  ggplot(mapping = aes(
    x = as.factor(Reagent.Conc),
    y = Mean.Viable.Cells.1)) +
  layer_geom_scale("HCT", "#999999") +
  ggnewscale::new_scale("linetype") +
  ggnewscale::new_scale("shape") +
  layer_geom_scale("RKO", "#E69F00") +
  theme(legend.box = "horizontal") +
  guides(shape = guide_legend(ncol = 2),
         linetype = guide_legend(ncol = 2))

my_plot

​

​

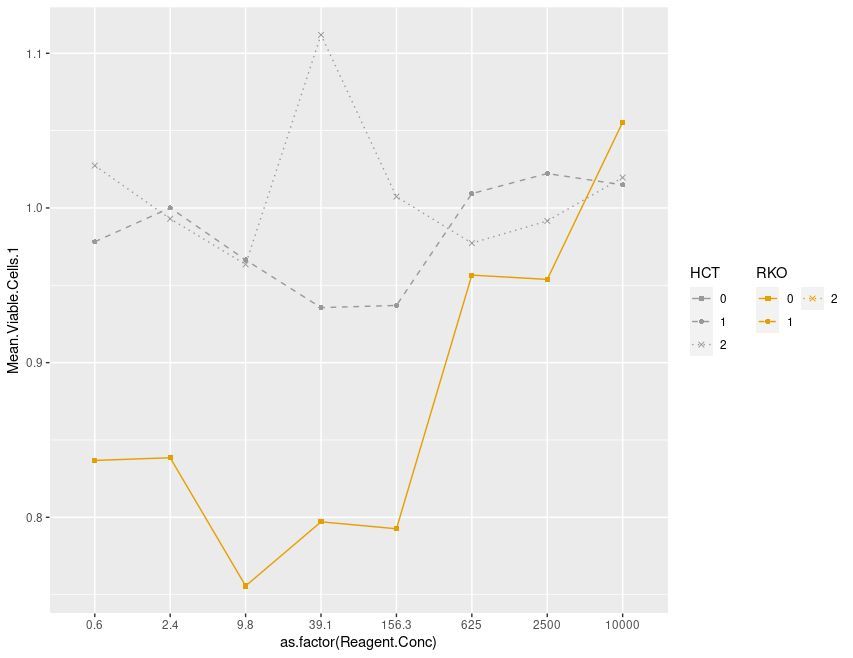

要修改所有变量的相同比例，应该在刻度定义中添加guide：

layer_geom_scale <- function(cell_type, color) {
  list(geom_point(mean_mutated[[cell_type]], mapping = aes(shape = Reagent), color = color),
       geom_line(mean_mutated[[cell_type]], mapping = aes(group = Reagent, linetype = Reagent), color = color),
       scale_linetype_manual(name = cell_type, values = c("solid", "dashed", "dotted"), drop=FALSE,
                             guide = guide_legend(ncol = 2)),
       scale_shape_manual(name = cell_type, values = c(15, 16, 4), labels = c("0", "1", "2"), drop=FALSE,
                          guide = guide_legend(ncol = 2))
  )
}

my_plot <-
  ggplot(mapping = aes(
    x = as.factor(Reagent.Conc),
    y = Mean.Viable.Cells.1)) +
  layer_geom_scale("HCT", "#999999") +
  ggnewscale::new_scale("linetype") +
  ggnewscale::new_scale("shape") +
  layer_geom_scale("RKO", "#E69F00") +
  theme(legend.box = "horizontal")

my_plot

​

​
