用ggplot2在R中复制Excel图

Question

这是一个随机的问题，但我目前正在绘制一些数据，并得到一个基本的想法，我在excel中做了一个快速查看。

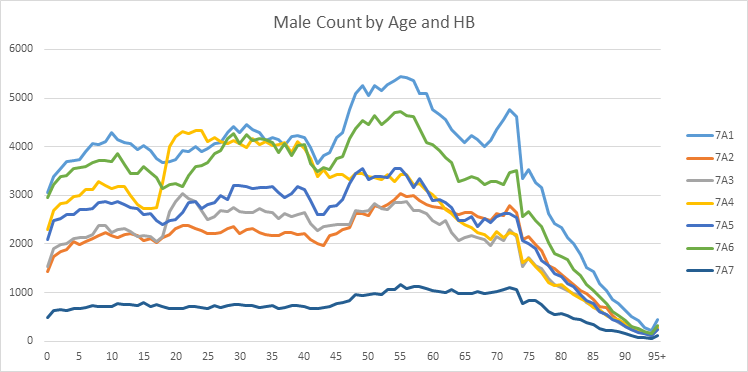

现在我已经从这里中获得了一些像样的数据--在Excel中，我用一个支点表创建了这幅图，它与男性计数相加。

​

​

但是当我试图用ggplot2在R中重新创建这个函数时，我被困住了。

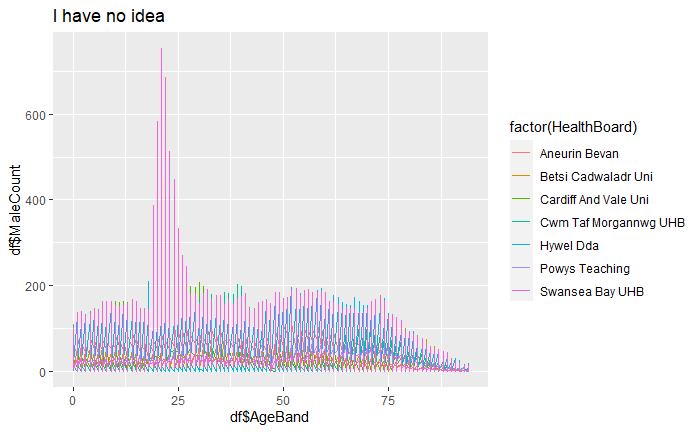

我想我只是想不出是如何将和MaleCount和在R中复制的--这就是我在R中得到的没有求和的情节。

​

​

这是用来创建的代码：

ggplot(data = df,
       aes(x = df$AgeBand, # Axis (Categories)
           y = df$MaleCount)) + # This should be summed somehow.
  geom_line(aes(colour = factor(HealthBoard))) + # Legend
  ggtitle("I have no idea")

告诉我你还有什么问题要问。

提前谢谢你，马克。

编辑:在下面添加结构。

tibble [50 x 11] (S3: tbl_df/tbl/data.frame)
 $ Period            : num [1:50] 202004 202004 202004 202004 202004 ...
 $ PracticeCode      : chr [1:50] "W96016" "W95001" "W93021" "W91054" ...
 $ PostCode          : chr [1:50] "NP8 1AG" "CF44 7DD" "NP16 5XR" "LL12 7TH" ...
 $ OrgCode           : chr [1:50] "7A7" "7A5" "7A6" "7A1" ...
 $ AgeBand           : num [1:50] 8 24 11 14 68 24 4 56 85 17 ...
 $ MaleCount         : num [1:50] 37 94 49 41 28 53 16 20 4 40 ...
 $ FemaleCount       : num [1:50] 41 98 41 31 28 64 20 14 7 50 ...
 $ IndeterminateCount: num [1:50] 0 0 0 0 0 0 0 0 0 0 ...
 $ Count             : num [1:50] 78 192 90 72 56 117 36 34 11 90 ...
 $ Year              : num [1:50] 2020 2020 2020 2020 2020 2020 2020 2020 2020 2020 ...
 $ Month             : chr [1:50] "April" "April" "April" "April" ...

在下面添加dput。

structure(list(Period = c(202004, 202004, 202004, 202004, 202004,
202004, 202004, 202004, 202004, 202004, 202004, 202004, 202004,
202004, 202004, 202004, 202004, 202004, 202004, 202004, 202004,
202004, 202004, 202004, 202004, 202004, 202004, 202004, 202004,
202004, 202004, 202004, 202004, 202004, 202004, 202004, 202004,
202004, 202004, 202004, 202004, 202004, 202004, 202004, 202004,
202004, 202004, 202004, 202004, 202004), PracticeCode = c("W95023",
"W95086", "W91015", "W93045", "W93125", "W97623", "W95073", "W95042",
"W94017", "W97025", "W95016", "W92048", "W98033", "W94018", "W93116",
"W93059", "W94035", "W93046", "W92058", "W97016", "W94021", "W98048",
"W94026", "W97069", "W98012", "W92052", "W93072", "W91044", "W96015",
"W97060", "W97008", "W94609", "W91038", "W97010", "W92023", "W97067",
"W93049", "W97028", "W91058", "W97048", "W92023", "W93061", "W91610",
"W94007", "W95034", "W95024", "W93075", "W95032", "W95087", "W93029"
), PostCode = c("CF48 1BZ", "CF48 3AL", "CH5 3PA", "NP20 6EY",
"NP18 2JB", "CF5 5LQ", "CF83 3JZ", "CF45 4YB", "LL55 4SU", "CF14 3NB",
"CF44 6HY", "SA14 8TU", "SA3 5UA", "LL30 3EU", "NP10 8UX", "NP11 6BJ",
"LL23 7BA", "NP20 4JS", "SA62 6SS", "CF11 9SH", "LL52 0RR", "SA10 6UF",
"LL65 1RA", "CF3 0SH", "SA4 3ED", "SA15 3BD", "NP25 3PL", "CH7 4RQ",
"SY16 1EF", "CF24 1AG", "CF23 9PN", "LL54 6NN", "LL22 8LJ", "CF23 8SQ",
"SA34 0AJ", "CF11 9DG", "NP19 7DQ", "CF14 1LT", "LL13 8RG", "CF24 2HB",
"SA34 0AJ", "NP10 9DU", "LL12 9LG", "LL36 9HL", "CF33 4LD", "CF37 2DR",
"NP13 1BQ", "CF46 5HE", "CF44 7AY", "NP44 4TA"), OrgCode = c("7A5",
"7A5", "7A1", "7A6", "7A6", "7A4", "7A6", "7A5", "7A1", "7A4",
"7A5", "7A2", "7A3", "7A1", "7A6", "7A6", "7A1", "7A6", "7A2",
"7A4", "7A1", "7A3", "7A1", "7A4", "7A3", "7A2", "7A6", "7A1",
"7A7", "7A4", "7A4", "7A1", "7A1", "7A4", "7A2", "7A4", "7A6",
"7A4", "7A1", "7A4", "7A2", "7A6", "7A1", "7A1", "7A5", "7A5",
"7A6", "7A5", "7A5", "7A6"), AgeBand = c(87, 31, 44, 53, 23,
91, 24, 12, 93, 83, 26, 38, 92, 47, NA, 23, 27, 80, 93, 2, 46,
82, 11, 45, 72, 18, 26, 54, 89, 71, 30, 27, 18, 37, 50, 4, 8,
51, 59, 8, 4, 64, 92, 13, 88, 85, 78, 56, 45, 44), MaleCount = c(12,
153, 52, 59, 16, 0, 10, 39, 1, 9, 33, 33, 13, 44, 3, 37, 31,
15, 0, 17, 18, 8, 39, 24, 143, 84, 24, 23, 6, 30, 129, 21, 61,
72, 55, 23, 86, 68, 82, 81, 42, 57, 0, 23, 12, 24, 27, 43, 18,
63), FemaleCount = c(14, 133, 73, 62, 22, 1, 18, 36, 3, 10, 36,
25, 21, 38, 20, 44, 24, 21, 1, 18, 21, 19, 30, 26, 151, 71, 23,
17, 27, 20, 132, 17, 65, 70, 55, 28, 73, 73, 69, 80, 28, 74,
2, 25, 24, 27, 24, 33, 33, 64), IndeterminateCount = c(0, 0,
0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,
0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,
0, 0, 0, 0, 0, 0), Count = c(26, 286, 125, 121, 38, 1, 28, 75,
4, 19, 69, 58, 34, 82, 23, 81, 55, 36, 1, 35, 39, 27, 69, 50,
294, 155, 47, 40, 33, 50, 261, 38, 126, 142, 110, 51, 159, 141,
151, 161, 70, 131, 2, 48, 36, 51, 51, 76, 51, 127), Year = c(2020,
2020, 2020, 2020, 2020, 2020, 2020, 2020, 2020, 2020, 2020, 2020,
2020, 2020, 2020, 2020, 2020, 2020, 2020, 2020, 2020, 2020, 2020,
2020, 2020, 2020, 2020, 2020, 2020, 2020, 2020, 2020, 2020, 2020,
2020, 2020, 2020, 2020, 2020, 2020, 2020, 2020, 2020, 2020, 2020,
2020, 2020, 2020, 2020, 2020), Month = c("April", "April", "April",
"April", "April", "April", "April", "April", "April", "April",
"April", "April", "April", "April", "April", "April", "April",
"April", "April", "April", "April", "April", "April", "April",
"April", "April", "April", "April", "April", "April", "April",
"April", "April", "April", "April", "April", "April", "April",
"April", "April", "April", "April", "April", "April", "April",
"April", "April", "April", "April", "April")), row.names = c(NA,
-50L), class = c("tbl_df", "tbl", "data.frame"))

Answer 1

根据您的评论，我将OrgCode重命名为HealthBoard。

library(dplyr)

df %>%
rename(HealthBoard=OrgCode) %>%
group_by(HealthBoard,AgeBand) %>%
summarise(MaleCount=sum(MaleCount),.groups='drop') %>%
ggplot(aes(x=AgeBand,y=MaleCount,color=HealthBoard))+
geom_line()+
ggtitle('You have some idea now.')

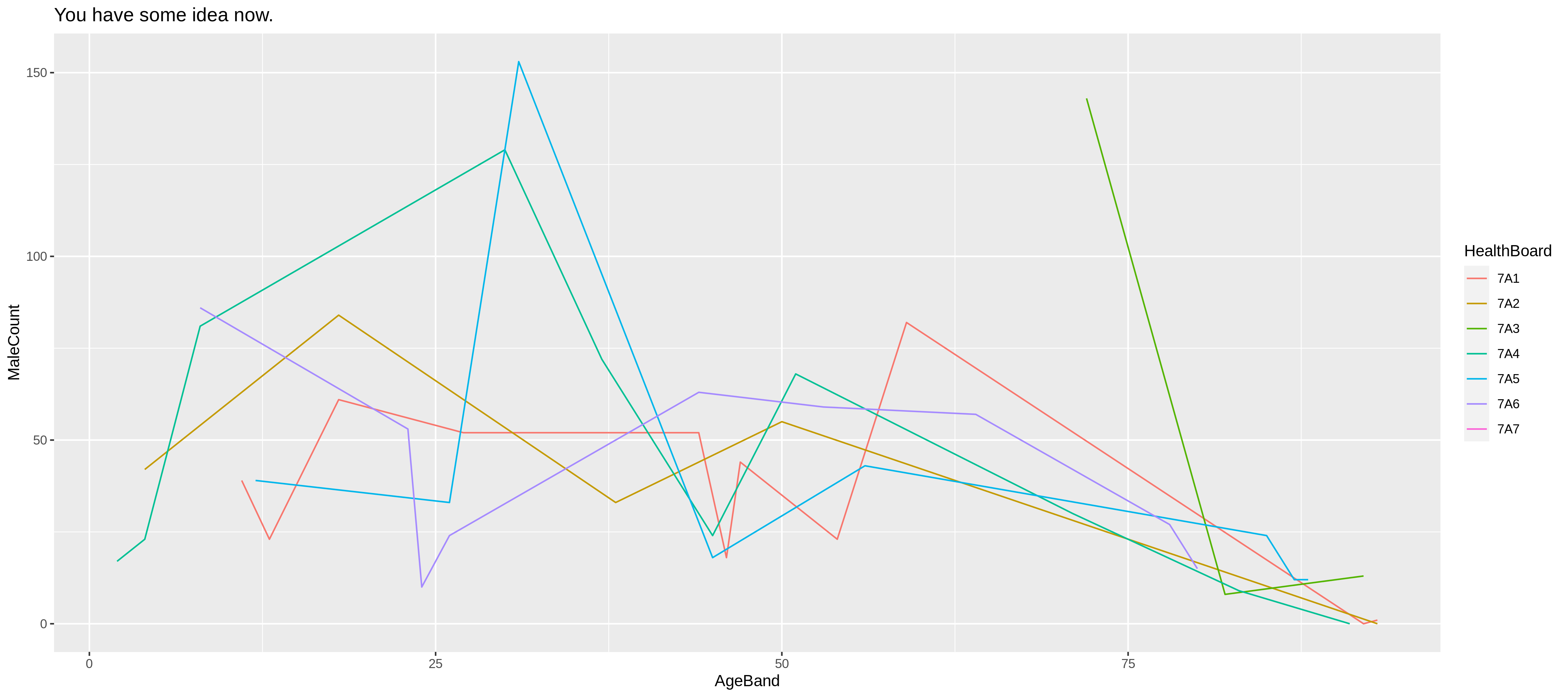

输出；

​

​
