如何创建土壤质地三元地块？

Question

我有一个包含土壤纹理信息的数据框架，我想创建一个类似于这的土壤纹理图。

我怎样才能做到这一点：

1. 每个区域有不同的颜色
2. 三角形中类的标签，如这？

示例数据：

area <- c('S1','S2','S3','S4','S5','S6','S7','S8')
sand <- c(76.4,56.9,61.7,64.5,71,70.1,60.5,53.7)
silt<-c(9.3,23.1,23,17.4,13.5,13.4,21.1,30.6)
clay<-c(14.3, 20,15.4,18,15.5,16.6,18.4,15.7)
my_data<-data.frame(area,sand,silt,clay)

使用ggtern包的基本绘图：

theme_set(theme_bw())
my_data %>%
    ggtern(aes(
        x = sand,
        y = clay,
        z = silt )) +
    geom_point()

Answer 1

根据你的数据：

library(plotrix)

soil.texture(my_data[,2:4],col.symbols=1:8,bg.symbols=1:8,point.labels=my_data$area,pch=21)
legend( x=1,
        legend=my_data$area,
        col=1:8,
        fill=1:8 )

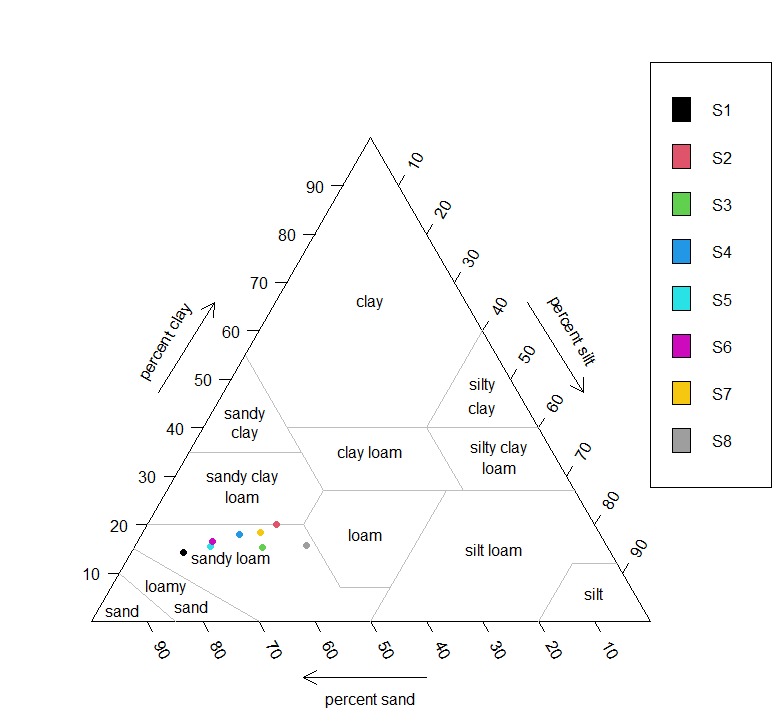

这给了你：

​

​

编辑

为了避免标签的背景，您必须查看soil.texture的源代码。如果这样做，您将注意到函数使用boxed.labels在三角形图中绘制文本，因此不能通过处理函数的参数来避免这种行为。相反，您可以编写自己版本的函数，用更简单的boxed.labels函数更改text，如下所示：

my_soil_texture <- function (soiltexture = NULL, main = "", at = seq(0.1, 0.9,
                                                  by = 0.1), axis.labels = c("percent sand", "percent silt",
                                                                             "percent clay"), tick.labels = list(l = seq(10, 90, by = 10),
                                                                                                                 r = seq(10, 90, by = 10), b = seq(10, 90, by = 10)), show.names = TRUE,
          show.lines = TRUE, col.names = "gray", bg.names = par("bg"),
          show.grid = FALSE, col.axis = "black", col.lines = "gray",
          col.grid = "gray", lty.grid = 3, show.legend = FALSE, label.points = FALSE,
          point.labels = NULL, col.symbols = "black", pch = par("pch"),
          ...)
{
  par(xpd = TRUE)
  triax.plot(x = NULL, main = main, at = at, axis.labels = axis.labels,
             tick.labels = tick.labels, col.axis = col.axis, show.grid = show.grid,
             col.grid = col.grid, lty.grid = lty.grid)
  arrows(0.12, 0.41, 0.22, 0.57, length = 0.15)
  arrows(0.78, 0.57, 0.88, 0.41, length = 0.15)
  arrows(0.6, -0.1, 0.38, -0.1, length = 0.15)
  if (show.lines) {
    triax.segments <- function(h1, h3, t1, t3, col) {
      segments(1 - h1 - h3/2, h3 * sin(pi/3), 1 - t1 -
                 t3/2, t3 * sin(pi/3), col = col)
    }
    h1 <- c(85, 70, 80, 52, 52, 50, 20, 8, 52, 45, 45, 65,
            45, 20, 20)/100
    h3 <- c(0, 0, 20, 20, 7, 0, 0, 12, 20, 27, 27, 35, 40,
            27, 40)/100
    t1 <- c(90, 85, 52, 52, 43, 23, 8, 0, 45, 0, 45, 45,
            0, 20, 0)/100
    t3 <- c(10, 15, 20, 7, 7, 27, 12, 12, 27, 27, 55, 35,
            40, 40, 60)/100
    triax.segments(h1, h3, t1, t3, col.lines)
  }
  if (show.names) {
    xpos <- c(0.5, 0.7, 0.7, 0.73, 0.73, 0.5, 0.275, 0.275,
              0.27, 0.27, 0.25, 0.135, 0.18, 0.055, 0.49, 0.72,
              0.9)
    ypos <- c(0.66, 0.49, 0.44, 0.36, 0.32, 0.35, 0.43,
              0.39, 0.3, 0.26, 0.13, 0.072, 0.032, 0.024, 0.18,
              0.15, 0.06) * sin(pi/3)
    snames <- c("clay", "silty", "clay", "silty clay", "loam",
                "clay loam", "sandy", "clay", "sandy clay", "loam",
                "sandy loam", "loamy", "sand", "sand", "loam", "silt loam",
                "silt")
    text(xpos, ypos, labels=snames)# here I switched from boxed.labels(xpos, ypos, snames, border = FALSE, xpad = 0.5) to text(xpos, ypos, labels=snames)
  }
  par(xpd = FALSE)
  if (is.null(soiltexture))
    return(NULL)
  soilpoints <- triax.points(soiltexture, show.legend = show.legend,
                             label.points = label.points, point.labels = point.labels,
                             col.symbols = col.symbols, pch = pch, ...)
  invisible(soilpoints)
}

所以现在你可以用你自己的函数来绘制情节了：

my_soil_texture(my_data[,2:4],col.symbols=1:8,bg.symbols=1:8,point.labels=my_data$area,pch=21,col.grid=3)
legend( x=1,
        legend=my_data$area,
        col=1:8,
        fill=1:8 )

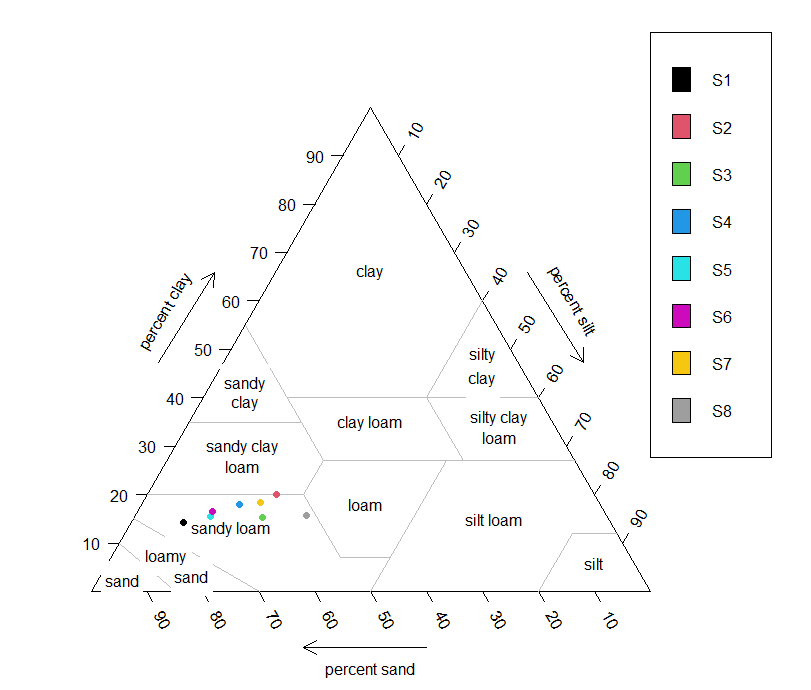

这给了你：

​

​

我想强调一下刚才所做的改变的一个小问题。由于您可以更改主三角形的背景色，boxed labels()试图根据背景色计算出白色文本还是黑色文本，并相应地显示文本。因此，如果要更改绘图的背景，则从boxed.labels()切换到text()可能会造成问题。
