通过/realms/{realm}/protocol/openid-connect/userinfo获取用户信息时的Keycloak - 401响应(USER_INFO_REQUEST_ERROR)

Question

我在本地部署了一个Keycloak，其中包含以下Docker命令：

docker运行-p 8080:8080 -e KEYCLOAK_ADMIN=admin -e KEYCLOAK_ADMIN_PASSWORD=admin quay.io/keycloak/keycloak:20.0.1 start-dev

我从Keycloak那里得到了一个记号。示例：

eyJhbGciOiJSUzI1NiIsInR5cCIgOiAiSldUIiwia2lkIiA6ICJMZjRfWHJjWkpTaVJYWlFLS254VS1NdU9FTHA4d3NaaHlLMDQ0UjRIRjdnIn0.eyJleHAiOjE2NzAwODc1MDgsImlhdCI6MTY3MDA4NzIwOCwiYXV0aF90aW1lIjoxNjcwMDg2NDcwLCJqdGkiOiIyYWQxODQ5ZC0xMjI0LTQ4YjYtYWZjYy01ZmFjMWZjODY3ZjQiLCJpc3MiOiJodHRwOi8vbG9jYWxob3N0OjgwODAvcmVhbG1zL2RpYWxvZy1mZWF0IiwiYXVkIjoiYWNjb3VudCIsInN1YiI6IjRkYjdiNjg1LTRkYTAtNGZjMy1iNjI1LTgyZmM1MTdjNjA3NiIsInR5cCI6IkJlYXJlciIsImF6cCI6InNvbWV4NSIsIm5vbmNlIjoiR0tNb1JWRTVDajZSVjJMcFQ1Mjg5eVQ3RUdWeFMzZk4iLCJzZXNzaW9uX3N0YXRlIjoiMTY4Y2JmZGQtMmFmYS00Mjk5LWI4YmUtMmExM2FjMjI2NzJiIiwiYWNyIjoiMCIsInJlYWxtX2FjY2VzcyI6eyJyb2xlcyI6WyJvZmZsaW5lX2FjY2VzcyIsInVtYV9hdXRob3JpemF0aW9uIiwiZGVmYXVsdC1yb2xlcy1kaWFsb2ctZmVhdCJdfSwicmVzb3VyY2VfYWNjZXNzIjp7ImFjY291bnQiOnsicm9sZXMiOlsibWFuYWdlLWFjY291bnQiLCJtYW5hZ2UtYWNjb3VudC1saW5rcyIsInZpZXctcHJvZmlsZSJdfX0sInNjb3BlIjoib3BlbmlkIHByb2ZpbGUgZW1haWwiLCJzaWQiOiIxNjhjYmZkZC0yYWZhLTQyOTktYjhiZS0yYTEzYWMyMjY3MmIiLCJlbWFpbF92ZXJpZmllZCI6dHJ1ZSwibmFtZSI6IkpvaG4gU25vdyIsInByZWZlcnJlZF91c2VybmFtZSI6ImpvaG4uc25vdyIsImdpdmVuX25hbWUiOiJKb2huIiwiZmFtaWx5X25hbWUiOiJTbm93IiwiZW1haWwiOiJqb2huLnNub3dAeDUucnUifQ.j_rFqVxICtj7NR-myEsWhSkwBeCABplFrmlBuRMAhF4N8HzdOOtExdmw_mXdx60snKTaE5GJHPofjllpM353lY8H9NGxaczUgL20GjVmMhwtihGGBLpiw7TXyGQGkfdBXdweCuS0W1avegXrhRYvCYlFGJMoxsdmskYkDt4DjuESlTkMEOndVjv5LBp3rLB6lRopq0Qg3Abp_rv57KvlVeeul24OKoisFohnZ4VfsiDPAuVW1u1xaYmjCRDlBwIcGosdwasL_WNAgvJkaKdVtvu7NU-ghPa1vQkWJkMZrVIZDsCc5LKZqwspw3U2iOcUc5EDC6FumBWdfvWCx8cszw

其有效载荷：

{
  "exp": 1670087508,
  "iat": 1670087208,
  "auth_time": 1670086470,
  "jti": "2ad1849d-1224-48b6-afcc-5fac1fc867f4",
  "iss": "http://localhost:8080/realms/dialog-feat",
  "aud": "account",
  "sub": "4db7b685-4da0-4fc3-b625-82fc517c6076",
  "typ": "Bearer",
  "azp": "somex5",
  "nonce": "GKMoRVE5Cj6RV2LpT5289yT7EGVxS3fN",
  "session_state": "168cbfdd-2afa-4299-b8be-2a13ac22672b",
  "acr": "0",
  "realm_access": {
    "roles": [
      "offline_access",
      "uma_authorization",
      "default-roles-dialog-feat"
    ]
  },
  "resource_access": {
    "account": {
      "roles": [
        "manage-account",
        "manage-account-links",
        "view-profile"
      ]
    }
  },
  "scope": "openid profile email",
  "sid": "168cbfdd-2afa-4299-b8be-2a13ac22672b",
  "email_verified": true,
  "name": "John Snow",
  "preferred_username": "john.snow",
  "given_name": "John",
  "family_name": "Snow",
  "email": "john.snow@x5.ru"
}

这似乎是有道理的。然后，我用令牌向http://127.0.0.1:8080/realms/dialog-feat/protocol/openid-connect/userinfo发出请求：

卷曲--位置--请求获取“http://127.0.0.1:8080/realms/dialog-feat/protocol/openid-connect/userinfo” -标头授权:无记名eyJhbGciOiJSUzI1NiIsInR5cCIgOiAiSldUIiwia2lkIiA6ICJMZjRfWHJjWkpTaVJYWlFLS254VS1NdU9FTHA4d3NaaHlLMDQ0UjRIRjdnIn0.eyJleHAiOjE2NzAwODc1MDgsImlhdCI6MTY3MDA4NzIwOCwiYXV0aF90aW1lIjoxNjcwMDg2NDcwLCJqdGkiOiIyYWQxODQ5ZC0xMjI0LTQ4YjYtYWZjYy01ZmFjMWZjODY3ZjQiLCJpc3MiOiJodHRwOi8vbG9jYWxob3N0OjgwODAvcmVhbG1zL2RpYWxvZy1mZWF0IiwiYXVkIjoiYWNjb3VudCIsInN1YiI6IjRkYjdiNjg1LTRkYTAtNGZjMy1iNjI1LTgyZmM1MTdjNjA3NiIsInR5cCI6IkJlYXJlciIsImF6cCI6InNvbWV4NSIsIm5vbmNlIjoiR0tNb1JWRTVDajZSVjJMcFQ1Mjg5eVQ3RUdWeFMzZk4iLCJzZXNzaW9uX3N0YXRlIjoiMTY4Y2JmZGQtMmFmYS00Mjk5LWI4YmUtMmExM2FjMjI2NzJiIiwiYWNyIjoiMCIsInJlYWxtX2FjY2VzcyI6eyJyb2xlcyI6WyJvZmZsaW5lX2FjY2VzcyIsInVtYV9hdXRob3JpemF0aW9uIiwiZGVmYXVsdC1yb2xlcy1kaWFsb2ctZmVhdCJdfSwicmVzb3VyY2VfYWNjZXNzIjp7ImFjY291bnQiOnsicm9sZXMiOlsibWFuYWdlLWFjY291bnQiLCJtYW5hZ2UtYWNjb3VudC1saW5rcyIsInZpZXctcHJvZmlsZSJdfX0sInNjb3BlIjoib3BlbmlkIHByb2ZpbGUgZW1haWwiLCJzaWQiOiIxNjhjYmZkZC0yYWZhLTQyOTktYjhiZS0yYTEzYWMyMjY3MmIiLCJlbWFpbF92ZXJpZmllZCI6dHJ1ZSwibmFtZSI6IkpvaG4gU25vdyIsInByZWZlcnJlZF91c2VybmFtZSI6ImpvaG4uc25vdyIsImdpdmVuX25hbWUiOiJKb2huIiwiZmFtaWx5X25hbWUiOiJTbm93IiwiZW1haWwiOiJqb2huLnNub3dAeDUucnUifQ.j_rFqVxICtj7NR-myEsWhSkwBeCABplFrmlBuRMAhF4N8HzdOOtExdmw_mXdx60snKTaE5GJHPofjllpM353lY8H9NGxaczUgL20GjVmMhwtihGGBLpiw7TXyGQGkfdBXdweCuS0W1avegXrhRYvCYlFGJMoxsdmskYkDt4DjuESlTkMEOndVjv5LBp3rLB6lRopq0Qg3Abp_rv57KvlVeeul24OKoisFohnZ4VfsiDPAuVW1u1xaYmjCRDlBwIcGosdwasL_WNAgvJkaKdVtvu7NU-ghPa1vQkWJkMZrVIZDsCc5LKZqwspw3U2iOcUc5EDC6FumBWdfvWCx8cszw‘

但是我得到了一个401状态码。例如：

type=USER_INFO_REQUEST_ERROR, realmId=(...), clientId=null, userId=null, ipAddress=(...), error=access_denied, auth_method=validate_access_token

怎么解决这个问题？

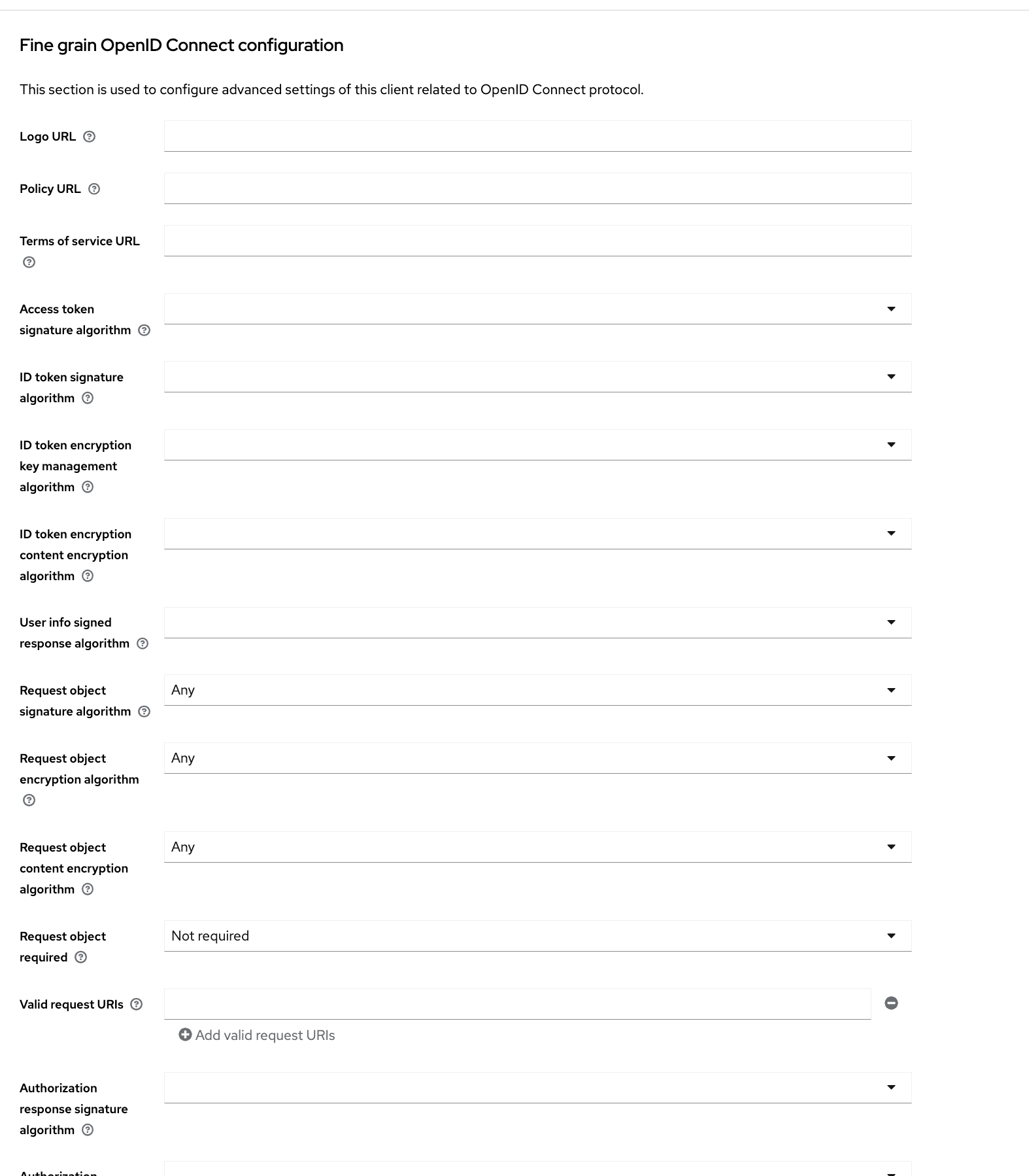

我的密钥披风设置：

​

​

​

​

​

​

​

​

Answer 1

问题似乎是发送到userinfo端点的访问令牌的颁发者(即"iss"：“http://localhost:8080/realms/dialog-feat"”)与由userinfo端点触发的访问令牌验证器所期望的访问令牌验证器之间的不匹配。

而不是：

然后，我使用令牌(.)向http://127.0.0.1:8080/realms/dialog-feat/protocol/openid-connect/userinfo发出请求：

例如，在userinfo端点中使用与获取访问令牌相同的主机名：

curl http://localhost:8080/realms/dialog-feat/protocol/openid-connect/userinfo -H "Authorization: Bearer (..<your access token..)"

如果问题仍然存在，那么您还将面临与UserInfo端点不完全符合标准中描述的Keycloak端点实现相关的问题。

简而言之，在请求访问令牌时，显式地添加参数scope=openid。举个例子：

curl --request POST \
        --url "http://localhost:8080/realms/dialog-feat/protocol/openid-connect/token" \
        --data client_id=somex5 \
        --data username=john.snow \
        --data password=...<the password..> \
        --data grant_type=password \
        --data scope=openid
