Stack Overflow用户

提问于 2022-11-28 04:27:01

回答 1查看 35关注 0票数 1

我有一个生成圆和线的程序，在这个程序中，圆不能相互碰撞，线不能与圆圈发生碰撞，问题是它只画了一条线，而不是其他的，它没有标记任何错误，正如我认为我不明白原因一样(我对python不熟悉，所以请原谅，如果错误很明显的话)

我尝试将for从我的CreaLin类中删除，它确实生成了行，但它们都与圆圈发生了碰撞，我还认为collisionL函数可能是问题，因为方法本身并不属于line类，但是我需要循环类的值，所以我不知道另一种方法是什么，我想知道一种方法。

我的代码：

class CreaCir:
    def __init__(self, figs):
        self.figs = figs

    def update(self):
        if len(self.figs) <70:
            choca = False
            r = randint(5, 104)
            x = randint(0, 600 + r)
            y = randint(0, 400 + r)
            creOne = Circulo(x, y, r)
            for  fig in (self.figs):
                choca = creOne.colisionC(fig)
                if choca == True:
                    break
            if choca == False:
                self.figs.append(creOne)

    def dibujar(self, ventana):
        pass

class CreaLin:
    def __init__(self, lins):
        self.lins = lins

    def update(self):
        if len(self.lins) <70:
            choca = False
            x = randint(0, 700)
            y = randint(0, 500)
            a = randint(0, 700)
            b = randint(0, 500)
            linOne = Linea(x, y, a, b)
            for  lin in (self.lins):
                choca = linOne.colisionL(lin)
                if choca == True:
                    break
            if choca == False:
                self.lins.append(linOne)

    def dibujar(self, ventana):
        pass


class Ventana:
    def __init__(self, Ven_Tam= (700, 500)):

        pg.init()
        self.ven_tam = Ven_Tam

        self.ven = pg.display.set_caption("Linea")
        self.ven = pg.display.set_mode(self.ven_tam)
        self.ven.fill(pg.Color('#404040'))
        self.figs = []
        self.lins = []
        self.reloj = pg.time.Clock()

    def check_events(self):
        for event in pg.event.get():
            if event.type == pg.QUIT or (event.type == pg.KEYDOWN and event.key == pg.K_ESCAPE):
                quit()
        pg.display.flip()

    def run(self):
        cirCreater = CreaCir(self.figs)
        linCreater = CreaLin(self.lins)
        while True:
            self.check_events()
            cirCreater.update()
            linCreater.update()

            for fig in self.figs:
                fig.dibujar(self.ven)

            for lin in self.lins:
                lin.dibujar(self.ven)

            self.reloj.tick(60)


if __name__ == '__main__':
    ven = Ventana()
    ven.run()

巡回班：

class Circulo(PosGeo):
    def __init__(self, x, y, r):
        self.x = x
        self.y = y
        self.radio = r
        self.cx = x+r
        self.cy = y+r

    def __str__(self):
      return f"Circulo, (X: {self.x}, Y: {self.y}), radio: {self.radio}"

    def dibujar(self, ventana):
        pg.draw.circle(ventana, "white", (self.cx, self.cy), self.radio, 1)
        pg.draw.line(ventana, "white", (self.cx+2, self.cy+2),(self.cx-2, self.cy-2))
        pg.draw.line(ventana, "white", (self.cx-2, self.cy+2),(self.cx+2, self.cy-2))

    def update(self):
        pass

    def colisionC(self, c2):
        return self.radio + c2.radio > sqrt(pow(self.cx - c2.cx, 2) + pow(self.cy - c2.cy, 2))


   def colisionL(self, L2):
       l0 = [L2.x, L2.y]
       l1 = [L2.a, L2.b]
       cp = [self.cx, self.cy]

       x1 = l0[0] - cp[0]
       y1 = l0[1] - cp[1]
       x2 = l1[0] - cp[0]
       y2 = l1[1] - cp[1]
       dx = x2 - x1
       dy = y2 - y1
       dr = sqrt(dx*dx + dy*dy)
       D = x1 * y2 - x2 * y1
       discriminant = self.radio*self.radio*dr*dr - D*D

       if discriminant < 0:
          return False
       else:
          return True`

最后我的课文是：

class Linea(PosGeo):
    def __init__(self, x, y, a, b):
        super().__init__(x, y)
        self.x = x
        self.y = y
        self.a = a
        self.b = b

    def dibujar(self, ventana):
        pg.draw.line(ventana, "#7B0000", (self.x, self.y), (self.a, self.b))

    def update(self):
        pass

    def colisionL(self, l1):
        pass

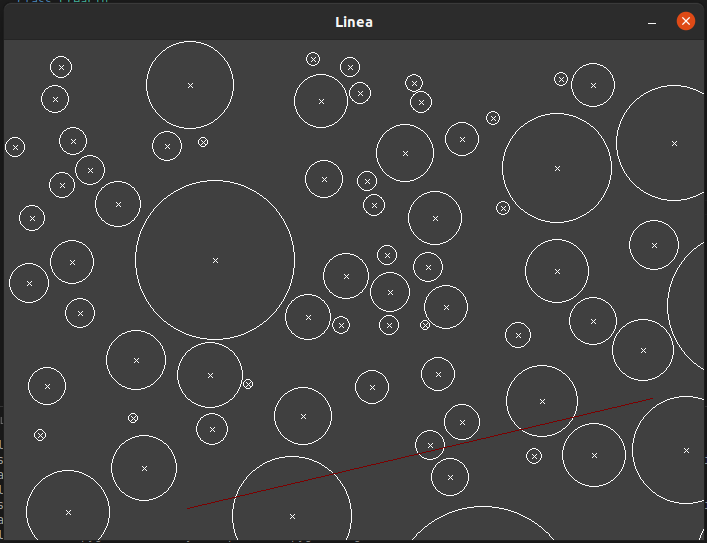

结果：

python

class

pygame

回答 1

Stack Overflow用户

回答已采纳

发布于 2022-11-28 16:58:07

您需要在colisionC和Circulo中实现Linea和Circulo方法。关于直线相交算法，请参见Problem with calculating line intersections。在检查线条和圆圈之间的冲突时，除了检查圆圈和无止境线之间的冲突外，还必须考虑线段的开始和结束：

class Linea:
    # [...]

    def colisionC(self, c2):
        return c2.colisionL(self)

    def colisionL(self, l1):
        return Linea.intersect_line_line((self.x, self.y), (self.a, self.b), (l1.x, l1.y), (l1.a, l1.b))

    def intersect_line_line(P0, P1, Q0, Q1):
        d = (P1[0]-P0[0]) * (Q1[1]-Q0[1]) + (P1[1]-P0[1]) * (Q0[0]-Q1[0])
        if d == 0:
            return None
        t = ((Q0[0]-P0[0]) * (Q1[1]-Q0[1]) + (Q0[1]-P0[1]) * (Q0[0]-Q1[0])) / d
        u = ((Q0[0]-P0[0]) * (P1[1]-P0[1]) + (Q0[1]-P0[1]) * (P0[0]-P1[0])) / d
        if 0 <= t <= 1 and 0 <= u <= 1:
            return P1[0] * t + P0[0] * (1-t), P1[1] * t + P0[1] * (1-t)
        return None

class Circulo
    # [...]

    def colisionC(self, c2):
        return self.radio + c2.radio > sqrt(pow(self.cx - c2.cx, 2) + pow(self.cy - c2.cy, 2))

    def colisionL(self, L2):
       l0 = [L2.x, L2.y]
       l1 = [L2.a, L2.b]
       cp = [self.cx, self.cy]
       x1 = l0[0] - cp[0]
       y1 = l0[1] - cp[1]
       x2 = l1[0] - cp[0]
       y2 = l1[1] - cp[1]
       if sqrt(x1*x1+y1*y1) < self.radio or sqrt(x2*x2+y2*y2) < self.radio:
           return True

       dx = x2 - x1
       dy = y2 - y1
       dr = sqrt(dx*dx + dy*dy)
       D = x1 * y2 - x2 * y1
       discriminant = self.radio*self.radio*dr*dr - D*D
       if discriminant < 0:
           return False

       sign = lambda x: -1 if x < 0 else 1
       xa = (D * dy + sign(dy) * dx * sqrt(discriminant)) / (dr * dr)
       xb = (D * dy - sign(dy) * dx * sqrt(discriminant)) / (dr * dr)
       ya = (-D * dx + abs(dy) * sqrt(discriminant)) / (dr * dr)
       yb = (-D * dx - abs(dy) * sqrt(discriminant)) / (dr * dr)
       ta = (xa-x1)*dx/dr + (ya-y1)*dy/dr
       tb = (xb-x1)*dx/dr + (yb-y1)*dy/dr
       return 0 < ta < dr or 0 < tb < dr

将所有对象放入一个容器中。在添加新的Linea之前，您必须检查新的“行”是否与另一个对象与"ColisionL“相交。在添加新Circulo之前，必须检查新“行”是否将另一个对象与CollisionC相交。

class CreaObjects:
    def __init__(self, figs):
        self.figs = figs
        self.no_lines = 0
        self.no_circles = 0

    def update(self):
        if self.no_circles <70:
            r = randint(5, 104)
            creOne = Circulo(randint(0, 600 - 2*r), randint(0, 400 - 2*r), r)
            if not any(fig.colisionC(creOne) for fig in self.figs):
                self.figs.append(creOne)
                self.no_circles += 1

        if self.no_lines <70:
            linOne = Linea(randint(0, 700), randint(0, 500), randint(0, 700), randint(0, 500))
            if not any(fig.colisionL(linOne) for fig in self.figs):
                self.figs.append(linOne)
                self.no_lines += 1

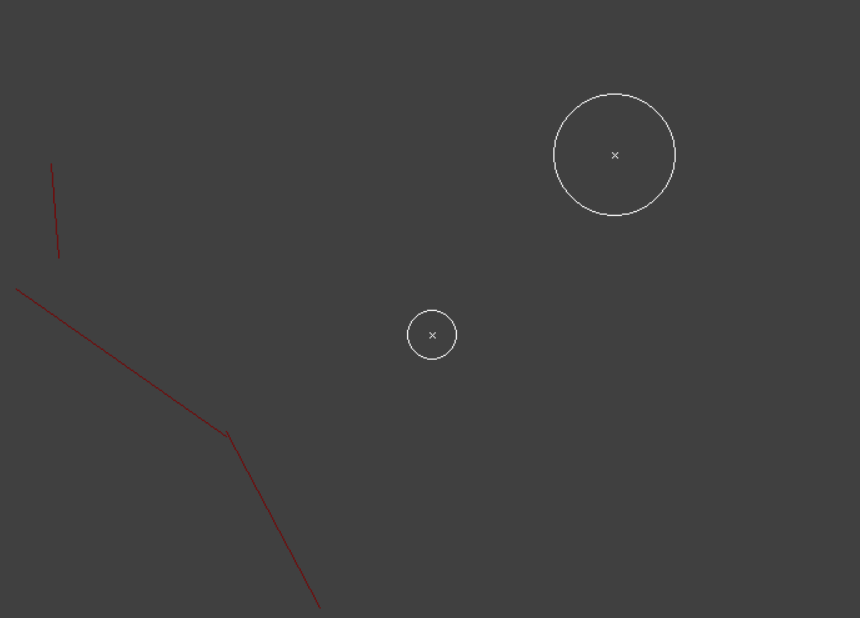

完整的例子：

import pygame as pg
from random import randint
from math import sqrt, hypot

class Linea:
    def __init__(self, x, y, a, b):
        self.x = x
        self.y = y
        self.a = a
        self.b = b

    def dibujar(self, ventana):
        pg.draw.line(ventana, "#7B0000", (self.x, self.y), (self.a, self.b))

    def update(self):
        pass

    def colisionC(self, c2):
        return c2.colisionL(self)

    def colisionL(self, l1):
        return Linea.intersect_line_line((self.x, self.y), (self.a, self.b), (l1.x, l1.y), (l1.a, l1.b))

    def intersect_line_line(P0, P1, Q0, Q1):
        d = (P1[0]-P0[0]) * (Q1[1]-Q0[1]) + (P1[1]-P0[1]) * (Q0[0]-Q1[0])
        if d == 0:
            return None
        t = ((Q0[0]-P0[0]) * (Q1[1]-Q0[1]) + (Q0[1]-P0[1]) * (Q0[0]-Q1[0])) / d
        u = ((Q0[0]-P0[0]) * (P1[1]-P0[1]) + (Q0[1]-P0[1]) * (P0[0]-P1[0])) / d
        if 0 <= t <= 1 and 0 <= u <= 1:
            return P1[0] * t + P0[0] * (1-t), P1[1] * t + P0[1] * (1-t)
        return None

class Circulo:
    def __init__(self, x, y, r):
        self.x = x
        self.y = y
        self.radio = r
        self.cx = x+r
        self.cy = y+r

    def __str__(self):
      return f"Circulo, (X: {self.x}, Y: {self.y}), radio: {self.radio}"

    def dibujar(self, ventana):
        pg.draw.circle(ventana, "white", (self.cx, self.cy), self.radio, 1)
        pg.draw.line(ventana, "white", (self.cx+2, self.cy+2),(self.cx-2, self.cy-2))
        pg.draw.line(ventana, "white", (self.cx-2, self.cy+2),(self.cx+2, self.cy-2))

    def update(self):
        pass

    def colisionC(self, c2):
        return self.radio + c2.radio > sqrt(pow(self.cx - c2.cx, 2) + pow(self.cy - c2.cy, 2))

    def colisionL(self, L2):
       l0 = [L2.x, L2.y]
       l1 = [L2.a, L2.b]
       cp = [self.cx, self.cy]
       x1 = l0[0] - cp[0]
       y1 = l0[1] - cp[1]
       x2 = l1[0] - cp[0]
       y2 = l1[1] - cp[1]
       if sqrt(x1*x1+y1*y1) < self.radio or sqrt(x2*x2+y2*y2) < self.radio:
           return True

       dx = x2 - x1
       dy = y2 - y1
       dr = sqrt(dx*dx + dy*dy)
       D = x1 * y2 - x2 * y1
       discriminant = self.radio*self.radio*dr*dr - D*D
       if discriminant < 0:
           return False

       sign = lambda x: -1 if x < 0 else 1
       xa = (D * dy + sign(dy) * dx * sqrt(discriminant)) / (dr * dr)
       xb = (D * dy - sign(dy) * dx * sqrt(discriminant)) / (dr * dr)
       ya = (-D * dx + abs(dy) * sqrt(discriminant)) / (dr * dr)
       yb = (-D * dx - abs(dy) * sqrt(discriminant)) / (dr * dr)
       ta = (xa-x1)*dx/dr + (ya-y1)*dy/dr
       tb = (xb-x1)*dx/dr + (yb-y1)*dy/dr
       return 0 < ta < dr or 0 < tb < dr

class CreaObjects:
    def __init__(self, figs):
        self.figs = figs
        self.no_lines = 0
        self.no_circles = 0

    def update(self):
        if self.no_circles <70:
            r = randint(5, 104)
            creOne = Circulo(randint(0, 600 - 2*r), randint(0, 400 - 2*r), r)
            if not any(fig.colisionC(creOne) for fig in self.figs):
                self.figs.append(creOne)
                self.no_circles += 1

        if self.no_lines <70:
            linOne = Linea(randint(0, 700), randint(0, 500), randint(0, 700), randint(0, 500))
            if not any(fig.colisionL(linOne) for fig in self.figs):
                self.figs.append(linOne)
                self.no_lines += 1

class Ventana:
    def __init__(self, Ven_Tam= (700, 500)):

        pg.init()
        self.ven_tam = Ven_Tam

        self.ven = pg.display.set_caption("Linea")
        self.ven = pg.display.set_mode(self.ven_tam)
        self.figs = []
        self.reloj = pg.time.Clock()

    def check_events(self):
        for event in pg.event.get():
            if event.type == pg.QUIT or (event.type == pg.KEYDOWN and event.key == pg.K_ESCAPE):
                quit()

    def run(self):
        cirCreater = CreaObjects(self.figs)
        while True:
            self.check_events()
            cirCreater.update()

            self.ven.fill(pg.Color('#404040'))
            for fig in self.figs:
                fig.dibujar(self.ven)
            pg.display.flip()
            self.reloj.tick(60)

if __name__ == '__main__':
    ven = Ventana()
    ven.run()

票数 1
