金属defaultLibrary不加载.metal函数

Question

我的金属默认库不包含同一个目录的.metal文件中的顶点和着色器函数。

然后是library.makeFunction(名称：..)对于应该分配给pipelineDescriptor vars的顶点函数和着色器函数，返回零。

金属文件和头文件是从苹果示例应用程序"BasicTexturing“(纹理的创建和采样)中复制的。

文件APPLShaders.metal和APPLShaderTypes.h包含由AAPLRenderer.m加载的vertexShader和samplingShader函数。

在示例中，这是非常简单的

 id<MTLLibrary> defaultLibrary = [_device newDefaultLibrary];
    id<MTLFunction> vertexFunction = [defaultLibrary newFunctionWithName:@"vertexShader"];
    id<MTLFunction> fragmentFunction = [defaultLibrary newFunctionWithName:@"samplingShader"];

我已将这些文件复制到RayWenderlich Swift教程中，并使用了有init的快捷版本来设置库

Renderer.library = device.makeDefaultLibrary()

然后

 let library = Renderer.library
    let importVertexFunction = library?.makeFunction(name: "vertexShader")
    let importShaderFunction = library?.makeFunction(name: "samplingShader")

这很好用！

同样的东西，在我的应用程序与相同的文件复制，它不加载的功能。

我已经在构建设置中检查了compileSources -它列出了金属文件。比较设置中的所有内容，看不到工作应用程序和我的应用程序之间的区别。

我没有看到任何错误消息或日志消息来指示语法或路径问题。

有什么想法吗？

苹果示例代码AAPLShaders.metal

/*
See LICENSE folder for this sample’s licensing information.

Abstract:
Metal shaders used for this sample
*/

#include <metal_stdlib>
#include <simd/simd.h>

using namespace metal;

// Include header shared between this Metal shader code and C code executing Metal API commands
#import "AAPLShaderTypes.h"

// Vertex shader outputs and per-fragment inputs. Includes clip-space position and vertex outputs
//  interpolated by rasterizer and fed to each fragment generated by clip-space primitives.
typedef struct
{
    // The [[position]] attribute qualifier of this member indicates this value is the clip space
    //   position of the vertex wen this structure is returned from the vertex shader
    float4 clipSpacePosition [[position]];

    // Since this member does not have a special attribute qualifier, the rasterizer will
    //   interpolate its value with values of other vertices making up the triangle and
    //   pass that interpolated value to the fragment shader for each fragment in that triangle;
    float2 textureCoordinate;

} RasterizerData;

// Vertex Function
vertex RasterizerData
vertexShader(uint vertexID [[ vertex_id ]],
             constant AAPLVertex *vertexArray [[ buffer(AAPLVertexInputIndexVertices) ]],
             constant vector_uint2 *viewportSizePointer  [[ buffer(AAPLVertexInputIndexViewportSize) ]])

{

    RasterizerData out;

    // Index into our array of positions to get the current vertex
    //   Our positions are specified in pixel dimensions (i.e. a value of 100 is 100 pixels from
    //   the origin)
    float2 pixelSpacePosition = vertexArray[vertexID].position.xy;

    // Get the size of the drawable so that we can convert to normalized device coordinates,
    float2 viewportSize = float2(*viewportSizePointer);

    // The output position of every vertex shader is in clip space (also known as normalized device
    //   coordinate space, or NDC). A value of (-1.0, -1.0) in clip-space represents the
    //   lower-left corner of the viewport whereas (1.0, 1.0) represents the upper-right corner of
    //   the viewport.

    // In order to convert from positions in pixel space to positions in clip space we divide the
    //   pixel coordinates by half the size of the viewport.
    out.clipSpacePosition.xy = pixelSpacePosition / (viewportSize / 2.0);

    // Set the z component of our clip space position 0 (since we're only rendering in
    //   2-Dimensions for this sample)
    out.clipSpacePosition.z = 0.0;

    // Set the w component to 1.0 since we don't need a perspective divide, which is also not
    //   necessary when rendering in 2-Dimensions
    out.clipSpacePosition.w = 1.0;

    // Pass our input textureCoordinate straight to our output RasterizerData. This value will be
    //   interpolated with the other textureCoordinate values in the vertices that make up the
    //   triangle.
    out.textureCoordinate = vertexArray[vertexID].textureCoordinate;

    return out;
}

// Fragment function
fragment float4
samplingShader(RasterizerData in [[stage_in]],
               texture2d<half> colorTexture [[ texture(AAPLTextureIndexBaseColor) ]])
{
    constexpr sampler textureSampler (mag_filter::linear,
                                      min_filter::linear);

    // Sample the texture to obtain a color
    const half4 colorSample = colorTexture.sample(textureSampler, in.textureCoordinate);

    // We return the color of the texture
    return float4(colorSample);
}

Apple示例代码头AAPLShaderTypes.h

/*
See LICENSE folder for this sample’s licensing information.

Abstract:
Header containing types and enum constants shared between Metal shaders and C/ObjC source
*/

#ifndef AAPLShaderTypes_h
#define AAPLShaderTypes_h

#include <simd/simd.h>

// Buffer index values shared between shader and C code to ensure Metal shader buffer inputs match
//   Metal API buffer set calls
typedef enum AAPLVertexInputIndex
{
    AAPLVertexInputIndexVertices     = 0,
    AAPLVertexInputIndexViewportSize = 1,
} AAPLVertexInputIndex;

// Texture index values shared between shader and C code to ensure Metal shader buffer inputs match
//   Metal API texture set calls
typedef enum AAPLTextureIndex
{
    AAPLTextureIndexBaseColor = 0,
} AAPLTextureIndex;

//  This structure defines the layout of each vertex in the array of vertices set as an input to our
//    Metal vertex shader.  Since this header is shared between our .metal shader and C code,
//    we can be sure that the layout of the vertex array in the code matches the layout that
//    our vertex shader expects
typedef struct
{
    // Positions in pixel space (i.e. a value of 100 indicates 100 pixels from the origin/center)
    vector_float2 position;

    // 2D texture coordinate
    vector_float2 textureCoordinate;
} AAPLVertex;

#endif /* AAPLShaderTypes_h */

调试我的库的打印

Printing description of self.library:
(MTLLibrary?) library = (object = 0x00006000004af7b0) {
  object = 0x00006000004af7b0 {
    baseNSObject@0 = {
      isa = CaptureMTLLibrary
    }

从RayWenderlich示例应用程序调试工作库打印新添加的sampleShader和vertexShader以及现有的片段和顶点函数显示在库中。

▿ Optional<MTLLibrary>
  - some : <CaptureMTLLibrary: 0x600000f54210> -> <MTLDebugLibrary: 0x600002204050> -> <_MTLLibrary: 0x600001460280>
    label = <none>
    device = <MTLSimDevice: 0x15a5069d0>
        name = Apple iOS simulator GPU
    functionNames: fragment_main vertex_main samplingShader vertexShader

Answer 1

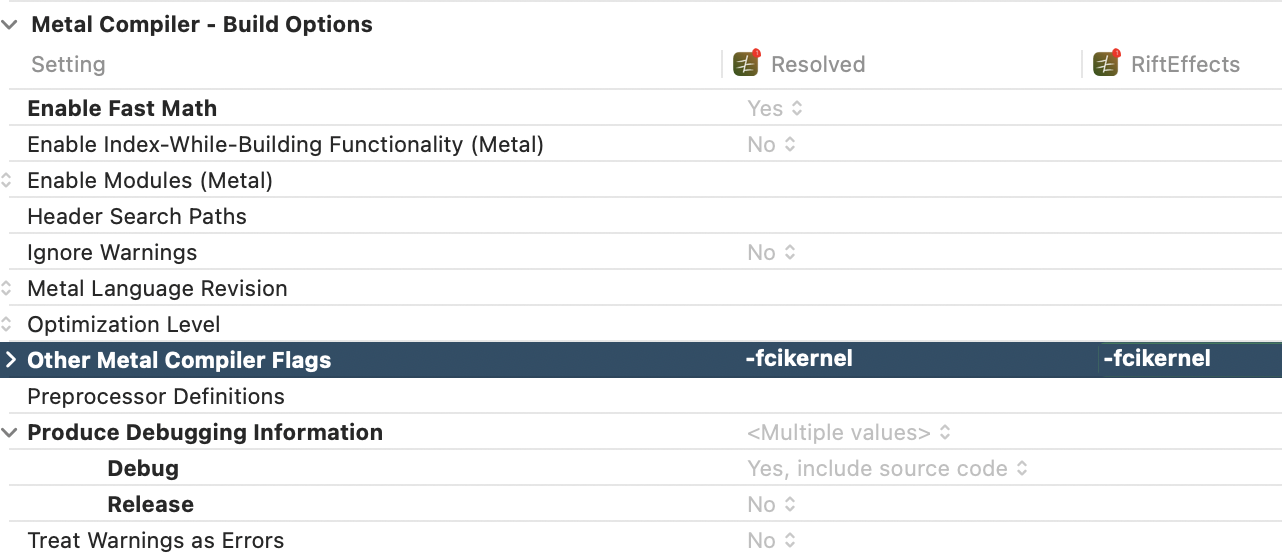

答案-不将函数加载到金属库的问题是通过删除项目目标的Build的另一个选项中的剩馀-fcikernel标志来解决的。该标志是在测试CoreImageKernel.metal时设置的，如https://developer.apple.com/documentation/coreimage/cikernel/2880194-init中所述，我从应用程序中删除了内核定义文件，但忽略了编译器标志。并且在视觉上比较构建设置时错过了它。

​

​

Answer 2

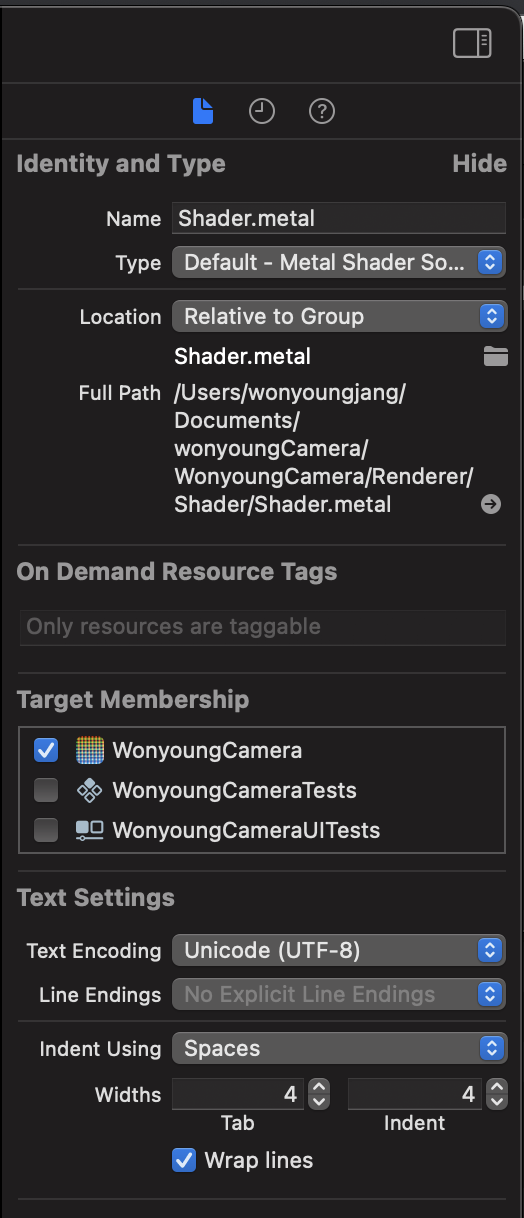

你检查过文件的目标成员身份了吗？你的代码没什么好奇怪的，所以请检查目标。

​

​
