放大照相机，使它能看到所有物体

Question

我有一个对象列表，这些都是视频上的蓝色贴纸，我需要让相机自己移动，所有的物体(蓝色贴纸)总是适合它的，你需要考虑到每次都会有越来越多的物体，所以相机应该是动态的，并且适应所有的物体。

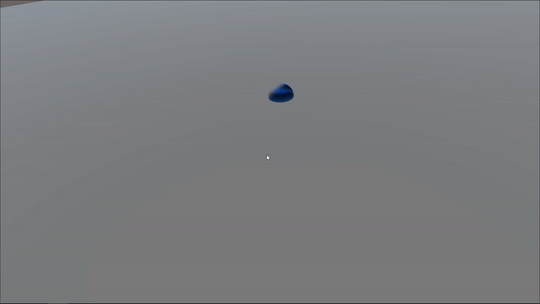

https://youtube.com/shorts/x3uSO2L22Kc?feature=share

Answer 1

任意摄像机角度和物体位置的实用解

​

​

这里的想法很简单.

在每一步中，我们检查每个物体是在摄像机视图中还是相机太远，然后我们简单地调整相机的位置，使之更好。

一步一步，我们的相机将动态跟踪目标对象，当稳定后，所有目标对象都将被摄像机捕获。

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class CameraAutoFitSmooth : MonoBehaviour
{
    public int maxNumberOfObjs = 100;
    public GameObject objPrefab;
    public float maxInitRange = 10f;

    public float minCameraHeight = 1f;
    public float maxCameraMoveSpeed = 9f;
    public float marginalPos = 0.1f;

    [HideInInspector]
    public List<Transform> objs = new List<Transform>();
    Camera cam;

    void Start()
    {
        cam = Camera.main;
    }

    void Update()
    {
        if (Input.GetKeyDown(KeyCode.Space))
            RandomObjs();
    }

    // Randomly regenerate objects
    void RandomObjs()
    {
        int nowNumberOfObjs = Random.Range(0, maxNumberOfObjs);
        for (int i = objs.Count - 1; i > nowNumberOfObjs; i--)
        {
            Destroy(objs[i].gameObject);
            objs.RemoveAt(i);
        }

        for (int i = objs.Count; i <= nowNumberOfObjs; i++)
            objs.Add(Instantiate(objPrefab).transform);

        foreach (var obj in objs)
            obj.position = Random.insideUnitSphere * maxInitRange;
    }

    void LateUpdate()
    {
        SetCameraFitPosition(Time.deltaTime);
    }

    void SetCameraFitPosition(float deltaTime)
    {
        Vector3 targetCamPos = cam.transform.position;
        if (objs.Count == 1)
        {
            targetCamPos = objs[0].position - minCameraHeight * cam.transform.forward;
        }
        else if (objs.Count > 1)
        {
            float minInsideDiff = 1f, maxOutsideDiff = 0f;
            Vector3 center = Vector3.zero;
            foreach (var obj in objs)
            {
                Vector3 screenPos = GetScreenPos(obj.position);

                if (IsInsideView(screenPos))
                    minInsideDiff = Mathf.Min(minInsideDiff, CalculateInsideDiff(screenPos.x), CalculateInsideDiff(screenPos.y), CalculateInsideDiff(screenPos.z));
                else
                    maxOutsideDiff = Mathf.Max(maxOutsideDiff, CalculateOutsideDiff(screenPos.x), CalculateOutsideDiff(screenPos.y), CalculateOutsideDiff(screenPos.z));

                center += obj.position;
            }
            center /= objs.Count;

            float nowHeight = Vector3.Project(cam.transform.position - center, cam.transform.forward).magnitude;
            float maxDiff = maxOutsideDiff > 0f ? maxOutsideDiff : -minInsideDiff;
            float finalHeight = Mathf.Max(nowHeight + maxDiff * maxCameraMoveSpeed, minCameraHeight);

            targetCamPos = center - finalHeight * cam.transform.forward;
        }

        cam.transform.position = Vector3.MoveTowards(cam.transform.position, targetCamPos, maxCameraMoveSpeed * deltaTime);
    }

    Vector3 GetScreenPos(Vector3 pos)
    {
        return cam.WorldToViewportPoint(pos);
    }
    float CalculateOutsideDiff(float pos)
    {
        float diff = 0f;
        if (pos > 1f + marginalPos)
            diff = pos - 1f;
        else if (pos < -marginalPos)
            diff = -pos;
        return diff;
    }
    float CalculateInsideDiff(float pos)
    {
        float diff = 0f;
        if (pos < 1f - marginalPos && pos > marginalPos)
            diff = Mathf.Min(1f - pos, pos);
        return diff;
    }
    bool IsInsideView(Vector3 screenPoint)
    {
        return screenPoint.z > 0f && screenPoint.x > 0f && screenPoint.x < 1 && screenPoint.y > 0f && screenPoint.y < 1;
    }
}

，如果您需要更多信息，请随时与我联系:)干杯！

Answer 2

下面的脚本将在自顶向下的视图中放置一个透视摄像机，以便所有跟踪的GameObjects (objs)都是可见的。

假设物体在零xz平面上，是点，因此不考虑它们的实际尺寸。必须至少有一个跟踪对象。物体的间距不可能要求照相机的高度超过最大浮点值。

public GameObject[] objs;//objects that must be fitted
private Camera cam;
float recXmin, recXmax, recYmin, recYmax;
Vector3 center;

void Start()
{
  cam = Camera.main;
  cam.transform.rotation = Quaternion.Euler(90, 0, 0);
}

void LateUpdate()
{
  recXmin = objs[0].transform.position.x;
  recXmax = objs[0].transform.position.x;
  recYmin = objs[0].transform.position.z;
  recYmax = objs[0].transform.position.z;
  center = Vector3.zero;

  foreach (GameObject obj in objs)
  {
    if (obj.transform.position.x < recXmin)
    {
    recXmin = obj.transform.position.x;
    }
    if (obj.transform.position.x > recXmax)
    {
    recXmax = obj.transform.position.x;
    }
    if (obj.transform.position.z < recYmin)
    {
    recYmin = obj.transform.position.z;
    }
    if (obj.transform.position.z > recYmax)
    {
    recYmax = obj.transform.position.z;
    }
  }

  float horizontalHeight = (recYmax - recYmin) / 2 / Mathf.Tan(Mathf.Deg2Rad * cam.fieldOfView / 2);
  float verticalHeight = (recXmax - recXmin) / 2 / Mathf.Tan(Mathf.Deg2Rad * Camera.VerticalToHorizontalFieldOfView(cam.fieldOfView, cam.aspect) / 2);
  float finalHeight = horizontalHeight > verticalHeight ? horizontalHeight : verticalHeight;
  center = new Vector3(recXmin + (recXmax - recXmin) / 2, finalHeight, recYmin + (recYmax - recYmin) / 2);
  cam.transform.position = center;
}

void OnDrawGizmos()
{
  Gizmos.color = Color.red;
  Gizmos.DrawLine(new Vector3(recXmin, 0, recYmin), new Vector3(recXmin, 0, recYmax));
  Gizmos.DrawLine(new Vector3(recXmax, 0, recYmin), new Vector3(recXmax, 0, recYmax));

  Gizmos.color = Color.green;
  Gizmos.DrawLine(new Vector3(recXmin, 0, recYmin), new Vector3(recXmax, 0, recYmin));
  Gizmos.DrawLine(new Vector3(recXmin, 0, recYmax), new Vector3(recXmax, 0, recYmax));

  Gizmos.color = Color.blue;
  Gizmos.DrawSphere(center, 0.5f);
}

selected

• lastly
• 脚本确定由所有跟踪物体(
• )形成的“包围方”。边界平方被假定为金字塔的基础，摄像机在其峰值
• 上使用三角函数来计算相机的高度，考虑到金字塔底部已知的长度和摄像机视场的
• ，对摄像机的水平和垂直视场

H 111进行了两次计算，这两个值越大，相机就会被定位到金字塔底部的中间和确定的高度，所以它最终到达了金字塔的顶峰
