社区首页 >问答首页 >如何使用节点给“独生子女”一个更长的垂直线？

问如何使用节点给“独生子女”一个更长的垂直线？
EN

Stack Overflow用户
提问于 2022-10-30 07:50:30
回答 1查看 50关注 0票数 1

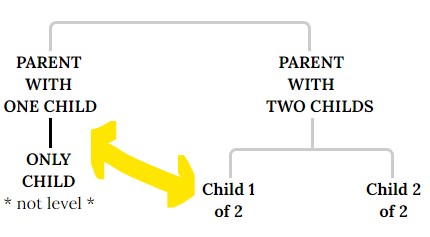

见图--在此树中，“独生子女”与其他儿童不水平对齐：

​

​

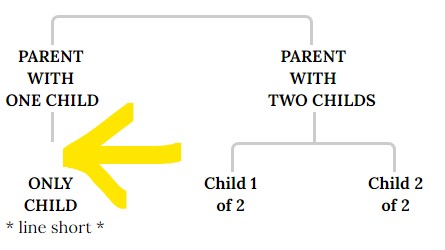

我可以看到这是由CCS造成的，因为CCS从单个子节点的顶部删除了空间，但是删除CSS显示垂直行太短：

​

​

有谁能解决如何使独生子女与其他孩子水平一致的问题？

谢谢

​

代码语言：javascript
复制
.genealogy-body{
    white-space: nowrap;
    overflow-y: hidden;
    padding: 50px;
    min-height: 500px;
    padding-top: 10px;
    text-align: center;
}
.genealogy-tree{
  display: inline-block;
}
.genealogy-tree ul {
    padding-top: 20px;
    position: relative;
    padding-left: 0px;
    display: flex;
    justify-content: center;
}
.genealogy-tree li {
    float: left; text-align: center;
    list-style-type: none;
    position: relative;
    padding: 20px 5px 0 5px;
}
.genealogy-tree li::before, .genealogy-tree li::after{
    content: '';
    position: absolute;
  top: 0;
  right: 50%;
    border-top: 2px solid #ccc;
    width: 50%;
  height: 18px;
}
.genealogy-tree li::after{
    right: auto; left: 50%;
    border-left: 2px solid #ccc;
}
/*This removes left & right connectors from elements without any siblings*/
*.genealogy-tree li:only-child::after, .genealogy-tree li:only-child::before {
    display: none;
}
/*This removes space from the top of single children BUT IT CAUSES MISALIGNMENT SO NEED TO EXTEND LINE SOMEHOW*/
.genealogy-tree li:only-child{
    padding-top: 0;
}
/*This removes left connector from first child and right connector from last child*/
.genealogy-tree li:first-child::before, .genealogy-tree li:last-child::after{
    border: 0 none;
}
/*This adds back the vertical connector to the last nodes*/
.genealogy-tree li:last-child::before{
    border-right: 2px solid #ccc;
    border-radius: 0 5px 0 0;
    -webkit-border-radius: 0 5px 0 0;
    -moz-border-radius: 0 5px 0 0;
}
.genealogy-tree li:first-child::after{
    border-radius: 5px 0 0 0;
    -webkit-border-radius: 5px 0 0 0;
    -moz-border-radius: 5px 0 0 0;
}
/*This adds downwards connectors from parents*/
.genealogy-tree ul ul::before{
    content: '';
    position: absolute; top: 0; left: 50%;
    border-left: 2px solid #ccc;
    width: 0; height: 20px;
}
.genealogy-tree li a{
    text-decoration: none;
    color: black;
    font-family: "Lora", -apple-system, BlinkMacSystemFont, "Segoe UI", Roboto, "Helvetica Neue", Arial, sans-serif, "Apple Color Emoji", "Segoe UI Emoji", "Segoe UI Symbol", "Noto Color Emoji";
    font-size: 11px;
    text-align: center;
    display: inline-block;
    border-radius: 5px;
    -webkit-border-radius: 5px;
    -moz-border-radius: 5px;
}
代码语言：javascript
复制
<body>


<div class="body genealogy-body genealogy-scroll">
    <div class="genealogy-tree">
    <ul>
        <li>
        <a>
        <div class="member-view-box">
        <div class="member-image">
        <img src="../images/trees/_tree_blank.jpg" alt="refresh your browser...">
        <div class="member-details">
        <span><strong>Top<br>Line</strong></span>
        </div>
        </div>
        </div>
        </a>
        <ul>
            <li>
            <a>
            <div class="member-view-box">
            <div class="member-image">
            <div class="member-details">
            <span><strong>PARENT<br>WITH<br>ONE CHILD</strong></span>
            </div>
            </div>
            </div>
            </a>
            <ul>
                <li>
                <a>
                <div class="member-view-box">
                <div class="member-image">
                <div class="member-details">
                <span><strong>ONLY<br>CHILD</strong><br>* line short *</span>
                </div>
                </div>
                </div>
                </a>
                </li>
            </ul>
            </li>
            <li>
            <a>
            <div class="member-view-box">
            <div class="member-image">
            <div class="member-details">
            <span><strong>PARENT<br>WITH<br>TWO CHILDS</strong></span>
            </div>
            </div>
            </div>
            </a>
            <ul>
                <li>
                <a>
                <div class="member-view-box">
                <div class="member-image">
                <div class="member-details">
                <span><strong>Child 1<br>of 2</strong></span>
                </div>
                </div>
                </div>
                </a>
                </li>
                <li>
                <a>
                <div class="member-view-box">
                <div class="member-image">
                <div class="member-details">
                <span><strong>Child 2<br>of 2</strong></span>
                </div>
                </div>
                </div>
                </a>
                </li>
            </ul>
            </li>
        </ul>
        </li>
    </ul>
    </div>
</div>



</body>

​

css
EN

回答 1

Stack Overflow用户

回答已采纳

发布于 2022-10-30 16:57:44

尝试下面的代码片段，以下是更改

only-child

  • removed padding

  • removed
  • 为第一个列表元素

添加了伪类。

代码语言：javascript
复制
*.genealogy-tree li:last-child:only-child::after, .genealogy-tree li:last-child:only-child::before {
  content: '';
  position: absolute;
  top: 0;
  left: 50%;
  width: 0;
  height: 18px;
  border-radius: 0;
}

.genealogy-tree > ul > li::after, .genealogy-tree > ul > li::before {
  display: none
}

.genealogy-tree li:only-child{
/* padding-top: 0; */
}

​

代码语言：javascript
复制
.genealogy-body{
    white-space: nowrap;
    overflow-y: hidden;
    padding: 50px;
    min-height: 500px;
    padding-top: 10px;
    text-align: center;
}
.genealogy-tree{
  display: inline-block;
}
.genealogy-tree ul {
    padding-top: 20px;
    position: relative;
    padding-left: 0px;
    display: flex;
    justify-content: center;
}
.genealogy-tree li {
    float: left; text-align: center;
    list-style-type: none;
    position: relative;
    padding: 20px 5px 0 5px;
}
.genealogy-tree li::before, .genealogy-tree li::after{
    content: '';
    position: absolute;
  top: 0;
  right: 50%;
    border-top: 2px solid #ccc;
    width: 50%;
  height: 18px;
}
.genealogy-tree li::after{
    right: auto; left: 50%;
    border-left: 2px solid #ccc;
}

*.genealogy-tree li:last-child:only-child::after, .genealogy-tree li:last-child:only-child::before {
    content: '';
    position: absolute;
  top: 0;
left: 50%;
width: 0;
  height: 18px;
  border-radius: 0;
}

.genealogy-tree > ul > li::after, .genealogy-tree > ul > li::before {
  display: none
}

/*This removes space from the top of single children BUT IT CAUSES MISALIGNMENT SO NEED TO EXTEND LINE SOMEHOW*/
.genealogy-tree li:only-child{
/*     padding-top: 0; */
}
/*This removes left connector from first child and right connector from last child*/
.genealogy-tree li:first-child::before, .genealogy-tree li:last-child::after{
    border: 0 none;
}
/*This adds back the vertical connector to the last nodes*/
.genealogy-tree li:last-child::before{
    border-right: 2px solid #ccc;
    border-radius: 0 5px 0 0;
    -webkit-border-radius: 0 5px 0 0;
    -moz-border-radius: 0 5px 0 0;
}
.genealogy-tree li:first-child::after{
    border-radius: 5px 0 0 0;
    -webkit-border-radius: 5px 0 0 0;
    -moz-border-radius: 5px 0 0 0;
}
/*This adds downwards connectors from parents*/
.genealogy-tree ul ul::before{
    content: '';
    position: absolute; top: 0; left: 50%;
    border-left: 2px solid #ccc;
    width: 0; height: 20px;
}
.genealogy-tree li a{
    text-decoration: none;
    color: black;
    font-family: "Lora", -apple-system, BlinkMacSystemFont, "Segoe UI", Roboto, "Helvetica Neue", Arial, sans-serif, "Apple Color Emoji", "Segoe UI Emoji", "Segoe UI Symbol", "Noto Color Emoji";
    font-size: 11px;
    text-align: center;
    display: inline-block;
    border-radius: 5px;
    -webkit-border-radius: 5px;
    -moz-border-radius: 5px;
}
代码语言：javascript
复制
<body>


<div class="body genealogy-body genealogy-scroll">
    <div class="genealogy-tree">
    <ul>
        <li>
        <a>
        <div class="member-view-box">
        <div class="member-image">
        <img src="../images/trees/_tree_blank.jpg" alt="refresh your browser...">
        <div class="member-details">
        <span><strong>Top<br>Line</strong></span>
        </div>
        </div>
        </div>
        </a>
        <ul>
            <li>
            <a>
            <div class="member-view-box">
            <div class="member-image">
            <div class="member-details">
            <span><strong>PARENT<br>WITH<br>ONE CHILD</strong></span>
            </div>
            </div>
            </div>
            </a>
            <ul>
                <li>
                <a>
                <div class="member-view-box">
                <div class="member-image">
                <div class="member-details">
                <span><strong>ONLY<br>CHILD</strong><br>* line short *</span>
                </div>
                </div>
                </div>
                </a>
                </li>
            </ul>
            </li>
            <li>
            <a>
            <div class="member-view-box">
            <div class="member-image">
            <div class="member-details">
            <span><strong>PARENT<br>WITH<br>TWO CHILDS</strong></span>
            </div>
            </div>
            </div>
            </a>
            <ul>
                <li>
                <a>
                <div class="member-view-box">
                <div class="member-image">
                <div class="member-details">
                <span><strong>Child 1<br>of 2</strong></span>
                </div>
                </div>
                </div>
                </a>
                </li>
                <li>
                <a>
                <div class="member-view-box">
                <div class="member-image">
                <div class="member-details">
                <span><strong>Child 2<br>of 2</strong></span>
                </div>
                </div>
                </div>
                </a>
                </li>
            </ul>
            </li>
        </ul>
        </li>
    </ul>
    </div>
</div>



</body>

​

票数 0
EN
