移除图例，自定义图案颜色

Question

下面是一个数据框架作为例子。

library(tidyverse)
library(ggpattern)

dat <- data.frame(drv = c("4", "4", "4", "4", "4", "f", "f", "f", "f", "r", "r", "r"),
                  class = c("compact", "midsize", "pickup", "subcompact", "suv",
                            "compact", "midsize", "minivan", "subcompact",
                            "2seater", "subcompact", "suv"),
                  y = c(12L, 3L, 33L, 4L, 51L, 35L, 38L, 11L, 22L, 5L, 9L, 11L))

dat

x11();dat %>% ggplot(aes(x = class, y = y ,fill = drv, pattern = drv)) +
  #  geom_col()+   # not necessary
  geom_col_pattern() +
  coord_flip()       +
  theme_minimal()    +
  scale_fill_manual(
    name = "Drive",
    values = c("4" = "#EEF12B",
               "f" = "#D058EC",
               "r" = "#FF27D5"),
    labels = c(expression(italic("4"),
                          italic("f"),
                          italic("f")))
  ) +
  scale_pattern_manual(name = "Drive",
                       values = c("4" = "none",
                                  "f" = "stripe",
                                  "r" = "none")
  )+
  scale_pattern_fill_manual(
    values = c("f"  = "#5284D9")
  )

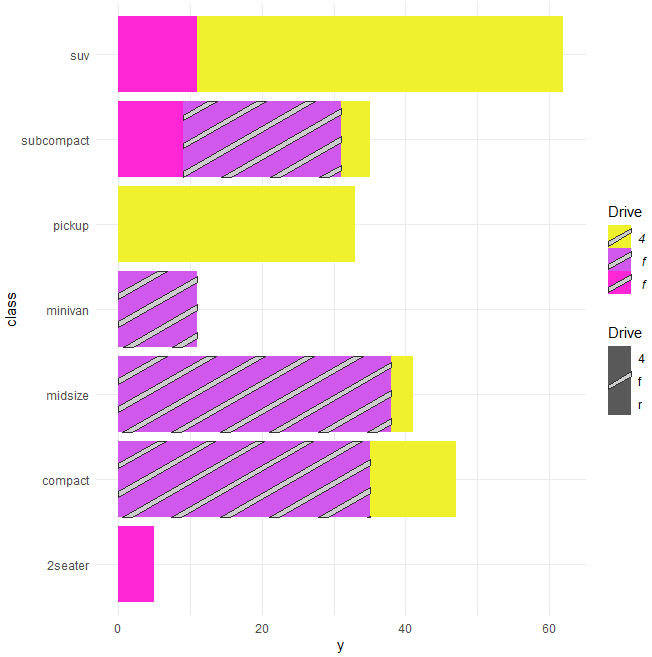

我得到的情节如下：

我想合并我的两个传说，以使背景颜色，但只有f类条纹。通过我的代码，我也想定制条纹的颜色，但没有成功。

有什么建议吗？

Answer 1

要合并传奇，您必须对scale_pattern_manual使用与scale_fill_manual相同的标签。

library(ggplot2)
library(ggpattern)

ggplot(dat, aes(x = class, y = y, fill = drv, pattern = drv)) +
  geom_col_pattern() +
  coord_flip() +
  theme_minimal() +
  scale_fill_manual(
    name = "Drive",
    values = c(
      "4" = "#EEF12B",
      "f" = "#D058EC",
      "r" = "#FF27D5"
    ),
    labels = c(expression(
      italic("4"),
      italic("f"),
      italic("f")
    ))
  ) +
  scale_pattern_manual(
    name = "Drive",
    values = c(
      "4" = "none",
      "f" = "stripe",
      "r" = "none"
    ),
    labels = c(expression(
      italic("4"),
      italic("f"),
      italic("f")
    ))
  ) +
  scale_pattern_fill_manual(
    values = c("f" = "#5284D9")
  )

​

​
