Seaborn.lineplot()扫描电镜错误条不工作

Question

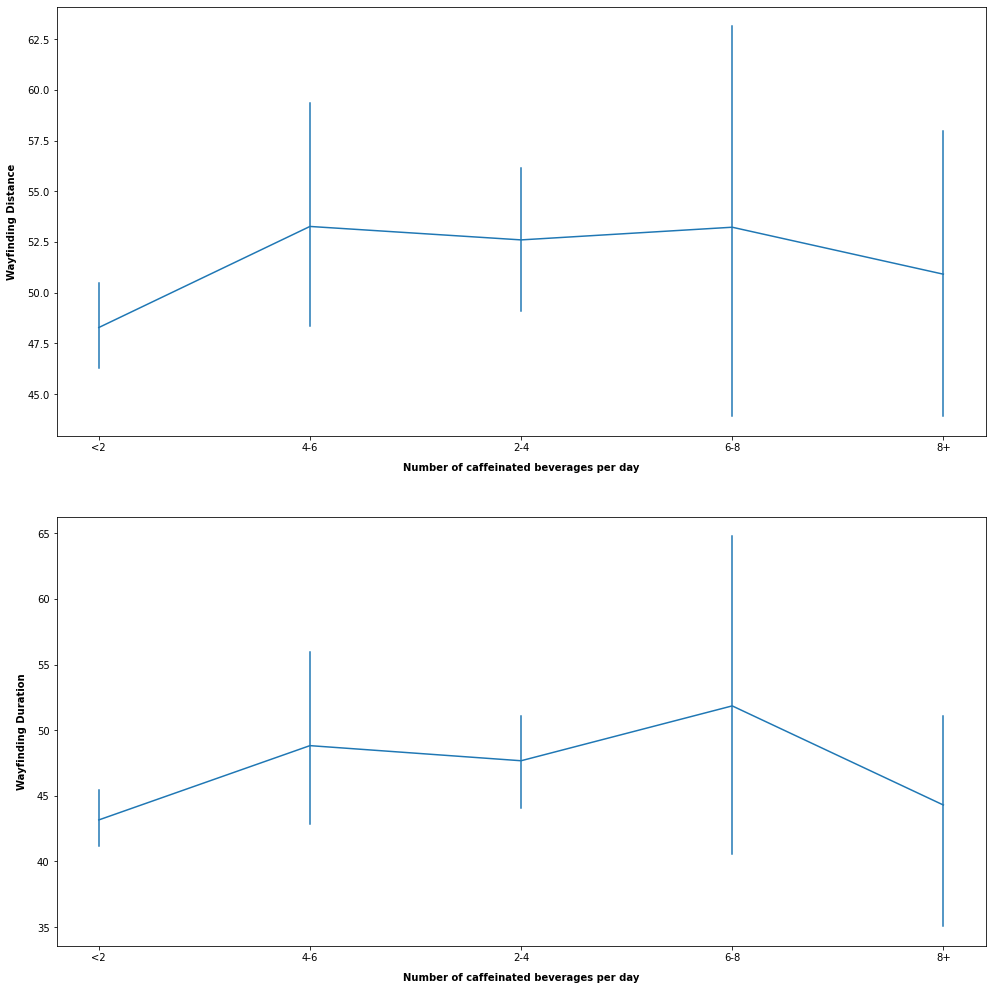

我有下面的代码。我想在下面的图表中绘制表示平均值的标准误差条。然而，当我运行代码时，我得到了一个错误：'Line2D‘对象没有属性'errorbar’

fig, axes = plt.subplots(nrows=2,figsize=(15, 15))
fig.tight_layout(pad=6)

newerdf=newdf.copy()
bins = [0, 2, 4, 6, 8]
names = ['<2', '2-4', '4-6', '6-8', '8+']
d = dict(enumerate(names, 1))
newerdf['caffeinatedbeveragesperdayrange'] = np.digitize(newerdf['caffeinatedbeveragesperday'], bins)
newerdf['caffeinatedbeveragesperdayrange'] = newerdf['caffeinatedbeveragesperdayrange'].map(d)
Graph1 = sns.lineplot(data=newerdf,x="caffeinatedbeveragesperdayrange", y="distance",err_style='bars',errorbar ='se',ax=axes[0])
Graph2 = sns.lineplot(data=newerdf,x="caffeinatedbeveragesperdayrange", y="duration",err_style='bars',errorbar ='se',ax=axes[1])
Graph1.set_xlabel( "Number of caffeinated beverages per day",labelpad = 10,weight='bold')
Graph2.set_xlabel( "Number of caffeinated beverages per day",labelpad = 10,weight='bold')
Graph1.set_ylabel("Wayfinding Distance",labelpad = 10,weight='bold')
Graph2.set_ylabel("Wayfinding Duration",labelpad = 10,weight='bold')

​

​

我会非常感激你伸出援手！

newerdf['caffeinatedbeveragesperdayrange'],newerdf['distance'] and newerdf['duration']数据格式的前6行：

caffeinatedbeveragesperdayrange
10  <2
13  4-6
17  2-4
19  <2
21  <2
22  <2

distance
10  48.146090
13  98.877301
17  66.670310
19  95.764316
21  78.737108
22  48.404197

    duration
10  40.976006
13  90.093298
17  88.349603
19  82.737323
21  72.579054
22  40.059987

Answer 1

海运版本0.11没有此功能。

在您的环境中，您应该使用以下命令至少将您的0.12.x升级到版本：

pip install --upgrade seaborn
