问无法解析Azure中的DNS地址
EN

Stack Overflow用户

提问于 2022-10-20 23:17:18

回答 1查看 160关注 0票数 0

我有个轮辐模型。我也有一个Azure DNS区域。我在集线器中有一个防火墙，并使用路由表。我已经创建了一个VM在辐和添加'A‘记录在Azure DNS区域，但是，我无法解析在Azure中的DNS地址。

我有一个Azure防火墙，具有以下角色

# Create a Azure Firewall Network Rule for DNS
resource "azurerm_firewall_network_rule_collection" "fw-net-dns" {
  name                = "azure-firewall-dns-rule"
  azure_firewall_name = azurerm_firewall.azufw.name
  resource_group_name = azurerm_resource_group.ipz12-dat-np-connection-rg.name
  priority            = 102
  action              = "Allow"

  rule {
    name = "DNS"
    source_addresses = [
      "*",
    ]
    destination_ports = ["53"]
    destination_addresses = [
      "*",
    ]
    protocols = ["TCP","UDP"]
  }
}

我有一张有以下路线的路线表

resource "azurerm_route_table" "azurt" {
  name                          = "AzfwRouteTable"
  resource_group_name           = azurerm_resource_group.ipz12-dat-np-connection-rg.name
  location                      = azurerm_resource_group.ipz12-dat-np-connection-rg.location
  disable_bgp_route_propagation = false

  route {
    name                   = "AzgwRoute"
    address_prefix         = "10.2.3.0/24" // CIDR of 2nd SPOKE
    next_hop_type          = "VirtualNetworkGateway"
  }

  route {
    name                   = "Internet"
    address_prefix         = "0.0.0.0/0"
    next_hop_type          = "VirtualAppliance"
    next_hop_in_ip_address = azurerm_firewall.azufw.ip_configuration.0.private_ip_address
  }

  tags = {
    environment = "Staging"
    owner       = "Someone@contoso.com"
    costcenter  = "IT"
  }

  depends_on = [
    azurerm_resource_group.ipz12-dat-np-connection-rg
  ]
}

它与子网相关联。

resource "azurerm_subnet_route_table_association" "virtual_machine_subnet_route_table_assc" {
  subnet_id      = azurerm_subnet.virtual_machine_subnet.id
  route_table_id = azurerm_route_table.azurt.id

  depends_on = [
    azurerm_route_table.azurt,
    azurerm_subnet.virtual_machine_subnet
  ]
}

我在上面提到的子网中有一个VM。

resource "azurerm_network_interface" "virtual_machine_nic" {
  name                = "virtal-machine-nic"
  location            = azurerm_resource_group.ipz12-dat-np-applications-rg.location
  resource_group_name = azurerm_resource_group.ipz12-dat-np-applications-rg.name

  ip_configuration {
    name                          = "internal"
    subnet_id                     = data.azurerm_subnet.virtual_machine_subnet.id
    private_ip_address_allocation = "Dynamic"
  }

  depends_on = [
    azurerm_resource_group.ipz12-dat-np-applications-rg
  ]
}

resource "azurerm_windows_virtual_machine" "virtual_machine" {
  name                = "virtual-machine"
  resource_group_name = azurerm_resource_group.ipz12-dat-np-applications-rg.name
  location            = azurerm_resource_group.ipz12-dat-np-applications-rg.location
  size                = "Standard_B1ms"
  admin_username      = "...."
  admin_password      = "...."
  network_interface_ids = [
    azurerm_network_interface.virtual_machine_nic.id
  ]

  os_disk {
    caching              = "ReadWrite"
    storage_account_type = "Standard_LRS"
  }

  source_image_reference {
    publisher = "MicrosoftWindowsDesktop"
    offer     = "Windows-10"
    sku       = "21h1-pro"
    version   = "latest"
  }

  depends_on = [
    azurerm_network_interface.virtual_machine_nic
  ]
}

我创建了一个Azure DNS区域

resource "azurerm_dns_zone" "dns_zone" {
  name                = "learnpluralsight.com"
  resource_group_name = azurerm_resource_group.ipz12-dat-np-connection-rg.name

  depends_on = [
    azurerm_resource_group.ipz12-dat-np-connection-rg
  ]
}

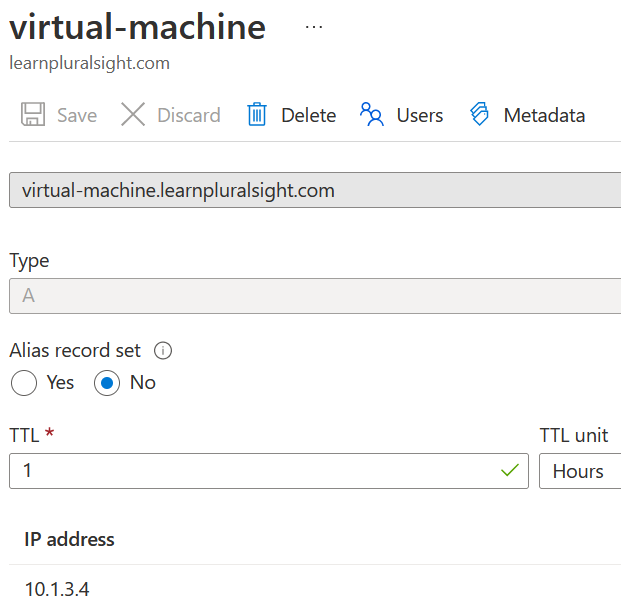

并添加了“A”记录
