增加一个限制，以防止电池同时放电

Question

我正试图在不同的市场上寻找购买和销售能源电池的最佳调度方式。我遇到了一个问题，就是电池在同一个市场上同时充放电。我的约束是如何避免同时充放电的？

这里是我的例子：

def battery_optimisation(data: pd.DataFrame, technical_parameters=None, include_revenue=True, solver: str='glpk'):

    # Battery's technical specification
    MIN_BATTERY_CAPACITY = 0
    MAX_BATTERY_CAPACITY = 100
    MAX_RAW_POWER = 40
    INITIAL_CAPACITY = 0
    EFFICIENCY = 1

    battery = ConcreteModel()

    solvername='glpk'
    solverpath_folder='C:\\glpk-4.65\\w64'
    solverpath_exe='C:\\glpk-4.65\\w64\\glpsol'

    opt = SolverFactory(solver,executable=solverpath_exe)

    battery.Period = Set(initialize=list(data.period), ordered=True)

    battery.Price = Param(initialize=list(data.spot_hourly), within=Any)
    battery.intraday = Param(initialize=list(data.id_hourly), within=Any)
    battery.fcr_hourly = Param(initialize=list(data.fcr_hourly), within=Any)
    battery.afrr_up = Param(initialize=list(data.afrr_up_energy_hourly), within=Any)
    battery.afrr_down = Param(initialize=list(data.afrr_down_energy_hourly), within=Any)

    # battery variables
    battery.Capacity = Var(battery.Period, bounds=(MIN_BATTERY_CAPACITY, MAX_BATTERY_CAPACITY))
    battery.Charge_power = Var(battery.Period, bounds=(0, MAX_RAW_POWER))
    battery.Discharge_power = Var(battery.Period, bounds=(0, MAX_RAW_POWER))

    battery.charge_power_dah = Var(battery.Period, bounds=(0, MAX_RAW_POWER))
    battery.discharge_power_dah = Var(battery.Period, bounds=(0, MAX_RAW_POWER))

    battery.charge_power_intra = Var(battery.Period, bounds=(0, MAX_RAW_POWER))
    battery.discharge_power_intra = Var(battery.Period, bounds=(0, MAX_RAW_POWER))

    battery.charge_power_fcr = Var(battery.Period, bounds=(0, MAX_RAW_POWER))
    battery.discharge_power_fcr = Var(battery.Period, bounds=(0, MAX_RAW_POWER))

    battery.charge_power_afrr = Var(battery.Period, bounds=(0, MAX_RAW_POWER))
    battery.discharge_power_afrr = Var(battery.Period, bounds=(0, MAX_RAW_POWER))

    battery.power_balance =Var(battery.Period, doc='binary variable', within=Binary, initialize=0)
    battery.power_p = Var(battery.Period, doc='energy derivative with respect to time',  initialize=0)

    # Set constraints for the battery
    # Defining the battery objective (function to be maximise)

    def maximise_profit(battery):

        rev = sum(data.id_hourly[i] * (battery.discharge_power_intra[i] / 2 * EFFICIENCY) for i in battery.Period) + \
              sum(data.fcr_hourly[i] * (battery.discharge_power_fcr[i] / 2 * EFFICIENCY) for i in battery.Period) + \
              sum(data.afrr_up_energy_hourly[i] * (battery.discharge_power_afrr[i] / 2 * EFFICIENCY) for i in battery.Period) + \
              sum(data.spot_hourly[i] * (battery.discharge_power_dah[i] / 2 * EFFICIENCY) for i in battery.Period)

        cost = sum(data.id_hourly[i] * (battery.charge_power_intra[i] / 2)  for i in battery.Period) + \
               sum(data.fcr_hourly[i] * (battery.charge_power_fcr[i] / 2)  for i in battery.Period) + \
               sum(data.afrr_down_energy_hourly[i] * (battery.charge_power_afrr[i] / 2)  for i in battery.Period) + \
               sum(data.spot_hourly[i] * (battery.charge_power_dah[i] / 2)  for i in battery.Period)

        return rev - cost

    # CONSTRAINT - BATTERY CAN'T CHARGE OVER CAPACITY
    def over_charge(battery, i):

        battery_charge = battery.charge_power_intra[i] + \
                         battery.charge_power_fcr[i]  + \
                         battery.charge_power_afrr[i] + \
                         battery.charge_power_dah[i]

        return battery_charge <= (MAX_BATTERY_CAPACITY - battery.Capacity[i]) * 2 / EFFICIENCY

    # CONSTRAINT - CAN DISCHARGE MORE THAN CAPITY
    def over_discharge(battery, i):

        battery_charge =  battery.discharge_power_intra[i] + \
                          battery.discharge_power_fcr[i] + \
                          battery.discharge_power_afrr[i] + \
                          battery.discharge_power_dah[i]

        return battery_charge <= battery.Capacity[i] * 2


    # CONSTRAINT - BATTERY CAN'T DISCHARGE IF PRICES ARE NEGATIVE
    def negative_discharge_spot(battery, i):
        # if the spot price is not positive, suppress discharge
        if battery.Price.extract_values_sparse()[None][i] <= 0:
            return battery.Discharge_power[i] == 0

        # otherwise skip the current constraint
        return Constraint.Skip

    # CONSTRAINT - CAPACITY RULE
    def capacity_constraint(battery, i):
        # Assigning battery's starting capacity at the beginning
        if i == battery.Period.first():
            return battery.Capacity[i] == INITIAL_CAPACITY
        # if not update the capacity normally

        battery_capacity = (battery.Capacity[i-1] \
                        + ((battery.charge_power_intra[i-1] / 2 * EFFICIENCY) \
                        + (battery.charge_power_fcr[i-1] / 2 * EFFICIENCY) \
                        + (battery.charge_power_afrr[i-1] / 2 * EFFICIENCY) \
                        + (battery.charge_power_dah[i-1] / 2 * EFFICIENCY)) \
                        - ((battery.discharge_power_intra[i-1] / 2) \
                        + (battery.discharge_power_fcr[i-1] / 2) \
                        + (battery.discharge_power_afrr[i-1] / 2) \
                        + (battery.discharge_power_dah[i-1] / 2)))

        return battery.Capacity[i] == battery_capacity

    # def _p_balance(battery, i):
    #     return battery.discharge_power_fcr[i] <= 0 | battery.charge_power_fcr[i] <= 0

    # Set constraint and objective for the battery
    battery.capacity_constraint = Constraint(battery.Period, rule=capacity_constraint)
    battery.over_charge = Constraint(battery.Period, rule=over_charge)
    battery.over_discharge = Constraint(battery.Period, rule=over_discharge)
    battery.negative_discharge = Constraint(battery.Period, rule=negative_discharge_spot)
    battery.objective = Objective(rule=maximise_profit, sense=maximize)
    # battery._p_balance = Constraint(battery.Period, rule=_p_balance)

    # Maximise the objective
    opt.solve(battery, tee=False)

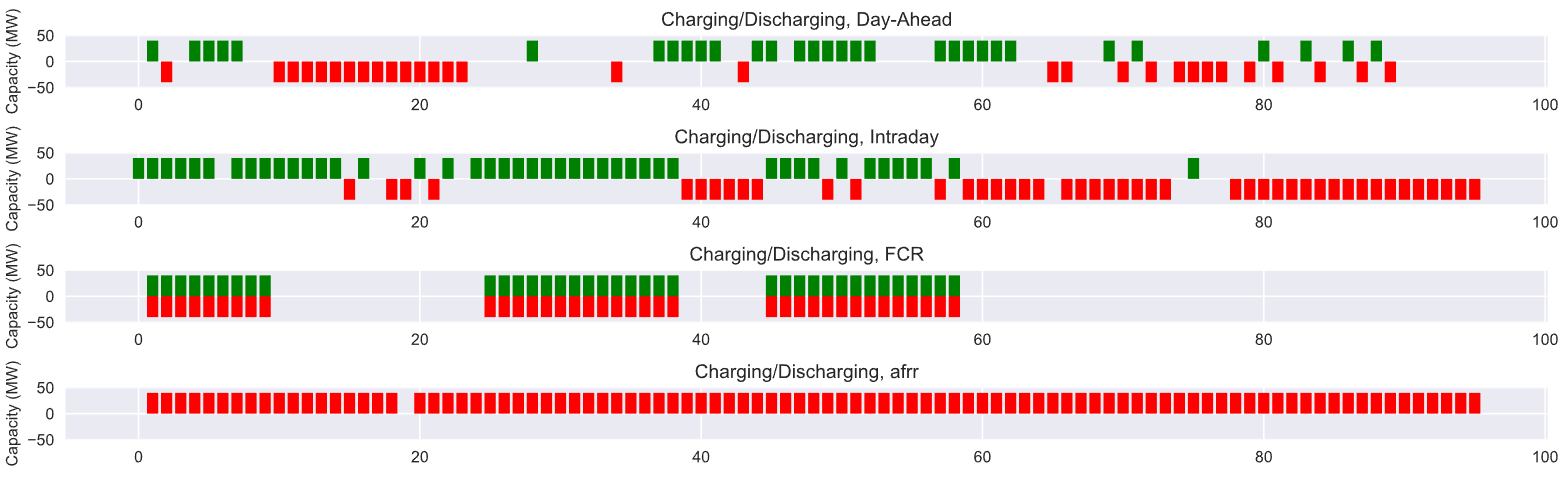

如果你看看结果，你可以看到，在'FCR‘市场，它是同时充放电。

​

​

我试过了：

天真的方法。提供一个OR-条件: def _p_balance(电池，i)：返回battery.discharge_power_fcri == 0\ battery.charge_power_fcri == 0

乘数: def _p_balance(电池，i)：返回battery.discharge_power_fcri * battery.charge_power_fcri == 0

->这使得这个问题非线性化，而GLPK不支持这个问题.

Answer 1

这不是一个完整的答案，但太长，不能发表评论。

你这里没有“电池”的模型。我认为，你有一个4个能源市场的市场模型。

您的代码中没有多少解释性注释，但我认为您有4个市场: IntraDay、Day、FCR、AFRR，每个市场都有相应的价格和成本。因此，你实际上是在建立一个分销系统的模型，如果有一些价格差异来生产你所展示的产品，这将是完全合法的。如果FCR成本低，价格高(在FCR市场和其他市场)，您可以大量购买，并在相同的市场或其他市场出售，这似乎正在发生。

所以，如果我们看看你的目标函数，尤指。FCR部分是孤立的，它显示您使用相同的成本值作为两个成本的乘数& rev.。唯一的区别是效率。...And您的效率被设置为1，所以成本是中立的，无论你做什么在FCR市场，所以解决方案提供可能有充放电.OBJ值将与此无关。所以，试着把你的效率稍微改变为<1，我想你会看到(部分)改进。

还有一个nits:您将Capacity[i]作为变量。通常，“容量”是一个固定值，类似于10 is。我会把它重新命名为“控告”或“国家”

当价格是负的时候你不应该限制排放..。OBJ应该为您处理这一问题，我认为效率的变化将消除这一限制。
