无法将otlp资源属性映射到loki标签

Question

我使用的是一个spring引导应用程序，它使用opentelem遥测代理将包括日志在内的遥测数据发送给Opentelem遥测收集器。

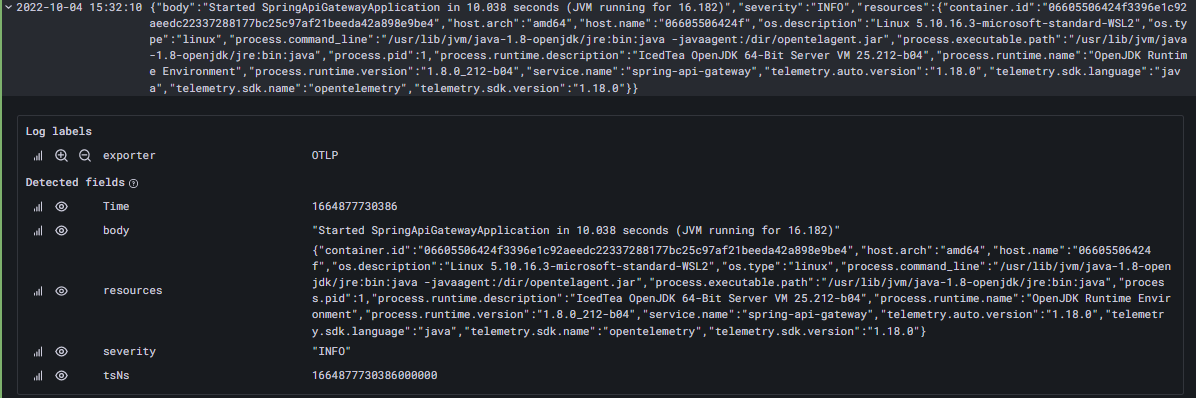

日志成功地传输到opentelem遥测收集器并在grafana loki接收，但是Loki标签没有用OTLP资源和日志属性进行更新。

当前配置-> Loki标签-> host_name: host.name (如otlp资源标签中所述)：Loki标签-> host_name: 06605506424f或任何其他属性名(例如: service.name )

操作系统收集器配置文件：

receivers:
  otlp:
    protocols:
      grpc:
      http:

processors:
  attributes:
    actions:
    - action: insert
      key: loki.attribute.labels
      value: host.name

  resource:
    attributes:
    - action: insert
      key: loki.attribute.labels
      value: service.name
    - action: insert
      key: loki.resource.labels
      value: host.name, container.id

  batch:

exporters:
  jaeger:
    endpoint: "jaeger:14250"
    tls:
      insecure: true
  logging:
    loglevel: debug

  loki:
    endpoint: "http://loki:3100/loki/api/v1/push"

  prometheus:
    endpoint: "0.0.0.0:8889"
    namespace: "default"

extensions:
  health_check:
  pprof:
  zpages:

service:
  extensions: [health_check,pprof,zpages]
  pipelines:
    traces:
      receivers: [otlp]
      processors: [batch]
      exporters: [jaeger]
    metrics:
      receivers: [otlp]
      processors: [batch]
      exporters: [prometheus]
    logs:
      receivers: [otlp]
      processors: [resource,attributes,batch]
      exporters: [logging,loki]

opentelemetry遥测收集器日志：

Resource SchemaURL: https://opentelemetry.io/schemas/1.12.0
Resource attributes:
     -> container.id: STRING(06605506424f3396e1c92aeedc22337288177bc25c97af21beeda42a898e9be4)
     -> host.arch: STRING(amd64)
     -> host.name: STRING(06605506424f)
     -> os.description: STRING(Linux 5.10.16.3-microsoft-standard-WSL2)
     -> os.type: STRING(linux)
     -> process.command_line: STRING(/usr/lib/jvm/java-1.8-openjdk/jre:bin:java -javaagent:/dir/opentelagent.jar)
     -> process.executable.path: STRING(/usr/lib/jvm/java-1.8-openjdk/jre:bin:java)
     -> process.pid: INT(1)
     -> process.runtime.description: STRING(IcedTea OpenJDK 64-Bit Server VM 25.212-b04)
     -> process.runtime.name: STRING(OpenJDK Runtime Environment)
     -> process.runtime.version: STRING(1.8.0_212-b04)
     -> service.name: STRING(spring-api-gateway)
     -> telemetry.auto.version: STRING(1.18.0)
     -> telemetry.sdk.language: STRING(java)
     -> telemetry.sdk.name: STRING(opentelemetry)
     -> telemetry.sdk.version: STRING(1.18.0)
     -> loki.attribute.labels: STRING(service.name)
     -> loki.resource.labels: STRING(host.name, container.id)
ScopeLogs #0
ScopeLogs SchemaURL:
InstrumentationScope com.apigateway.SpringApiGatewayApplication
LogRecord #0
ObservedTimestamp: 1970-01-01 00:00:00 +0000 UTC
Timestamp: 2022-10-04 10:02:10.386 +0000 UTC
SeverityText: INFO
SeverityNumber: SEVERITY_NUMBER_INFO(9)
Body: Started SpringApiGatewayApplication in 10.038 seconds (JVM running for 16.182)
Attributes:
     -> loki.attribute.labels: STRING(host.name)
Trace ID:
Span ID:
Flags: 0
        {"kind": "exporter", "data_type": "logs", "name": "logging"}

地堑

​

Answer 1

我认为这是已知臭虫在洛基出口商为OpenTelemetry。解决方法是在logRecord属性部分中定义资源标签，直到问题得到解决为止。
