使用tm_shape时找不到对象'x‘,但存在对象吗?
EN

Stack Overflow用户
提问于 2022-09-29 18:30:04
回答 1查看 65关注 0票数 0

我试图用tmap制作地图,显示每个国家的人权指数得分。tmap只有几个可以使用的形状(新西兰的“nz”,整个世界的“world”,还有一两种),所以我使用的是一个来自rnaturalearth的shapefile,它与我现有的数据文件合并,这样我就可以使用自然土形状上的数据制作地图。然而,当我使用函数tm_shape(Afghanistan)tm(fill)绘制阿富汗的基本地图时,我会得到错误。

代码语言:javascript
复制
Error in as.list.environment(environment()) :
  object 'Afghanistan' not found

下载rnaturalearth shapefile的代码,我将其命名为“country50”。

代码语言:javascript
复制
install.packages("rnaturalearth")
install.packages("rnaturalearthdata")
library(rnaturalearth)
library(rnaturalearthdata)
country50 <- ne_download(scale = 50, type = 'countries', category = 'cultural')

将“country50”与我先前在“NAME_LONG”中存在的数据合并,创建“ciri2014”。

代码语言:javascript
复制
ciri2014.country50.merged = merge(country50, CIRI_Data_1981_2011_2014_04_14, by = 'NAME_LONG', duplicateGeoms = TRUE)

此时,这应该可以工作,因为变量“阿富汗”在我与'country50‘合并的原始数据文件中,但是我得到了以下内容

代码语言:javascript
复制
tm_shape(Afghanistan) + tm_fill()
 Error in as.list.environment(environment()) :
  object 'Afghanistan' not found

然后,我意识到‘ciri2014. realized 50合并’是一个S4文件,所以我这样做是为了使它成为sf文件。

代码语言:javascript
复制
st_as_sf(ciri2014.country50.merged)
Simple feature collection with 5492 features and 195 fields
Geometry type: MULTIPOLYGON
Dimension:     XY
Bounding box:  xmin: -180 ymin: -89.99893 xmax: 180 ymax: 83.59961
Geodetic CRS:  WGS 84
First 10 features:

#  and so on.

接下来,我做了这个

代码语言:javascript
复制
sf.ciri2014.country50.merged = st_as_sf(ciri2014.country50.merged)
> View(sf.ciri2014.country50.merged)
> tm_shape(Afghanistan) + tm_fill()
Error in as.list.environment(environment()) :
  object 'Afghanistan' not found

> map.sf.ciri2014.country50.merged = st_as_sf(ciri2014.country50.merged, fill = TRUE, group = TRUE)
> View(map.sf.ciri2014.country50.merged)
> tm_shape(Afghanistan) + tm_fill()

Error in as.list.environment(environment()) :
  object 'Afghanistan' not found

“阿富汗”这个物体肯定存在,但我不知道为什么tmap找不到它。我也尝试了国家代码和缩写的多个国家,有相同的结果。我能做的唯一地图是新西兰或者整个世界。我是不是错过了一些显而易见的痛苦?谢谢!

EN

回答 1

Stack Overflow用户

发布于 2022-09-29 19:48:21

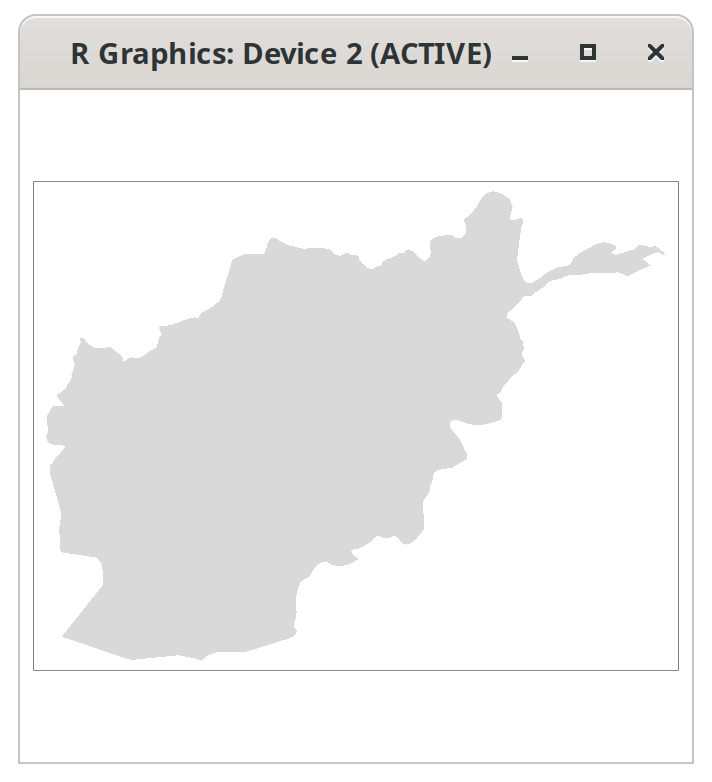

您没有一个名为Afghanistan的“对象”--您有一个名为country50的“对象”,它有一个代表阿富汗的一行(或一个特性)。若要绘制此图,请将其解压缩到一个具有您想要的名称的对象中,Afghanistan将这样做,并将其映射为:

代码语言:javascript
复制
> Afghanistan = country50[country50$NAME=="Afghanistan",]
> library(tmap);tm_shape(Afghanistan) + tm_fill()

票数 0
