AWS CDK部署失败:指定无效的API标识符

Question

我试图在API网关中向我现有的REST添加一个新的路由和集成。我正在使用下面的代码片段来实现这一点：

import * as cdk from 'aws-cdk-lib';
import { Construct } from 'constructs';

export interface IApiGatewayIntegrationProps extends cdk.StackProps {
  /**
   * Application Name. Will be used to name all the resources
   */
  appName: string;

  /**
   * Route name to add the API Gateway Integration onto.
   * For example: setting `admin` for admin-api, the invocation url will be `${apiGatewayInvocationUrl}/admin`
   */
  apiPath: string;

  /**
   * REST API ID for an existing API
   */
  restApiId: string;

  /**
   * ID for the root resource in the API
   */
  restApiRootResourceId: string;

  /**
   * VPC Link ID
   */
  VpcLink: string;

  /**
   * URL for the Network Load Balancer (NLB)
   */
  NLBDns: string;

  /**
   * Listener port on the NLB
   */
  NLBPort: number;
}

export class CustomApiGatewayIntegration extends Construct {
  constructor(scope: Construct, id: string, props: IApiGatewayIntegrationProps) {
    super(scope, id);

    const api = cdk.aws_apigateway.RestApi.fromRestApiAttributes(scope, 'api', {
      restApiId: props.restApiId,
      rootResourceId: props.restApiRootResourceId,
    });

    const proxyIntegration = new cdk.aws_apigatewayv2.CfnIntegration(this, 'gateway-integration', {
      apiId: api.restApiId,
      connectionId: props.VpcLink,
      connectionType: 'VPC_LINK',
      description: 'API Integration',
      integrationMethod: 'ANY',
      integrationType: 'HTTP_PROXY',
      integrationUri: `http://${props.NLBDns}:${props.NLBPort}/${props.apiPath}/{proxy}`,
    });

    new cdk.aws_apigatewayv2.CfnRoute(this, 'gateway-route', {
      apiId: api.restApiId,
      routeKey: 'ANY somepath/{proxy+}',
      target: `integrations/${proxyIntegration.ref}`,
    });
  }
}

在部署CDK堆栈之后，我在终端中得到以下错误：

failed: Error: The stack named $STACK_NAME failed to deploy: UPDATE_ROLLBACK_COMPLETE: Invalid API identifier specified $AWS_ACCOUNT_ID:$REST_API_ID

​

​

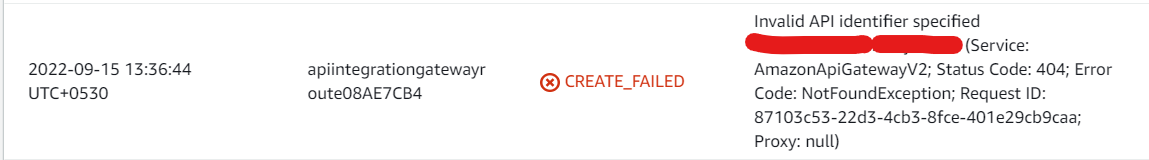

这是Cloudformation中错误的外观：

​

​

这里有趣的一点是，除了实际的API ID之外，错误消息还显示了AWS帐户ID。

感谢你在这方面的任何帮助！提前感谢

编辑1：apigateway import意味着如何导入API类方法。AWS Cloudformation有两个资源组：

• AWS::APIGateway
• AWS::APIGatewayV2

两者都有不同的能力。在AWS CDK (v1.x)的旧版本中，您必须分别导入两个资源组：

老：import * as apigateway from '@aws-cdk/aws-api-gateway';

新：import * as apigatewayv2 from '@aws-cdk/aws-api-gatewayv2';

较新的CDK将一切都结合在一起，可以简单地写成：

import * as cdk from 'aws-cdk-lib';

// Call to v1 Resource Group:
const api = new cdk.aws_apigateway.RestApi(...);

// Call to v2 Resources:
const apiv2 = new cdk.aws_apigatewayv2.CfnRestApi(...);

Answer 1

我检查了cloudformation控制台以跟踪堆栈更新，并发现由ApiGatewayV2模块生成的Cfn模板在API Id前面添加了帐户Id。

因此，我不再使用它，继续使用主要的。下面是起作用的代码片段。I还必须为API阶段部署操作一个私有变量.

// ...

export class CustomApiGatewayIntegration extends constructs.Construct {
  constructor(scope: constructs.Construct, id: string, props: IApiGatewayIntegrationProps) {
    super(scope, id);

    const api = cdk.aws_apigateway.RestApi.fromRestApiAttributes(scope, 'api', {
      restApiId: props.restApiId,
      rootResourceId: props.restApiRootResourceId,
    });

    const vpcLink = cdk.aws_apigateway.VpcLink.fromVpcLinkId(this, 'vpc-link', props.VpcLink);

    const gatewayResource = api.root.addResource(props.apiPath);

    const endpoint = `http://${props.NLBDns}:${props.NLBPort}/${props.apiPath}`;

    const proxyResource = gatewayResource.addProxy({
      anyMethod: true,
      defaultIntegration: new cdk.aws_apigateway.Integration({
        type: cdk.aws_apigateway.IntegrationType.HTTP_PROXY,
        integrationHttpMethod: 'ANY',
        uri: `${endpoint}/{proxy}`,
        options: {
          vpcLink,
          connectionType: cdk.aws_apigateway.ConnectionType.VPC_LINK,
        },
      })
    });

    const deployment = new cdk.aws_apigateway.Deployment(this, 'api-deployment-' + new Date().toISOString(), { api });

    // Private member manipulation
    (deployment as any).resource.stageName = 'api';

    // Forcing dependency of deployment on the `proxyResource`
    // for sequential deployment in cloudformation
    deployment.node.addDependency(proxyResource);

    new CfnOutput(this, 'ServiceEndpoint', {
      value: endpoint,
      description: `Endpoint for ${props.appName} microservice`,
      exportName: `${props.org}-${props.environment}-service-endpoint`
    });
  }
}

// ...
