为什么在BorderPane中添加另一个元素会破坏我的格式？

Question

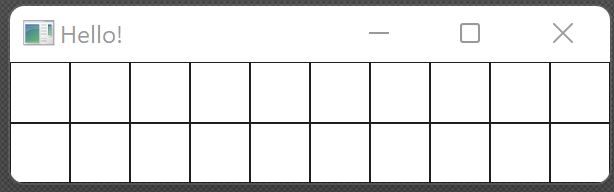

在GridPane中心创建BorderPane时，它是二次型的，一切都很好：

​

​

即使在有大量列和行的情况下，一切都是完美的：

​

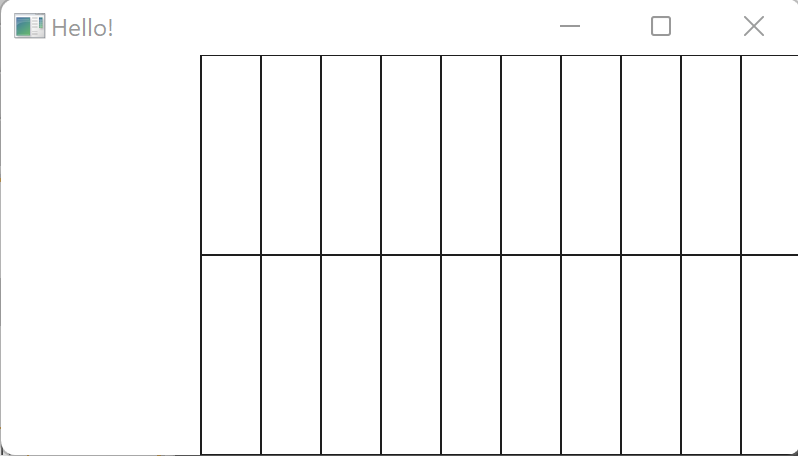

但是，当我将一个VBox或任何其他元素添加到BorderPane的左边插槽时，如下所示：

​

我需要GridPane保持二次型，至少在创建之后是如此。当调整大小时，单元格保持二次型并不重要，但它们在本质上应该是。

我还尝试将GridPane封装在VBox中，将VBox封装在HBox中，并绑定它们的高度和宽度属性，但这只会使单元格保持相同的大小。

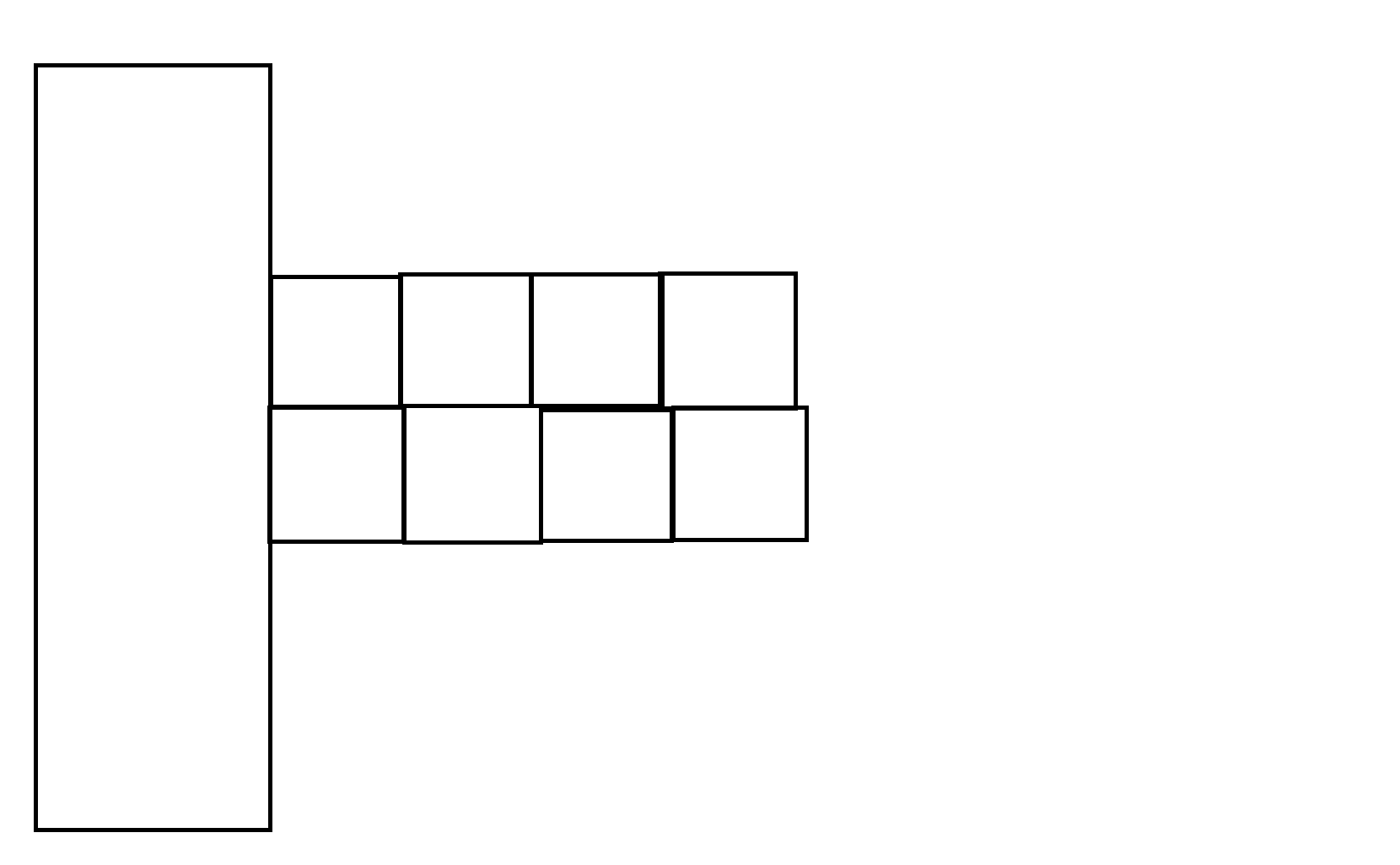

基本上，我想让它看起来像这样：

​

我认为，如果有可能告诉GridPane不要往上、往下、坐着填补空位，那就很容易了。

fxml文件：

<?xml version="1.0" encoding="UTF-8"?>

<?import javafx.scene.layout.*?>

<BorderPane maxHeight="-Infinity" maxWidth="-Infinity" xmlns="http://javafx.com/javafx/16" xmlns:fx="http://javafx.com/fxml/1" fx:controller="gui.UserInterfaceController">
   <center>
      <GridPane fx:id="grdPn" gridLinesVisible="true" onMouseClicked="#onGrdPnMouseClicked">
        <columnConstraints>
          <ColumnConstraints hgrow="SOMETIMES" minWidth="10.0" prefWidth="30.0" />
          <ColumnConstraints hgrow="SOMETIMES" minWidth="10.0" prefWidth="30.0" />
            <ColumnConstraints hgrow="SOMETIMES" minWidth="10.0" prefWidth="30.0" />
            <ColumnConstraints hgrow="SOMETIMES" minWidth="10.0" prefWidth="30.0" />
            <ColumnConstraints hgrow="SOMETIMES" minWidth="10.0" prefWidth="30.0" />
            <ColumnConstraints hgrow="SOMETIMES" minWidth="10.0" prefWidth="30.0" />
            <ColumnConstraints hgrow="SOMETIMES" minWidth="10.0" prefWidth="30.0" />
            <ColumnConstraints hgrow="SOMETIMES" minWidth="10.0" prefWidth="30.0" />
            <ColumnConstraints hgrow="SOMETIMES" minWidth="10.0" prefWidth="30.0" />
            <ColumnConstraints hgrow="SOMETIMES" minWidth="10.0" prefWidth="30.0" />



        </columnConstraints>
        <rowConstraints>
          <RowConstraints minHeight="10.0" prefHeight="30.0" vgrow="SOMETIMES" />
          <RowConstraints minHeight="10.0" prefHeight="30.0" vgrow="SOMETIMES" />
        </rowConstraints>
      </GridPane>
   </center>
   <left>
      <VBox prefHeight="306.0" prefWidth="100.0" BorderPane.alignment="CENTER" />
   </left>
</BorderPane>

创造舞台和场景：

        FXMLLoader fxmlLoader = new FXMLLoader(ApplicationMain.class.getResource("sample.fxml"));
        Scene scene = new Scene(fxmlLoader.load());
        stage.setTitle("Example");
        stage.setScene(scene);
        stage.show();

如果删除VBox，则GridPane再次变为正方形。

编辑：我的工作是确保GridPane总是大于VBox，然后VBox将是改变大小的元素，GridPane的单元格将是二次型的。但是我尝试了下面标记的解决方案，它对我有效。

克莱奥帕特拉的建议也有很大帮助。谢谢大家。

Answer 1

下面是一个我希望能帮助你的例子。我猜GridPane Max Height = USE_PREF_SIZE是你要找的东西。

<?xml version="1.0" encoding="UTF-8"?>
<?import javafx.geometry.Insets?>
<?import javafx.scene.layout.BorderPane?>
<?import javafx.scene.layout.ColumnConstraints?>
<?import javafx.scene.layout.GridPane?>
<?import javafx.scene.layout.RowConstraints?>
<?import javafx.scene.layout.VBox?>
<BorderPane xmlns="http://javafx.com/javafx/18" xmlns:fx="http://javafx.com/fxml/1" maxHeight="-Infinity" maxWidth="-Infinity" fx:controller="gui.UserInterfaceController">
   <left>
      <VBox prefHeight="306.0" prefWidth="100.0" style="-fx-border-color: black;" BorderPane.alignment="CENTER">
         <BorderPane.margin>
            <Insets bottom="10.0" left="10.0" top="10.0" />
         </BorderPane.margin>
      </VBox>
   </left>
   <center>
      <GridPane fx:id="grdPn" gridLinesVisible="true" maxHeight="-Infinity" onMouseClicked="#onGrdPnMouseClicked" BorderPane.alignment="CENTER">
         <columnConstraints>
            <ColumnConstraints hgrow="SOMETIMES" maxWidth="-Infinity" minWidth="-Infinity" prefWidth="40.0" />
            <ColumnConstraints hgrow="SOMETIMES" maxWidth="-Infinity" minWidth="-Infinity" prefWidth="40.0" />
            <ColumnConstraints hgrow="SOMETIMES" maxWidth="-Infinity" minWidth="-Infinity" prefWidth="40.0" />
            <ColumnConstraints hgrow="SOMETIMES" maxWidth="-Infinity" minWidth="-Infinity" prefWidth="40.0" />
            <ColumnConstraints hgrow="SOMETIMES" maxWidth="-Infinity" minWidth="-Infinity" prefWidth="40.0" />
            <ColumnConstraints hgrow="SOMETIMES" maxWidth="-Infinity" minWidth="-Infinity" prefWidth="40.0" />
            <ColumnConstraints hgrow="SOMETIMES" maxWidth="-Infinity" minWidth="-Infinity" prefWidth="40.0" />
            <ColumnConstraints hgrow="SOMETIMES" maxWidth="-Infinity" minWidth="-Infinity" prefWidth="40.0" />
            <ColumnConstraints hgrow="SOMETIMES" maxWidth="-Infinity" minWidth="-Infinity" prefWidth="40.0" />
            <ColumnConstraints hgrow="SOMETIMES" maxWidth="-Infinity" minWidth="-Infinity" prefWidth="40.0" />
         </columnConstraints>
         <rowConstraints>
            <RowConstraints maxHeight="-Infinity" minHeight="-Infinity" prefHeight="40.0" vgrow="SOMETIMES" />
            <RowConstraints maxHeight="-Infinity" minHeight="-Infinity" prefHeight="40.0" vgrow="SOMETIMES" />
         </rowConstraints>
         <BorderPane.margin>
            <Insets right="10.0" />
         </BorderPane.margin>
      </GridPane>
   </center>
</BorderPane>

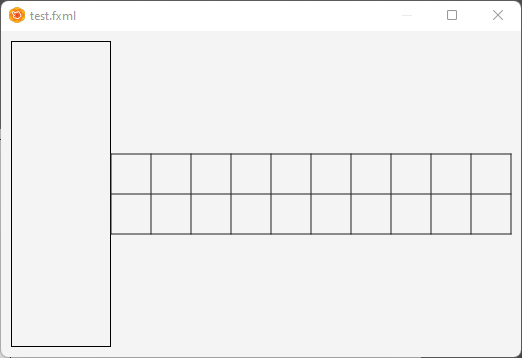

输出

​

​
