GPU Jank生成无限二维地形

Question

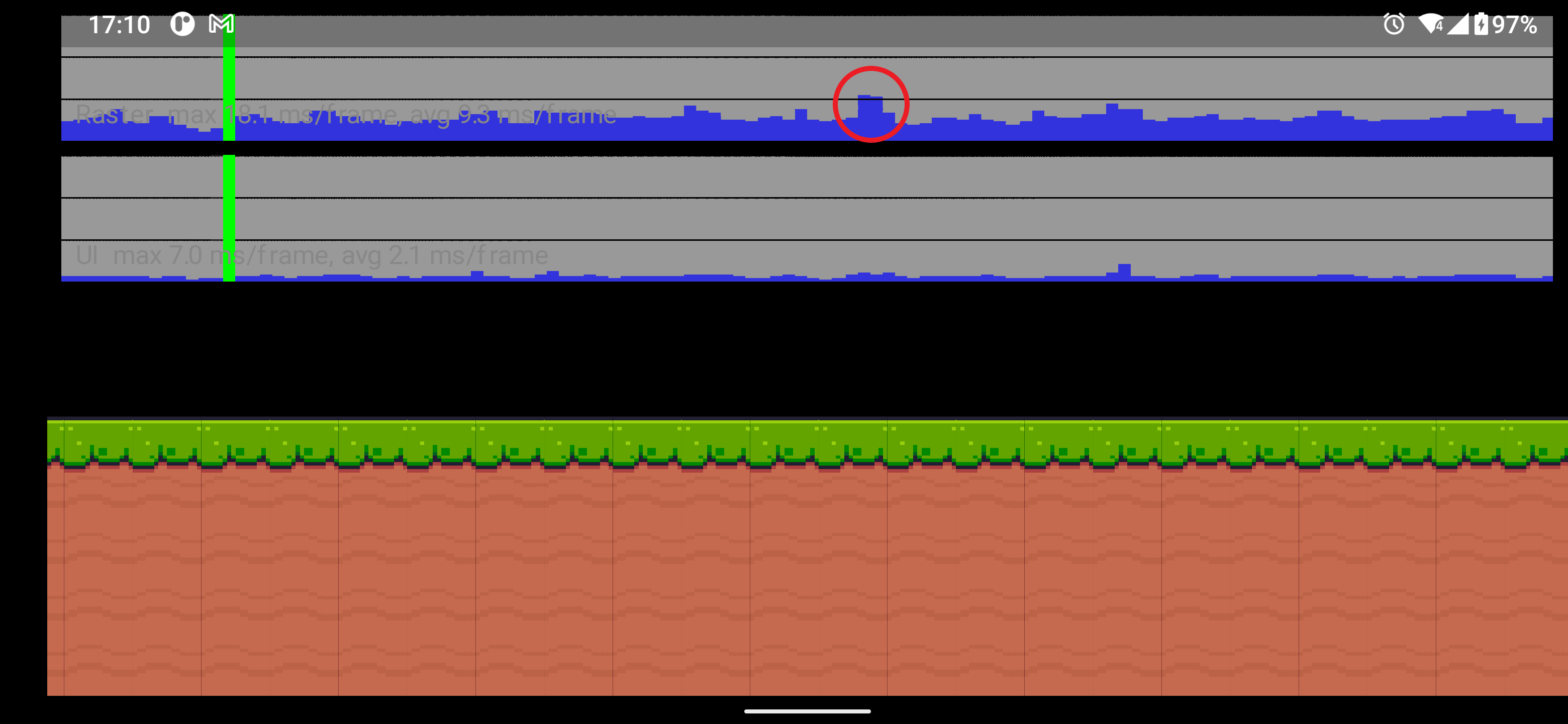

我在做一个有无限模式的跑步游戏。所以，我得大约每1s生成一个地形。它有一些滞后，我的LG Q9 1，我检查了性能，它似乎有一些问题的栅格线程。

​

​

我试过三星Galaxy 10的游戏，它有更好的gpu，显示更少的门(但它还是有门卫)。

我在这里添加了我的代码。有什么更好的方法来提高表现吗？

class MyGame extends FlameGame {
  final Grid grid = Grid();
  final EndlessMap endlessMap = EndlessMap();
  final Runner runner = Runner();

  double speed = 100.0;

  @override
  Future<void>? onLoad() {
    add(grid);
    add(endlessMap);
    add(runner);
    return super.onLoad();
  }
}

/// Camera follows the runner.
class Runner extends PositionComponent with HasGameRef<MyGame> {
  @override
  Future<void>? onLoad() {
    gameRef.camera.followComponent(this);
    return super.onLoad();
  }

  @override
  void update(double dt) {
    x += gameRef.speed * dt;
    super.update(dt);
  }
}

/// Set the size of tile and grid
class Grid extends Component with HasGameRef<MyGame> {
  late int rows = 10;
  late int columns;
  late int mapColumns;
  late double tileSize;

  @override
  void onGameResize(Vector2 size) {
    tileSize = (size.y / rows).floorToDouble();
    columns = (size.x / tileSize).ceil();
    mapColumns = columns + 2;
    super.onGameResize(size);
  }
}

/// Generate terrains endlessly
class EndlessMap extends PositionComponent with HasGameRef<MyGame> {
  late final Sprite terrainSprite;
  late final List<SpriteComponent> terrainSpritePool;

  int firstTerrainIndex = 0;

  // Init terrain sprite
  @override
  Future<void> onLoad() async {
    terrainSprite = Sprite(
      await Flame.images.load('terrains.png'),
      srcPosition: Vector2(4.0, 0.0),
      srcSize: Vector2(32.0, 32.0 * 10),
    );

    terrainSpritePool = List.generate(
      gameRef.grid.mapColumns,
      (index) => SpriteComponent(sprite: terrainSprite),
    );

    for (var i = 0; i < terrainSpritePool.length; i++) {
      terrainSpritePool[i].size.x = gameRef.grid.tileSize;
      terrainSpritePool[i].position = Vector2(
        i * gameRef.grid.tileSize,
        gameRef.grid.tileSize,
      );
      add(terrainSpritePool[i]);
    }

    return super.onLoad();
  }

  @override
  void update(double dt) {
    final dx = gameRef.speed * dt;
    final lastTerrainIndex = firstTerrainIndex == 0
        ? terrainSpritePool.length - 1
        : firstTerrainIndex - 1;

    // When the first terrain is behind the camera,
    if (terrainSpritePool[firstTerrainIndex].position.x +
            gameRef.grid.tileSize <=
        gameRef.camera.position.x + dx) {
      // Move the first terrain to the end
      terrainSpritePool[firstTerrainIndex].size.x = gameRef.grid.tileSize;
      terrainSpritePool[firstTerrainIndex].position = Vector2(
        terrainSpritePool[lastTerrainIndex].position.x + gameRef.grid.tileSize,
        gameRef.grid.tileSize,
      );

      firstTerrainIndex = (firstTerrainIndex + 1) % terrainSpritePool.length;
    }

    super.update(dx);
  }
}

您可以在github中找到完整的代码。

2022.09.12

看来我的手机(LG Q9 One)有一个坏的gpu来正常运行它的问题。我删除了所有的代码，除了移动相机，它仍然显示的是门卫。

Answer 1

为了减少着色器编译和顺利运行动画，官方颤动网站上有一篇关于解决方案希望的文章。

Answer 2

不要在update方法中创建新对象。所以当你在做：

terrainSpritePool[firstTerrainIndex].position = Vector2(
  terrainSpritePool[lastTerrainIndex].position.x + gameRef.grid.tileSize,
  gameRef.grid.tileSize,
);

由于SpriteComponent已经有了一个Vector2，所以可以像这样重用它：

terrainSpritePool[firstTerrainIndex].position.setValues(
  terrainSpritePool[lastTerrainIndex].position.x + gameRef.grid.tileSize,
  gameRef.grid.tileSize,
);
