社区首页 >问答首页 >使用HTML、CSS和/或Javascript的鱼骨列表的对角线级联元素和90边框(因果图)

问使用HTML、CSS和/或Javascript的鱼骨列表的对角线级联元素和90边框(因果图)
EN

Stack Overflow用户
提问于 2022-09-03 05:12:54
回答 2查看 100关注 0票数 2

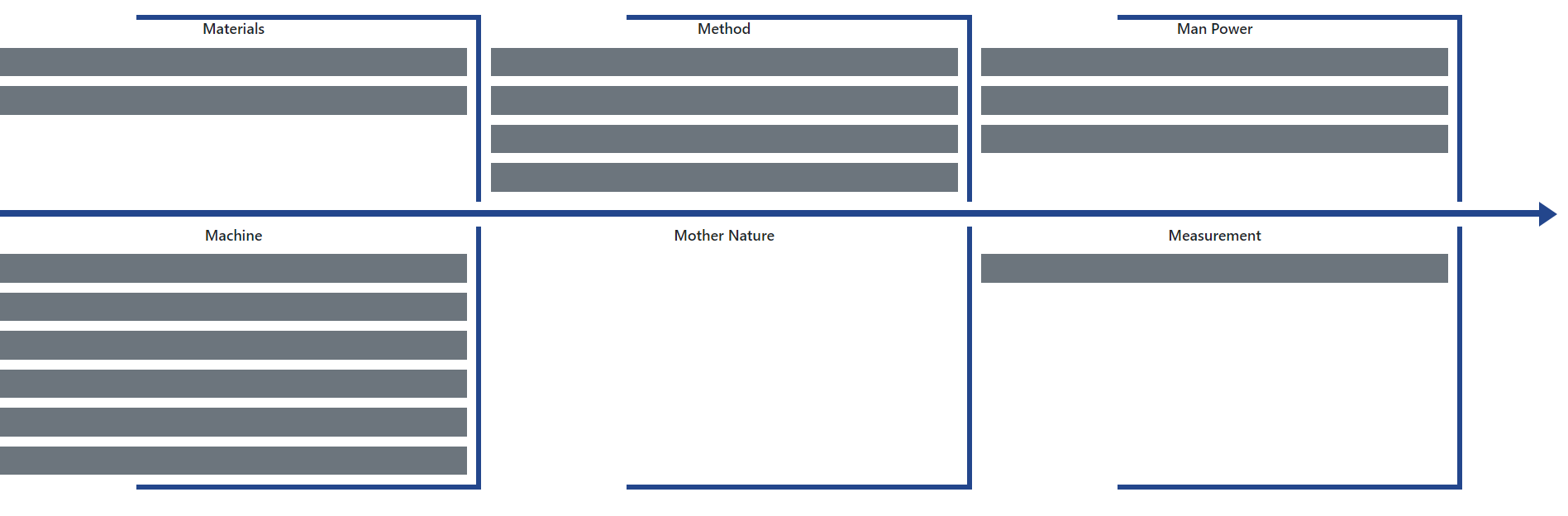

我组织了一些div和段落来创建六个不同的列表，它们都连接到一个箭头上。我已经能够创建类似鱼骨图的东西了，在下面的示例中可以看到：

​

​

动态添加灰色(bg-secondary类)div。6个div在col内有两个蓝色边框(以模拟它们之间的90°分隔符)

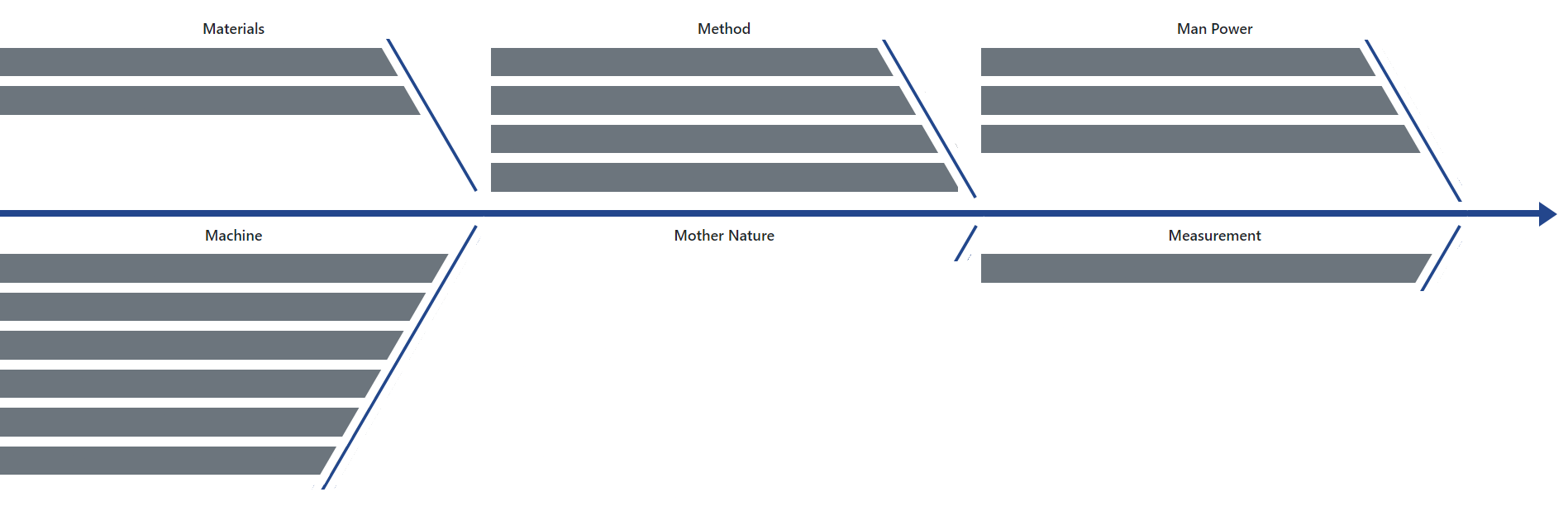

我现在真正想要实现的是这样的对角线边界和级联列表：

​

第二张图像在油漆内部编辑得很差，但区别是:我有一个对角线边框，而不是90边框，模拟一个45°分隔符。除此之外，我还缩进了列表(根据项目的数量，保证金增加了)。

我不知道怎样才能达到45度的边界。事实上，我添加了这些边距-右样式，也使div更小。你们有什么建议？

代码语言：javascript
复制
<!DOCTYPE html>
<html>
    <head>
        <link rel="stylesheet" href="https://cdn.jsdelivr.net/npm/bootstrap@4.3.1/dist/css/bootstrap.min.css" integrity="sha384-ggOyR0iXCbMQv3Xipma34MD+dH/1fQ784/j6cY/iJTQUOhcWr7x9JvoRxT2MZw1T" crossorigin="anonymous">
        <script src="https://code.jquery.com/jquery-3.3.1.slim.min.js" integrity="sha384-q8i/X+965DzO0rT7abK41JStQIAqVgRVzpbzo5smXKp4YfRvH+8abtTE1Pi6jizo" crossorigin="anonymous"></script>
        <script src="https://cdn.jsdelivr.net/npm/popper.js@1.14.7/dist/umd/popper.min.js" integrity="sha384-UO2eT0CpHqdSJQ6hJty5KVphtPhzWj9WO1clHTMGa3JDZwrnQq4sF86dIHNDz0W1" crossorigin="anonymous"></script>
        <script src="https://cdn.jsdelivr.net/npm/bootstrap@4.3.1/dist/js/bootstrap.min.js" integrity="sha384-JjSmVgyd0p3pXB1rRibZUAYoIIy6OrQ6VrjIEaFf/nJGzIxFDsf4x0xIM+B07jRM" crossorigin="anonymous"></script>

        <style>
            .arrow {
                width:100%;
            }
            .line {
                margin-top:14px;
                width:97%;
                background:#23468c;
                height:10px;
                float:left;
            }
            .point {
                width: 3%;
                height: 0;
                border-top: 20px solid transparent;
                border-bottom: 20px solid transparent;
                border-left: 30px solid #23468c;
                float:right;
            }

            .m-top-half-border {
                border-top: 8px solid;
                border-right: 8px solid;
                border-image: linear-gradient(to left, #23468c 70%, transparent 30%) 30% 1;
            }

            .m-bottom-half-border {
                border-bottom: 8px solid;
                border-right: 8px solid;
                border-image: linear-gradient(to left, #23468c 70%, transparent 30%) 30% 1;
            }
        </style>
    </head>
    <body>
        <br>
        <div class="row">
            <div class="col-md-11">
                <div class="row">
                    <div class="col-md-12">
                        <div class="row">
                            <div class="col-lg-4 m-top-half-border" >
                                <h4 class="text-center">Materials</h4>
                                <p>
                                    <div style="margin-right: 140px;" class="bg-secondary">
                                        <div contenteditable="true" class="btn-lg"></div>
                                    </div>
                                </p>
                                <p>
                                    <div style="margin-right: 70px;" class="bg-secondary">
                                        <div contenteditable="true" class="btn-lg"></div>
                                    </div>
                                </p>
                            </div>

                            <div class="col-lg-4 m-top-half-border" >
                                <h4 class="text-center">Method</h4>
                                <p>
                                    <div style="margin-right: 280px;" class="bg-secondary">
                                        <div contenteditable="true" class="btn-lg"></div>
                                    </div>
                                </p>
                                <p>
                                    <div style="margin-right: 210px;" class="bg-secondary">
                                        <div contenteditable="true" class="btn-lg"></div>
                                    </div>
                                </p>
                                <p>
                                    <div style="margin-right: 140px;" class="bg-secondary">
                                        <div contenteditable="true" class="btn-lg"></div>
                                    </div>
                                </p>
                                <p>
                                    <div style="margin-right: 70px;" class="bg-secondary">
                                        <div contenteditable="true" class="btn-lg"></div>
                                    </div>
                                </p>
                            </div>

                            <div class="col-lg-4 m-top-half-border" >
                                <h4 class="text-center">Man Power</h4>
                                <p>
                                    <div style="margin-right: 210px;" class="bg-secondary">
                                        <div contenteditable="true" class="btn-lg"></div>
                                    </div>
                                </p>
                                <p>
                                    <div style="margin-right: 140px;" class="bg-secondary">
                                        <div contenteditable="true" class="btn-lg"></div>
                                    </div>
                                </p>
                                <p>
                                    <div style="margin-right: 70px;" class="bg-secondary">
                                        <div contenteditable="true" class="btn-lg"></div>
                                    </div>
                                </p>
                            </div>
                        </div>
                    </div>
                </div>
            </div><!-- ./col-md-11 -->
        </div><!-- ./row -->

        <div class="row">
            <div class="col-md-12" style="white-space: nowrap;">
                <div class="arrow">
                    <div class="line"></div>
                    <div class="point"></div>
                </div><!-- ./arrow -->
            </div><!-- ./col-md-12 -->
        </div><!-- ./row -->


        <div class="row">
            <div class="col-md-11">
                <div class="row">
                    <div class="col-md-12">
                        <div class="row">
                            <div class="col-lg-4 m-bottom-half-border" >
                                <h4 class="text-center">Machine</h4>
                                <p>
                                    <div style="margin-right: 70px;" class="bg-secondary">
                                        <div contenteditable="true" class="btn-lg"></div>
                                    </div>
                                </p>
                                <p>
                                    <div style="margin-right: 140px;" class="bg-secondary">
                                        <div contenteditable="true" class="btn-lg"></div>
                                    </div>
                                </p>
                                <p>
                                    <div style="margin-right: 210px;" class="bg-secondary">
                                        <div contenteditable="true" class="btn-lg"></div>
                                    </div>
                                </p>
                                <p>
                                    <div style="margin-right: 280px;" class="bg-secondary">
                                        <div contenteditable="true" class="btn-lg"></div>
                                    </div>
                                </p>
                                <p>
                                    <div style="margin-right: 350px;" class="bg-secondary">
                                        <div contenteditable="true" class="btn-lg"></div>
                                    </div>
                                </p>
                                <p>
                                    <div style="margin-right: 420px;" class="bg-secondary">
                                        <div contenteditable="true" class="btn-lg"></div>
                                    </div>
                                </p>
                            </div>

                            <div class="col-lg-4 m-bottom-half-border" >
                                <h4 class="text-center">Mother Nature</h4>
                            </div>

                            <div class="col-lg-4 m-bottom-half-border" >
                                <h4 class="text-center">Measurement</h4>
                                <p>
                                    <div style="margin-right: 70px;" class="bg-secondary">
                                        <div contenteditable="true" class="btn-lg"></div>
                                    </div>
                                </p>
                            </div>
                        </div>
                    </div>
                </div>
            </div><!-- ./col-md-11 -->
        </div><!-- ./row -->

    </body>
</html>
javascript
html
css
twitter-bootstrap
EN

回答 2

Stack Overflow用户

回答已采纳

发布于 2022-09-20 17:06:37

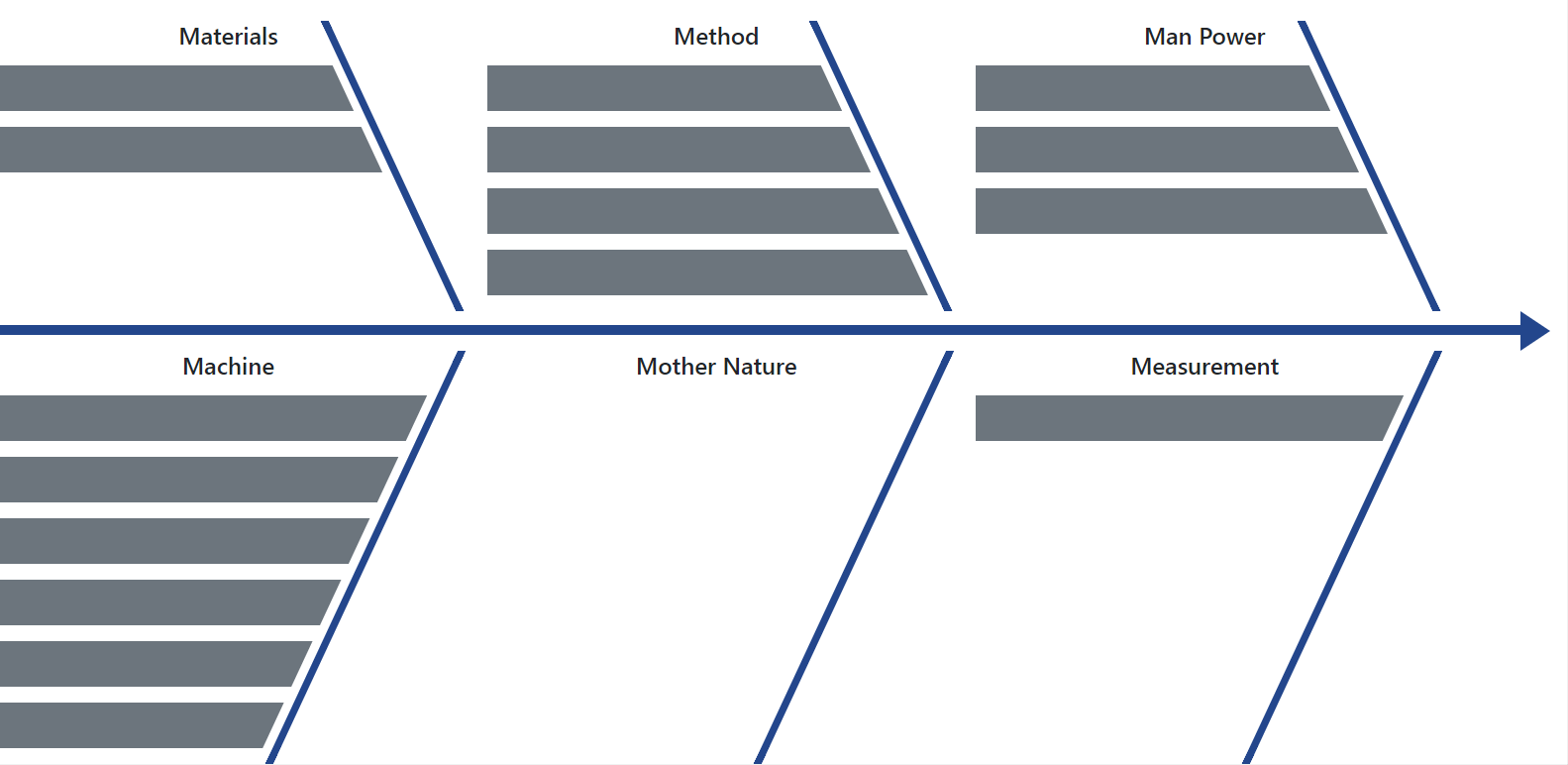

您可以通过添加：：在放置对角线之前和：：后置对角线来隐藏特定部分来实现它。

如果将其添加到CSS中：

代码语言：javascript
复制
.m-top-half-border {
  position: relative;
  overflow: hidden;
}

.m-top-half-border::before {
  content: "";
  position: absolute;
  border: 4px solid #23468c;
  height: 100%;
  right: 77px;
  top: 0;
  background: white;
  z-index: 2;
  transform: skew(25deg, 0deg);
}
.m-top-half-border::after {
  content: "";
  position: absolute;
  height: 100%;
  width: 191px;
  right: -97px;
  top: 0;
  background: white;
  transform: skew(25deg, 0deg);
}

.m-bottom-half-border {
  position: relative;
  overflow: hidden;
}

.m-bottom-half-border::before {
  content: "";
  position: absolute;
  border: 4px solid #23468c;
  height: 100%;
  right: 104px;
  top: 0;
  background: white;
  z-index: 2;
  transform: skew(-25deg, 0deg);
}
.m-bottom-half-border::after {
  content: "";
  position: absolute;
  height: 100%;
  width: 198px;
  right: -76px;
  top: 0;
  background: white;
  transform: skew(-25deg, 0deg);
}

​

​

票数 2
EN

Stack Overflow用户

发布于 2022-09-15 23:28:27

你能知道怎么做吗？

我认为给出一个完整的解决方案有点工作，但如果这有帮助的话，我使用您提供的代码来创建一个起点，让您继续编写代码。

代码语言：javascript
复制
.m-bottom-half-border {
  position: relative; /* Makes the content relative to use the ::after */
}

/* Use ::after to avoid create new HTML elements */
.m-bottom-half-border::after {
    content: '';
    position: absolute;
    right: 0;
    top: 0; /* Right and top to keep your line to the right */
    height: 150%;
    transform: rotate(45deg) translateX(150%); /* Here you create the rotation of 45 degrees and move to the right to avoid this crashes the content */
    transform-origin: top; /* This is to keep it centered while rotating */
    border: 4px solid red;
    background: red;
    border-bottom: 8px solid;
    border-right: 8px solid;
}
票数 1
EN
页面原文内容由Stack Overflow提供。腾讯云小微IT领域专用引擎提供翻译支持
原文链接：

https://stackoverflow.com/questions/73589802
