如何在SAS中添加不同颜色的SGPLOT图例

Question

下面的数据有两组：Group 1和Group 2。每一组都有多个主题。

data sgplot_CPA;
   input trt_group$ time$ subject$ 11. results;
   datalines;
    Group-1 1 203-070-001 20
    Group-1 3 203-070-001 30
    Group-1 7 203-070-001 35
    Group-1 10 203-070-001 50
    Group-1 14 203-070-001 40
    Group-1 21 203-070-001 25
    Group-1 28 203-070-001 40
    Group-1 US 203-070-001 30
    Group-1 1 203-070-003 25
    Group-1 3 203-070-003 35
    Group-1 7 203-070-003 30
    Group-1 10 203-070-003 40
    Group-1 14 203-070-003 50
    Group-1 21 203-070-003 21
    Group-1 28 203-070-003 24
    Group-1 US 203-070-003 31
    Group-1 1 203-070-005 32
    Group-1 3 203-070-005 22
    Group-1 7 203-070-005 30
    Group-1 10 203-070-005 56
    Group-1 14 203-070-005 28
    Group-1 21 203-070-005 35
    Group-1 28 203-070-005 29
    Group-1 US 203-070-005 41
    Group-2 1 203-070-007 15
    Group-2 3 203-070-007 45
    Group-2 7 203-070-007 23
    Group-2 10 203-070-007 48
    Group-2 14 203-070-007 26
    Group-2 21 203-070-007 17
    Group-2 28 203-070-007 35
    Group-2 US 203-070-007 11
    Group-2 1 203-070-008 27
    Group-2 3 203-070-008 40
    Group-2 7 203-070-008 25
    Group-2 10 203-070-008 30
    Group-2 14 203-070-008 40
    Group-2 21 203-070-008 19
    Group-2 28 203-070-008 28
    Group-2 US 203-070-008 39
;
run;

我想在意大利面条的情节中添加两个传说，一个是Treatment group (trt_group)，另一个是subject。对于第一组来说，所有的线条都是紫色的，在每个组内分别标记每一个主题以识别主题趋势。

这是我试过的代码，

proc sgplot data=sgplot_CPA;
styleattrs datacontrastcolors=(purple green orange)
             datasymbols=(squarefilled trianglefilled circlefilled StarFilled TriangleDownFilled )
             datalinepatterns=(Solid Solid Solid ShortDash  ShortDash MediumDash LongDash MediumDashShortDash);
/*   title 'Study Results by Treatment Group';*/
   series x=time y=results / group=subject grouplc=trt_group name='grouping' groupdisplay=cluster clusterwidth=0.25 Markers MARKERATTRS = (color = black) ;
   scatter x =time y = results / group = subject name = 'subjects' groupdisplay=cluster clusterwidth=0.25 markerattrs=(color = black );
   keylegend 'grouping' / type=linecolor sortorder = ASCENDING Position = TopLeft title="Treatment";
   keylegend 'subjects' / type =marker sortorder = ASCENDING Position = Bottom title="Subject";
   xaxis label="Visit";
   yaxis label="Result Score";
   footnote J=L "US=Unscheduled";
run;

这是输出

​

​

如何将突出显示的图例更改为不同的标记样式？例如，203-070-001应该有带紫色的星形符号，203-070-003应该有带紫色的方形，而203-070-005应该有紫色的三角形，对于第二组，任何帮助都是非常感谢的。

Answer 1

您将需要使用数据属性映射。我发现关于这个主题的SAS文档有些薄弱，而且在不同的页面和简单的示例中分布得太广了。

示例：

所演示的数据属性映射假定一个主题只有一个处理方式。

/*
 * derive attribute maps SERIES_ATTR and MARKERS_ATTR
 * based on actual data being plotted
 */

data attribute_map;
  length id $30 value $50;

  set sgplot_cpa;
  by trt_group subject;

  * zero-based arrays for easy modulus indexing that will loop through each array;

  array colors [0:2] $32 _temporary_
    ('purple' 'green' 'orange');
  array markers[0:4] $32 _temporary_
    ('starfilled' 'squarefilled' 'trianglefilled' 'circlefilled' 'diamondfilled');

  retain counter1 -1;

  if first.trt_group then do;
    * wanted: series attributes that vary by treatment;

    counter1 ++ 1;  * increase modulus index for treatment;
    counter2 = -1;  * reset modulus index for subject;

    id = 'SERIES_ATTR';
    value = trt_group;
    linecolor = colors[mod(counter1,dim(colors))];  * apply modulus index;
    output;

    call missing (id, value, linecolor);
  end;

  if first.subject;

  * wanted: scatter attribute that vary by subject, resetting for each treatment;

  counter2 ++ 1; * increase modulus index for subject within treatment;

  id = 'MARKERS_ATTR';
  value = subject;

  markercolor = colors[mod(counter1,dim(colors))];
  markersymbol = markers[mod(counter2,dim(markers))];

  output;

  keep id value markercolor markersymbol linecolor;
run;
proc sort;
  by id value;
run;

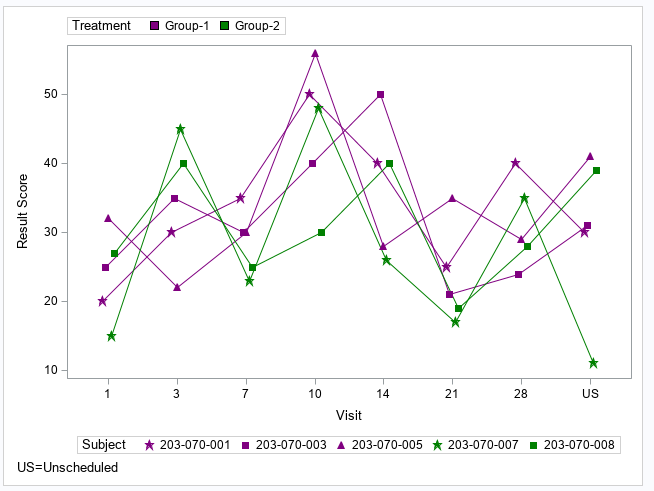

ods html file='report.html';

* series and scatter are used because two different keylegends are wanted;

proc sgplot data=sgplot_CPA dattrmap=attribute_map;
   series x=time y=results
    / name='treatments'
      group=subject
      groupdisplay=cluster
      clusterwidth=0.25
      grouplc=trt_group
      lcattrid=SERIES_ATTR
   ;
   scatter x=time y=results
    / name = 'subjects'
      group = subject
      attrid = MARKERS_ATTR
      groupdisplay=cluster
      clusterwidth=0.25
   ;

   keylegend 'treatments' / type=linecolor sortorder=ascending position=TopLeft title="Treatment";
   keylegend 'subjects'   / type=marker    sortorder=ascending position=Bottom  title="Subject";
   xaxis label="Visit";
   yaxis label="Result Score";
   footnote J=L "US=Unscheduled";
run;

ods html close;

​

​
