ggplot2:带面网格的叠加条形图中具有最小值的自动阴影条

Question

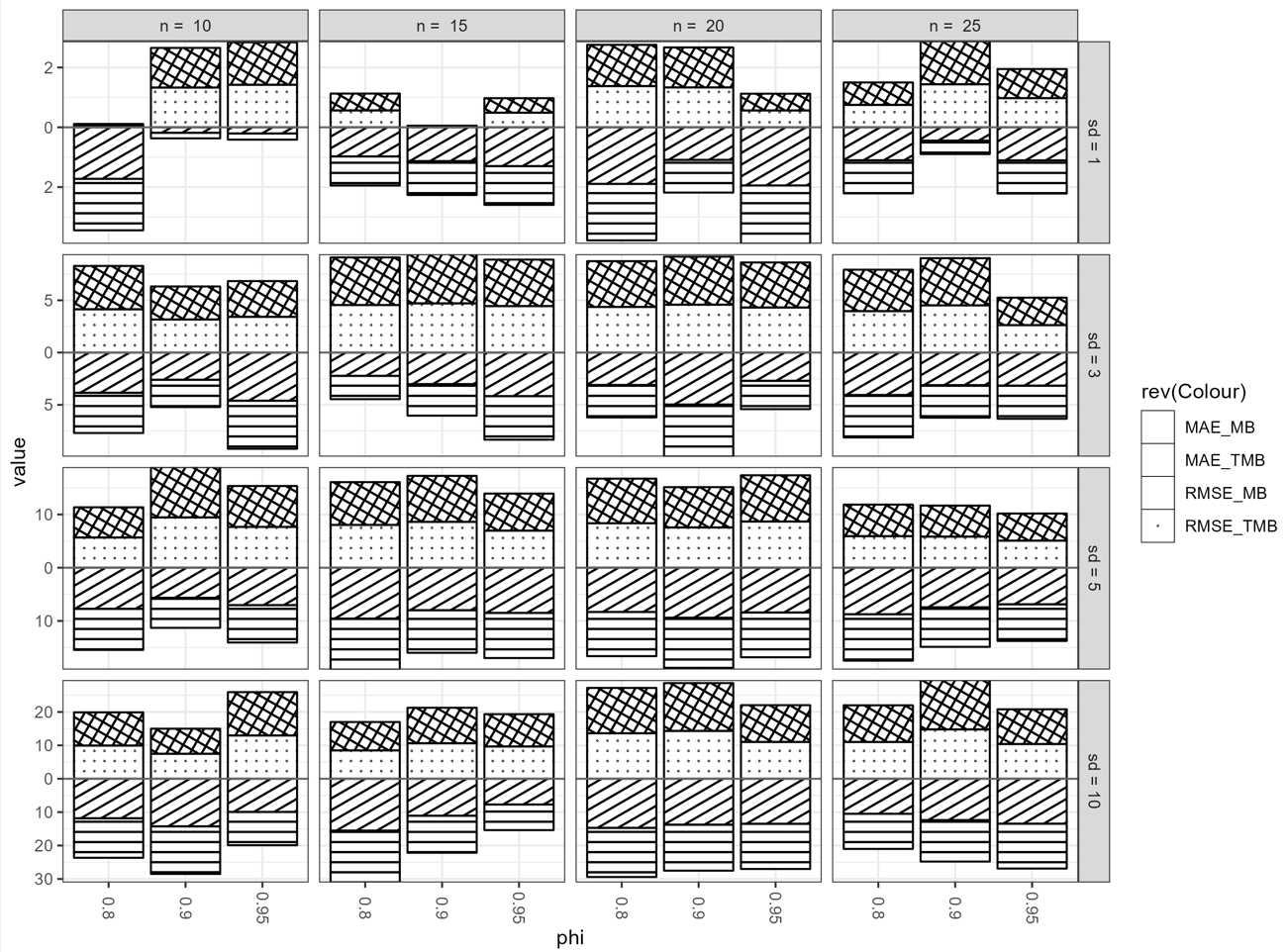

我在带有stacked-bar charts的facet_grid中创建了一些ggplot2，其中使用2 criteria(RMSE, MAE)检查了2 methods(MB, TMB)的性能。

我想要什么

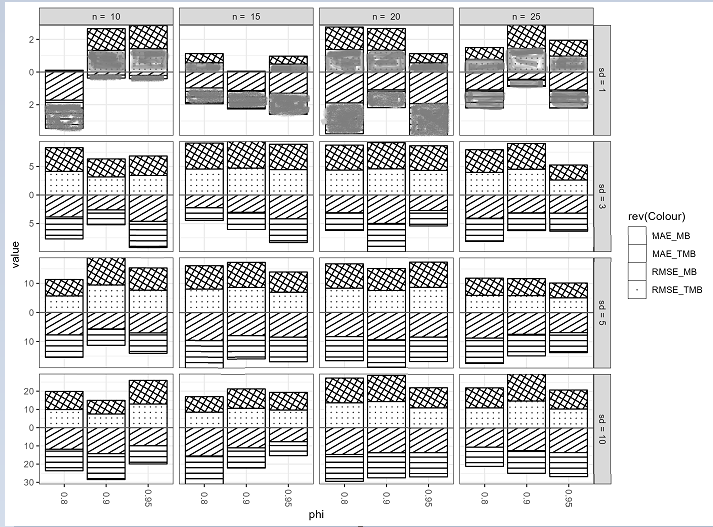

我想添加一个transparent grey阴影到酒吧与一个minimum value为每个堆叠条形图，这样纹理填充将显示以及颜色填充在他们的适当的条形图。

​

​

library(ggplot2)
library(reshape2)
set.seed(199)
MB_RMSE_sd1 <-  runif(12, min = 0, max = 2)
TMB_RMSE_sd1 <- runif(12, min = 0, max = 2)
MB_RMSE_sd3 <-  runif(12, min = 2, max = 5)
TMB_RMSE_sd3 <- runif(12, min = 2, max = 5)
MB_RMSE_sd5 <- runif(12, min = 5, max = 10)
TMB_RMSE_sd5 <- runif(12, min = 5, max = 10)
MB_RMSE_sd10 <-  runif(12, min = 7, max = 16)
TMB_RMSE_sd10 <- runif(12, min = 7, max = 16)
MB_MAE_sd1 <-  runif(12, min = 0, max = 2)
TMB_MAE_sd1 <- runif(12, min = 0, max = 2)
MB_MAE_sd3 <-  runif(12, min = 2, max = 5)
TMB_MAE_sd3 <- runif(12, min = 2, max = 5)
MB_MAE_sd5 <-  runif(12, min = 5, max = 10)
TMB_MAE_sd5 <- runif(12, min = 5, max = 10)
MB_MAE_sd10 <-  runif(12, min = 7, max = 16)
TMB_MAE_sd10 <- runif(12, min = 7, max = 16)

ID <- rep(rep(c("N10_AR0.8", "N10_AR0.9", "N10_AR0.95", "N15_AR0.8", "N15_AR0.9", "N15_AR0.95", "N20_AR0.8", "N20_AR0.9", "N20_AR0.95", "N25_AR0.8", "N25_AR0.9", "N25_AR0.95"), 2), 1)
df1 <- data.frame(ID, MB_RMSE_sd1, TMB_MAE_sd1, MB_RMSE_sd3, TMB_MAE_sd3, MB_RMSE_sd5, TMB_MAE_sd5, MB_RMSE_sd10, TMB_MAE_sd10)
reshapp1 <- reshape2::melt(df1, id = "ID")

NEWDAT <- data.frame(value = reshapp1$value, year = reshapp1$ID, n = rep(rep(c("10", "15", "20", "25"), each = 3), 16), Colour = rep(rep(c("RMSE_MB", "RMSE_TMB", "MAE_MB", "MAE_TMB"), each = 12), 4), sd = rep(rep(c(1, 3, 5, 10), each = 48), 1),  phi = rep(rep(c("0.8", "0.9", "0.95"), 16), 4))

NEWDAT$sd <- with(NEWDAT, factor(sd, levels = sd, labels = paste("sd =", sd)))
NEWDAT$year <- factor(NEWDAT$year, levels = NEWDAT$year[1:12])
NEWDAT$n <- with(NEWDAT, factor(n, levels = n, labels = paste("n = ", n)))

library(ggpattern)

ggplot() +
  geom_col_pattern(
    data = NEWDAT[NEWDAT$Colour %in% c("RMSE_MB", "RMSE_TMB"), ],
    aes(x = phi, y = value, pattern = rev(Colour), pattern_angle = rev(Colour)),
    fill            = 'white',
    colour          = 'black',
    pattern_density = 0.1,
    pattern_fill    = 'black',
    pattern_colour  = 'black'
  ) +
  geom_col_pattern(
    data = NEWDAT[NEWDAT$Colour %in% c("MAE_MB", "MAE_TMB"), ],
    aes(x = phi, y = -value, pattern = Colour, pattern_angle = Colour),
    fill            = 'white',
    colour          = 'black',
    pattern_density = 0.1,
    pattern_fill    = 'black',
    pattern_colour  = 'black'
  ) +
  geom_hline(yintercept = 0, colour = "grey40") +
  facet_grid(sd ~ n, scales = "free") +
  scale_fill_manual(
    breaks = c("MAE_MB", "MAE_TMB", "RMSE_MB", "RMSE_TMB"),
    values = c("red", "blue", "orange", "green")
  ) +
  scale_y_continuous(expand = c(0, 0), label = ~ abs(.)) +
  guides(fill = guide_legend(reverse = TRUE)) +
  labs(fill = "") +
  theme_bw() +
  theme(axis.text.x = element_text(angle = -90, vjust = 0.5))

​

​

我还没找到办法。我可以手动将grey-colour fill添加到任何我想要的栏中，但我不能用最小值自动将颜色填充到条形图中。我去过使一个酒吧的边框比另一个更暗，但没有进展。

Answer 1

你一直走在正确的道路上！我假设你想要的是所有方面的行为，而不是情节的顶层。

只需添加两个辅助层(geom_col表示填充)并在scale_fill_manual中使用color= "transparent"即可。我把它用橙色写得更清楚，把它改成灰色的。

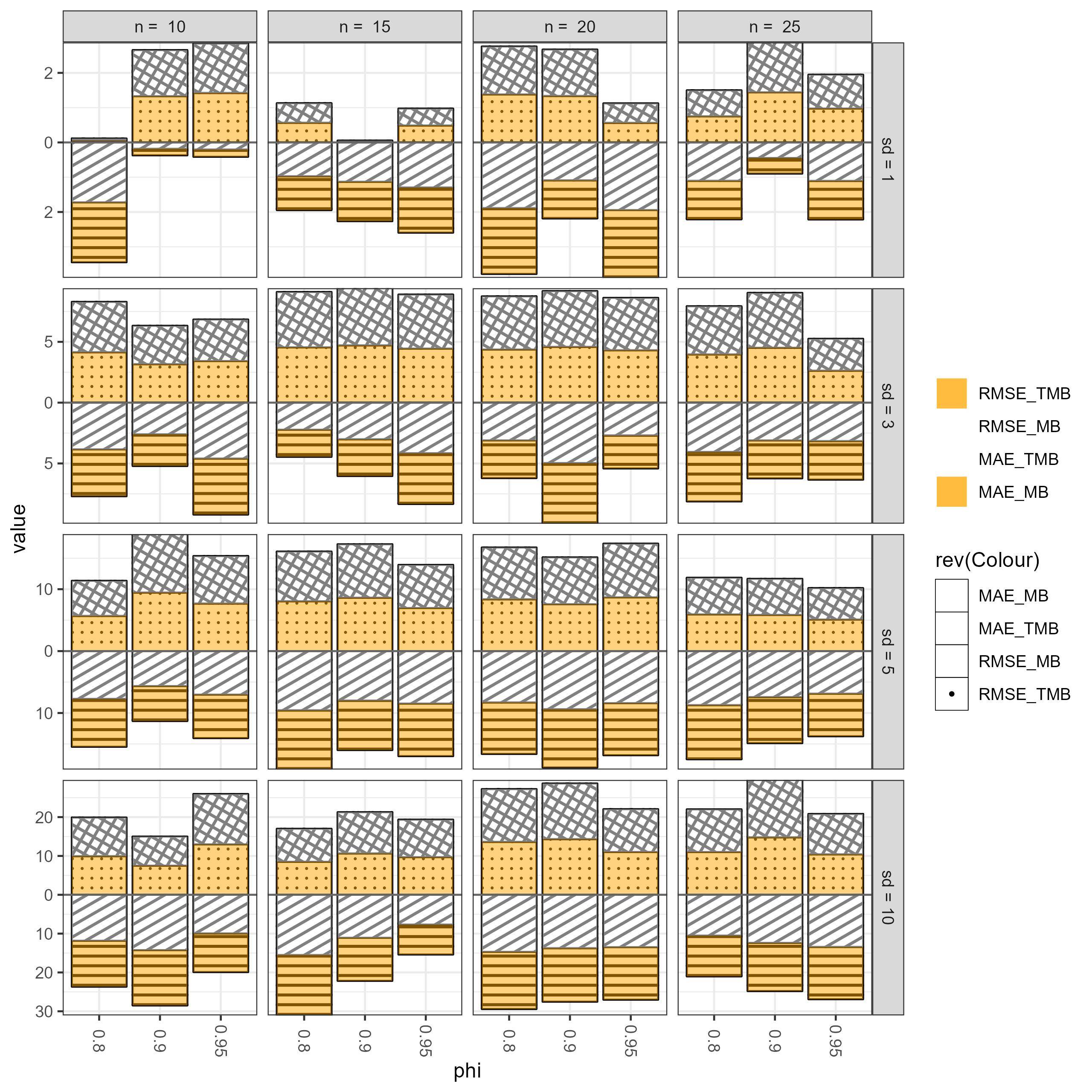

ggplot() +
  geom_col_pattern(
    data = NEWDAT[NEWDAT$Colour %in% c("RMSE_MB", "RMSE_TMB"), ],
    aes(x = phi, y = value, pattern = rev(Colour), pattern_angle = rev(Colour)),
    fill            = 'white',
    colour          = 'black',
    pattern_density = 0.1,
    pattern_fill    = 'black',
    pattern_colour  = 'black'
  ) +
  geom_col(
    data = NEWDAT[NEWDAT$Colour %in% c("RMSE_MB", "RMSE_TMB"), ],
    aes(x = phi, y = value, fill = Colour),
    alpha = 0.5
  ) +
  geom_col_pattern(
    data = NEWDAT[NEWDAT$Colour %in% c("MAE_MB", "MAE_TMB"), ],
    aes(x = phi, y = -value, pattern = Colour, pattern_angle = Colour),
    fill            = 'white',
    colour          = 'black',
    pattern_density = 0.1,
    pattern_fill    = 'black',
    pattern_colour  = 'black'
  ) +
  geom_col(
    data = NEWDAT[NEWDAT$Colour %in% c("MAE_MB", "MAE_TMB"), ],
    aes(x = phi, y = -value, fill = Colour),
    alpha = 0.5
  ) +
  geom_hline(yintercept = 0, colour = "grey40") +
  facet_grid(sd ~ n, scales = "free") +
  scale_fill_manual(
    breaks = c("MAE_MB", "MAE_TMB", "RMSE_MB", "RMSE_TMB"),
    values = c("orange", "transparent", "transparent", "orange")
  ) +
  scale_y_continuous(expand = c(0, 0), label = ~ abs(.)) +
  guides(fill = guide_legend(reverse = TRUE)) +
  labs(fill = "") +
  theme_bw() +
  theme(axis.text.x = element_text(angle = -90, vjust = 0.5))

​

​

我想另一种选择是已经有一些阴影的定制模式。
