Azure AKS应用网关502坏网关

Question

我一直在这里学习教程：Azure女士

这很好。但是，部署本地配置文件时，我会得到一个"502 Gate“错误。这个配置是很好的，并且按预期的方式工作。

有人能看到任何显而易见的东西吗?在这一点上，我不知道从哪里开始。

我正在尝试实现使用入口控制器，即应用网关。然后添加部署并应用附加的入口规则。

apiVersion: apps/v1
kind: Deployment
metadata:
  name: one-api
  namespace: default
  annotations:
    imageregistry: "gcr.io/google-samples/hello-app:1.0"
spec:
  replicas: 3
  selector:
    matchLabels:
      run: one-api
  template:
    metadata:
      labels:
        run: one-api
    spec:
      containers:
        - image: gcr.io/google-samples/hello-app:1.0
          imagePullPolicy: IfNotPresent
          name: one-api
          ports:
            - containerPort: 80
              protocol: TCP

---
apiVersion: v1
kind: Service
metadata:
  name: one-api
  namespace: default
spec:
  ports:
    - port: 80
      protocol: TCP
      targetPort: 80
  selector:
    run: one-api
  type: NodePort

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: two-api
  namespace: default
  annotations:
    imageregistry: "gcr.io/google-samples/hello-app:1.0"
spec:
  replicas: 3
  selector:
    matchLabels:
      run: two-api
  template:
    metadata:
      labels:
        run: two-api
    spec:
      containers:
        - image: gcr.io/google-samples/hello-app:1.0
          imagePullPolicy: IfNotPresent
          name: two-api
          ports:
            - containerPort: 80
              protocol: TCP

---
apiVersion: v1
kind: Service
metadata:
  name: two-api
  namespace: default
spec:
  ports:
    - port: 80
      protocol: TCP
      targetPort: 80
  selector:
    run: two-api
  type: NodePort

---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: strata-2022
  labels:
    app: my-docker-apps
  annotations:
    kubernetes.io/ingress.class: azure/application-gateway
spec:
  rules:
    - http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: one-api
                port:
                  number: 80
          - path: /two-api
            pathType: Prefix
            backend:
              service:
                name: two-api
                port:
                  number: 80

输出：kubectl describe ingress strata-2022

Name:             strata-2022

标签: app=my-docker-apps名称空间:默认地址: 51.142.191.83进入类:默认后端:规则:主机路径后端

• / one-api:80 (10.224.0.15:80,10.224.0.59:80,10.224.0.94:80) /two-api two-api:80 (10.224.0.13:80,10.224.0.51:80,10.224.0.82:80)

注释:kubernetes.io/inress.class:azure/application-网关事件：

kubectl describe ingress

Name:             strata-2022
Labels:           app=my-docker-apps
Namespace:        default
Address:          51.142.191.83
Ingress Class:    <none>
Default backend:  <default>
Rules:
  Host        Path  Backends
  ----        ----  --------
  *
              /          one-api:80 (10.224.0.15:80,10.224.0.59:80,10.224.0.94:80)
              /two-api   two-api:80 (10.224.0.13:80,10.224.0.51:80,10.224.0.82:80)
Annotations:  kubernetes.io/ingress.class: azure/application-gateway
Events:       <none>

使用Azure CLI创建AKS的命令。

az aks create -n myCluster -g david-tutorial --network-plugin azure --enable-managed-identity -a ingress-appgw --appgw-name testApplicationGateway --appgw-subnet-cidr "10.225.0.0/16" --generate-ssh-keys

//获取凭据并切换到此上下文

az aks get-credentials -n myCluster -g david-tutorial

//这一行来自本教程-如预期的那样工作

//kubectl应用-f https://raw.githubusercontent.com/Azure/application-gateway-kubernetes-ingress/master/docs/examples/aspnetapp.yaml

//这就是我跑的路。它在本地工作。

kubectl apply -f nano new-deploy.yaml

//获取地址

kubectl get ingress

kubectl get configmap

Answer 1

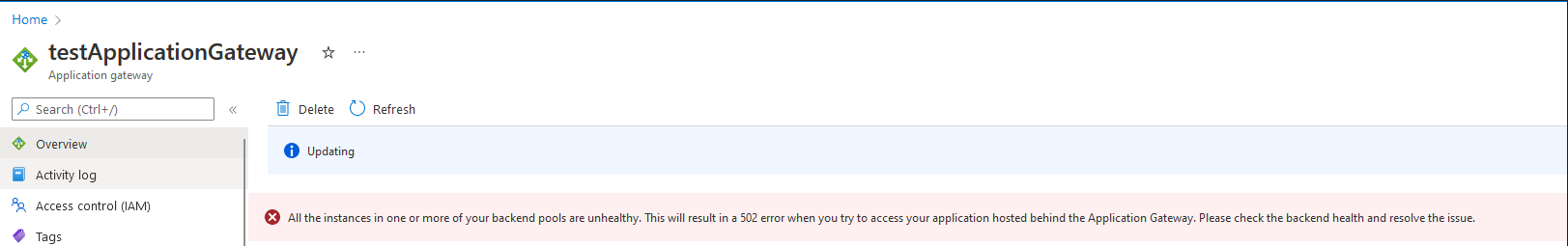

我尝试在我的终端上重新创建相同的设置，在运行相同的az aks创建命令之后，我就可以识别出以下问题:一个或多个后端池中的所有实例都是不健康的。

​

由于这似乎表明后端池是不可访问的，所以一开始很奇怪，所以我尝试根据您正在使用的hello-app映像查看其中一个吊舱的日志，并立即注意到这一点：

> kubectl logs one-api-77f9b4b9f-6sv6f
2022/08/12 00:22:04 Server listening on port 8080

因此，我的直接想法是，在您正在使用的Docker映像中，没有任何配置可以侦听端口80，这是您在kubernetes资源定义中使用的端口。

在更新部署和服务定义以使用端口8080而不是80之后，一切都很好，我开始在浏览器中获得以下响应：

Hello, world!
Version: 1.0.0
Hostname: one-api-d486fbfd7-pm8kt

下面可以找到用于成功部署所有资源的更新的YAML文件：

apiVersion: apps/v1
kind: Deployment
metadata:
  name: one-api
  namespace: default
  annotations:
    imageregistry: "gcr.io/google-samples/hello-app:1.0"
spec:
  replicas: 3
  selector:
    matchLabels:
      run: one-api
  template:
    metadata:
      labels:
        run: one-api
    spec:
      containers:
        - image: gcr.io/google-samples/hello-app:1.0
          imagePullPolicy: IfNotPresent
          name: one-api
          ports:
            - containerPort: 8080
              protocol: TCP

---
apiVersion: v1
kind: Service
metadata:
  name: one-api
  namespace: default
spec:
  ports:
    - port: 8080
      protocol: TCP
      targetPort: 8080
  selector:
    run: one-api
  type: NodePort

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: two-api
  namespace: default
  annotations:
    imageregistry: "gcr.io/google-samples/hello-app:1.0"
spec:
  replicas: 3
  selector:
    matchLabels:
      run: two-api
  template:
    metadata:
      labels:
        run: two-api
    spec:
      containers:
        - image: gcr.io/google-samples/hello-app:1.0
          imagePullPolicy: IfNotPresent
          name: two-api
          ports:
            - containerPort: 8080
              protocol: TCP

---
apiVersion: v1
kind: Service
metadata:
  name: two-api
  namespace: default
spec:
  ports:
    - port: 8080
      protocol: TCP
      targetPort: 8080
  selector:
    run: two-api
  type: NodePort

---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: strata-2022
  labels:
    app: my-docker-apps
  annotations:
    kubernetes.io/ingress.class: azure/application-gateway
spec:
  rules:
    - http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: one-api
                port:
                  number: 8080
          - path: /two-api
            pathType: Prefix
            backend:
              service:
                name: two-api
                port:
                  number: 8080
