如何配置Spring以查找类文件夹/目录中的XML？

Question

我有一个大型的Spring + MyBatis应用程序，我试图将它转换为Spring+ MyBatis AWS (+ layers)函数。我试图通过基于https://www.springcloud.io/post/2022-03/springboot-mybatis-mysql/#gsc.tab=0的小步骤来完成这一任务。

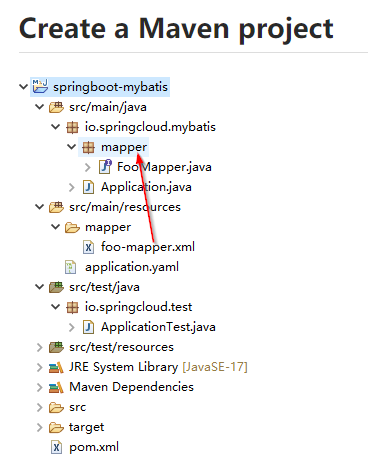

本质上，我希望将XML映射器移动到相应的java映射器所在的位置(与我最初的应用程序相同，无论出于什么原因，该应用程序工作得很好)：

​

​

但是，当我移动XML时，我似乎无法将MyBatis配置为工作。我在application.yml文件中尝试了以下设置，但没有成功：

server:
  port: 9090

...

mybatis:
  mapper-locations: classpath:mapper/**/*-mapper.xml                    # OK with mapper under .../resources/mapper
#  mapper-locations: classpath:**/*-mapper.xml                          # OK with mapper under .../resources/mapper
#  mapper-locations: classpath:**/*-mapper.xml                          # NOT OK with mapper under io/springcloud/.../mapper
#  mapper-locations: classpath:io/springcloud/mybatis/**/*-mapper.xml   # NOT OK with mapper under io/springcloud/.../mapper

如果移动XML映射程序，在运行mvn安装时，它通常会像这样失败：

...
2022-08-08 14:57:30.673  INFO 13716 --- [           main] o.s.t.c.transaction.TransactionContext   : Began transaction (1) for test context [DefaultTestContext@52f27fbd testClass = ApplicationTest, testInstance = io.springcloud.test.ApplicationTest@6f204a1a, testMethod = test@ApplicationTest, testException = [null], mergedContextConfiguration = [WebMergedContextConfiguration@4c163e3 testClass = ApplicationTest, locations = '{}', classes = '{class io.springcloud.mybatis.Application}', contextInitializerClasses = '[]', activeProfiles = '{}', propertySourceLocations = '{}', propertySourceProperties = '{org.springframework.boot.test.context.SpringBootTestContextBootstrapper=true, server.port=0}', contextCustomizers = set[org.springframework.boot.test.context.filter.ExcludeFilterContextCustomizer@6b19b79, org.springframework.boot.test.json.DuplicateJsonObjectContextCustomizerFactory$DuplicateJsonObjectContextCustomizer@75f32542, org.springframework.boot.test.mock.mockito.MockitoContextCustomizer@0, org.springframework.boot.test.web.client.TestRestTemplateContextCustomizer@27ae2fd0, org.springframework.boot.test.autoconfigure.actuate.metrics.MetricsExportContextCustomizerFactory$DisableMetricExportContextCustomizer@15b204a1, org.springframework.boot.test.autoconfigure.properties.PropertyMappingContextCustomizer@0, org.springframework.boot.test.autoconfigure.web.servlet.WebDriverContextCustomizerFactory$Customizer@419c5f1a, org.springframework.boot.test.context.SpringBootTestArgs@1, org.springframework.boot.test.context.SpringBootTestWebEnvironment@4d49af10], resourceBasePath = 'src/main/webapp', contextLoader = 'org.springframework.boot.test.context.SpringBootContextLoader', parent = [null]], attributes = map['org.springframework.test.context.web.ServletTestExecutionListener.activateListener' -> false, 'org.springframework.test.context.event.ApplicationEventsTestExecutionListener.recordApplicationEvents' -> false]]; transaction manager [org.springframework.jdbc.support.JdbcTransactionManager@3d24420b]; rollback [false]
2022-08-08 14:57:31.742  INFO 13716 --- [           main] o.s.t.c.transaction.TransactionContext   : Committed transaction for test: [DefaultTestContext@52f27fbd testClass = ApplicationTest, testInstance = io.springcloud.test.ApplicationTest@6f204a1a, testMethod = test@ApplicationTest, testException = org.apache.ibatis.binding.BindingException: Invalid bound statement (not found): io.springcloud.mybatis.mapper.FooMapper.now, mergedContextConfiguration = [WebMergedContextConfiguration@4c163e3 testClass = ApplicationTest, locations = '{}', classes = '{class io.springcloud.mybatis.Application}', contextInitializerClasses = '[]', activeProfiles = '{}', propertySourceLocations = '{}', propertySourceProperties = '{org.springframework.boot.test.context.SpringBootTestContextBootstrapper=true, server.port=0}', contextCustomizers = set[org.springframework.boot.test.context.filter.ExcludeFilterContextCustomizer@6b19b79, org.springframework.boot.test.json.DuplicateJsonObjectContextCustomizerFactory$DuplicateJsonObjectContextCustomizer@75f32542, org.springframework.boot.test.mock.mockito.MockitoContextCustomizer@0, org.springframework.boot.test.web.client.TestRestTemplateContextCustomizer@27ae2fd0, org.springframework.boot.test.autoconfigure.actuate.metrics.MetricsExportContextCustomizerFactory$DisableMetricExportContextCustomizer@15b204a1, org.springframework.boot.test.autoconfigure.properties.PropertyMappingContextCustomizer@0, org.springframework.boot.test.autoconfigure.web.servlet.WebDriverContextCustomizerFactory$Customizer@419c5f1a, org.springframework.boot.test.context.SpringBootTestArgs@1, org.springframework.boot.test.context.SpringBootTestWebEnvironment@4d49af10], resourceBasePath = 'src/main/webapp', contextLoader = 'org.springframework.boot.test.context.SpringBootContextLoader', parent = [null]], attributes = map['org.springframework.test.context.web.ServletTestExecutionListener.activateListener' -> false, 'org.springframework.test.context.event.ApplicationEventsTestExecutionListener.recordApplicationEvents' -> false]]
[ERROR] Tests run: 1, Failures: 0, Errors: 1, Skipped: 0, Time elapsed: 9.632 s <<< FAILURE! - in io.springcloud.test.ApplicationTest
[ERROR] test  Time elapsed: 1.701 s  <<< ERROR!
org.apache.ibatis.binding.BindingException: Invalid bound statement (not found): io.springcloud.mybatis.mapper.FooMapper.now
    at io.springcloud.test.ApplicationTest.test(ApplicationTest.java:35)

2022-08-08 14:57:31.856  INFO 13716 --- [ionShutdownHook] io.undertow                              : stopping server: Undertow - 2.2.16.Final
2022-08-08 14:57:31.885  INFO 13716 --- [ionShutdownHook] com.zaxxer.hikari.HikariDataSource       : HikariPool-1 - Shutdown initiated...
2022-08-08 14:57:31.922  INFO 13716 --- [ionShutdownHook] com.zaxxer.hikari.HikariDataSource       : HikariPool-1 - Shutdown completed.
[INFO]
[INFO] Results:
[INFO]
[ERROR] Errors:
[ERROR]   ApplicationTest.test:35 » Binding Invalid bound statement (not found): io.spri...
[INFO]
[ERROR] Tests run: 1, Failures: 0, Errors: 1, Skipped: 0
[INFO]
[INFO] ------------------------------------------------------------------------
[INFO] BUILD FAILURE
[INFO] ------------------------------------------------------------------------
...

我会很感激你的帮助。

Answer 1

请检查foo-mapper.xml的命名空间是否是FooMapper包名的值。见下屏幕：

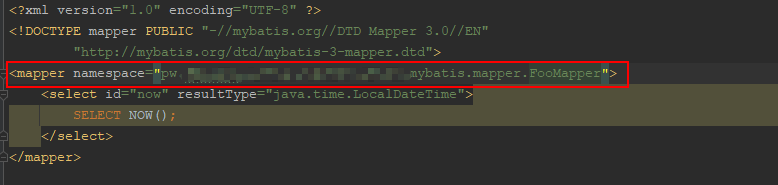

foo-mapper.xml

​

​

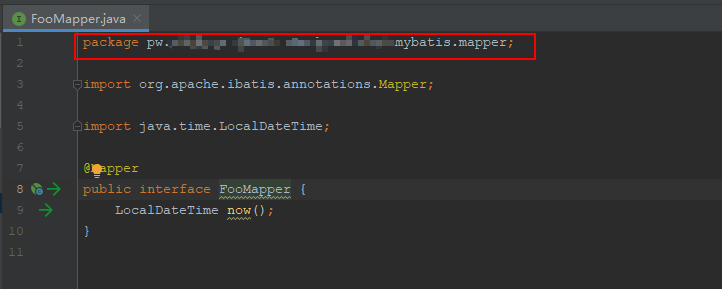

FooMapper.java

​

​
