R中3个PDE的细胞生长模型(Monod)拟合

Question

用@tpetzoldt的答案解决了问题，对原来的代码进行了修改以成功地运行fit。

大家好，我试着用3个偏微分方程来拟合实验数据，找出4个系数，包括mumax，Ks，Y_(x/s)和Y_(p/s)。我使用的代码处理了2组PDE，但没有处理这组3。

需要安装的一组PDE：

dX/dt =木乃伊。S.X/ (Ks + S)

dS/dt = -1/Y_(x/s)木乃伊。S.X/ (Ks + S)

dP/dt =α。dX/dt +β。X

library(deSolve)
library(ggplot2)
library(minpack.lm)
library(reshape2)

time <- c(0, 3, 5, 8, 9.5, 11.5, 14, 16, 18, 20, 25, 27)
X <- c(0.0904, 0.1503, 0.2407, 0.3864, 0.5201, 0.6667, 0.8159, 0.9979, 1.0673, 1.1224, 1.1512, 1.2093)
S <- c(9.0115, 8.8088, 7.9229, 7.2668, 5.3347, 4.911, 3.5354, 1.4041, 0, 0, 0, 0)
P <- c(0.0151, 0.0328, 0.0621, 0.1259, 0.2949, 0.3715, 0.4199, 0.522, 0.5345, 0.6081, 0.07662, 0.7869)
data <- data.frame(time, X, S, P)

Monod <- function(t,c,parms) {
  k1 <- parms$k1 # mumax
  k2 <- parms$k2 # Ks
  k3 <- parms$k3 # Y_(X/S)
  k4 <- parms$k4 # alpha
  k5 <- parms$k5 # beta
  r <- numeric(length(c))
  r[1] <-  k1 * c["S"] * c["X"] / ( k2 + c["S"] ) # r[1] = dCx/dt = k1.Cs.Cx/(k2+Cs)
  r[2] <- -k1 * c["S"] * c["X"] / ( ( k2 + c["S"] ) * k3 ) # r[2] = dCs/dt = -1/k3 * dCx/dt
  r[3] <-  k4 * r[1] + k5 * c["X"] # r[3] = dCp/dt = alpha * dX/dt + beta * X
  return(list(r))
}

residuals <- function(parms){
  cinit <- c( X=data[1,2], S=data[1,3], P=data[1,4] )

  t <- c(seq(0, 27, 1), data$time)
  t <- sort(unique(t))

  k1 <- parms[1]
  k2 <- parms[2]
  k3 <- parms[3]
  k4 <- parms[4]
  k5 <- parms[5]

  out <- ode( y = cinit,
              times = t,
              func = Monod,
              parms = list( k1 = k1, k2 = k2, k3 = k3, k4 = k4, k5 = k5) )

  out_Monod <- data.frame(out)
  out_Monod <- out_Monod[out_Monod$t %in% data$time,]

  pred_Monod <- melt(out_Monod,id.var="time",variable.name="Substance",value.name="Conc")
  exp_Monod <- melt(data,id.var="time",variable.name="Substance",value.name="Conc")
  residuals <- pred_Monod$Conc-exp_Monod$Conc

  return(residuals)
}

parms <- c(k1=0.5, k2=6.5, k3=0.2, k4=1.2, k5 = 0.1)
fitval <- nls.lm(par=parms,fn=residuals)
cinit <- c(X=data[1,2], S=data[1,3], P=data[1,4])
out <- ode(y=cinit, times=seq(min(data$time), max(data$time)), func = Monod, parms=as.list(coef(fitval)))
plot(out, obs=data, mfrow=c(1, 3))

Answer 1

原来的守则有几个问题：

output

• concentration中的状态变量在数据中为小写，在模型中为大小写，在初始值中为无任何名称，在数据中为

• 时间，在ode中为time，在另一个地方为Concentration，而在另一个

H 111中，名称ssq和D13具有误导性，因为函数计算残差而不是平方和。在背景中计算平方和(参见?nls.lm)

• the赋值运算符<-和=的使用不一致)。这不是一个错误，但是人工名称的style.

• instead并不是很好--可以直接使用原始名称如mumax或alpha.

• It --不清楚为什么要使用data2或Monod2这样的名称，因为没有data1.

。

解决了所有这些问题，我们得出了下面的解决方案。它通过和适合某种方式，但它仍然可以改进。这些警告目前可能被忽略。原因是，参数超出了允许的范围。当然，这是可以解决的，但这将是另一个问题。

library(deSolve)
library(ggplot2)
library(minpack.lm)
library(reshape2)

data <- data.frame(
  time = c(0, 3, 5, 8, 9.5, 11.5, 14, 16, 18, 20, 25, 27),
  X = c(0.0904, 0.1503, 0.2407, 0.3864, 0.5201, 0.6667, 0.8159, 0.9979, 1.0673, 1.1224, 1.1512, 1.2093),
  S = c(9.0115, 8.8088, 7.9229, 7.2668, 5.3347, 4.911, 3.5354, 1.4041, 0, 0, 0, 0),
  P = c(0.0151, 0.0328, 0.0621, 0.1259, 0.2949, 0.3715, 0.4199, 0.522, 0.5345, 0.6081, 0.07662, 0.7869)
)

Monod <- function(t, c, parms) {
  k1 <- parms$k1 # mumax
  k2 <- parms$k2 # Ks
  k3 <- parms$k3 # Y_(X/S)
  k4 <- parms$k4 # alpha
  k5 <- parms$k4 # beta
  r <- numeric(length(c))
  r[1] <-  k1 * c["S"] * c["X"] / (k2 + c["S"])
  r[2] <- -k1 * c["S"] * c["X"] / ((k2 + c["S"]) * k3)
  r[3] <-  k4 * r[1] + k5 * c["X"]
  return(list(r))
}

cinit <- c(X = data[1, 2], S = data[1, 3], P = data[1, 4])
t <- seq(0, 27, 1)
parms <- list(k1=0.1, k2=5, k3=1, k4=0.08, k5 = 0.005)

out <- ode(y=cinit, times=t, func = Monod, parms=parms)
plot(out)

residuals <- function(parms){
  cinit <- c(X = data[1, 2], S = data[1, 3], P = data[1, 4] )

  # time points for which conc is reported including the points where data is available
  t <- c(seq(0, 27, 1), data$t)
  t <- sort(unique(t))

  # parameters from the parameter estimation routine:
  k1 <- parms[1]
  k2 <- parms[2]
  k3 <- parms[3]
  k4 <- parms[4]

  # solve ODE for a given set of parameters
  out <- ode(y = cinit, times = t, func = Monod, parms = list( k1 = k1, k2 = k2, k3 = k3, k4 = k4) )

  # Filter data that contains time points where data is available:
  out_Monod <- data.frame(out)
  out_Monod <- out_Monod[out_Monod$t %in% data$t,]

  # Evaluate predicted vs experimental residual
  pred_Monod <- melt(out_Monod, id.var="time", variable.name="Substance", value.name="conc")
  exp_Monod  <- melt(data, id.var="time", variable.name="Substance", value.name="conc")
  residuals  <- pred_Monod$conc - exp_Monod$conc

  # return predicted vs experimental residual
  return(residuals)
}

# initial guess for parameters
parms <- c(k1=0.5, k2=6.5, k3=0.2, k4=1.2)
fitval <- nls.lm(par=parms, fn=residuals)
summary(fitval)

out <- ode(y=cinit, times=seq(min(data$time), max(data$time)), func = Monod, parms=as.list(coef(fitval)))

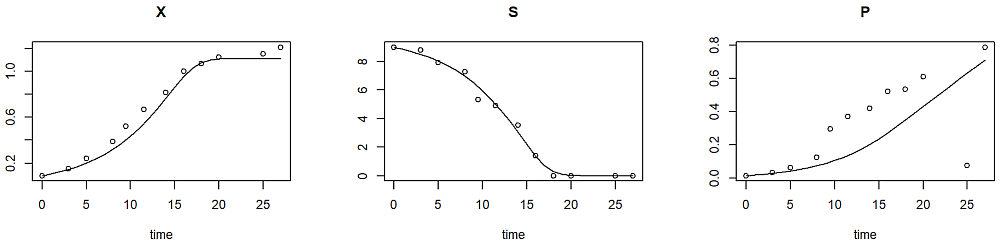

plot(out, obs=data, mfrow=c(1, 3))

​

​
