如何使用nginx.ingress.kubernetes.io/重写-目标:ingress

Question

我在Kubernetes中运行了节点微服务应用程序。

我要https://app.domain.com/vehicle/api/v1/...。一定要去https://app.domain.com/api/v1/...。

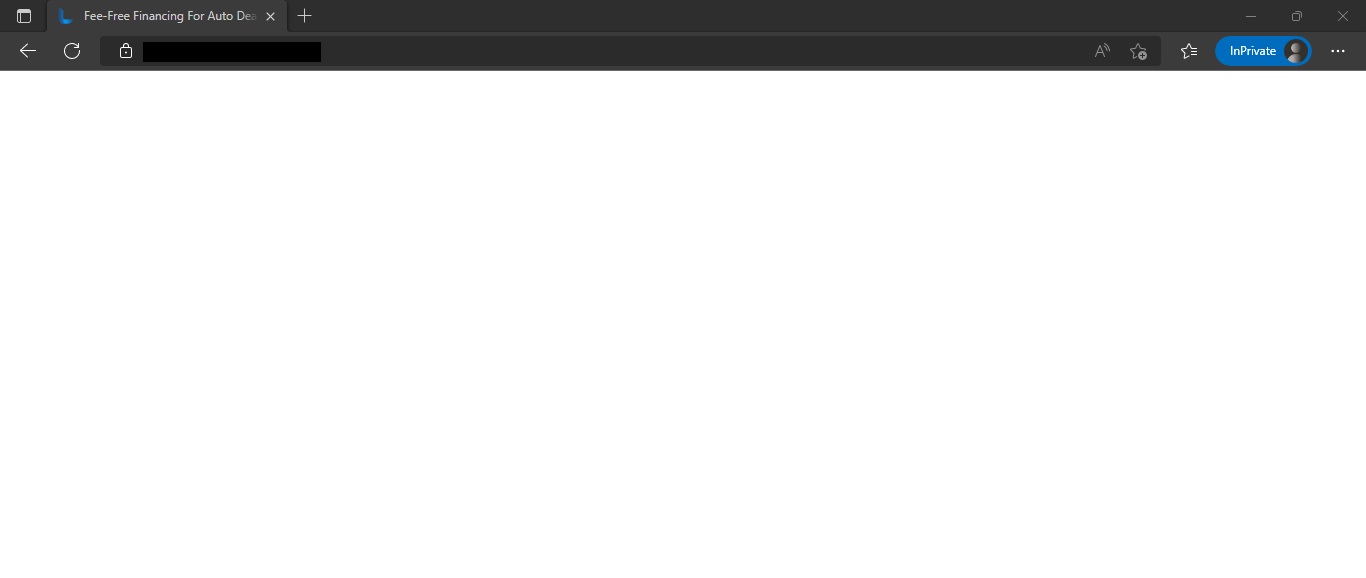

如果我使用重写目标注释，如下面所示，我的主页将变为空白，您可以在这里看到。

​

如果我删除那个注释，那么我的主页就会像预期的那样来了。

这是我的入口带有重写注释的yaml文件

apiVersion: networking.k8s.io/v1
    kind: Ingress
    metadata:
      name: ingress-srv
      annotations:
        kubernetes.io/ingress.class: nginx
        nginx.ingress.kubernetes.io/proxy-body-size: "0"
        nginx.ingress.kubernetes.io/proxy-connect-timeout: "360"
        nginx.ingress.kubernetes.io/proxy-read-timeout: "360"
        nginx.ingress.kubernetes.io/proxy-send-timeout: "360"
        nginx.ingress.kubernetes.io/rewrite-target: /$2
    spec:
      tls:
      - hosts:
        - app.domain.com
        secretName: app-ssl
      defaultBackend:
        service:
          name: app-webapp-service
          port:
            number: 80
      rules:
      - host: app.domain.com
        http:
          paths:
          - path: /vehicle(/|$)(.*)
            pathType: Prefix
            backend:
              service:
                name: app-vehicle-service
                port:
                  number: 5001
           - path: /*
        pathType: Prefix
        backend:
          service:
            name: app-webapp-service
            port:
              number: 80

这是我的Dockerfile for React (前端)，如果需要做任何更改，请建议

FROM node:12.18.3 AS build

ENV CI=false
ENV WDS_SOCKET_PORT=0

WORKDIR /app

COPY ["package.json", "package-lock.json", "./"]

RUN npm install --production

COPY . .

RUN npm run build:development

FROM nginx:alpine

COPY --from=build /app/build /usr/share/nginx/html

COPY --from=build /app/nginx-custom.conf /etc/nginx/conf.d/default.conf

这是我的nginx-custom.conf

server {
  listen 80;
  location / {
    root /usr/share/nginx/html;
    index index.html index.htm;
    try_files $uri $uri/ /index.html =404;
  }
}

如果需要在任何文件中进行任何更改，请建议

Answer 1

您需要编写两个单独的清单，一个用于套接字应用程序，另一个用于基于路径的路由。

1. 我想要https://app.domain.com/vehicle/socket.io/eio....。去https://app.domain.com/socket.io/eio.....

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: ingress-socket
  annotations:
    nginx.ingress.kubernetes.io/server-snippets: |
      location / {
        proxy_set_header Upgrade $http_upgrade;
        proxy_http_version 1.1;
        proxy_set_header X-Forwarded-Host $http_host;
        proxy_set_header X-Forwarded-Proto $scheme;
        proxy_set_header X-Forwarded-For $remote_addr;
        proxy_set_header Host $host;
        proxy_set_header Connection "upgrade";
        proxy_cache_bypass $http_upgrade;
      }
    nginx.ingress.kubernetes.io/use-regex: "true"
    nginx.org/websocket-services: socket-svc-name
    nginx.ingress.kubernetes.io/proxy-connect-timeout: "360"
    nginx.ingress.kubernetes.io/proxy-read-timeout: "360"
    nginx.ingress.kubernetes.io/proxy-send-timeout: "360"
spec:
  ingressClassName: nginx
  rules:
  - host: app.domain.com
    http:
      paths:
      - backend:
          service:
            name: socket-svc-name
            port:
              number: 80
        path: /.*
        pathType: Prefix

注意:在您的LoadBalancer侦听器配置中，必须侦听TCP/80、SSL/443而不是HTTP/80、HTTPS/443和通过LoadBalancer/SSL协议转发请求，而不是HTTP/HTTPS，因为套接字应用程序在WSS协议上运行。

1. https://app.domain.com/vehicle/api/v1/....必须去https://app.domain.com/vehicle/api/v1/....

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: ingress-srv
  annotations:
    nginx.ingress.kubernetes.io/configuration-snippet: |
      more_set_headers "Access-Control-Allow-Origin: *";
    nginx.ingress.kubernetes.io/cors-allow-credentials: "true"
    nginx.ingress.kubernetes.io/cors-allow-methods: PUT, GET, POST, OPTIONS, DELETE, PATCH
    nginx.ingress.kubernetes.io/cors-allow-origin: '*'
    nginx.ingress.kubernetes.io/enable-cors: "true"
    nginx.ingress.kubernetes.io/use-regex: "true"
spec:
  ingressClassName: nginx
  rules:
  - host: app.domain.com
    http:
      paths:
      - backend:
          service:
            name: app-vehicle-service
            port:
              number: 5001
        path: /vehicle/api/v1/.*
        pathType: Prefix
