向海龟展示社区集群的组成

Question

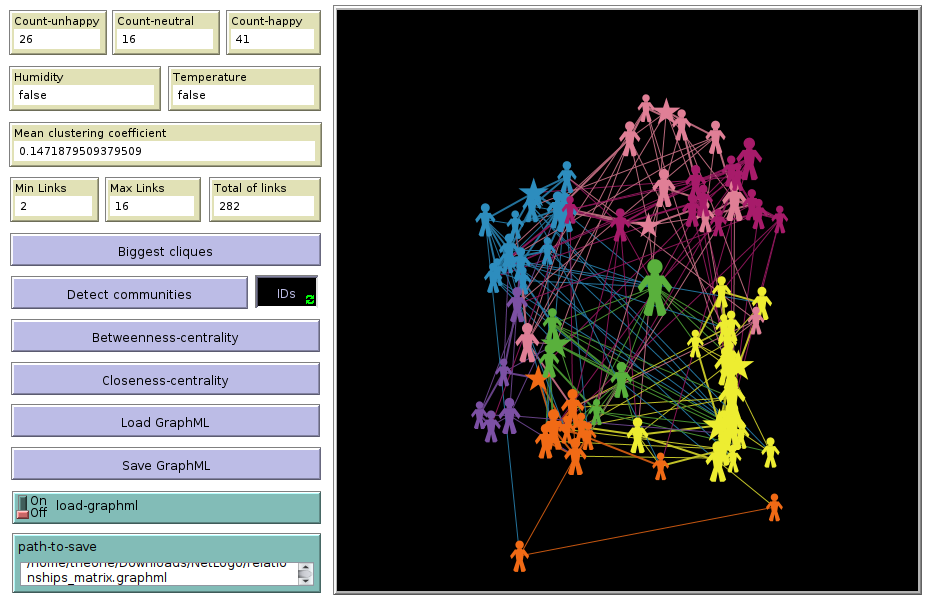

我有以下代码来检测和着色社区：

to community-detection
  nw:set-context turtles links
  color-clusters nw:louvain-communities
end

to color-clusters [ clusters ]
  ; reset all colors
  ask turtles [ set color gray - 3 ]
  ask links [ set color gray - 3 ]
  let n length clusters
  let colors ifelse-value (n <= 12)
    [ n-of n remove gray remove white base-colors ] ;; choose base colors other than white and gray
    [ n-values n [ approximate-hsb (random 255) (255) (100 + random 100) ] ] ; too many colors - pick random ones
    ; loop through the clusters and colors zipped together
    (foreach clusters colors [ [cluster cluster-color] ->
      ask cluster [ ; for each node in the cluster
        ; give the node the color of its cluster
        set color cluster-color
        ; colorize the links from the node to other nodes in the same cluster
        ; link color is slightly darker...
        ask my-links [ set color cluster-color - 1 ]
      ]
    ])
end

我想鼠标点击一个特定的集群，并显示每一只海龟的数量，如果可能的话，浮动不重叠的数字。我用以下代码创建了一个按钮：

to identify-turtles
  nw:set-context turtles links
  if mouse-down? and member? nw:louvain-communities ([who] of turtles) [
      ask turtles [ set label who ]
  ]
end

​

​

但什么都没发生。对如何改进代码有什么建议吗？

这也是可能的，我可以把海龟的数字放在一个显示器，无论什么是更可行的。

甚至是一个观察者命令来获取特定集群中的海龟。

Answer 1

代码的问题是，您只检查鼠标是否已关闭，但不检查鼠标实际指向的位置。为此，您可以使用mouse-xcor和mouse-ycor。我为您编写了这个快速示例代码，在这里我按降序签入：

• ，如果鼠标向下，
• ，如果有一只海龟靠近鼠标
• ，那么海龟离鼠标

最近

从此，您就可以开始发出命令，显示标签，并隐藏自己或网络中所有海龟的标签。

to setup

  ca
  crt 5 [setxy random-xcor random-ycor]

end

to go ;Set as a forever button

  if mouse-down? [inspect-turtle]

end

to inspect-turtle

  ifelse any? turtles with [distancexy mouse-xcor mouse-ycor < 1] [
    ask min-one-of turtles [distancexy mouse-xcor mouse-ycor] [
      set label who
      ask other turtles [set label ""]
    ]
  ] [
    ask turtles [set label ""]
  ]

end
