如何计算核密度函数的概率(例如5%，10%，90%)？

Question

我试图绘制内核密度分布(Gaussian)曲线以及python中两个数据集的直方图图。

但是，在我的脚本中，95% (data1:用红色垂直线标记)和5% (data2:用黑色垂直线标记)的估计非常耗时，例如，我需要测试代码中不同的限制细节解释，其中我需要更改上限，以获得内核密度曲线的95%和5%的概率。

希望有人在这里帮助我，并提出解决这个问题的可能方法，或者用另一种方法来绘制内核密度曲线，以及95%和5%的概率。

谢谢!

我的剧本在这里。

import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
import numpy as np
from sklearn.neighbors import KernelDensity
from scipy import stats
data1 = result['95_24'] # data 1
data2 = result['5_24'] # data 2
def plot_prob_density(data1, data2, x_start1, x_end1):
    fig, (ax1) = plt.subplots(1, 1, figsize=(6,5), sharey=False)

    unit = 1.5
    x = np.linspace(-20, 20, 1000)[:, np.newaxis]

    # Hisogram plot of data
    ax1.hist(data1, bins=np.linspace(-20,20,40), density=True, color='r', alpha=0.4)
    ax1.hist(data2, bins=np.linspace(-20,20,40), density=True, color='k', alpha=0.4)


    # kernel density estimation
    kd_data1 = KernelDensity(kernel='gaussian', bandwidth=1.8).fit(data1)
    kd_data2 = KernelDensity(kernel='gaussian', bandwidth=1.8).fit(data2)

    kd_vals_data1 = np.exp(kd_data1.score_samples(x))
    kd_vals_data2 = np.exp(kd_data2.score_samples(x))

    # density plot
    ax1.plot(x, kd_vals_data1, color='r', label='$Na$', linewidth=2)
    ax1.plot(x, kd_vals_data2, color='k', label='$Λ$', linewidth = 2)

    #  using the function get probability)
    ax1.axvline(x=x_end1,color='red',linestyle='dashed', linewidth = 3, label='$β_{95\%}$')
    ax1.axvline(x=x_start1,color='k',linestyle='dashed', linewidth = 3, label='$β_{5\%}$')


    # Show the plots
    ax1.set_ylabel('Probability density', fontsize=12)
    ax1.set_xlabel('Beta', fontsize=12)
    ax1.set_xlim([-20, 20])
    ax1.set_ylim(0, 0.3)
    ax1.set_yticks([0, 0.1, 0.2, 0.3])
    ax1.set_xticks([-20, 20, -10, 10, 0])

    ax1.legend(fontsize=12, loc='upper left', frameon=False)

    fig.tight_layout()
    gc.collect()
    return kd_data1, kd_data2,

# Calculation of 95% and 5 % for data1 and data2 Kernel density curve


def get_probability(start_value, end_value, eval_points, kd):

    # Number of evaluation points
    N = eval_points
    step = (end_value - start_value) / (N - 1)  # Step size

    x = np.linspace(start_value, end_value, N)[:, np.newaxis]  # Generate values in the range
    kd_vals = np.exp(kd.score_samples(x))  # Get PDF values for each x
    probability = np.sum(kd_vals * step)  # Approximate the integral of the PDF
    return probability.round(4)

data1 = np.array(data1).reshape(-1, 1)
data2 = np.array(data2).reshape(-1, 1)


kd_data1, kd_data2= plot_prob_density(data1, data2, x_start1=-2.2, x_end1=5.3)



# ##############################
print('Beta-95%: {}'
      .format(get_probability(start_value = -20,
                              end_value = 5.3,
                              eval_points = 1000,
                              kd = kd_data1)))
# here, I modify the end-value every time and then see teh output  #value, when it reached to 95% then i took taht values as 95% #confidence, however this is very confsuing, i want to compute this 95% directly and same for 5% probbaility, computed below:
print('Beta-5%: {}\n'
      .format(get_probability(start_value = -20,
                              end_value = -2.2,
                              eval_points = 1000,
                              kd = kd_data2)))
####################################################################

plt.savefig("Ev_test.png")

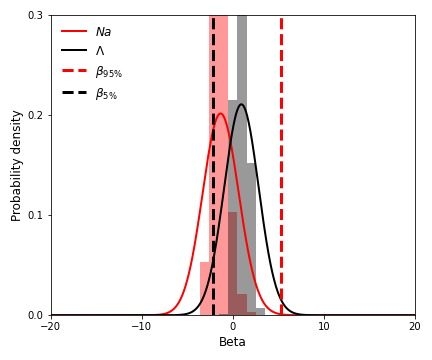

图示也附在这里。直方图和内核密度图及其95%和5%的概率限制，用红色和黑色垂直粗体线突出显示：

​

​

Answer 1

以下是解决这一问题的可能办法。此外，所提议的方法在百分位数计算方面存在错误，因此我建议不要使用该方法：

import matplotlib.pyplot as plt
import numpy as np
from scipy.stats import gaussian_kde
import seaborn as sns
from sklearn.neighbors import KernelDensity
%matplotlib inline
import numpy as np
from scipy import stats
import statsmodels.api as sm
import matplotlib.pyplot as plt
from statsmodels.distributions.mixture_rvs import mixture_rvs
from scipy.stats import norm
import numpy as np



fig = plt.figure(figsize=(4, 4), dpi=300)
ax = fig.add_subplot(111)

# Plot the histogram
ax.hist(data8,bins=20,zorder=1,color="r",density=True,alpha=0.6,)
ax.hist(data7,bins=20,zorder=1,color="black",density=True,alpha=0.6,)

# kde.fit()
kde = sm.nonparametric.KDEUnivariate(data8)
kde1 = sm.nonparametric.KDEUnivariate(data7)

# Plot the KDE for various bandwidths
for bandwidth in [1.8]:
    kde.fit(bw=bandwidth)
    kde1.fit(bw=bandwidth)# Estimate the densities
    ax.plot(kde.support, kde.density,"-",lw=2,color="r",zorder=10, alpha=0.6, label="Data1")
    ax.plot(kde1.support, kde1.density,"-",lw=2,color="black",zorder=10, alpha=0.6, label="Data2")


ax.legend(loc="best")
ax.set_xlim([-20, 40])
ax.set_ylim([0, 0.3])
ax.grid(False)

# Probabilities calculation

quantiles_mesh = np.linspace(0,1,len(kde.density))
fig = plt.figure(figsize=(2, 2), dpi=300)
plt.plot(quantiles_mesh, kde.icdf)

data_1_95=  np.percentile(kde1.icdf, 95)
data_2_5=  np.percentile(kde2.icdf, 5)
ax.axvline(x=data_1_95,color='red',linestyle='dashed', linewidth = 2)
ax.axvline(x=data_2_5,color='k',linestyle='dashed', linewidth = 2)
#plt.savefig("KDE_Plot.png")
