在in图中映射到组中的标号均线

Question

我有每班和一年的密度图。该方法是通过在一个名为mu的df中分组来绘制的。我还添加了垂直参考线，我可以在没有问题的情况下给它们贴上标签，但我似乎无法得到分组垂直线上的标签。你会看到我最近的尝试，它抛出了一个错误：“美学必须是长度1或与数据(134)：X相同。”

我的代码

    library(ggplot2)
    library(dplyr)
    df <- read.csv("f4_bna_no_cup.csv")

    head(df)
  ï..n   yr s     ys      x
1    1 2021 1 2021-1 116.83
2    2 2021 1 2021-1 114.83
3    3 2021 1 2021-1 115.50
4    4 2021 1 2021-1 115.42
5    5 2021 1 2021-1 115.58
6    6 2021 1 2021-1 115.58
#summarize means by ys (year-shift)
    mu <- df %>%
      group_by(ys,s) %>%
      summarise(grp.mean = mean(x))
    mu
    ys    s     grp.mean
  <chr>  <int>    <dbl>
1 2021-1     1     116.
2 2021-2     2     117.
3 2022-1     1     114.
4 2022-2     2     115.

llab<-mu

    shift <- c("Shift 1", "Shift 2")
#density charts on df
    ggplot(data=df, aes(x=x,group =ys, fill = yr, color = yr)) +
    geom_density(alpha = 0.4) +
    scale_x_continuous(limits=c(112,120))+
    geom_vline(aes(xintercept = grp.mean), data = mu, linetype = "dashed", size = 0.5)  +
    geom_text(aes(x=llab$grp.mean, y=.6), label = llab$ys) +   #this throws the error
    geom_vline(aes(xintercept=114.8), linetype="dashed", size=0.5, color = 'green3') +
    geom_text(aes(x=114.8, y=.6), label = "Target", angle = 90, color="black",size=3) +
    geom_vline(aes(xintercept=114.1), linetype="solid", size=0.5, color = 'limegreen') +
    geom_text(aes(x=114.1, y=.55), label = "Potential", angle = 90, color="black",size=3 ) +
    geom_vline(aes(xintercept=113.4), linetype="solid", size=0.5, color = 'firebrick3') +
    geom_text(aes(x=113.4, y=.62), label = "Label wt", angle = 90,
         color="black",size=3, family = "Times New Roman", vjust=0) +
    facet_grid(
    .~s,
    labeller = labeller(
      s = c(`1` = "Shift 1", `2` = "Shift 2")

    ))+

    theme_light()+
    theme(legend.position = "none")

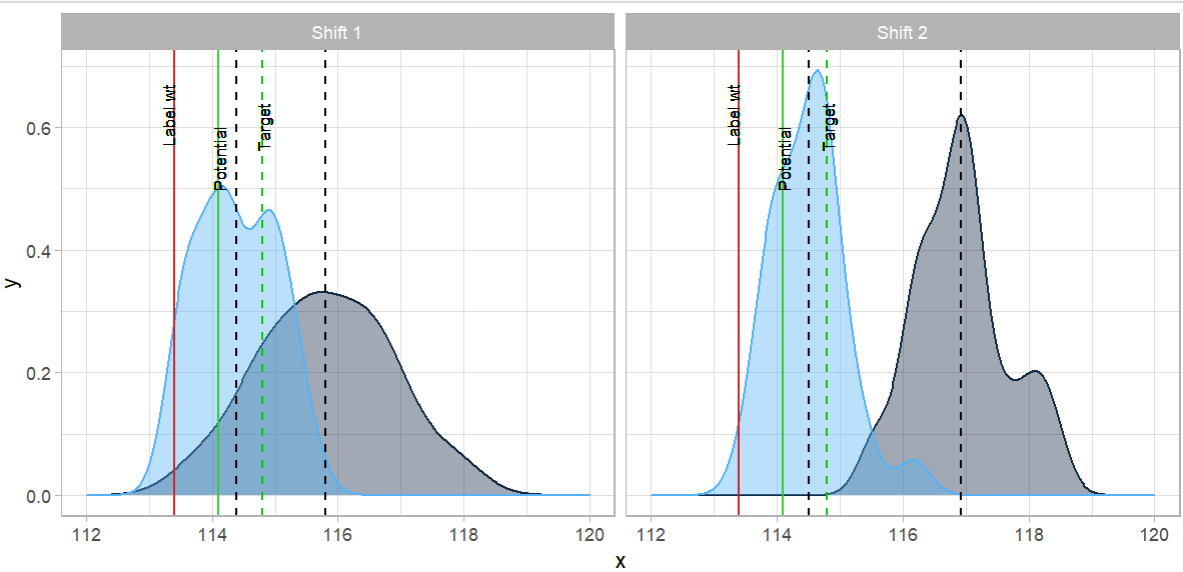

输出到目前为止.我很接近。

​

​

Answer 1

坚持是有回报的。我想，如果其他人有类似的问题，我会分享它:所有代码都与我问题中的代码相同，除了对mu的分组做了轻微的更改，并替换了我注意到的抛出错误的行，如下所示：

#small change to group_by, retaining yr
mu <- df %>%
  group_by(yr,s,ys) %>%
  summarise(grp.mean = mean(x))

将: geom_text(aes(x=llab$grp.mean，y=.6)，label = llab$ys)改为

geom_text(data = mu, aes(label = yr), x = mu$grp.mean, y = .60, color = "black", angle = 90, vjust = 0)
