在R中破解棒棒糖图的联想键

Question

我想用ggplot2中另一列的元素替换列的元素

library(tidyverse)

df1 <- read.table(text =
                    "nbb_RMSE  9 0.2402482
                     mbb_RMSE  9 0.1023012
                     cbb_RMSE  8 0.2031448
                     tmbb_RMSE 4 0.2654746
                     tcbb_RMSE 9 0.4048711")

colnames(df1) <- c("Methods", "lb", "RMSE")

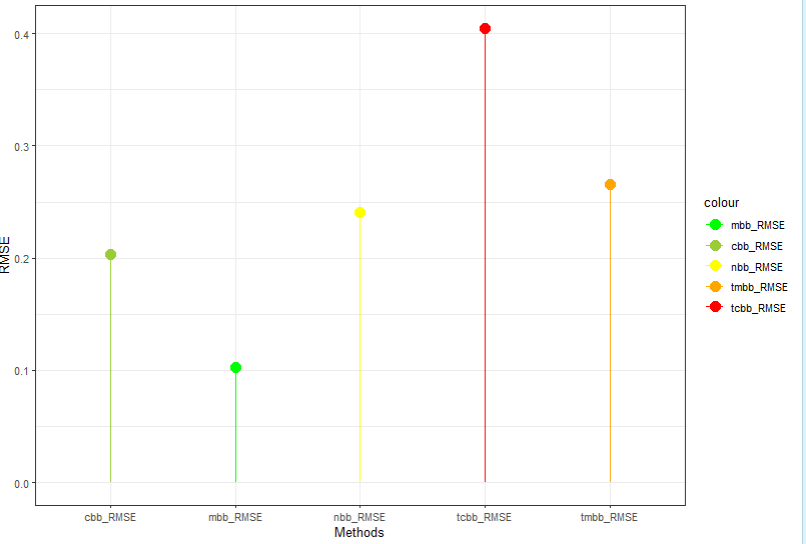

df1 |>
  mutate(colour = fct_reorder(Methods, RMSE)) |>
  ggplot(aes(Methods, RMSE, colour = colour)) +
  geom_point(size = 4) +
  geom_segment(aes(Methods, xend = Methods, yend = RMSE, y = 0)) +
  scale_color_manual(values = c("green", "yellowgreen", "yellow", "orange", "red")) +
  theme_bw()

​

​

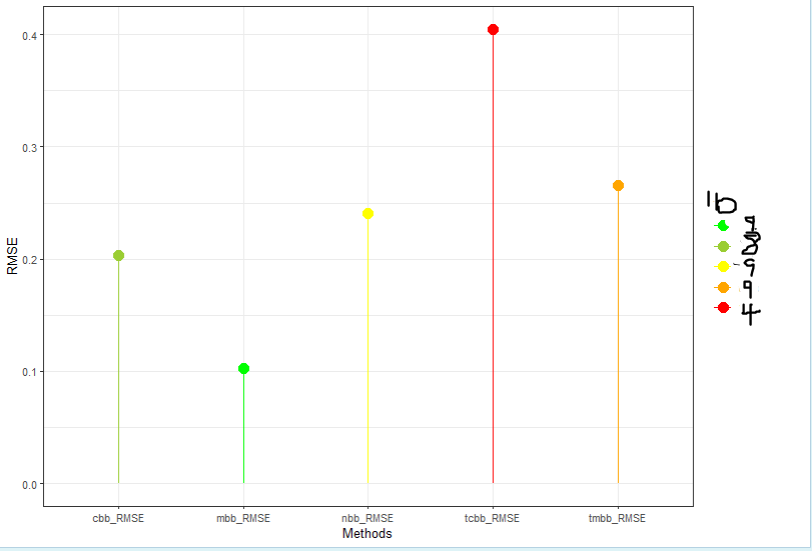

我想要什么

lb列应排列如下:表示最小RMSE的Green对应于lb列中的9，表示RMSE中嵌套高值的yellowgreen对应于lb列中的8，表示RMSE中嵌套高值的yellow对应于lb列中的9，orange在RMSE中代表嵌套高值的RMSE对应于lb列中的4，red在RMSE列中代表巢高值的red对应于D20列中的9。

我希望图例上的标签color更改为数据name中名为lb的列的名称。

这是

​

Answer 1

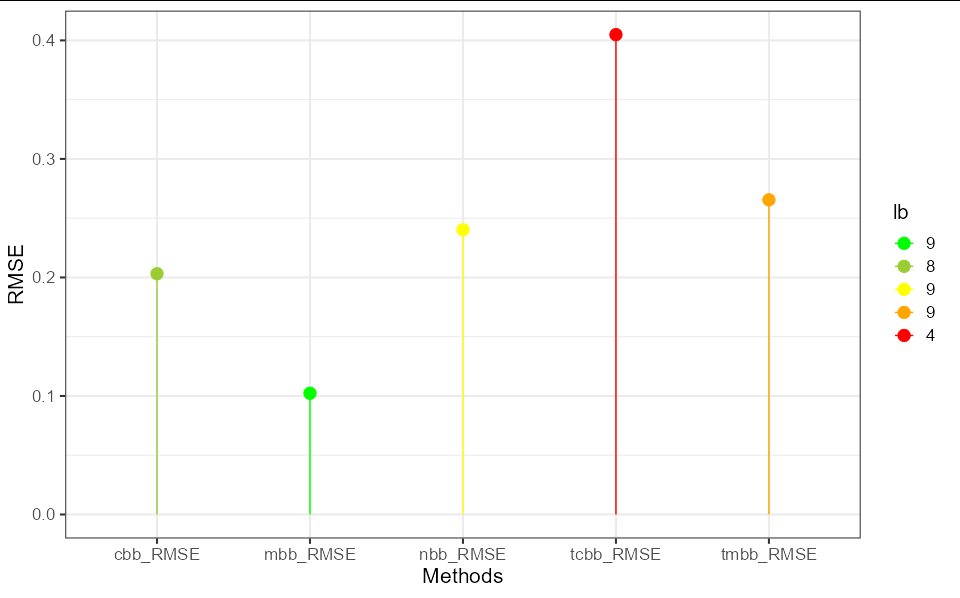

您可以在name和labels参数中使用scale_color_manual

df1 |>
  mutate(colour = fct_reorder(Methods, RMSE)) |>
  ggplot(aes(Methods, RMSE, colour = colour)) +
  geom_point(size = 4) +
  geom_segment(aes(Methods, xend = Methods, yend = RMSE, y = 0)) +
  scale_color_manual(values = c("green", "yellowgreen", "yellow",
                                "orange", "red"),
                     labels = c(9, 8, 9, 9, 4), name = "lb") +
  theme_bw(base_size = 16)

​

​
