R绘制带置信区间的图

Question

我有一个像这样的数据框-

df = data.frame(recall=c(0.55,0.62,0.43,0.61,0.19,0.14,0,0.19,0.33,0.33,0,0.33),
                type= c("Phone numbers","Phone numbers","Phone numbers","Phone numbers","Emails","Emails","Emails","Emails","URLs","URLs","URLs","URLs"),
                model=c("Cognition","TS-SAR","TS-ABINet","TS-RobustScanner",
                        "Cognition","TS-SAR","TS-ABINet","TS-RobustScanner",
                        "Cognition","TS-SAR","TS-ABINet","TS-RobustScanner"),
                lb=c(0.47,0.55,0.35,0.53,
                     0.07,0.04,0,0.07,
                     0.14,0.14,0,0.14),
                ub=c(0.63,0.7,0.51,0.69,
                     0.30,0.24,0,0.3,
                     0.52,0.52,0,0.52))

它由图像ML模型中的4‘文本检测结果组成。recall列根据检测到的文本的type (电话号码、电子邮件或URL)为每个模型提供召回度量值。ub和lb列具有95%置信区间召回的下限值。

目标

我想用R把这个画成一个图。

下面是我使用ggplot2的尝试

pd <- position_dodge(width=0.2)

ggplot(df, aes(model,recall, color=type)) +
  geom_point(aes(shape=type),size=4, position=pd) +
  scale_color_manual(name="Type",values=c("coral","steelblue")) +
  scale_shape_manual(name="Type",values=c(17,19)) +
  theme_bw() +
  scale_x_continuous("Model", breaks=1:length(model), labels=model) +
  scale_y_continuous("Recall values") +
  geom_errorbar(aes(ymin=lb,ymax=ub),width=0.1,position=pd)

然而，这给了我一条错误消息。

check_breaks_labels中的错误(中断，标签)：找不到对象‘模型’

知道为什么这会是个错误吗？此外，如果有人有建议的话，我也愿意使用新的方法来绘制这些数据。谢谢!

Answer 1

您的代码需要一些调整。

首先，ggplot在aes内部只使用非标准的计算，因此在scale_x_continuous中使用model会导致“未找到的model”错误。

其次，x轴不是连续的。是离散的。如果根本不指定x轴比例，那么断线/标签将是正确的。您只需将行取出来，并信任默认值。

第三，type变量有三个级别，因此在颜色和形状尺度上需要三个值。

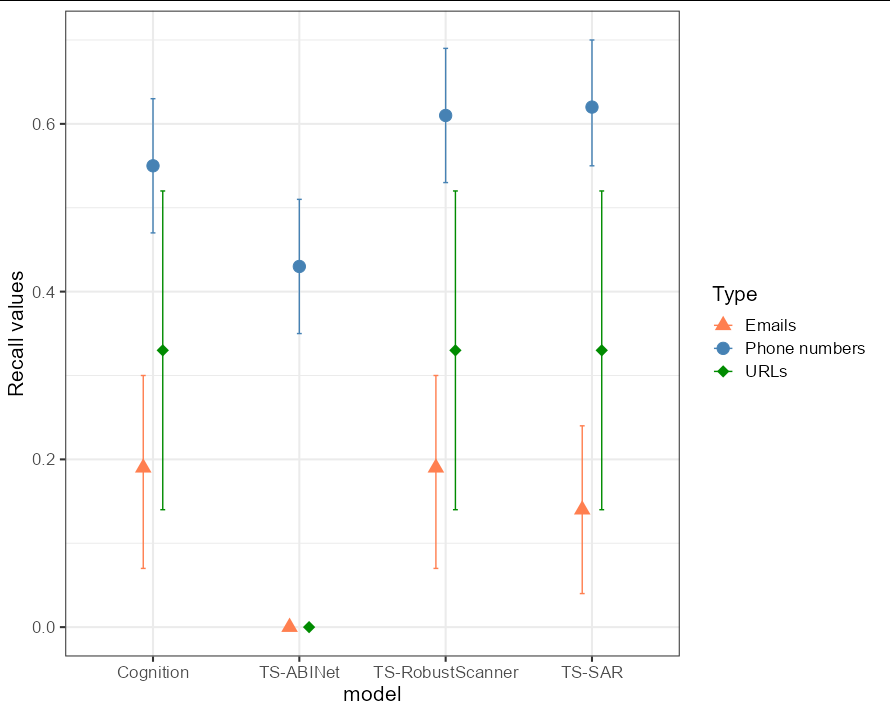

把这些加在一起，我们有：

position <- position_dodge(width = 0.2)

ggplot(df, aes(model, recall, color = type)) +
  geom_point(aes(shape = type), size = 4, position = pd) +
  geom_errorbar(aes(ymin = lb, ymax = ub), width = 0.1, position = pd) +
  scale_color_manual("Type", values = c("coral", "steelblue", "green4")) +
  scale_shape_manual("Type", values = c(17, 19, 18)) +
  scale_y_continuous("Recall values") +
  theme_bw(base_size = 16)

​

​
