VkPipelineInfoEXT不存在

Question

最近，我正在为Vulkan学习一个名为vkguide.dev的教程。

我读过第1章第2部分，名为(https://vkguide.dev/docs/chapter-1/vulkan_init_code/)，本教程使用一个引导库来对Vulkan(https://github.com/charles-lunarg/vk-bootstrap/)进行初始化。

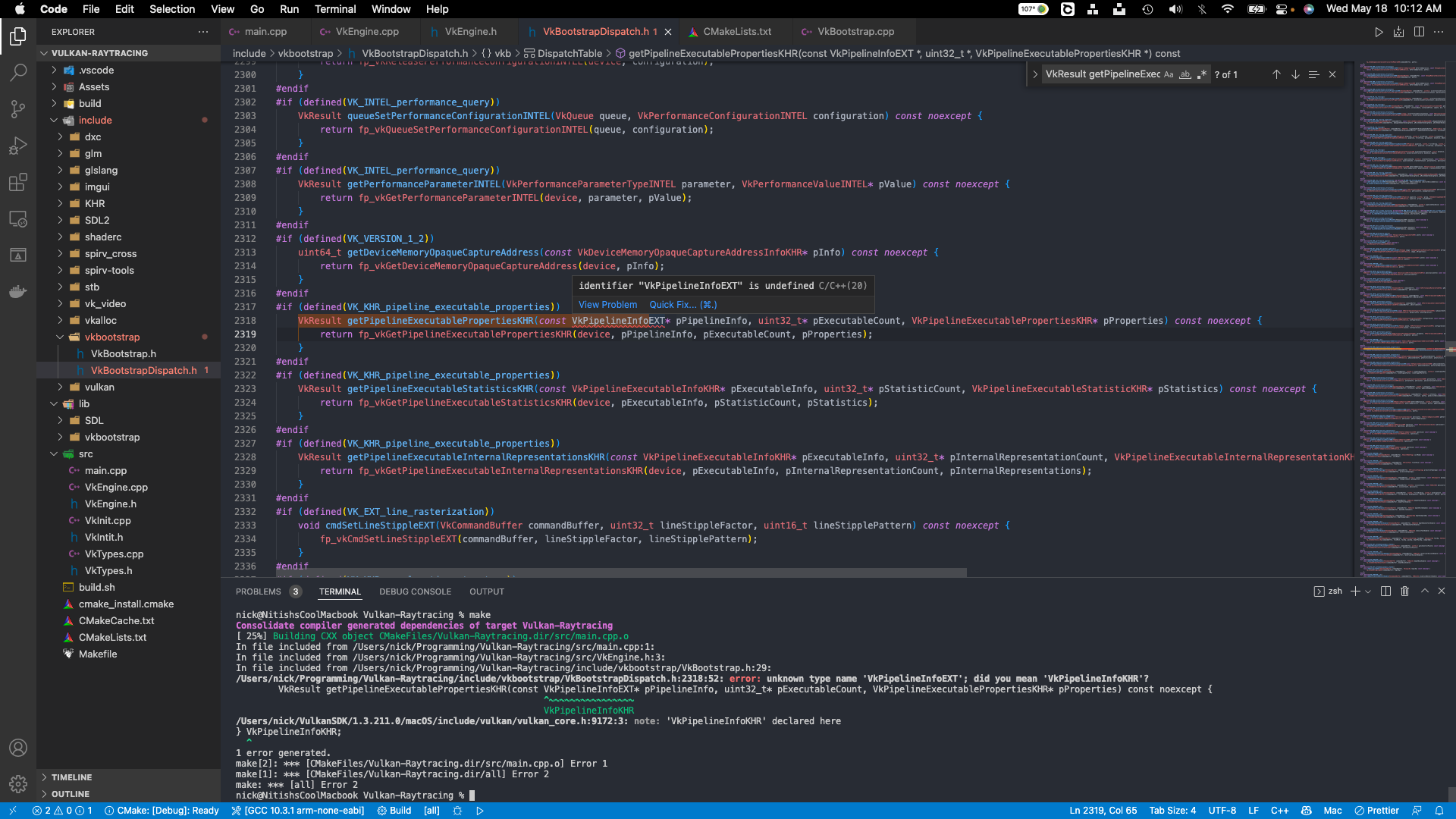

但是，当我在VKBootstrapDispatch.h文件中使用库时，第2318行的clang/cmake抱怨VkPipelineInfoEXT不是有效类型。它建议使用VkPipelineInfoKHR，但是当我切换类型时，我的代码说arm64有未定义的符号，所有这些函数都与库有关。

我在网上找不到任何关于这件事的东西，所以如果你能帮忙的话，那就太好了。我会附上一些截图。

这些错误是：

VkPipelineInfoEXT不存在，VkPipelineInfoKHR工作，但是它说vulkan函数是未定义的符号。

当我用KHR代替EXT时，就是这样说的。

_vkDestroyDevice", referenced from:
  VulkanEngine::Cleanup() in VkEngine.cpp.o

"_vkDestroyImageView", referenced from:
      VulkanEngine::Cleanup() in VkEngine.cpp.o

  "_vkDestroyInstance", referenced from:
  VulkanEngine::Cleanup() in VkEngine.cpp.o

  "_vkDestroySurfaceKHR", referenced from:
  VulkanEngine::Cleanup() in VkEngine.cpp.o

  "_vkDestroySwapchainKHR", referenced from:
  VulkanEngine::Cleanup() in VkEngine.cpp.o
ld: symbol(s) not found for architecture arm64

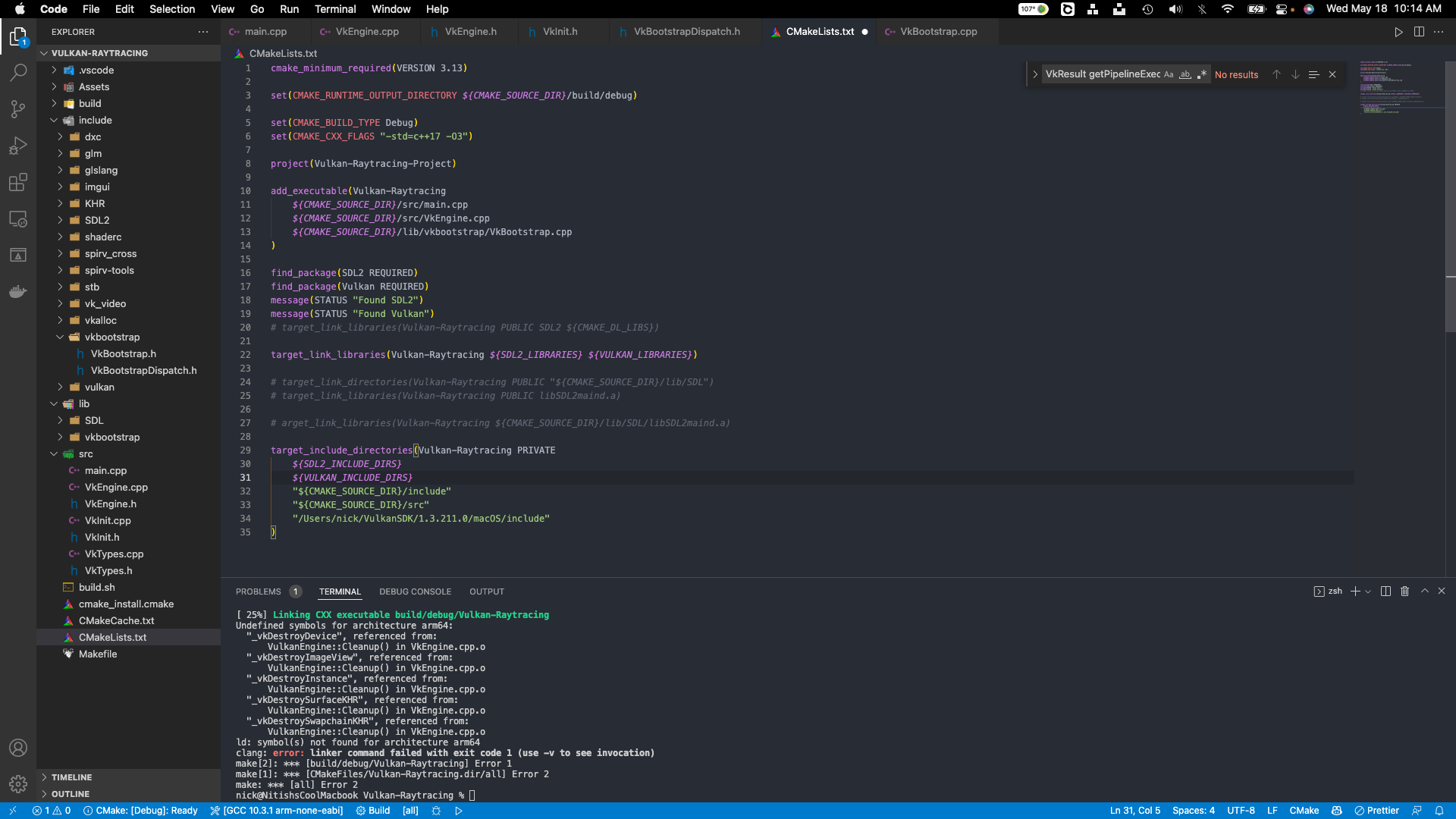

CMakeLists.txt

cmake_minimum_required(VERSION 3.13)

set(CMAKE_RUNTIME_OUTPUT_DIRECTORY)                               CMAKE_SOURCE_DIR}/build/debu

set(CMAKE_BUILD_TYPE Debug)
set(CMAKE_CXX_FLAGS "-std=c++17 -O3")

project(Vulkan-Raytracing-Project)

add_executable(Vulkan-Raytracing
    ${CMAKE_SOURCE_DIR}/src/main.cpp
    ${CMAKE_SOURCE_DIR}/src/VkEngine.cpp
    ${CMAKE_SOURCE_DIR}/lib/vkbootstrap/VkBootstrap.cpp
)

find_package(SDL2 REQUIRED)
find_package(Vulkan REQUIRED)
message(STATUS "Found SDL2")
message(STATUS "Found Vulkan")
# target_link_libraries(Vulkan-Raytracing PUBLIC SDL2         ${CMAKE_DL_LIBS})

target_link_libraries(Vulkan-Raytracing ${SDL2_LIBRARIES}     $    {VULKAN_LIBRARIES})

# target_link_directories(Vulkan-Raytracing PUBLIC     "${CMAKE_SOURCE_DIR}/lib/SDL")
# target_link_libraries(Vulkan-Raytracing PUBLIC libSDL2maind.a)

# target_link_libraries(Vulkan-Raytracing         ${CMAKE_SOURCE_DIR}/lib/SDL/libSDL2maind.a)

target_include_directories(Vulkan-Raytracing PRIVATE
    ${SDL2_INCLUDE_DIRS}
    ${VULKAN_INCLUDE_DIRS}
    "${CMAKE_SOURCE_DIR}/include"
    "${CMAKE_SOURCE_DIR}/src"
    "/Users/nick/VulkanSDK/1.3.211.0/macOS/include"
)

​

​

​

​

​

​

Answer 1

很抱歉回答了我自己的问题，但事实证明Vulkan并没有正确地链接，我还包括了随sdk一起提供的.dylib，并且构建成功了。
