QCustomPlot轴线垂直线

Question

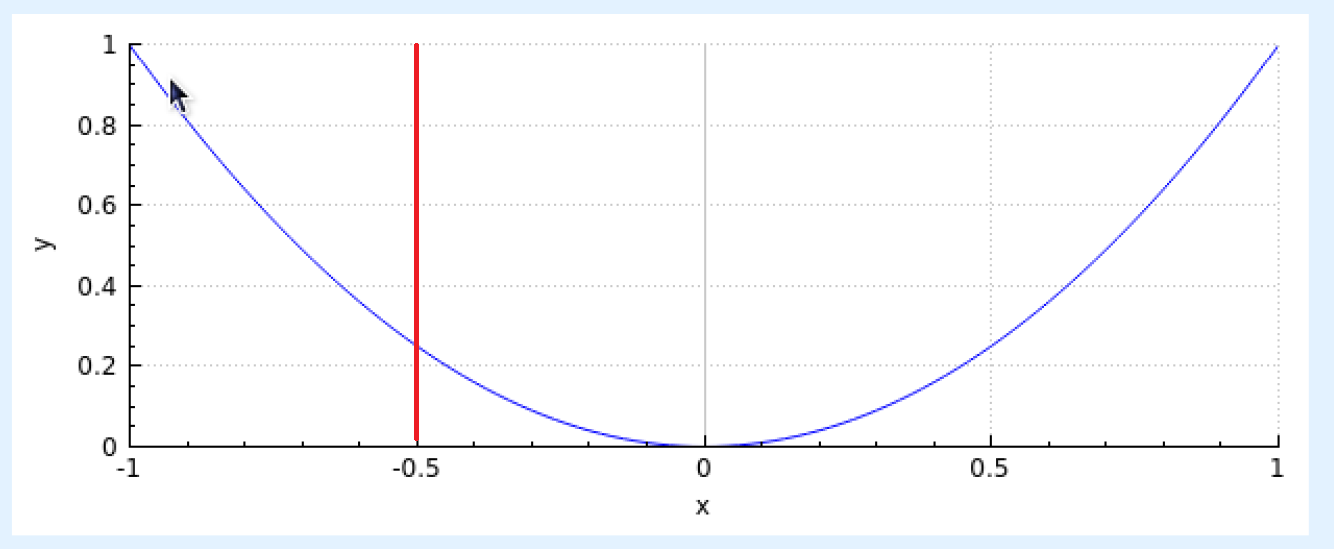

我正在使用Qt工作QCustomPlot，需要更改图形中特定垂直网格线的颜色，请让我们知道我们可以如何更改，我附加了我的需求的图像。

​

​

Answer 1

bleo代码解决了这个问题。

GraphTesting(QCustomPlot * customPlot)
{
    // generate some data:
    QVector<double> x(101), y(101); // initialize with entries 0..100
    for (int i = 0; i < 101; ++i)
    {
        x[i] = i; //i / 50.0 - 1; // x goes from -1 to 1
        y[i] = x[i]/2; // let's plot a quadratic function
    }
    // create graph and assign data to it:


    customPlot->addGraph();
    customPlot->graph(0)->setData(x, y);

    // give the axes some labels:
    customPlot->xAxis->setLabel("x");
    customPlot->yAxis->setLabel("y");
    customPlot->rescaleAxes();

    QCPItemLine *step = new QCPItemLine(customPlot);
    step->setPen(QPen(QColor(140, 0, 0)));

    double begin = 25;
    double first = customPlot->yAxis->range().lower;
    double end = customPlot->yAxis->range().upper;   //example values

    step->start->setCoords(begin, first);
    step->end->setCoords(begin, end);
    customPlot->replot();
}
