在水平框图旁边添加n和分类

Question

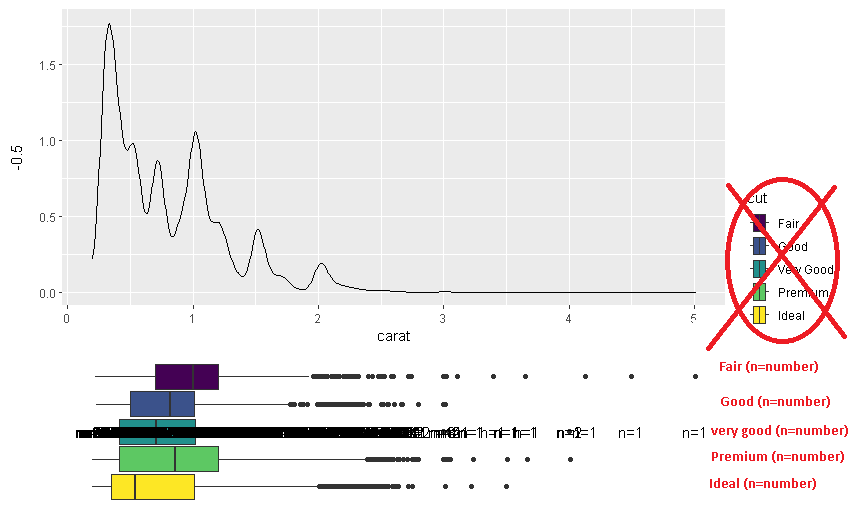

我试图在每个水平框旁边添加n= x和类别，并且stat_n_text()函数有问题。这样，x=n和类别都与方框图对齐。这有什么可改变的吗？我已经包括了一些代码，以发挥周围和图片，我正在努力实现。非常感谢和感谢您的帮助。

library(patchwork)
library(ggplot2)
library(ggstance)
library(EnvStats)


p <- ggplot(diamonds, aes(x = carat, y = -0.5))

p1 <- p + geom_density(aes(x = carat), inherit.aes = FALSE)
p2 <- p + geom_boxploth(aes(fill = cut)) +stat_n_text() +
  theme_classic() +
  theme(axis.text = element_text(color = 'white'),
        axis.title = element_blank(),
        axis.line = element_blank(),
        axis.ticks = element_blank())
p1/p2 + plot_layout(ncol = 1, nrow = 2, heights = c(2, 1),
                    guides = 'collect')

编辑:在删除图例的同时，是否有可能有下面的轴？谢谢!

​

​

Answer 1

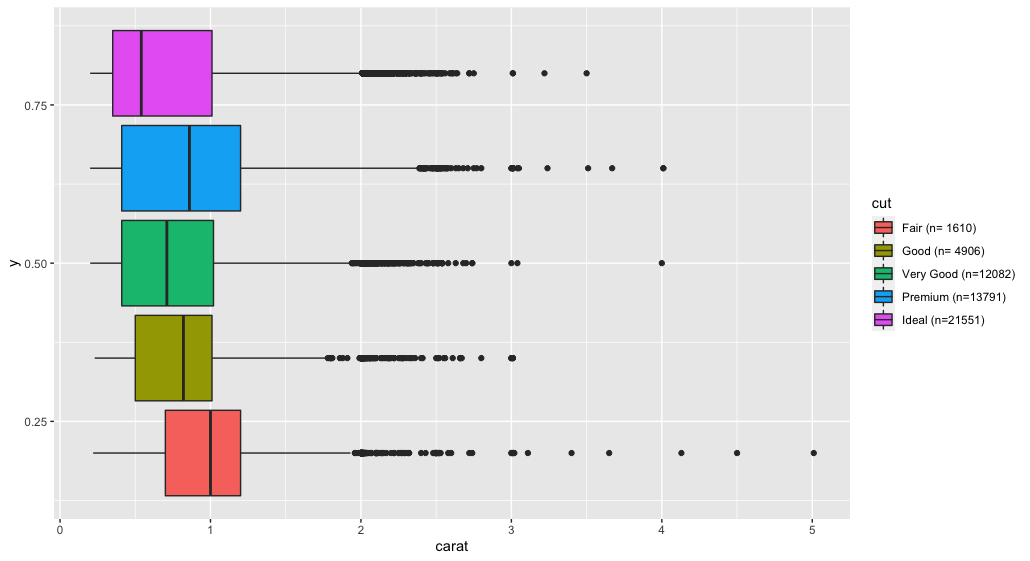

我不认为stat_n_text()是你要找的。一种更简单的方法：

ltext <- diamonds %>%
               group_by(cut) %>%
               summarise(n=n()) %>%
               apply(.,1,function(x) paste0(x[1]," (n=",x[2],")"))
ggplot(diamonds, aes(x=carat, y=0.5)) +
            geom_boxplot(aes(fill=cut)) +
            scale_fill_discrete(labels=ltext)

​

​

Answer 2

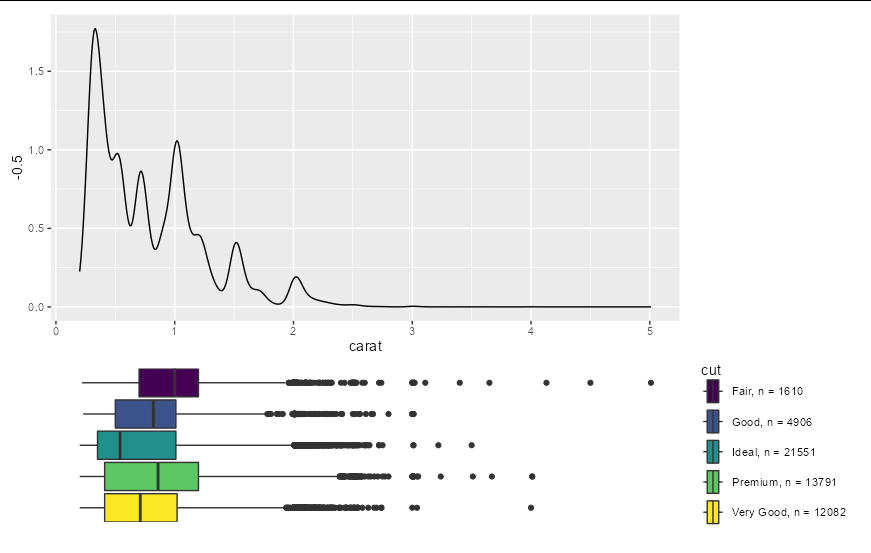

获得所需数字的组合方法如下所示：

library(patchwork)
library(ggplot2)
library(ggstance)
library(EnvStats)

p <- diamonds %>%
  group_by(cut) %>%
  mutate(cut = paste0(cut, ', n = ', n())) %>%
  ggplot(aes(x = carat, y = -0.5))

p1 <- p + geom_density(aes(x = carat), inherit.aes = FALSE)
p2 <- p + geom_boxploth(aes(fill = cut)) +
  theme_classic() +
  scale_fill_viridis_d() +
  scale_y_discrete(expand = c(0, 0)) +
  guides(fill = guide_legend(byrow = TRUE)) +
  theme(axis.text = element_text(color = 'white'),
        axis.title = element_blank(),
        axis.line = element_blank(),
        axis.ticks = element_blank(),
        legend.key.height = unit(8, "mm"),
        legend.spacing.y = unit(0, "mm"))
p1/p2 + plot_layout(ncol = 1, nrow = 2, heights = c(2, 1))

​

​
